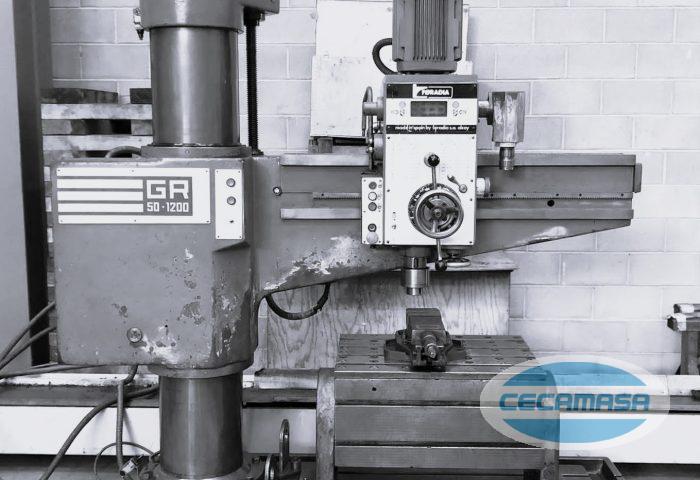

Technical features of the second-hand FORADIA GR 50/1200 radial drill
| Reference: | 193-A005 | |
| Max drilling diameter: | 50 mm | |
| Distance between the spindle axis and column: | Max 1350 mm - Min 435 mm | |
| Horizontal movement of the spindle head: | 1200 mm | |
| Vertical movement of the arm: | 715 mm | |
| Rotation angle of the arm: | 360º | |
| MORSE cone: | 4 | |
| Speed range: | 12, 35 -1460 mm | |
| Spindle travel: | 225 mm | |
| Clamping: | Hydraulic | |
| Main motor power: | 3.5 CV | |
| Approx machine weight: | 2300 Kgs | |
| Machine dimensions: | 1825x780x2650 mm | |
| Equipped with: | ||
| Tilting cube table: | 705x500x525 mm | |
| Hydraulic vice: | Opening 135 mm. Mouth 125 mm. |
Do you need more information about this second-hand FORADIA GR 50/1200 drill?
Contact us and we will inform you without any commitment on this used radial drill FORADIA . Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial equipment: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
Machine available, subject to prior sale.
The data without the obligation, may be changed without notice.
Information
Type: Radial Drills
Brand: FORADIA
Model: GR 50/1200
