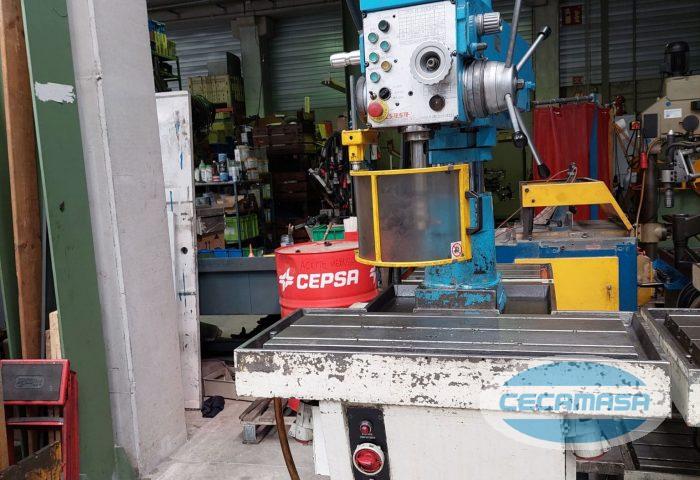

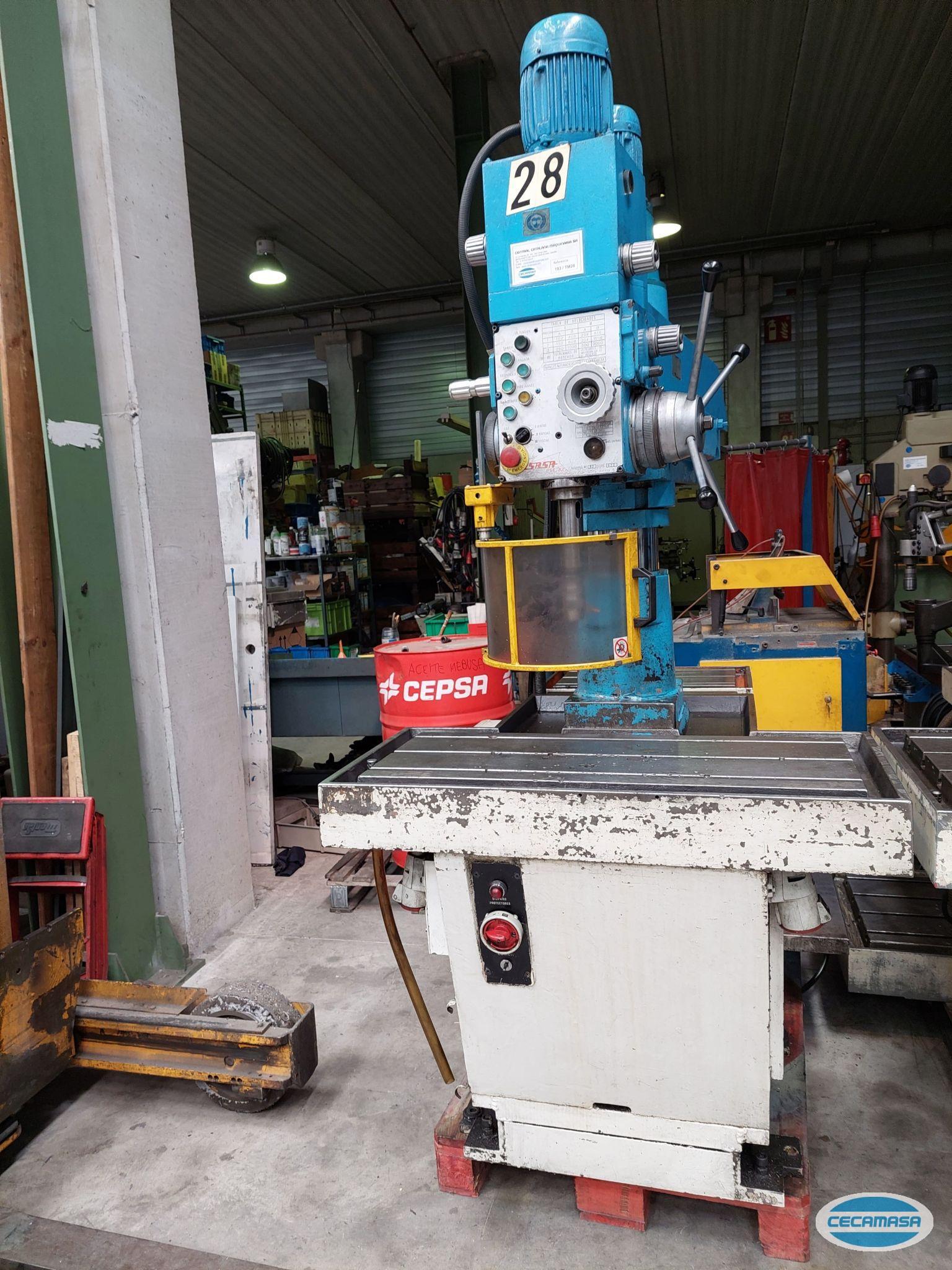

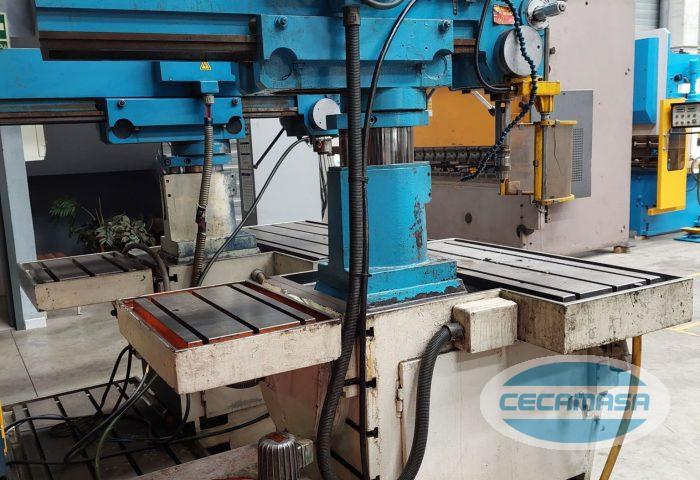

Technical features of the used IRSA RS32-800 radial drill
| Reference: | 193-TM28 | |
| Table: | 1300x650 mm | |
| Spindle taper: | MK4 | |
| Working capacity: | 32 mm | |
| Tapping capacity: | M30 | |
| Spindle stroke: | 150 mm | |
| Column travel: | 1640 mm | |
| Min distance spindle axis -column: | 230 mm | |
| Max distance spindle axis-column: | 1030 mm | |
| Rotation on column: | 360º | |
| Speeds: | 12, from 102 to 2000 rpm | |
| Clamping: | hydraulic | |
| Engine power: | 10 CV | |
| Approx machine weight: | 1.570 Kgs | |
| Equipped with: | ||
| Tilting table: | 600x400 mm | |
| CE standards: | Yes |
Need more information about this second-hand IRSA RS32-800 radial drill?
Contact us and we will inform you without any commitment on this radial drill. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial equipment: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
Machine available, subject to prior sale.
The data without the obligation, may be changed without notice.
Information
Type: Radial Drills
Make: IRSA
Model: RS32-800
