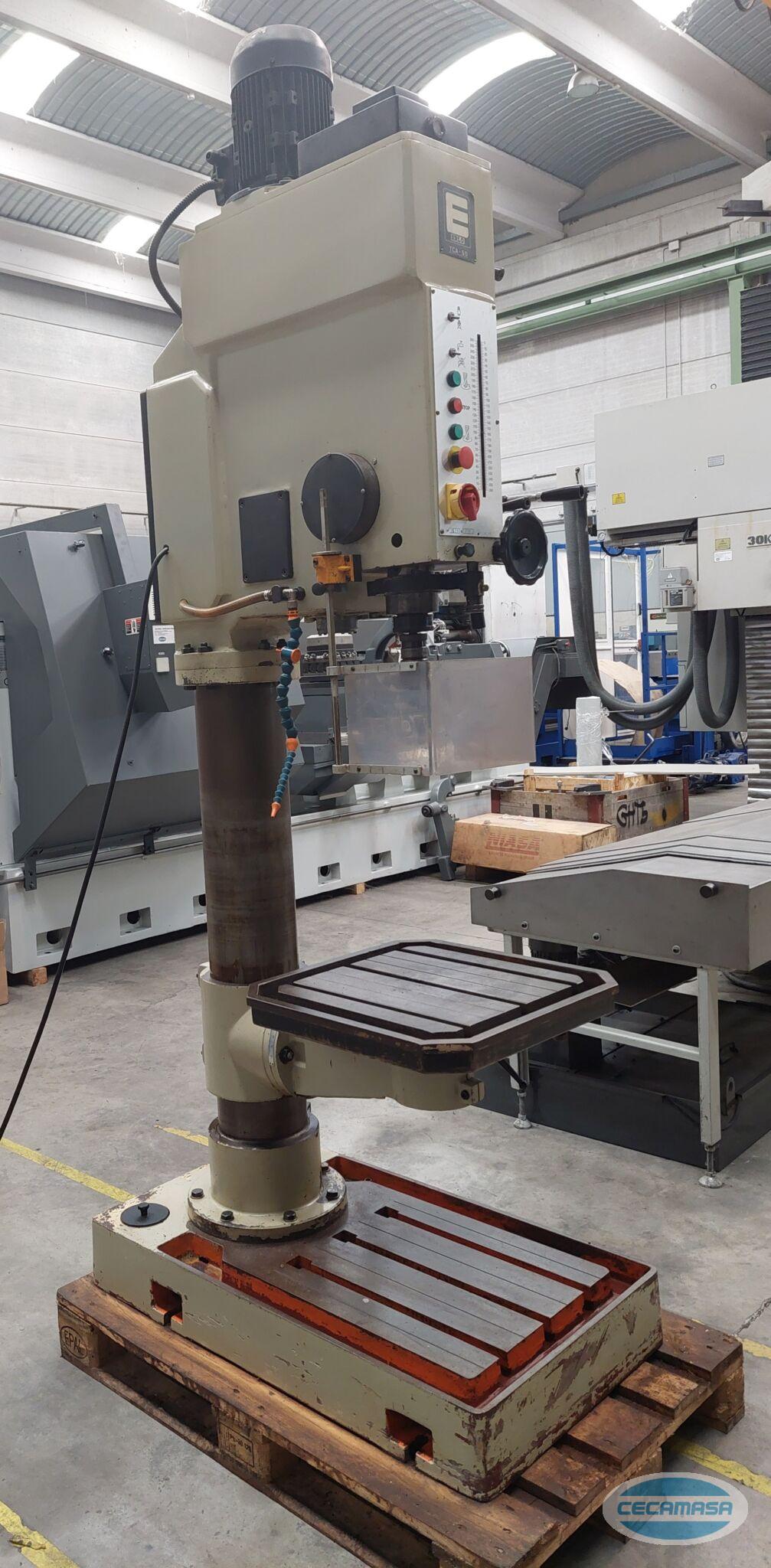

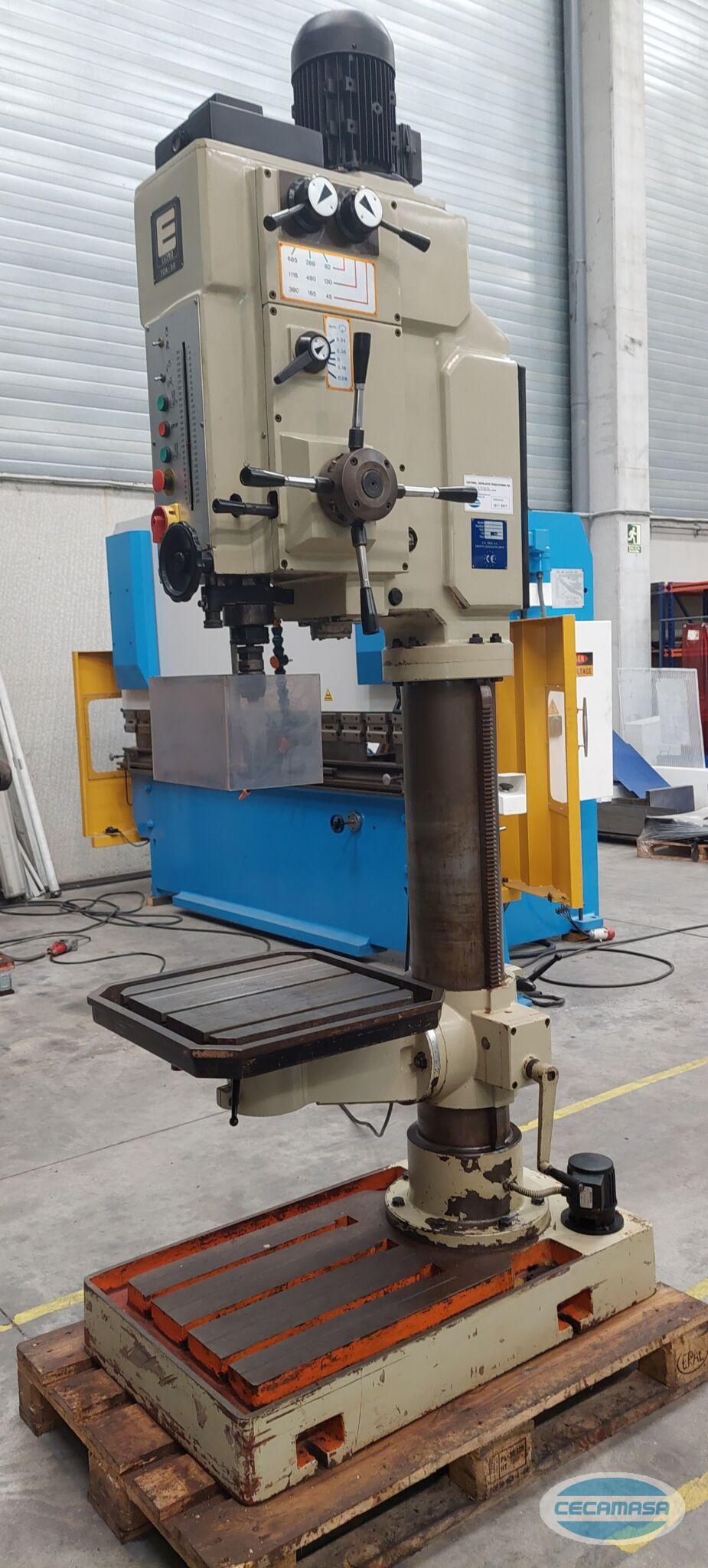

Technical characteristics of the second-hand ERLO TCA-50 column drill
| Reference: | 191-E017 | |
| Table: | 550 x 550 mm | |
| Base dimensions | 600 x 1060 mm | |
| Drill capacity: | 50 mm | |
| Tiltable rotating table: | Yes | |
| Transmission | Gears | |
| Spindle travel | 260 mm | |
| Spindle-column distance | 400 mm | |
| Spindle-table distance (min-max) | 70 - 802 mm | |
| Spindle-base distance | 1290 mm | |
| Column diameter | 200 mm | |
| Speeds: | 9, from 45 up to 1115 | |
| Drilling feeds: | 0,08 - 0,16 - 0,24 - 0,35 mm/rev | |
| Power: | 4 HP | |
| Main engine speed | 1500 rpm | |
| Approximate weight of the machine | 900 kg | |
| machine dimensions | 1200 x 600 x 2600 mm | |
| Equipped with: | ||
| Automatic advance | ||
| Cutting oil pump | ||
| CE standards |
Do you need more information about this second-hand ERLO TCA-50 column drill?
Contact us and we will inform you without any commitment on this used ERLO drill. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial equipment: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
Machine available, subject to prior sale.
The data without the obligation, may be changed without notice.
Information
Type: Drills
Brand: ERLO
Model: TCA-50
