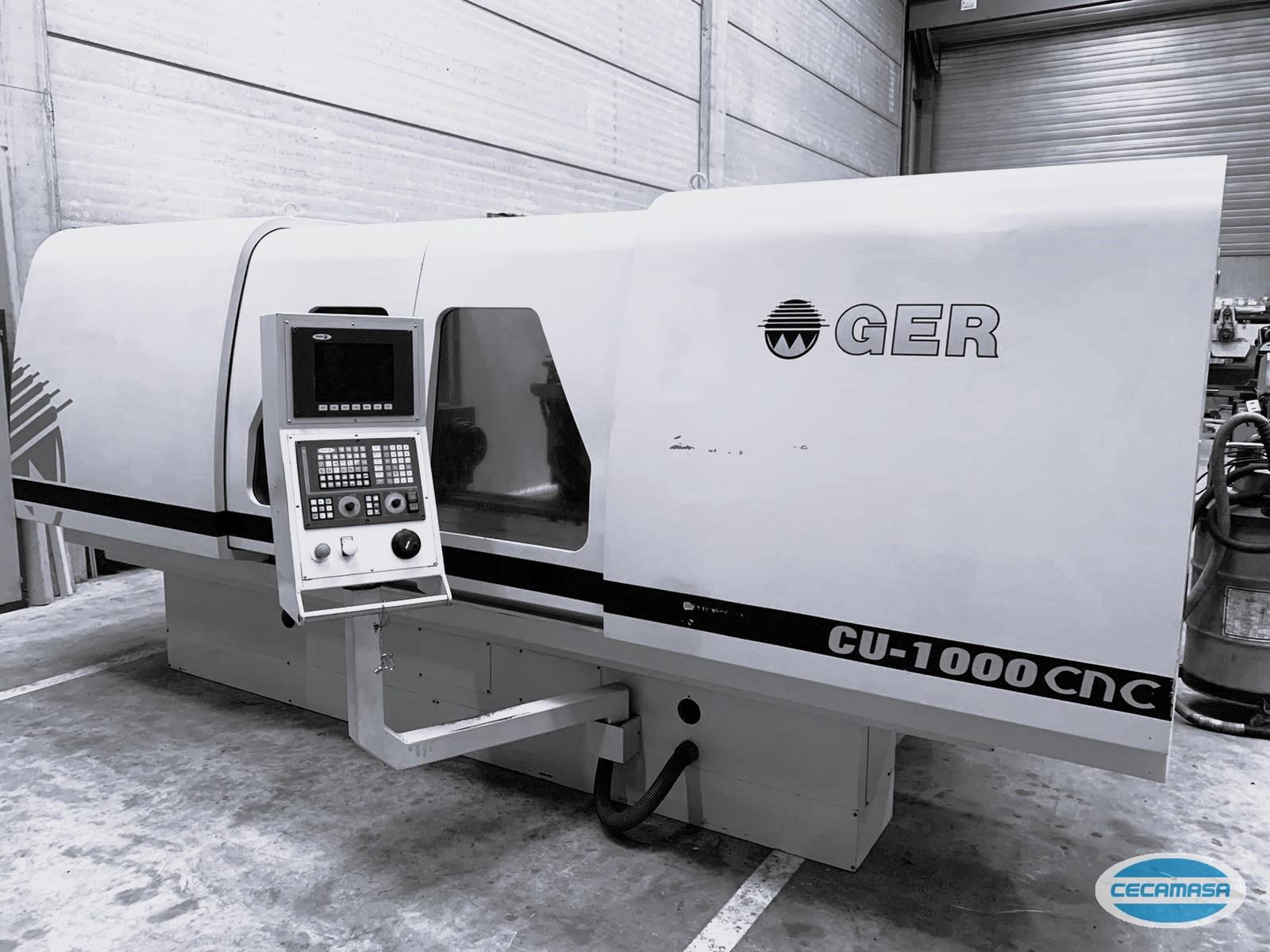

Technical features of the used GER CU 1000 CNC universal grinder
Reference: | 161-Y004 | |
Distance between centers: | 1000 mm | |
Centers' height: | 180 mm | |
Max grinding diameter: | 450 mm | |
X-axis travel: | 350 mm | |
X-axis speed: | 0,01/1500 mm/min | |
Z-axis travel: | 1300 mm | |
Z-axis speed: | 0,01/1500 mm/min | |
Grinding wheel dimensions: | Ø 500x80x203 mm | |
Grinding wheel power: | 7.5 kw | |
Approx machine weight: | 6500 Kgs | |
Machine dimensions: | 4600x2400x2050 mm | |
Year: | 2008 | |
Equipped with: | ||
Numerical Control: | FAGOR 8055 | |
Head for internal grindings | ||
Grinding wheel balancer | ||
Paper filter with magnetic band | ||
Several sets of wheels and drag drivers |
Need more information about this second-hand GER CU 1000 CNC universal grinder?
Contact us and we will inform you without any commitment on this GER CU 1000 CNC universal grinder . If you wish, you can visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, conventional lathes, CNC lathes, machining centers, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
Machine available, subject to prior sale.
The data without the obligation, may be changed without notice.
Information
Type: Grinders
Brand: GER
Model: CU 1000 CNC
