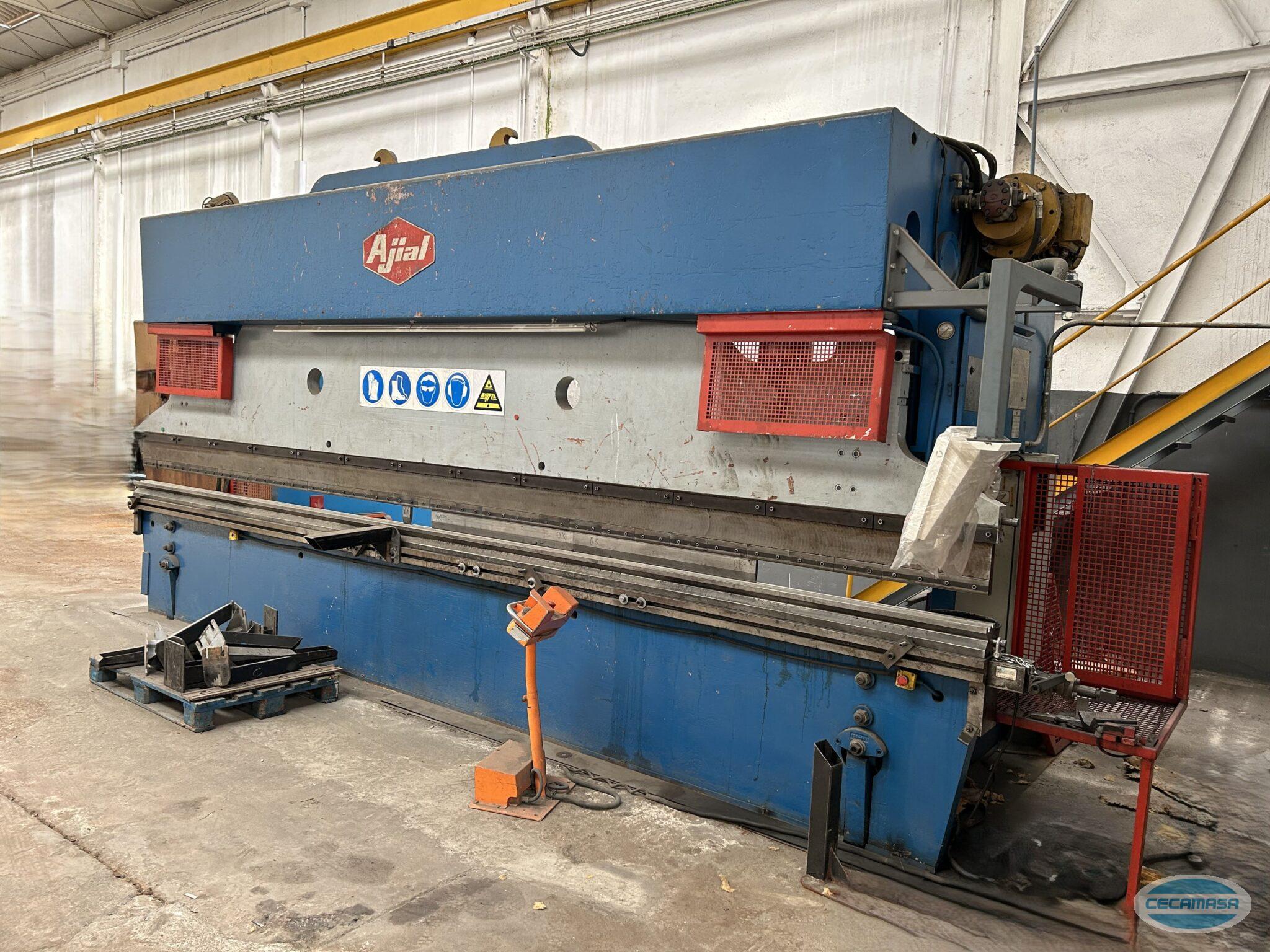

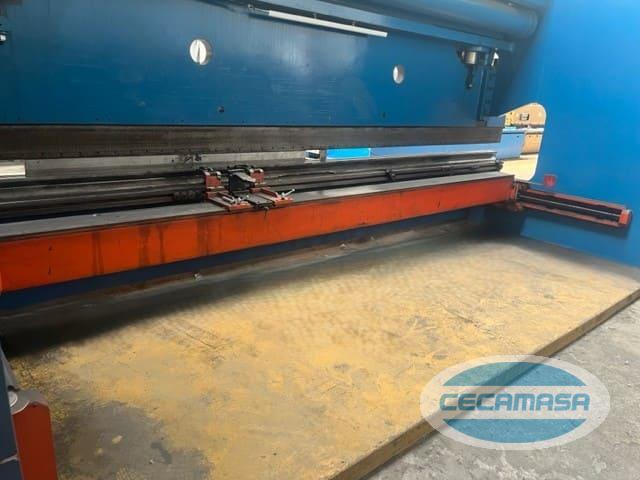

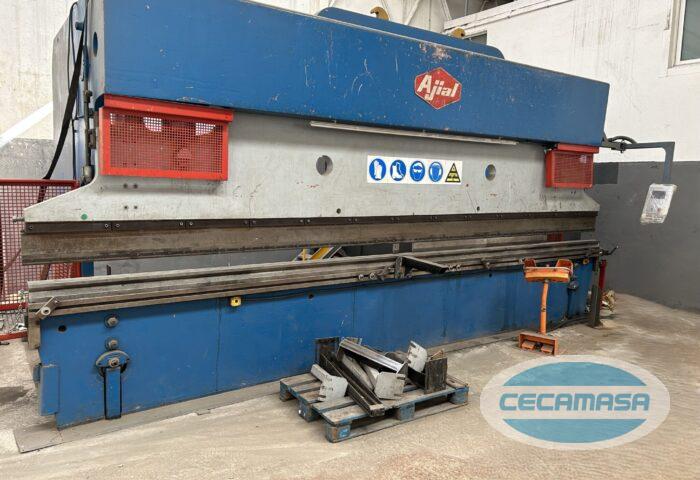

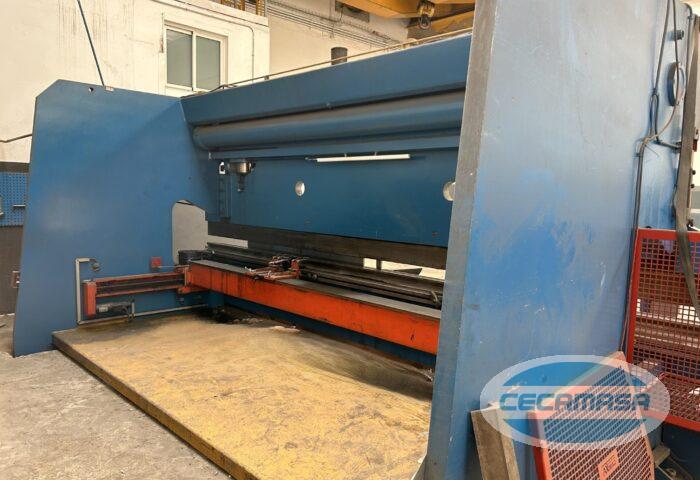

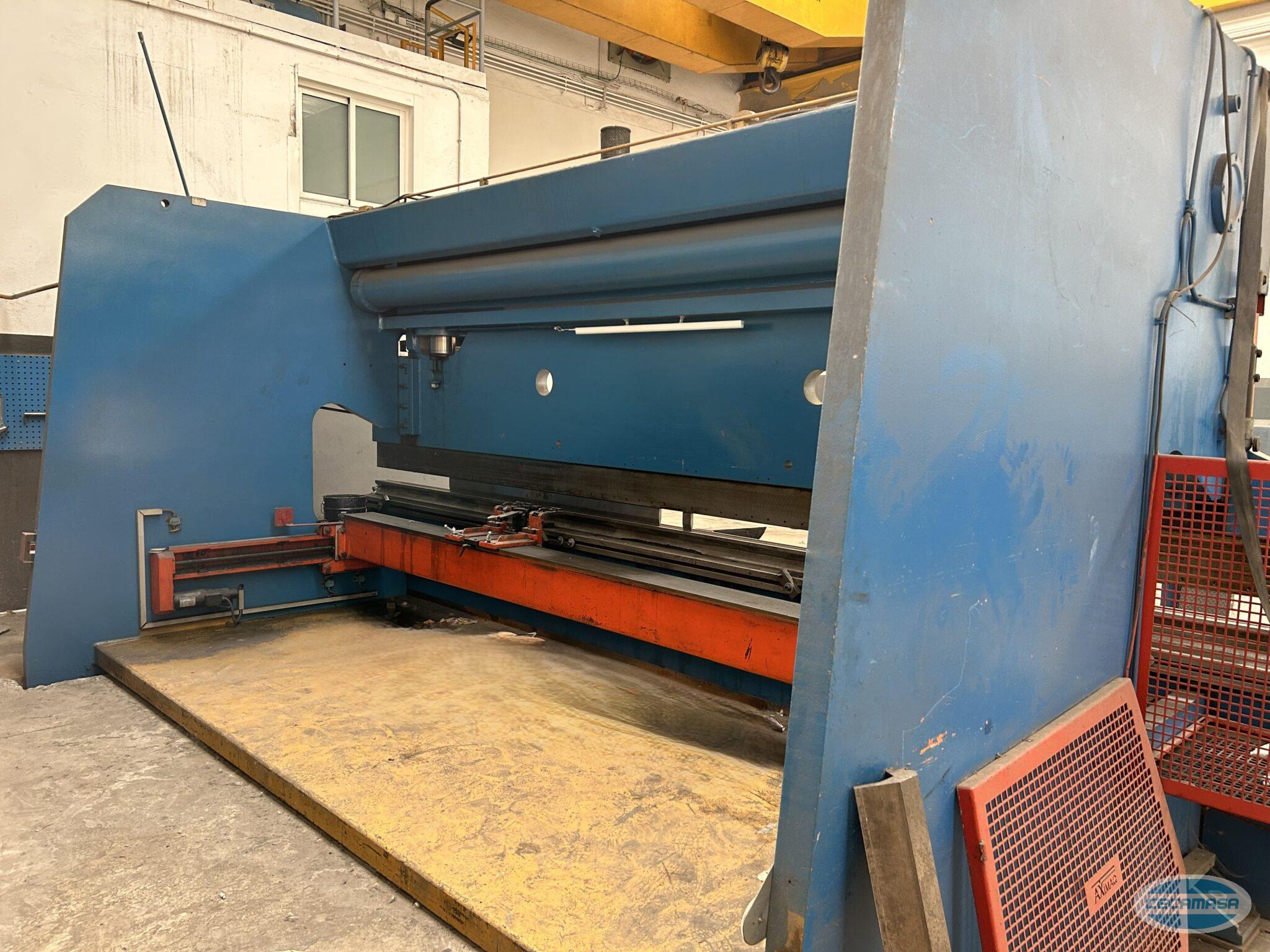

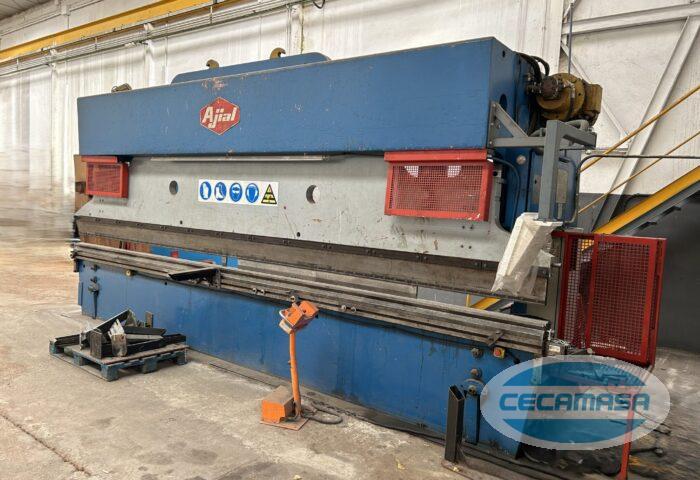

Technical characteristics of the second-hand AJIAL 2414 hydraulic press brake
| Reference: | 130/B035 | |
| Pressing force: | 240 Tn | |
| Working length: | 6050 mm | |
| Distance between frames: | 5100 mm | |
| Recoil force: | 38 Tn | |
| Adjustable stroke: | 7-250 mm | |
| Backgauge travel: | 1000 mm | |
| Throat depth: | 800 mm | |
| Table width: | 240 mm | |
| Distance table-ram: | 50 mm | |
| Approach speed: | 50 mm/sec | |
| Working speed: | 7.5 mm/sec | |
| Return speed: | 47 mm/sec | |
| Engine power: | 25 cv | |
| Oil tank capacity: | 400 l | |
| Approx machine weight: | 29500 Kgs | |
| Machine site: | 6200x1690x2950 mm | |
| Equipped with: | ||
| Numerical Control: | CYBELEC CYBTOUCH 8 (2 axes - X,Y) | |
| Compensation table: | manual | |
| Pressure control: | from CYBELEC control | |
| 3 arms: | in the backgauge | |
| Mouth die: | 112x112 mm | |
| CE standards: | yes |
Do you need more information about this second-hand AJIAL 2414 hydraulic press brake?
Contact us and we will inform you without any commitment on this AJIAL hydraulic press brake. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial equipment: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
Machine available, subject to prior sale.
The data without the obligation, may be changed without notice.
Information
Type: Press brakes
Make: AJIAL
Model: 2414
