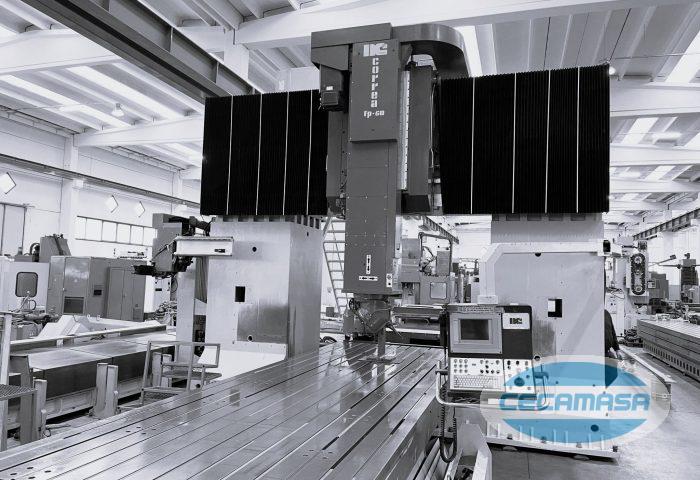

Information on this second-hand NICOLAS CORREA FP-50/60 bridge milling machine
CECAMASA, currently, has several bridge milling machines in stock available for sale. They are second-hand bridge milling machines from the prestigious Spanish brand CORREA. Among these second-hand milling machines, the CORREA FP50 / 60 bridge milling machine stands out, which is in a perfect working condition.
This is a second-hand milling machine which is very well-equipped. It has an automatic head, tool changer and smoke extraction system. This CORREA milling machine has been used above all to work plastics, for this reason the machine has never suffered excessive part load weights. A very important aspect of this milling machine is the distance between columns, which is 2,700 mm. It is a very versatile used milling machine for large dies, dies and parts in general. It has the following routes: 6000 mm longitudinally, 3250mm transversely and 1000 mm vertically. Therefore, it is a large milling machine.
Technical features of the used NICOLAS CORREA FP-50/60 bridge milling machine
| Reference: | 073-Z009 | |
| Table dimensions: | 6000 x 2000 mm | |
| Max weight on table: | 30.000 kgs | |
| X-axis traverse: | 6.000 mm | |
| Y-axis traverse: | 3.250 mm | |
| Z-axis traverse: | 1,000 mm | |
| Distance between columns: | 2.700 mm | |
| Milling head model: | Automatic 2.5º-2.5º | |
| Spindle taper: | ISO-50 | |
| Spindle speed: | 3.000 r.p.m. | |
| Spindle power: | 37 kw | |
| Feedrate: | 2-7.000 mm/min | |
| Rapid traverses: | 7.200-12.000 mm/min | |
| Machine weight: | 61.500 kgs | |
| Machine dimensions: | 15765x5225x4870 mm | |
| Equipped with: | ||
| Control: | HEIDENHAIN 530 | |
| ATC Tool Charger: | 30 tools | |
| Internal coolant supply: | High pressure pump - 25 bars | |
| Aspiration system: | Yes | |
| Full enclosure: | Yes |
Do you need more information about this second-hand NICOLAS CORREA FP-50/60 bridge milling machine?
Contact us and we will inform you without any commitment on this NICOLAS CORREA FP-50/60 bridge milling machine. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial equipment: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: Bridge milling machines
Make: NICOLAS CORREA
Model: FP-50/60
