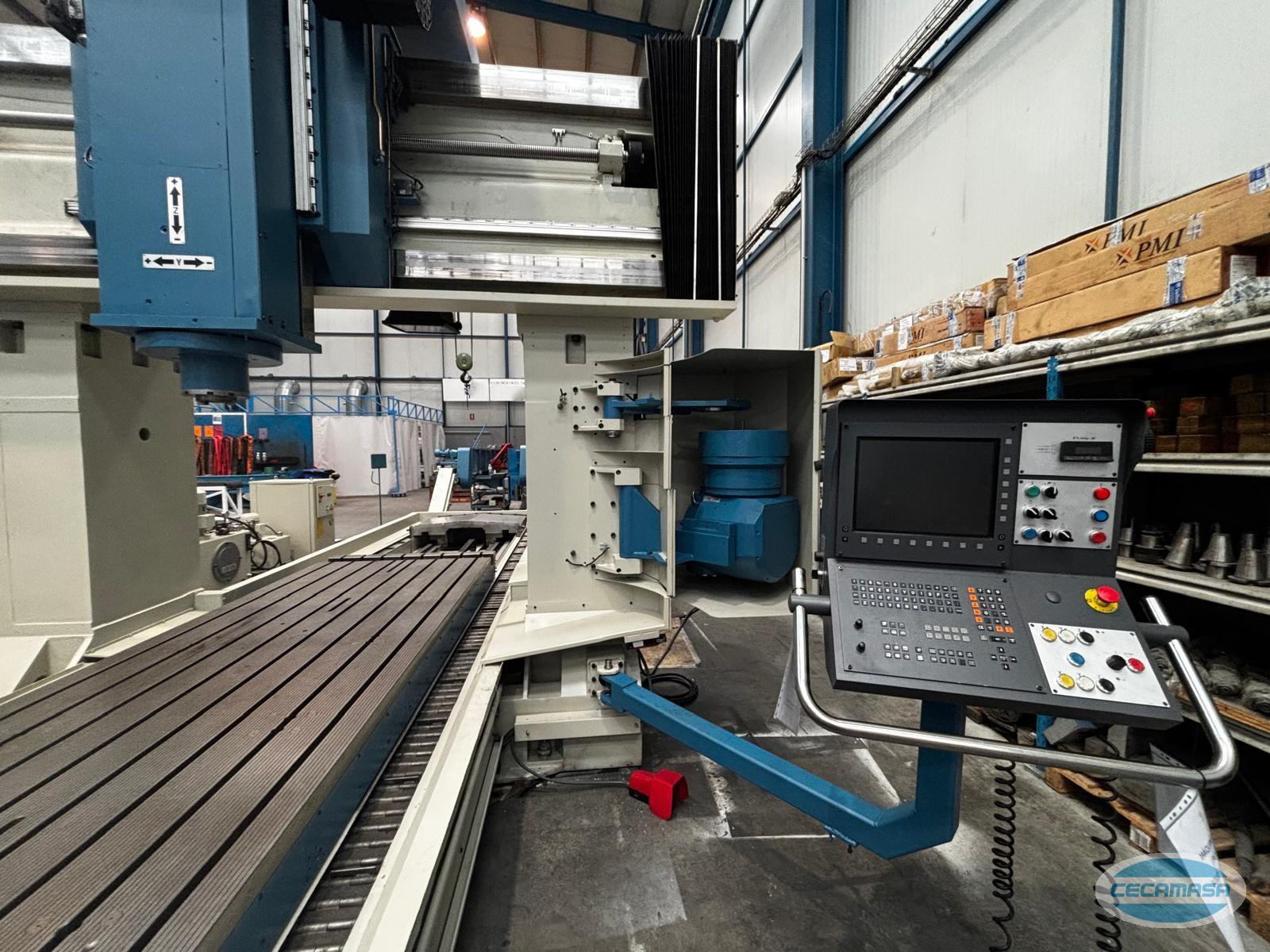

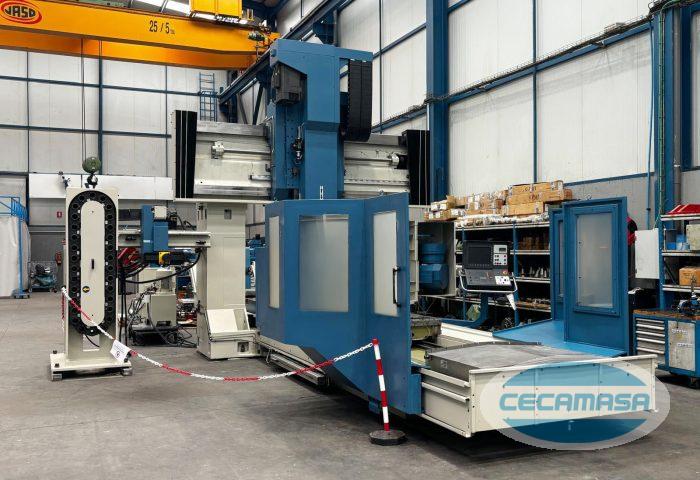

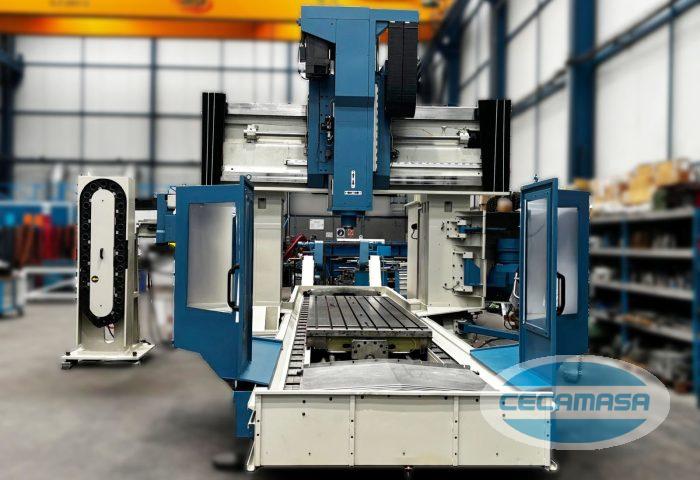

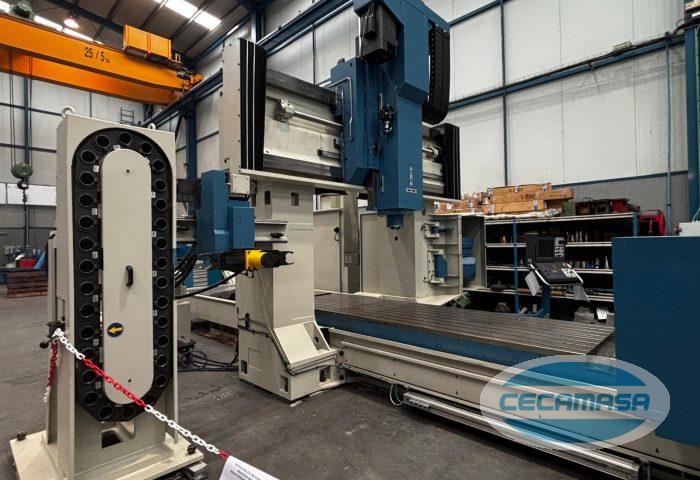

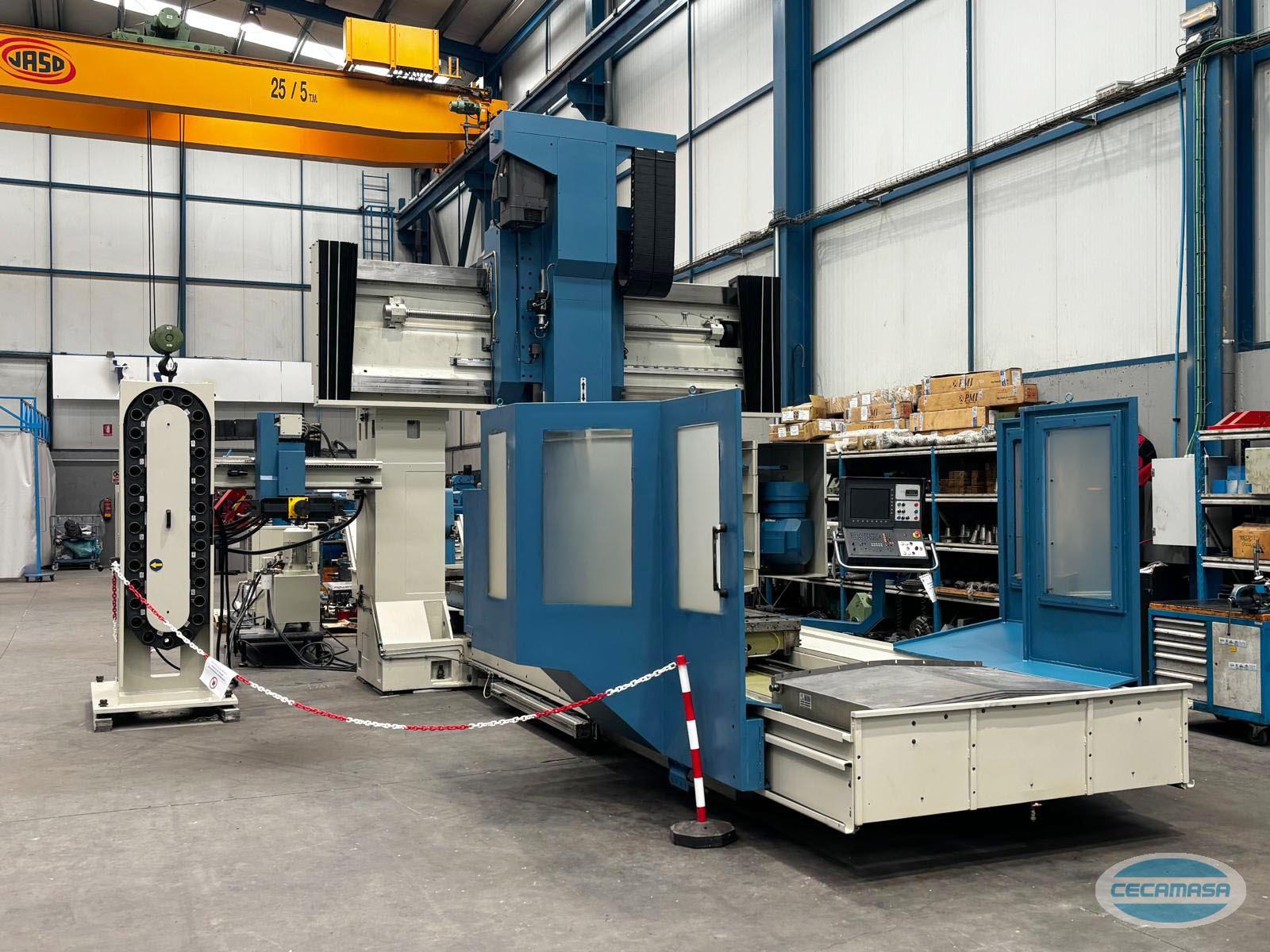

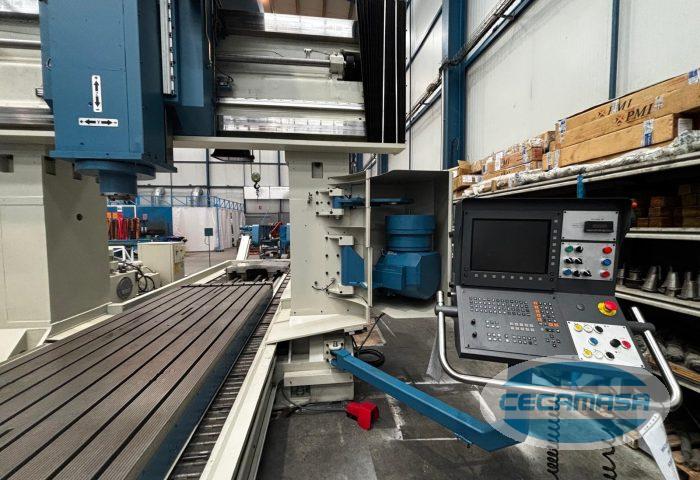

Technical characteristics of the second-hand CORREA FP40-40S bridge milling machine
Reference: | 073-TM76 | |
Table dimensions: | 4500x1250 mm | |
Maximum weight on table: | 10.000 kgs | |
X-axis traverse: | 4000 mm | |
Y-axis traverse: | 2500 mm | |
Z-axis traverse: | 1200 mm | |
Distance between columns: | 2040 mm | |

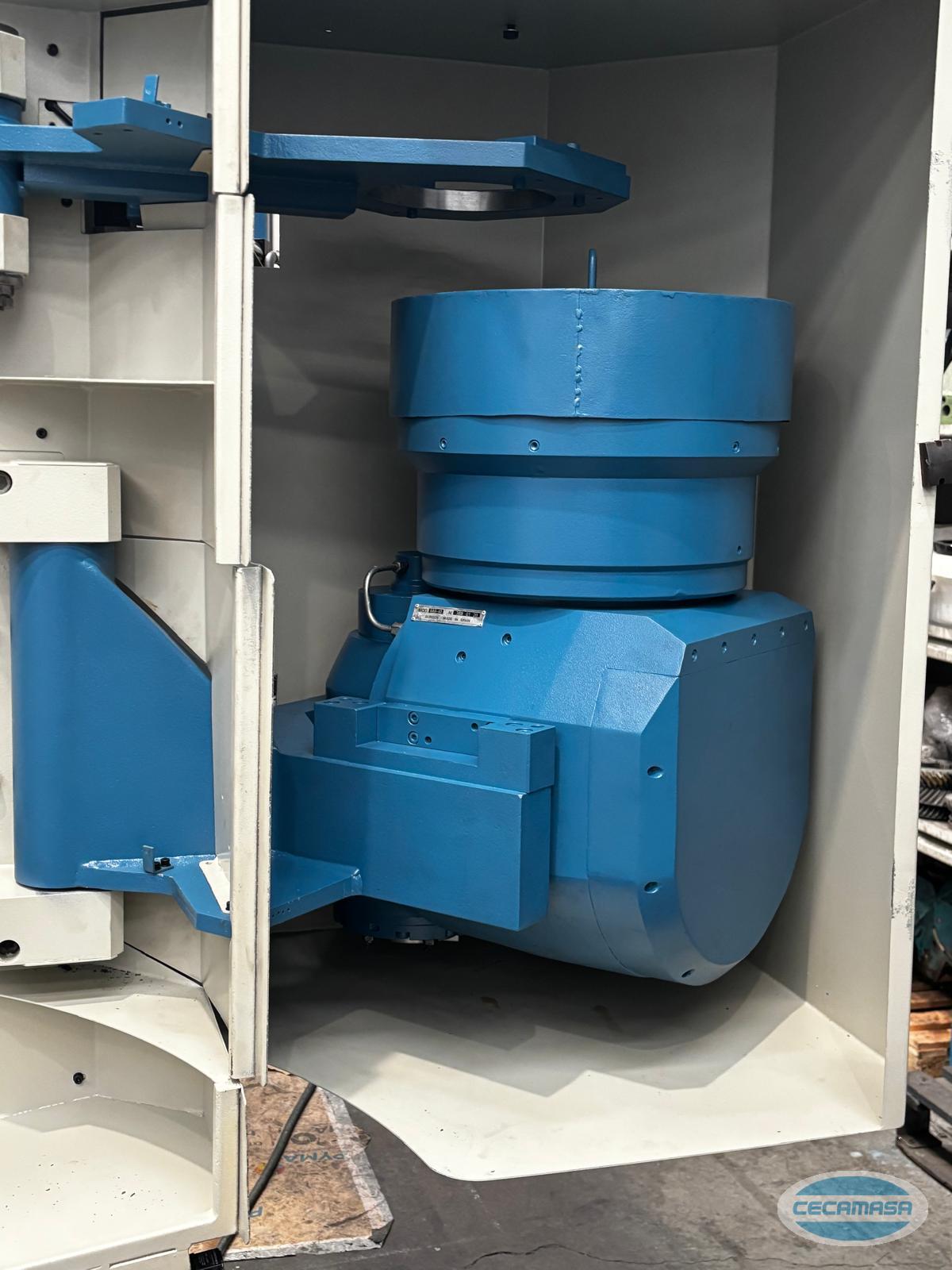

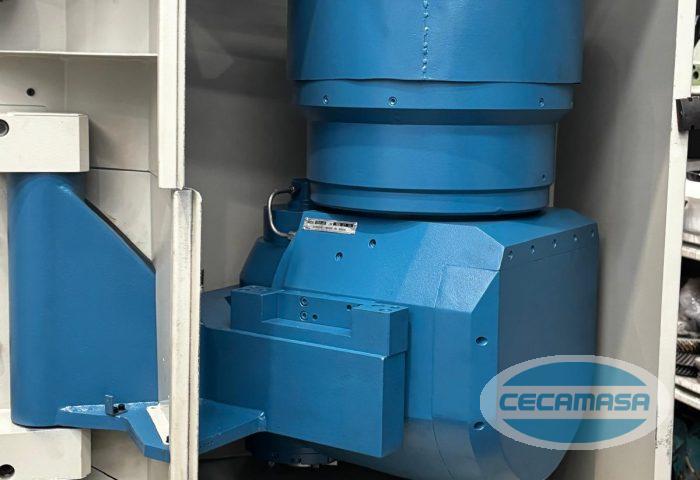

Heads: | Automatic UAG 2.5º (3000 rpm) Direct output (5000 rpm) | |
Spindle taper: | ISO-50 | |
Speed range: | 5000 rpm | |
Clamping: | hydraulic | |
Spindle power: | 30 kw | |
Feedrate: | 2-7500 mm/min | |
Rapid traverse (X-Y,Z): | 15000 m/min - 12000 mm/min | |
Approx machine weight: | 30.500 kgs | |
Machine dimensions: | 10975x4170x4645 mm | |
Year: | 2000 (Retrofit 2016) | |
Equipped with: | ||

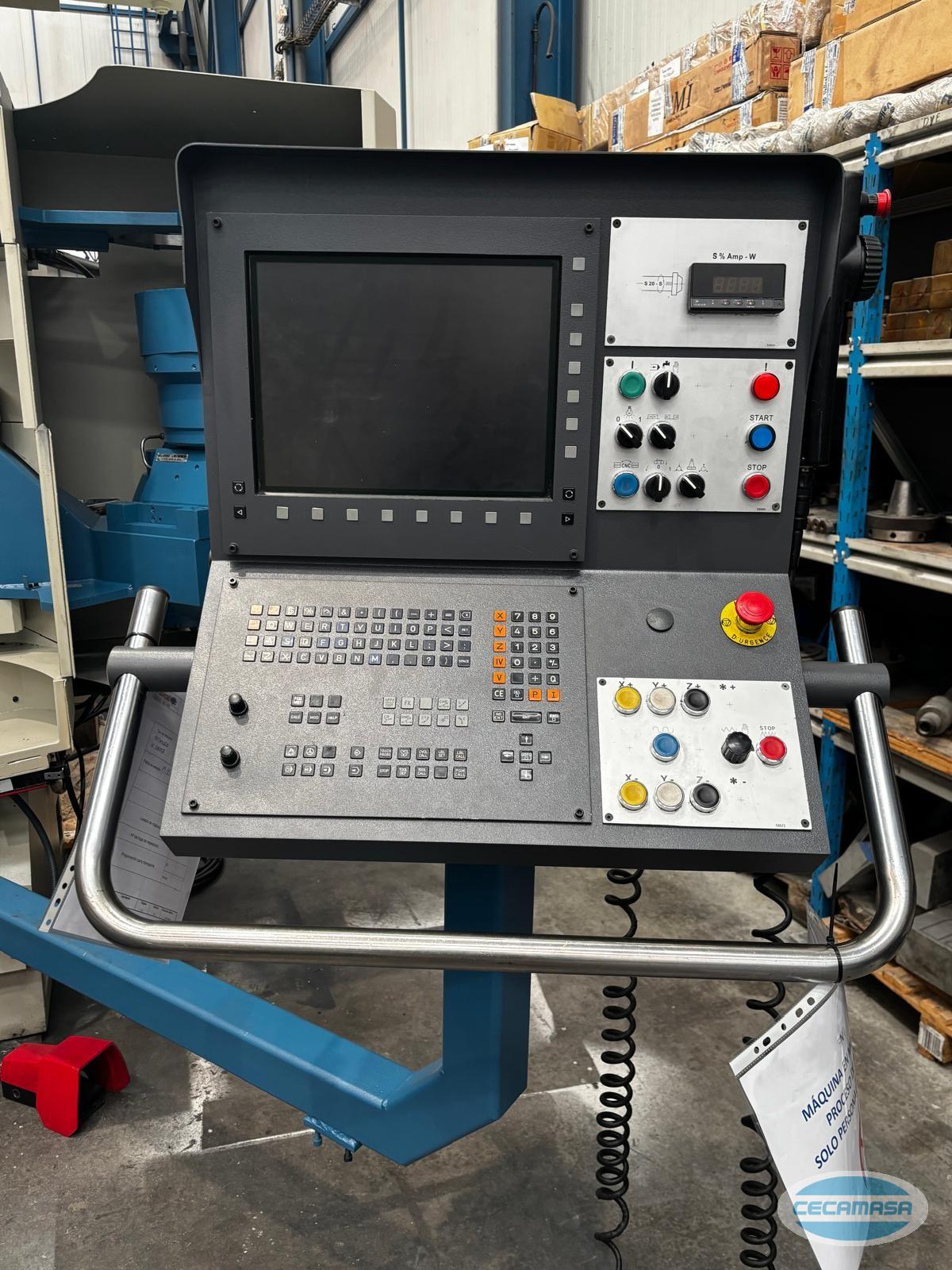

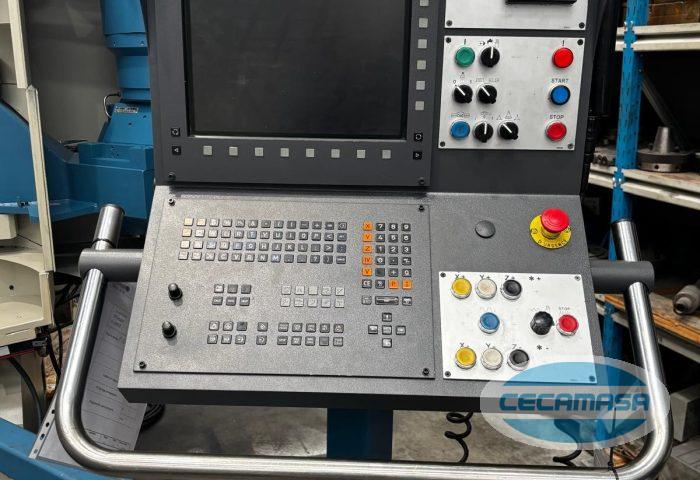

Control: | HEIDENHAIN TNC-426 | |
Electronic handwheel: | HR-410 | |

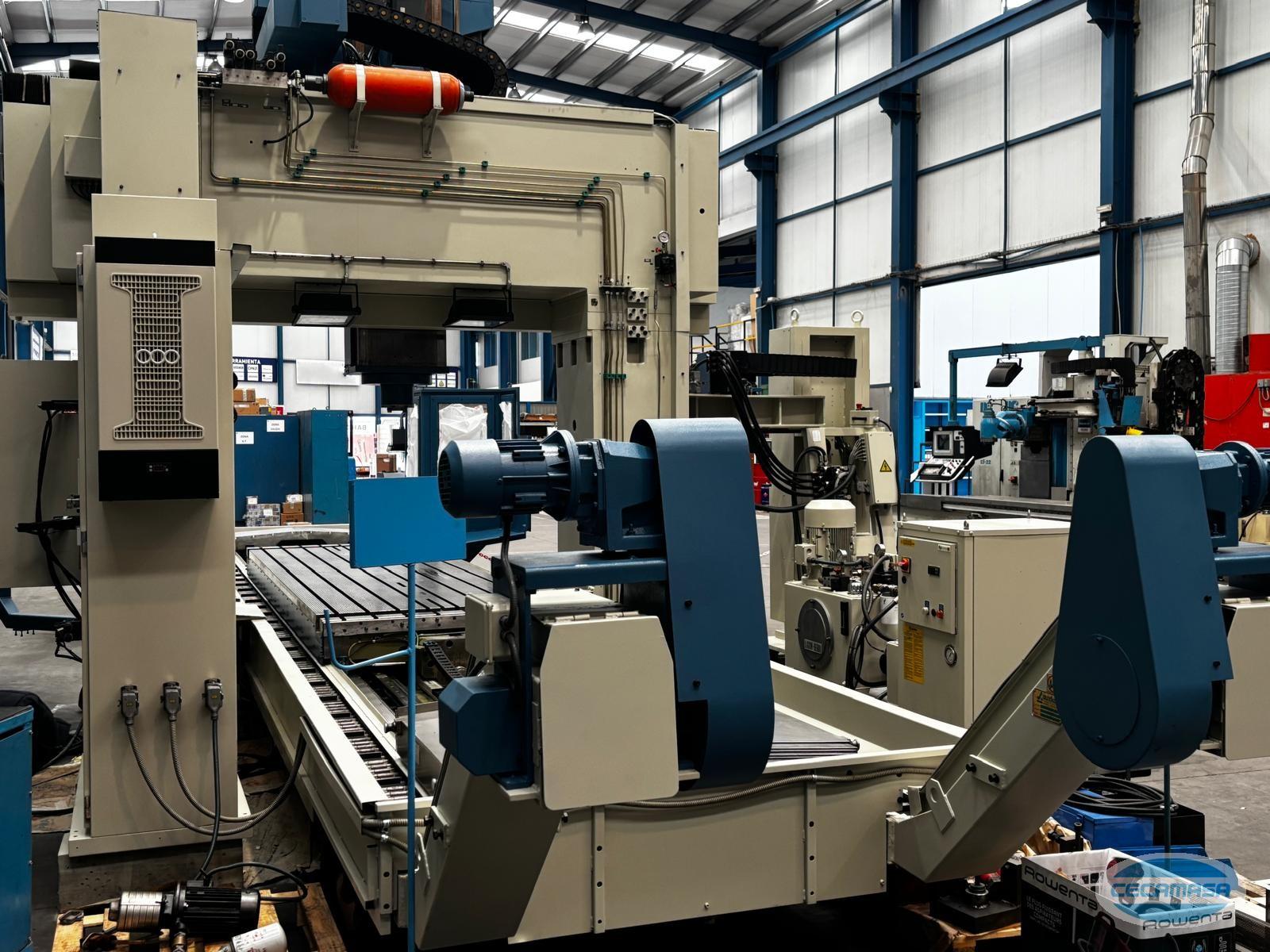

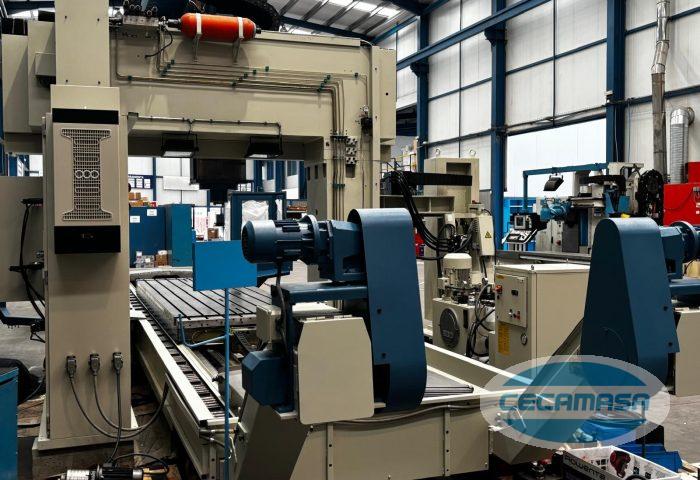

Chip conveyor: | 2 | |

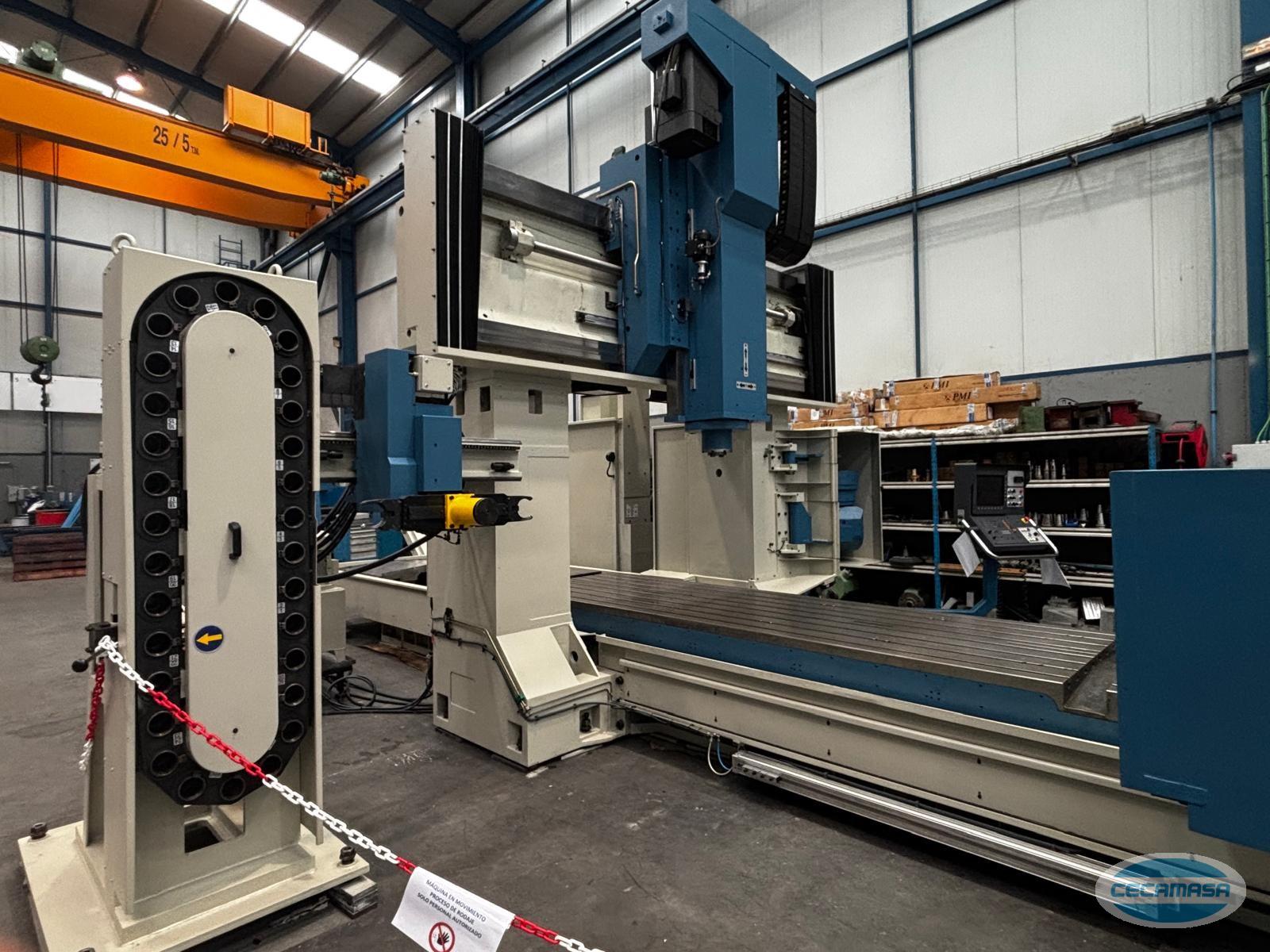

Tool changer: | ATC 30 | |
Coolant supply: | through the spindle | |
Renishaw probe: | Tool measuring | |
Preparation for piece probe: | Yes |
Do you need more information about this second-hand CORREA FP40-40S gantry milling machine?
Contact us and we will inform you without any commitment on this CORREA milling machine. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial equipment: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: Bridge milling machines
Brand: CORREA
Model: FP40-40S
