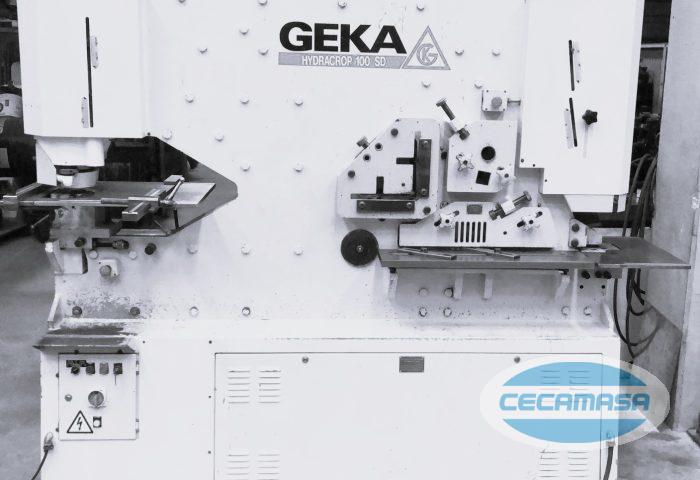

Characteristics of the second hand GEKA HYDRACROP 100 SD shear-punching machine
| Reference: | 031 / Z016 | |
| Shear for rims | ||
| Slightly deformed rim: | 600x15 mm - 400x20 mm | |
| Blades' length: | 605 mm | |
| L at 45º: | 100x100x13 mm | |
| Working height: | 960 mm | |
| Shear for profiles | ||
| L at 90º: | 150x150x13 mm | |
| L at 45º: | 70x70x7 mm | |
| Shear for bars | ||
| Round bar: | 50 mm | |
| Square bar: | 50 mm | |
| Notching | ||
| Metal sheet: | 13 mm | |
| L: | 100 mm | |
| Depth: | 90 mm | |
| Width: | 52 mm | |
| Punching | ||
| Punching power: | 100 Tn | |
| Maximum capacity: | Ø31x26 mm | |
| Gap: | 610 mm | |
| Stroke: | 80 mm | |
| Working height: | 1165 mm | |
| Approximate machine weight: | 3100 kgs | |
| Machine dimensions: | 2550x1200x2270 mm | |
| Equipped with: | ||
| More than 250 punches and dies |
Do you need more information about this second hand GEKA HYDRACROP 100SD shear-punching machine?
Contact us and we will inform you without any commitment on this hydraulic punching machine . Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, conventional lathes, cnc lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: Shears
Brand: GEKA
Model: HYDRACROP 100 SD
