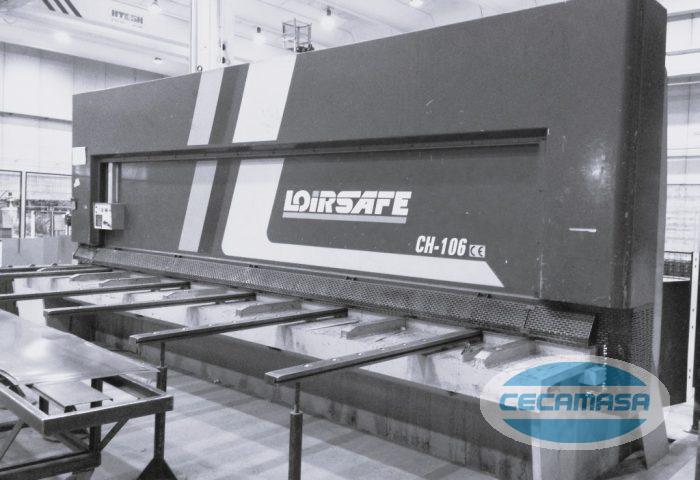

LOIRESAFE shear - 031/P010

Shears LOIRESAFE
Model CH106 CE
Cutting length 6050 mm.
Thickness 10 mm.
Opening between columns 6050 mm
Blade lenght 6300 mm
Section of the blades (4 cuts) 80x 20 mm
Motor power 25 kW
Throat depth 400 mm.
Opening between table and hold-downs 25 mm
Cutting angle adjustment from 0.5 degrees to 3 degrees
Total force of the press sheet 48 Tn
Machine dimensions 6700x2600x3100 mm.
Weight 25,000 Kgs.
Year 2001

Equipped with:

• 1-axis positioner ELGO mod 8721


Machine available, subject to prior sale.
The data without the obligation, may be changed without notice.
