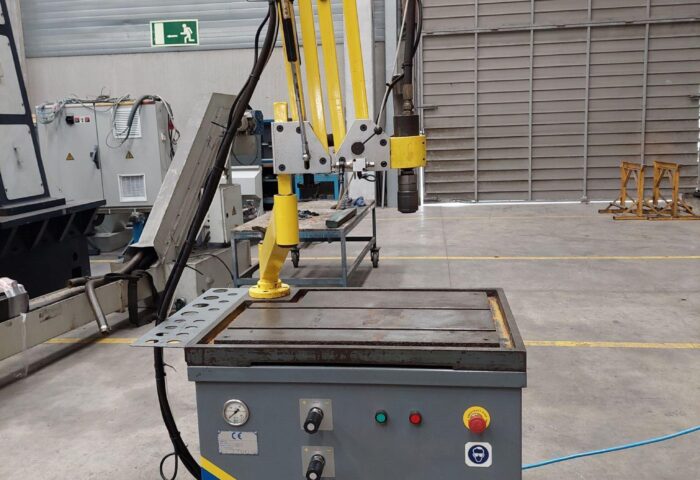

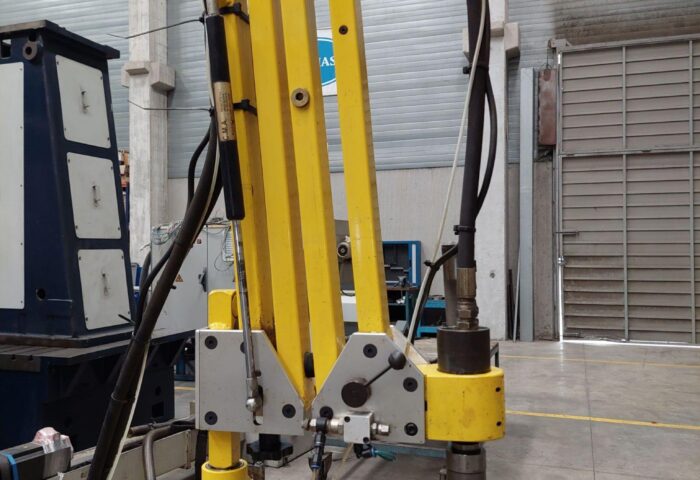

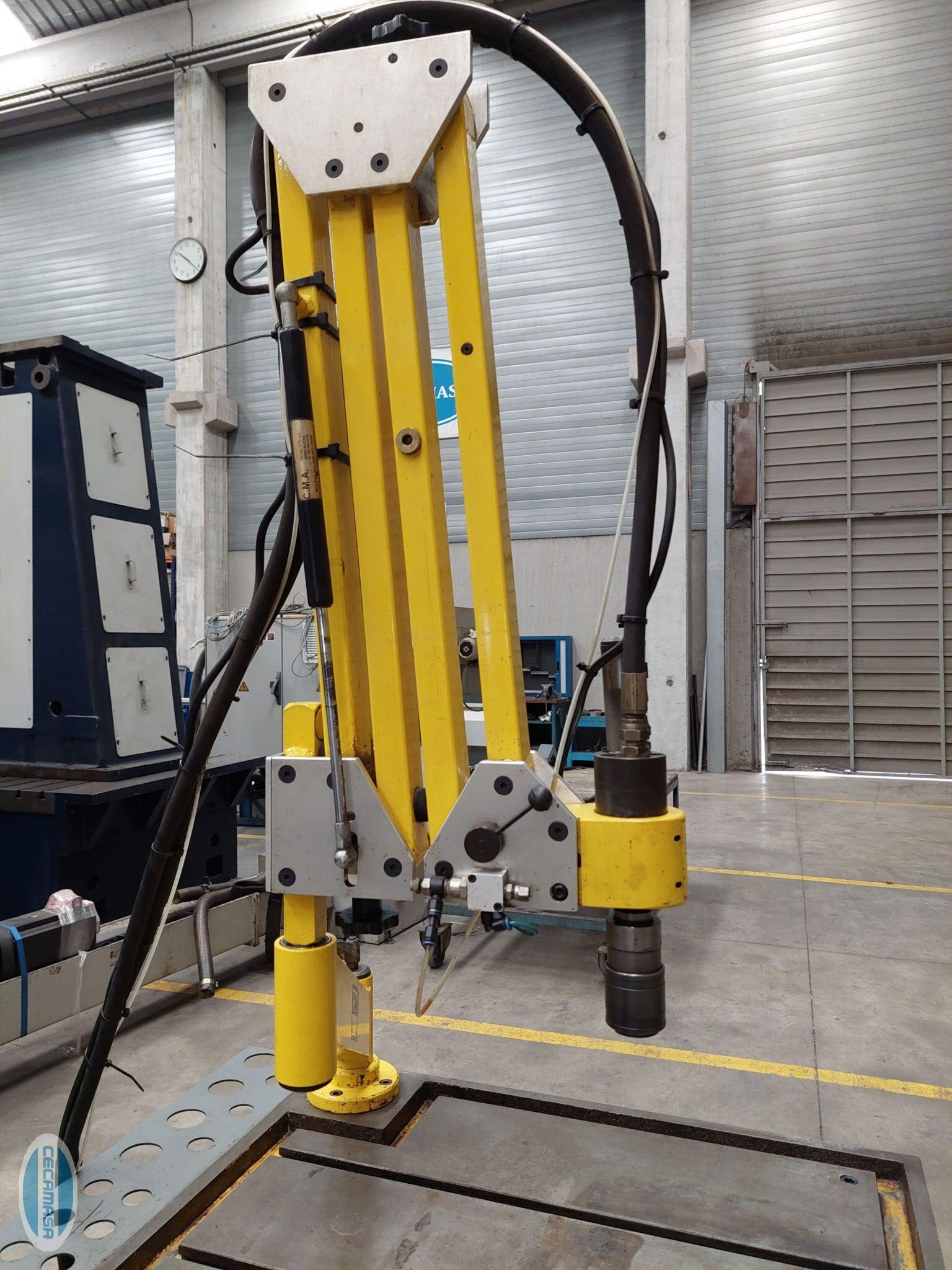

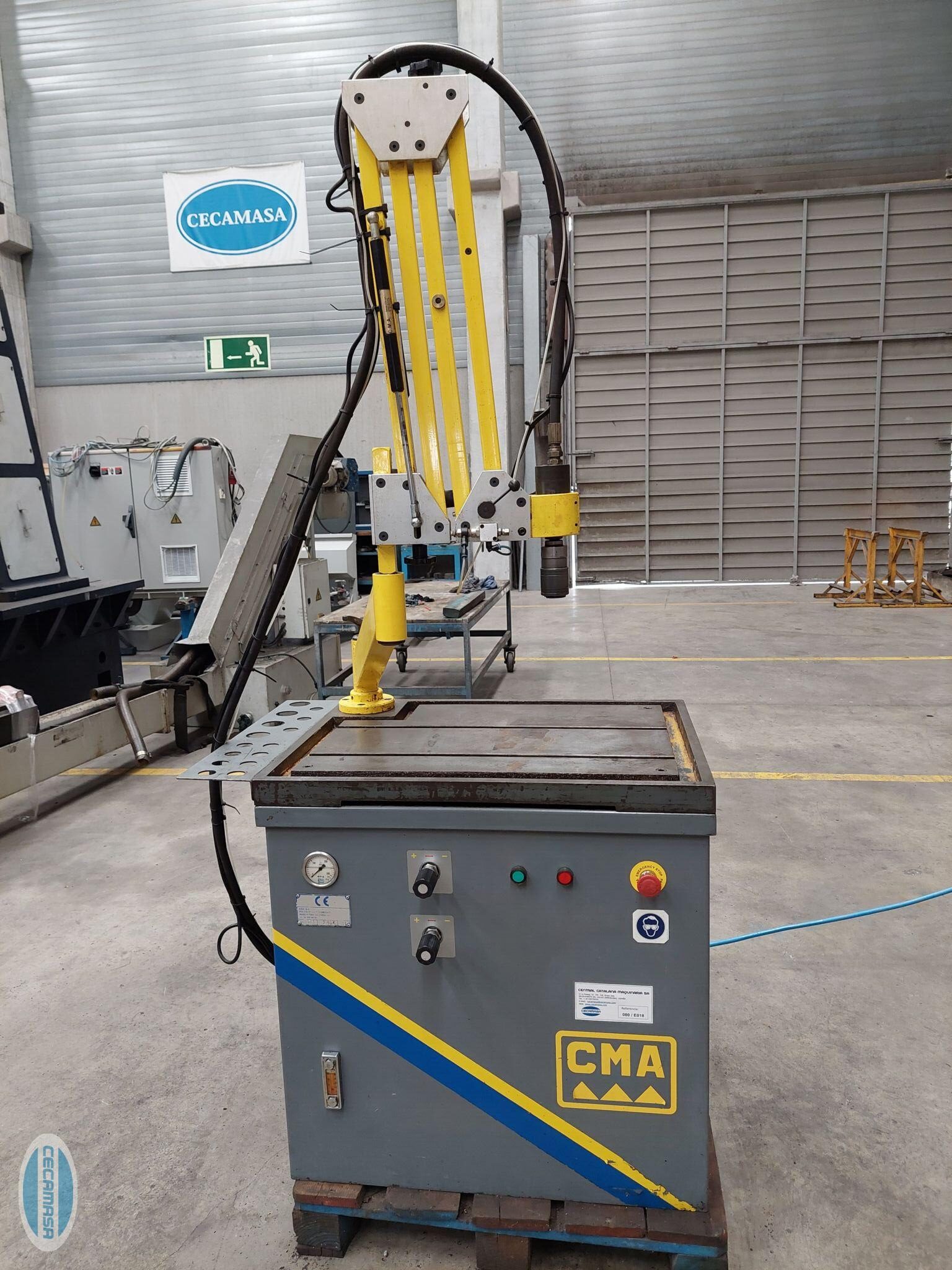

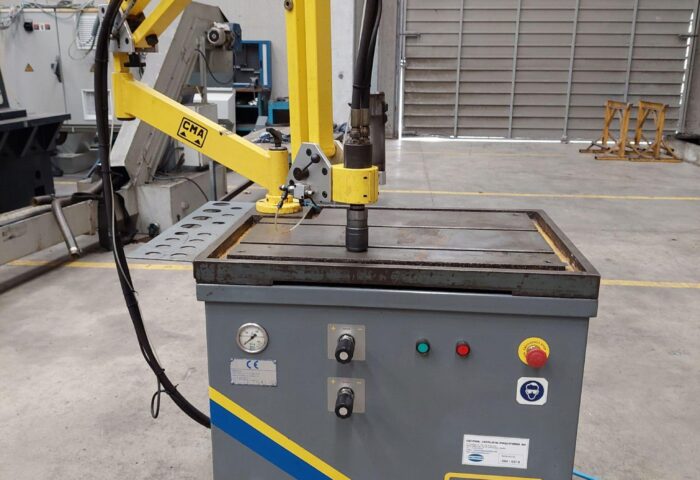

Technical characteristics of the second-hand CMA RH-20 hydraulic threading machine
| Reference: | 080-E018 | |
| Dimensiones de la mesa | 800 x 600 mm | |
| Tank capacity | 35 l | |
| Optimal maximum pressure | 120 bar | |
| Maximum limiting pressure | 140 bar | |
| Minimum threading capacity | M-3 | |
| Maximum threading capacity | M-24 | |
| Voltage on pushbuttons | 24 V | |
| Speed | 325 rpm | |
| Engine power: | 4 CV | |
| Equipped with: | ||
| CE standards | ||
| Tapping heads: | 1 M6 head, 2 M8 heads, 1 M10 head, 1 M12 head, 1 M14 head, 1 M16 head, 1 M22 head |
Do you need more information about this second-hand CMA RH-20 hydraulic threading machine?
Contact us and we will inform you without any commitment on this hydraulic threading machine. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial equipment: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
Machine available, subject to prior sale.
The data without the obligation, may be changed without notice.
Information
Type: Tapping machines
Brand: CMA
Model: RH-20
