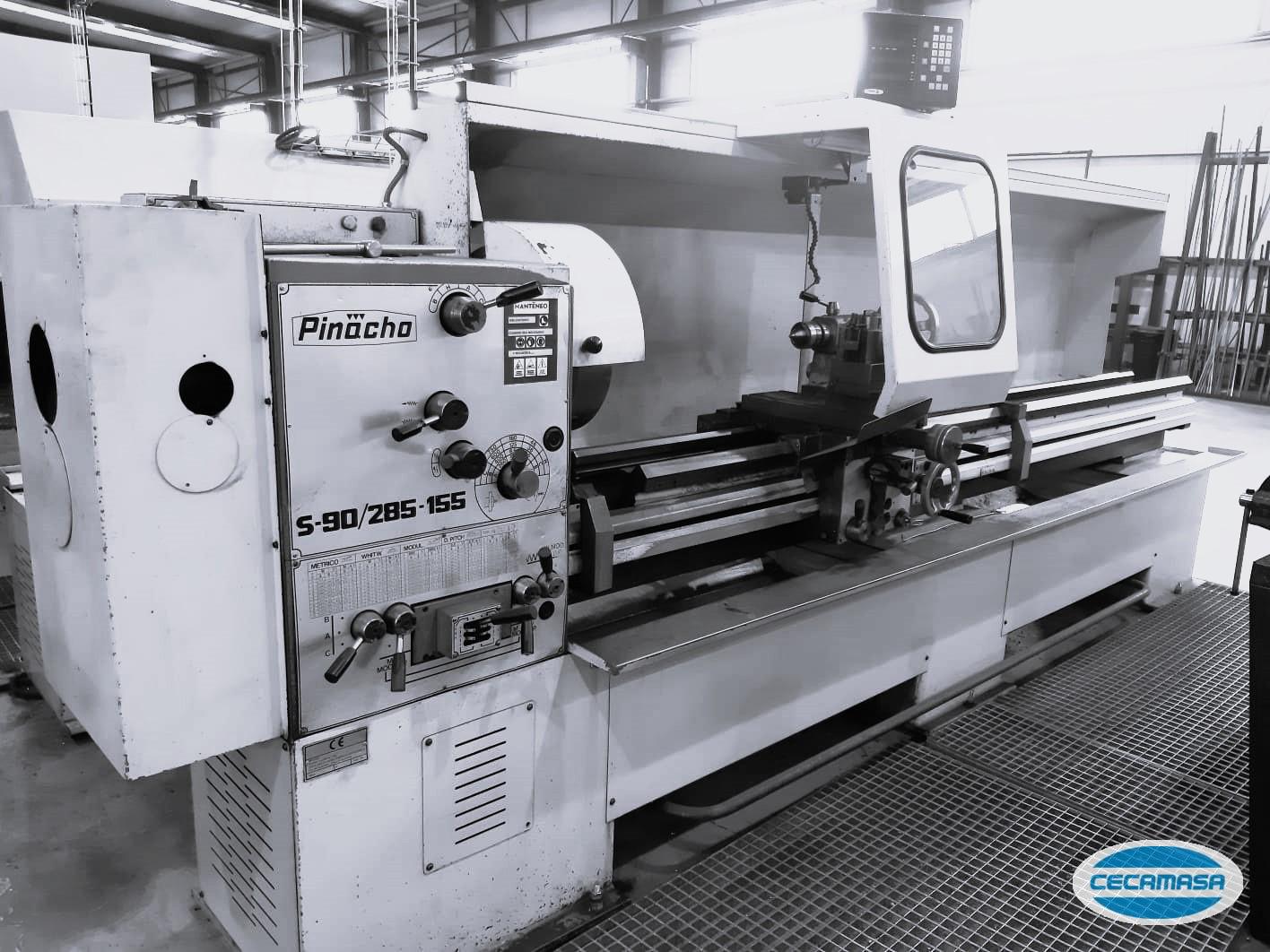

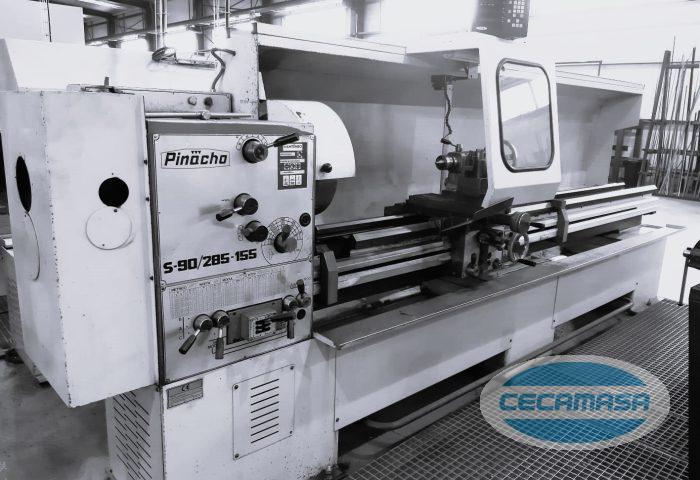

Technical features of the used PINACHO S-90/285-155 universal lathe
Reference: | 211-Y002 | |
Distance between centers: | 3150 mm | |
Centers' height: | 285 mm | |
Swing over bed: | 580 mm | |
Swing over carriage: | 525 mm | |
Swing over cross slide: | 375 mm | |
Swing over gap: | 830 mm | |
Bed length: | 350 mm | |
Spindle hole Ø: | 155 mm | |
Spindle Morse taper: | 5 | |
Speed range: | 12, 16-750 rpm | |
Main motor power: | 7.5 kw | |
Approx machine weight: | 2600 kgs | |
Machine dimensions: | 4755x1100x1845 mm | |
Equipped with: | ||
FAGOR digital readouts: | 2 axes | |
Plate (front + back): | Garras 3 mm Ø 400 | |
Turret: | Quick change | |
Steady rest: | fixed Ø 300mm | |
CE standards: | Yes |
Need more information about this second-hand PINACHO S-90/285-155 conventional lathe?
Contact us and we will inform you without any commitment on this PINACHO S-90/285-155 conventional lathe . Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, CNC lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: Universal lathes
Brand: PINACHO
Model: S-90/285-155
