SOLD

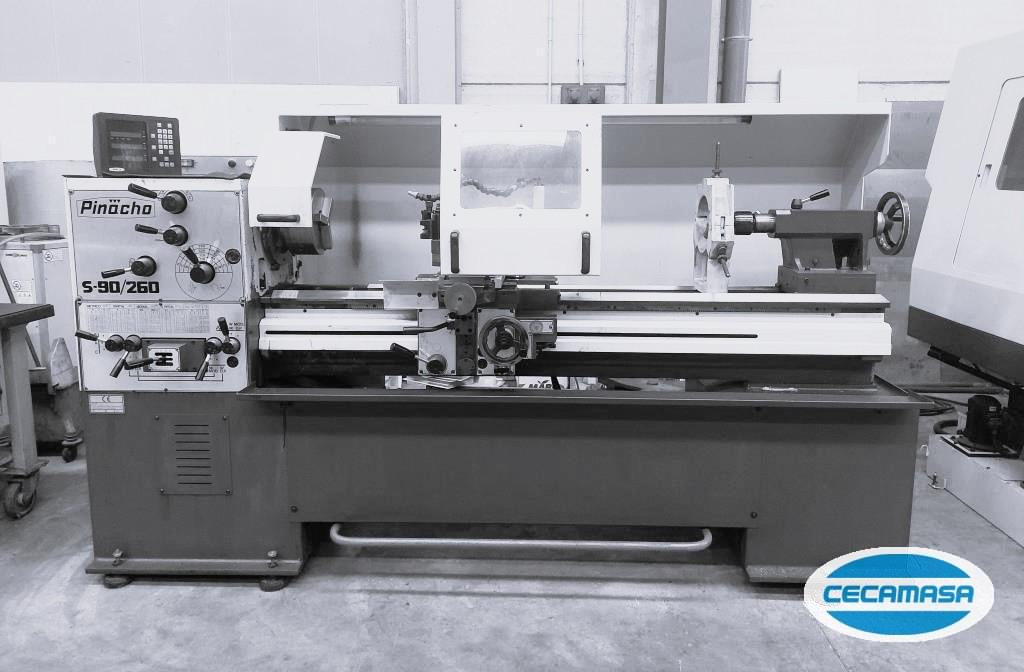

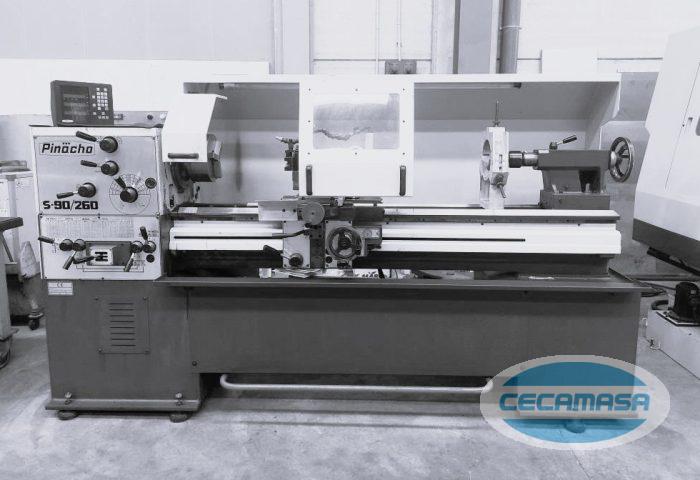

Technical features of the second hand PINACHO S-90/260 universal lathe
| Reference: | 211-B026 | |
| Distance between centers: | 1625 mm | |
| Centers' height: | 260 mm | |
| Max swing over bed: | 530 mm | |
| Swing over cross slide: | 325 mm | |
| Swing over gap: | 780 mm | |
| Spindle hole diameter: | 68 mm | |
| Gap length: | 220 mm | |
| Spindle speeds: | 12, 30-1500 rpm | |
| Engine power: | 5.5 Kw | |
| Year: | 2006 | |
| Approx machine weight: | 1615 kgs | |
| Machine dimensions: | 2860x1000x1730 mm | |
| Equipped with: | ||
| Readouts: | FAGOR | |
| Chuck: | universal 3 jaws | |
| Turret: | Quick change | |
| Steady rest: | Ø 200 mm | |
| Tools: | according photo | |
| CE standards: | yes |
Do you need more information about this used PINACHO S-90/260 universal lathe?
Contact us and we will inform you without any commitment on this PINACHO lathe. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, CNC lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: Universal lathes
Brand: PINACHO
Model: S-90/260
