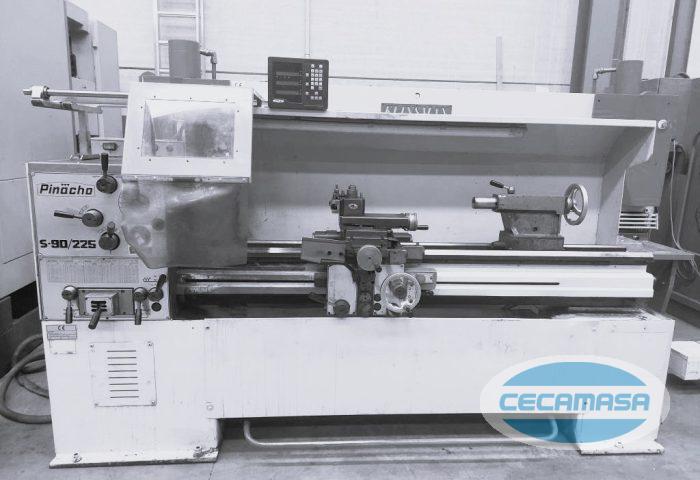

Technical features of the used PINACHO S-90/225 universal lathe
Reference: | 211-B023 | |
Distance between centers: | 1650 mm | |
Swing over bed: | 450 mm | |
Swing over carriage: | 410 mm | |
Swing over cross slide: | 260 mm | |
Swing over gap: | 650 mm | |
Gap length: | 160 mm | |
Bed length: | 300 mm | |
Spindle hole: | 52 mm | |
Spindle Morse taper: | 4 | |
Speeds: | 40-2200 rpm | |
Main motor power: | 5.5 CV | |
Approx machine weight: | 1250 kgs | |
Machine dimensions: | 2930x1020x1490 mm | |
Equipped with: | ||
FAGOR digital readouts: | 2 axes | |
Chuck: | 3-jaw chuck | |
Turret: | Quick change | |
Cabinet with various tools: | according to photo |
Need more information about this used PINACHO S-90/225 conventional lathe?
Contact us and we will inform you without any commitment on this PINACHO conventional lathe . Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, CNC lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: Universal lathes
Brand: PINACHO
Model: S-90/225
