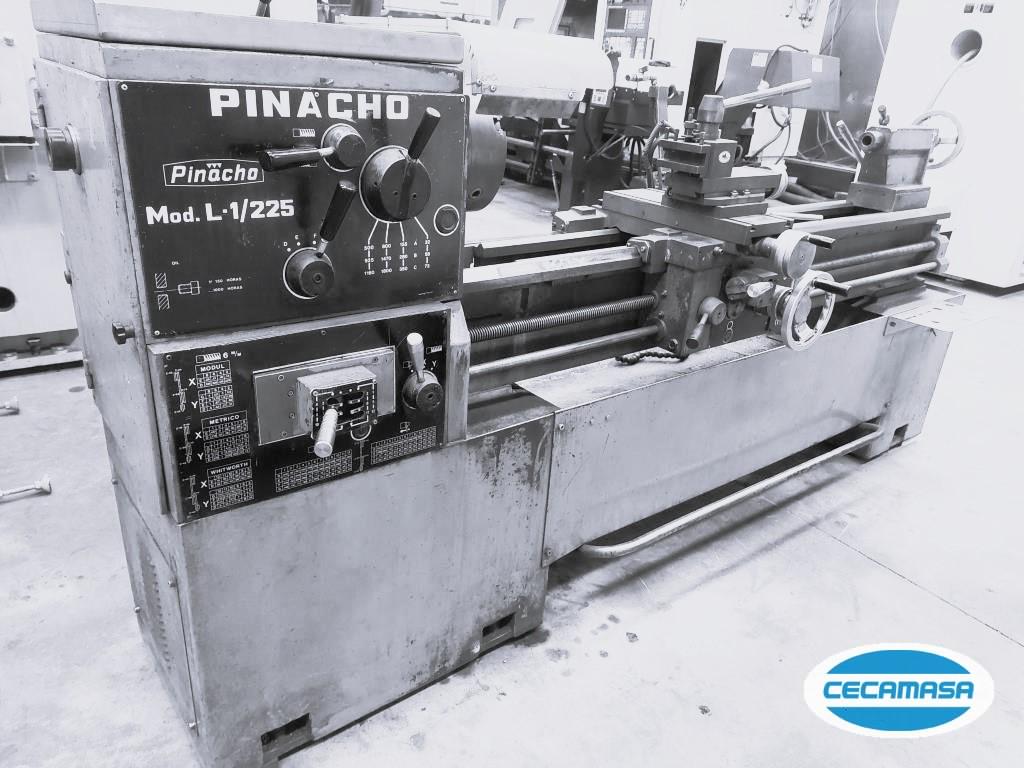

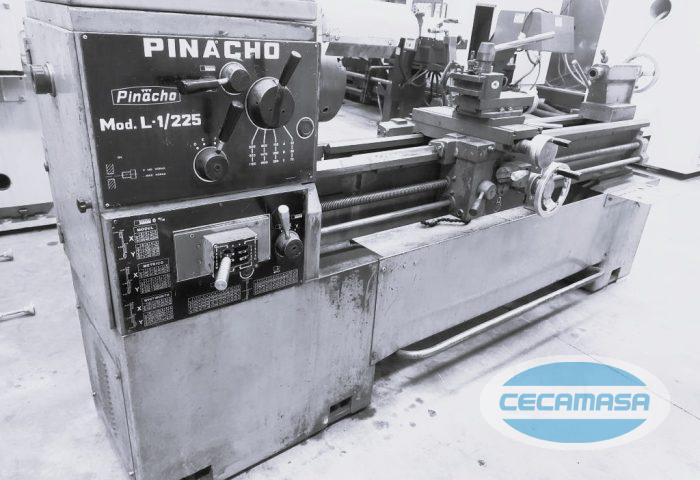

Technical characteristics of the second-hand PINACHO L-1/225 universal lathe
| Reference: | 211-B027 | |
| Distance between centers: | 1650 mm | |
| Centers' height: | 225 mm | |
| Max swing over bed: | 440 mm | |
| Swing over cross slide: | 260 mm | |
| Swing over gap: | 640 mm | |
| Spindle hole diameter: | 52 mm | |
| Gap length: | 160 mm | |
| Spindle speeds: | 12, 32-1800 rpm | |
| Engine power: | 5.5 CV | |
| Approx machine weight: | 1550 kgs | |
| Machine dimensions: | 2705x850x1370 mm | |
| Equipped with: | ||
| 3-jaw universal chuck: | Ø 250 mm | |
| Set of jaws: | 1 |
Do you need more information about this used PINACHO L-1/225 universal lathe?
Contact us and we will inform you without any commitment on this PINACHO lathe. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, CNC lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: Universal lathes
Brand: PINACHO
Model: L-1/225
