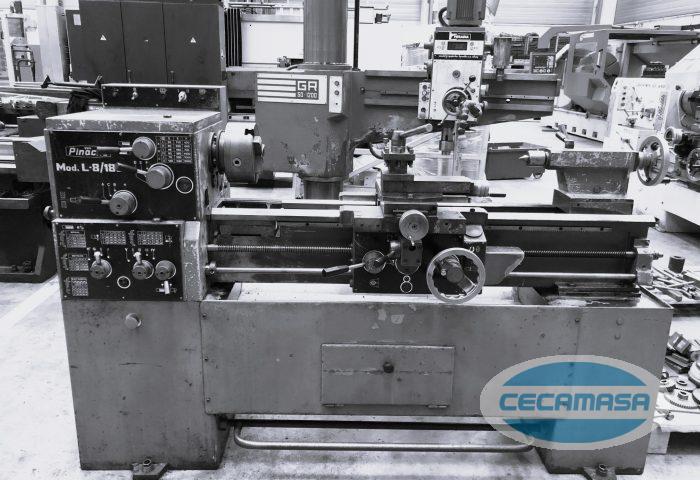

Technical characteristics of the second-hand PINACHO L8/180 universal lathe
Reference: | 211-A004 | |
Distance between centers: | 1000 mm | |
Centers' height: | 180 mm | |
Max swing over bed: | 360 mm | |
Swing over gap: | 510 mm | |
Bed width: | 250 mm | |
Main spindle hole diam: | 42 mm | |
Speeds: | 4, 30-2000 rpm | |
Engine power: | 2 CV | |
Approx machine weight: | 900 kgs | |
Machine dimensions: | 1260x820x1930 mm | |
Equipped with: | ||
3-jaw universal chuck: | 200 mm diameter with 2 sets of jaws | |
Tools: | according photo |
Do you need more information about this second-hand PINACHO L8/180 universal lathe?
Contact us and we will inform you without any commitment on this PINACHO lathe. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, CNC lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: Universal lathes
Brand: PINACHO
Model: L-8/180
