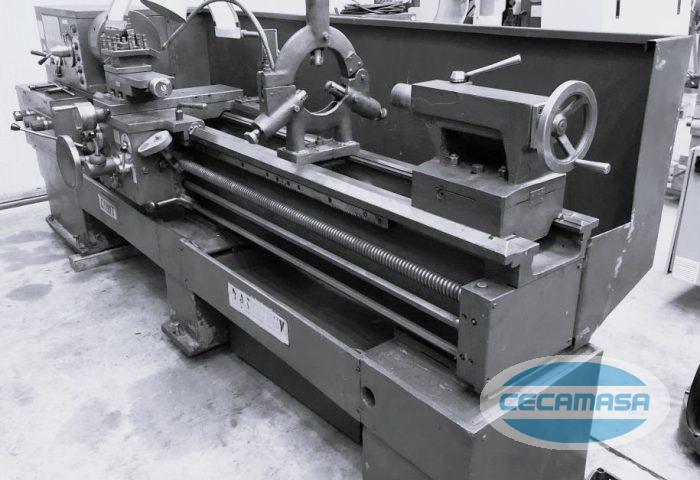

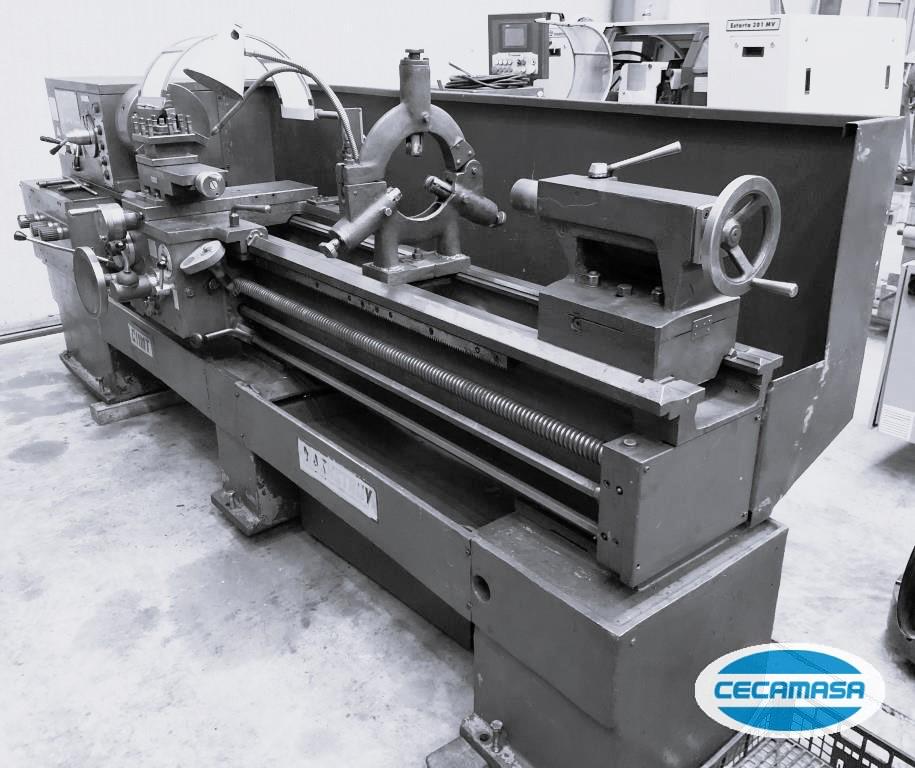

Technical characteristics of the second-hand MASHSTROY C11MT universal lathe
Reference: | 211-ME19 | |
Distance between centers: | 2000 mm | |
Centers' height: | 300 mm | |
Max swing over bed: | 600 mm | |
Swing over cross slide: | 315 mm | |
Swing over gap: | 680 mm | |
Gap length: | 260 mm | |
Spindle hole diameter: | 80 mm | |
Speeds: | 16, 11.5-2000 rpm | |
Main motor power: | 7.5 CV | |
Approx machine weight: | 2450 kgs | |
Machine dimensions: | 3495x1220x1270 mm | |
Equipped with: | ||
Chuck: | 3-jaw independent chuck 250 mm diameter with 2 sets of jaws | |
Chuck: | 4-jaw independent 400 mm diameter | |
Turret: | manual | |
Steady rest: | 210 mm diameter | |
Tools: | 26 | |
Points: | 5 |
Need more information about this used MASHSTROY C11MT universal lathe?
Contact us and we will inform you without any commitment on this MASHSTROY lathe. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, CNC lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: Universal lathes
Brand: MASHSTROY
Model: C11MT
