Technical characteristics of the second-hand GEMINIS GT9 G2 2100×8000 CNC lathe
| Reference: | 218-D047 | |
| Distance between centers: | 8000 mm | |
| Height centers: | 1050 mm | |
| Max swing over bed: | 2100 mm | |
| Max swing over slide: | 1600 mm | |
| Main spindle hole diam: | 150 mm | |
| Speed range: | 4 | |
| Speed range I: | 0-80 rpm | |
| Speed range II: | 0-175 rpm | |
| Speed range III: | 0-350 rpm | |
| Speed range IV: | 0-700 rpm | |
| Cross slide travel: | 1060 mm | |
| Quill diameter: | 400 mm | |
| Quill travel: | 300 mm | |
| Allowed weight between points | 30.000 kgs. | |
| Main motor power | 100 KW | |
| Year: | 2015 | |
| Equipped with: | ||

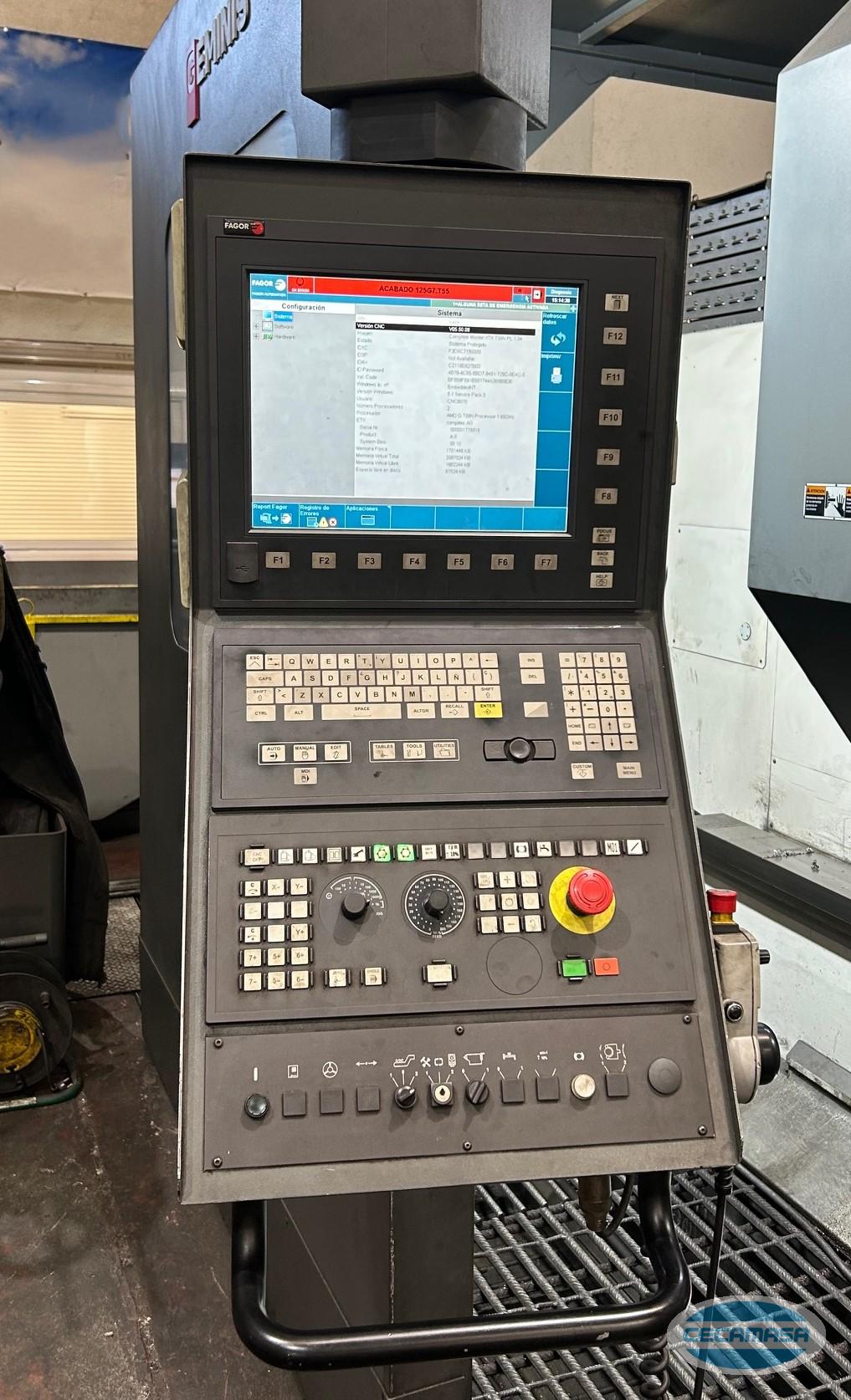

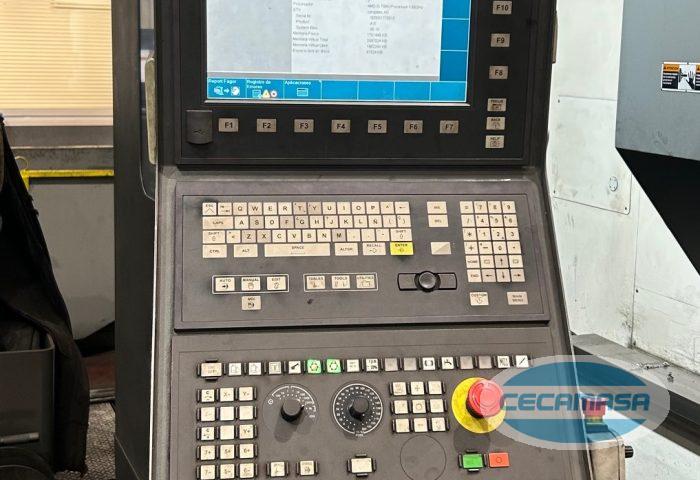

| Control: | FAGOR 8065 (15 '' screen) | |

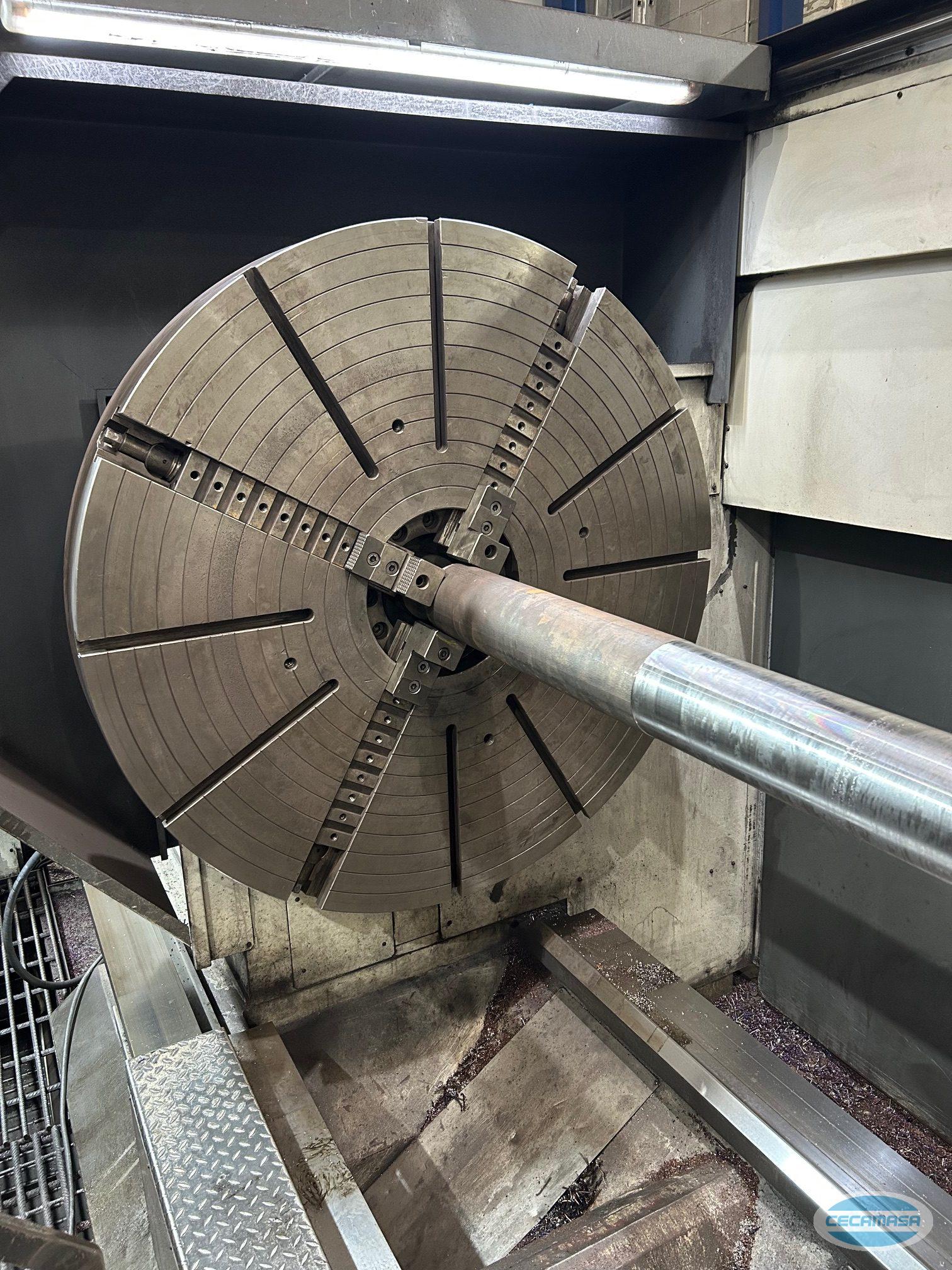

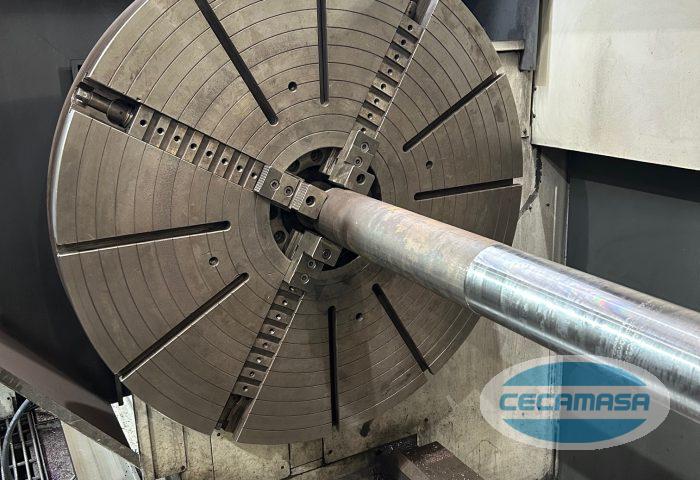

| 4 independent jaw chuck: | Ø 1600 mm | |
| Hard inner and outer claw set | ||

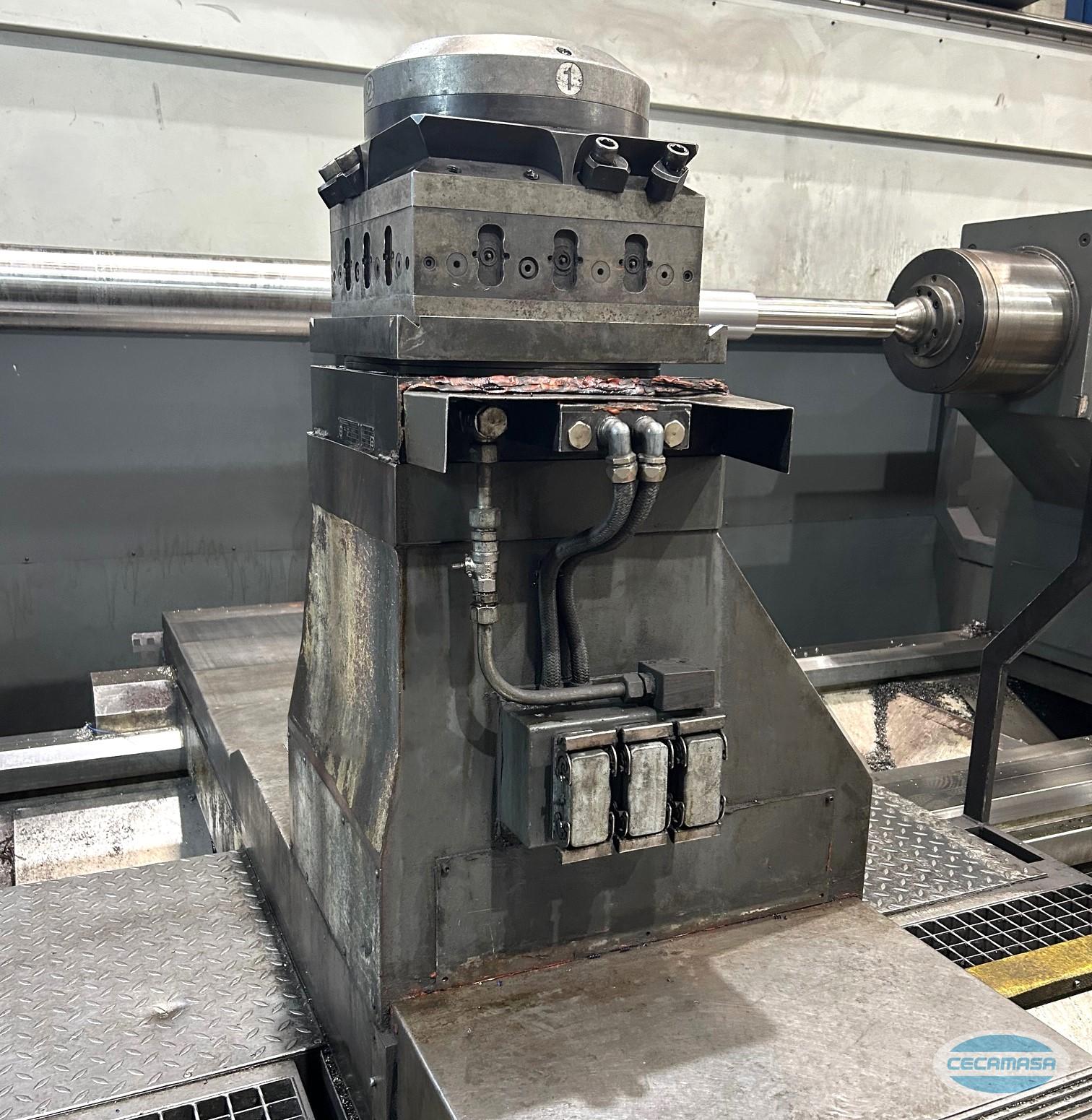

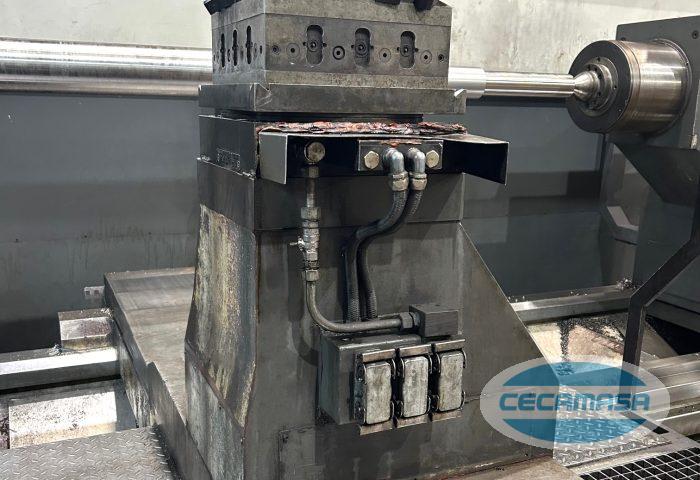

| Square Auto Turret: | SAUTER 4 pos - Ø 320x320 mm | |

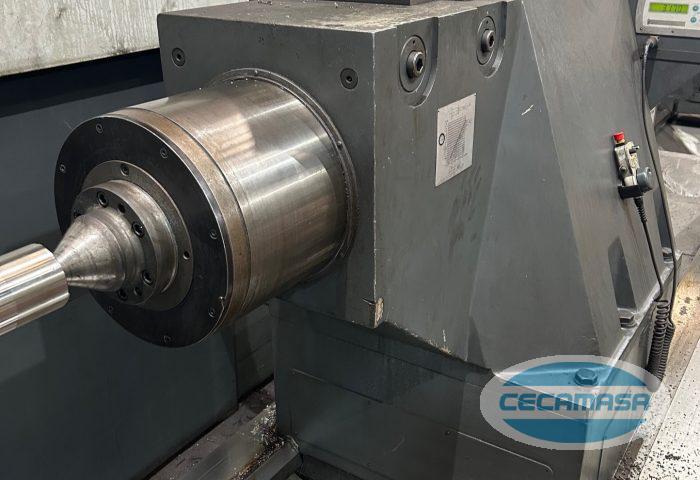

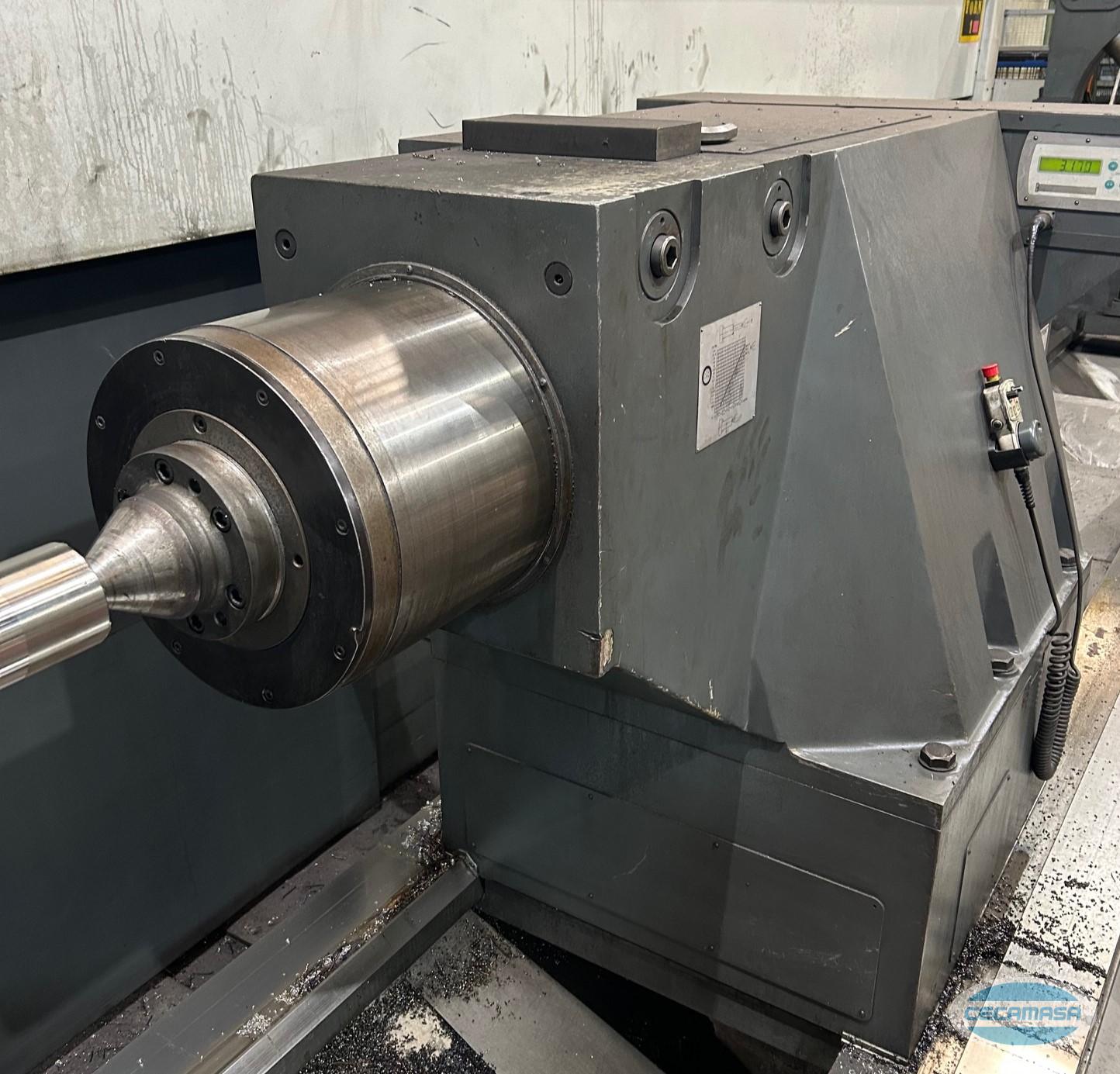

| Tailstock and quill: | Motorized | |
| Rod accommodation: | Built-in swivel | |
| Locking/Unlocking the tailstock body: | Automatic | |
| Air conditioner for electronic cabinet | Yes | |
| Portable electronic steering wheel: | Yes | |
| Chip conveyor: | Yes | |

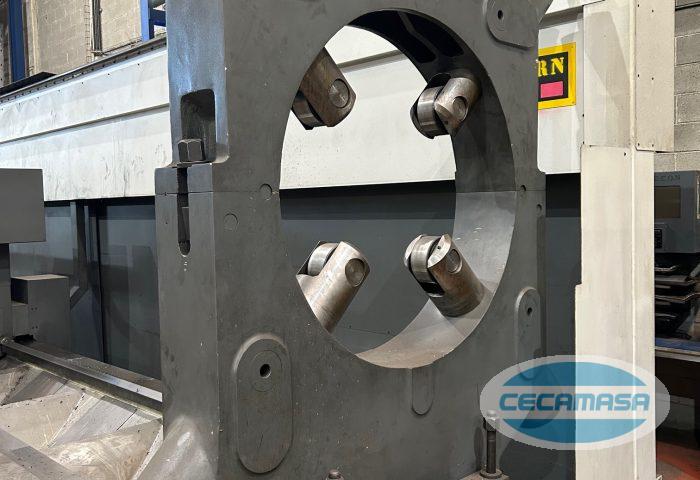

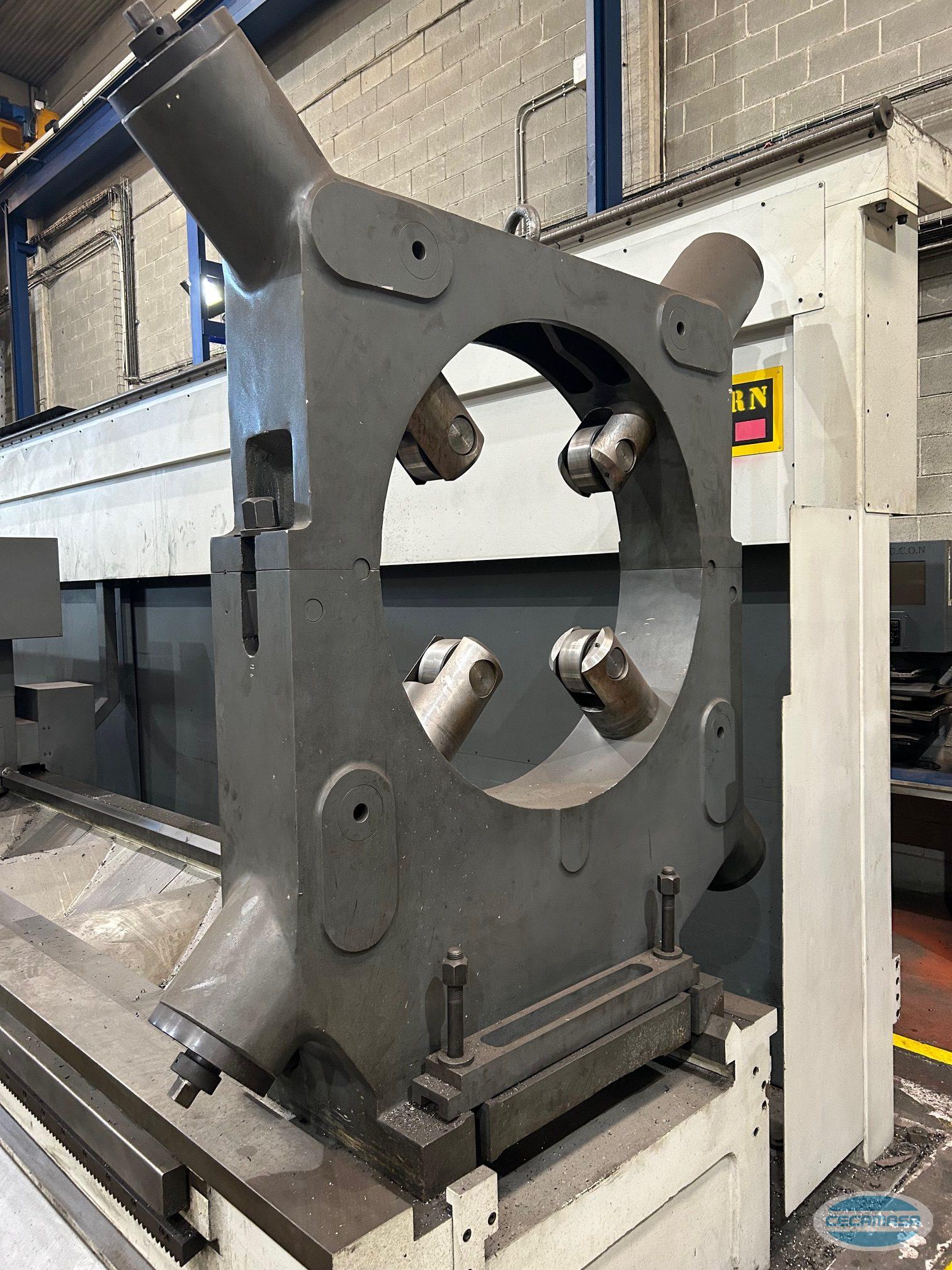

| Fixed closed rear window 4 supports | Ø 500-900 mm | |
| Max allowed rear window weight: | 10.000 kg. | |
| Prepared for C Axis with transmission from the main engine | ||
| Prepared for adaptation of milling head with Y axis on turret | ||
| Preparation for mounting the grinding head | ||

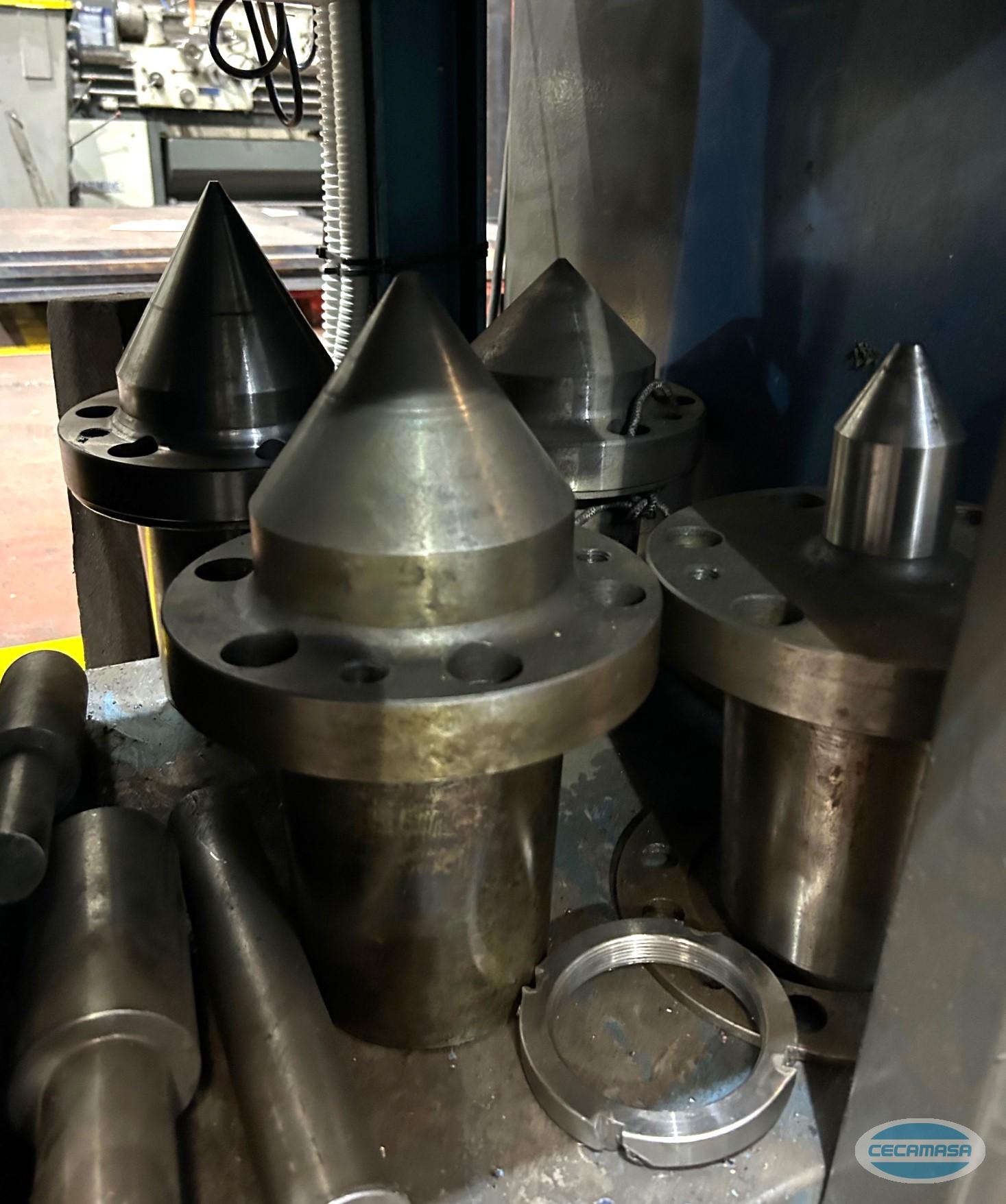

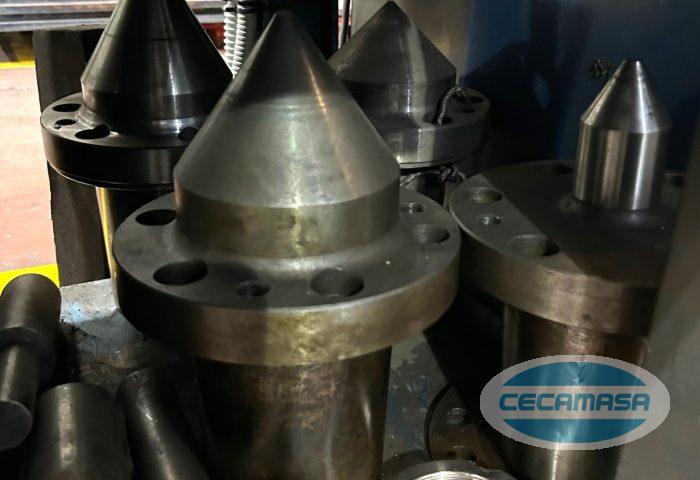

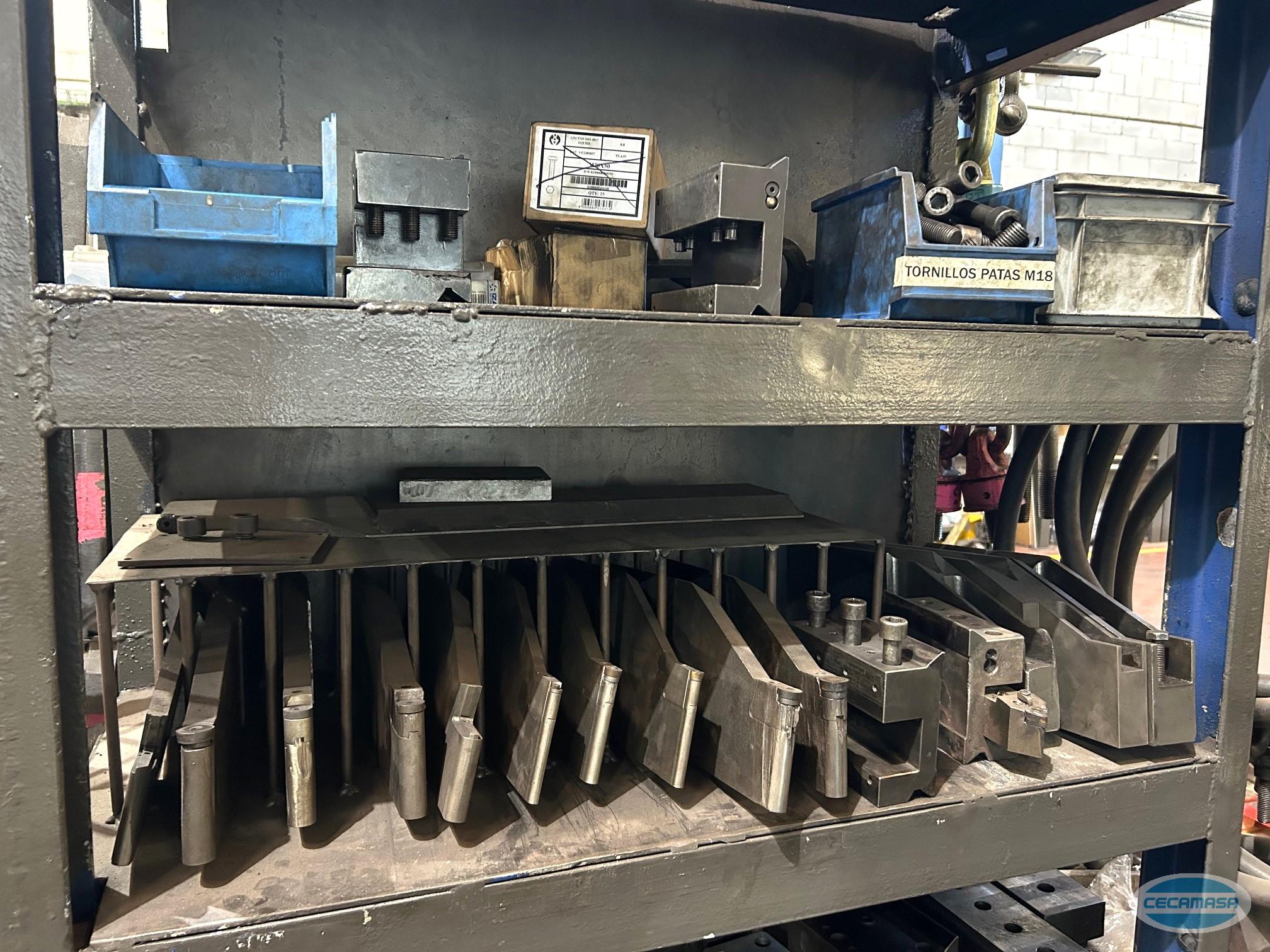

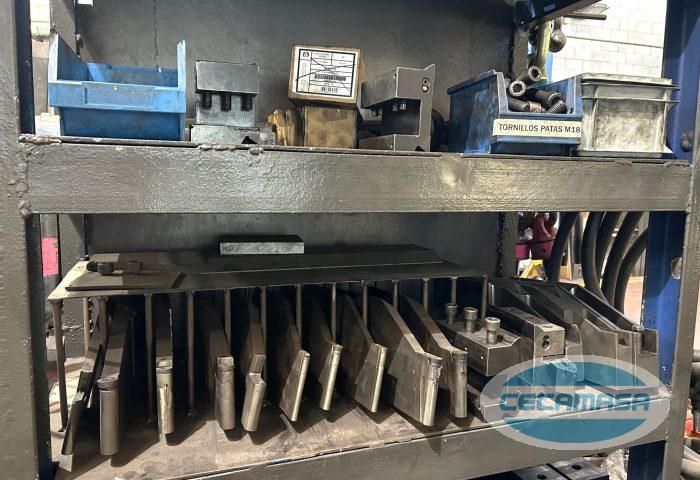

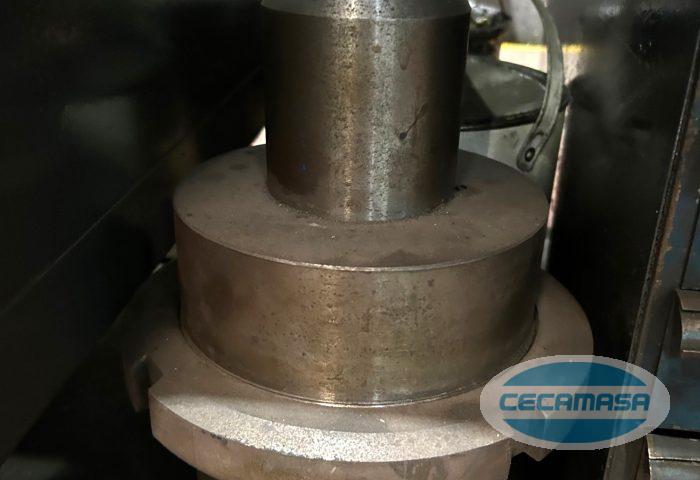

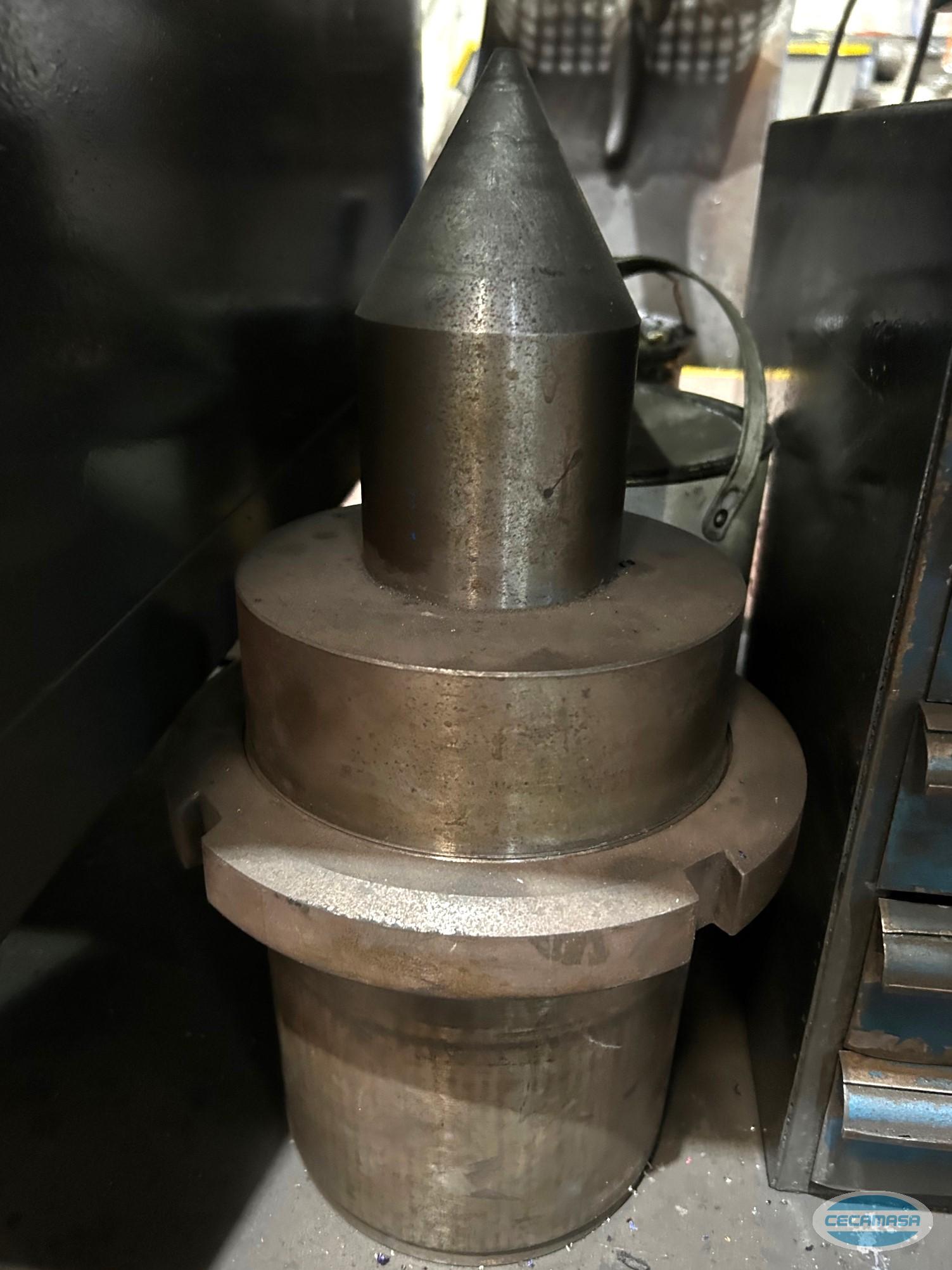

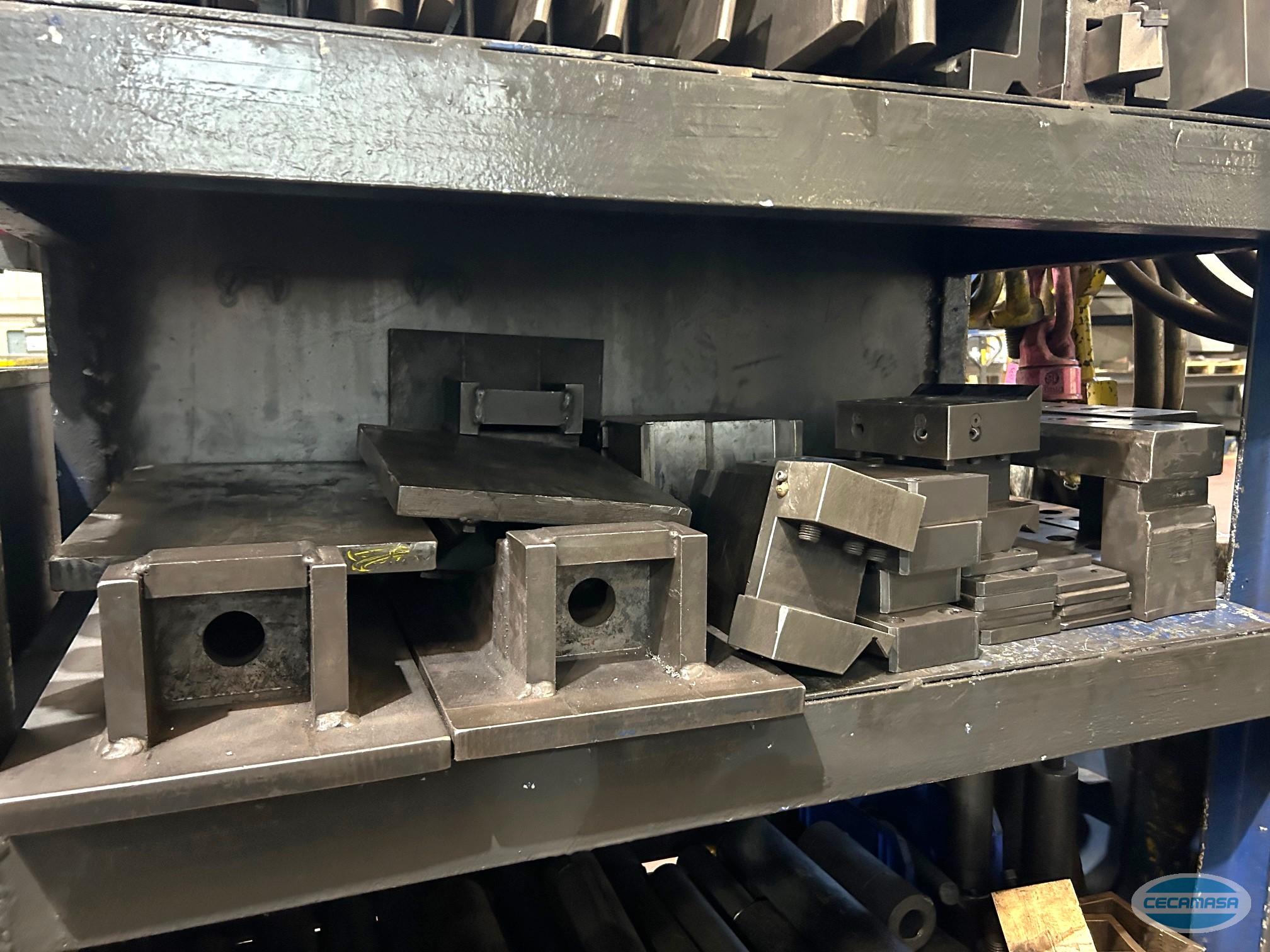

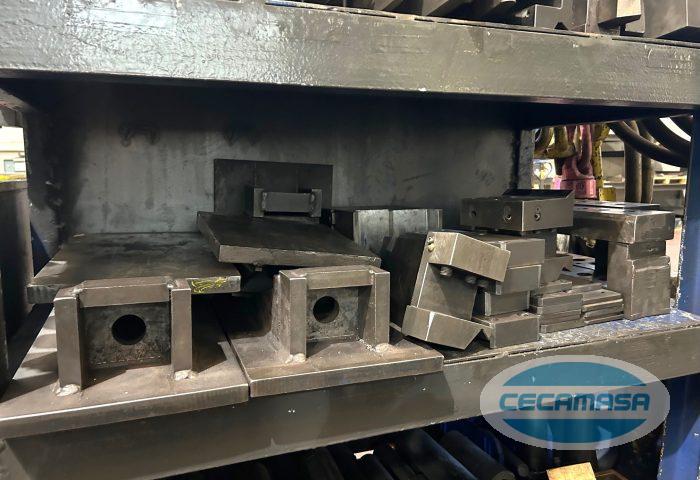

| Very equipped with tools (according to photos) |
Details of this CNC Geminis GT9 G2 G2 Occupational

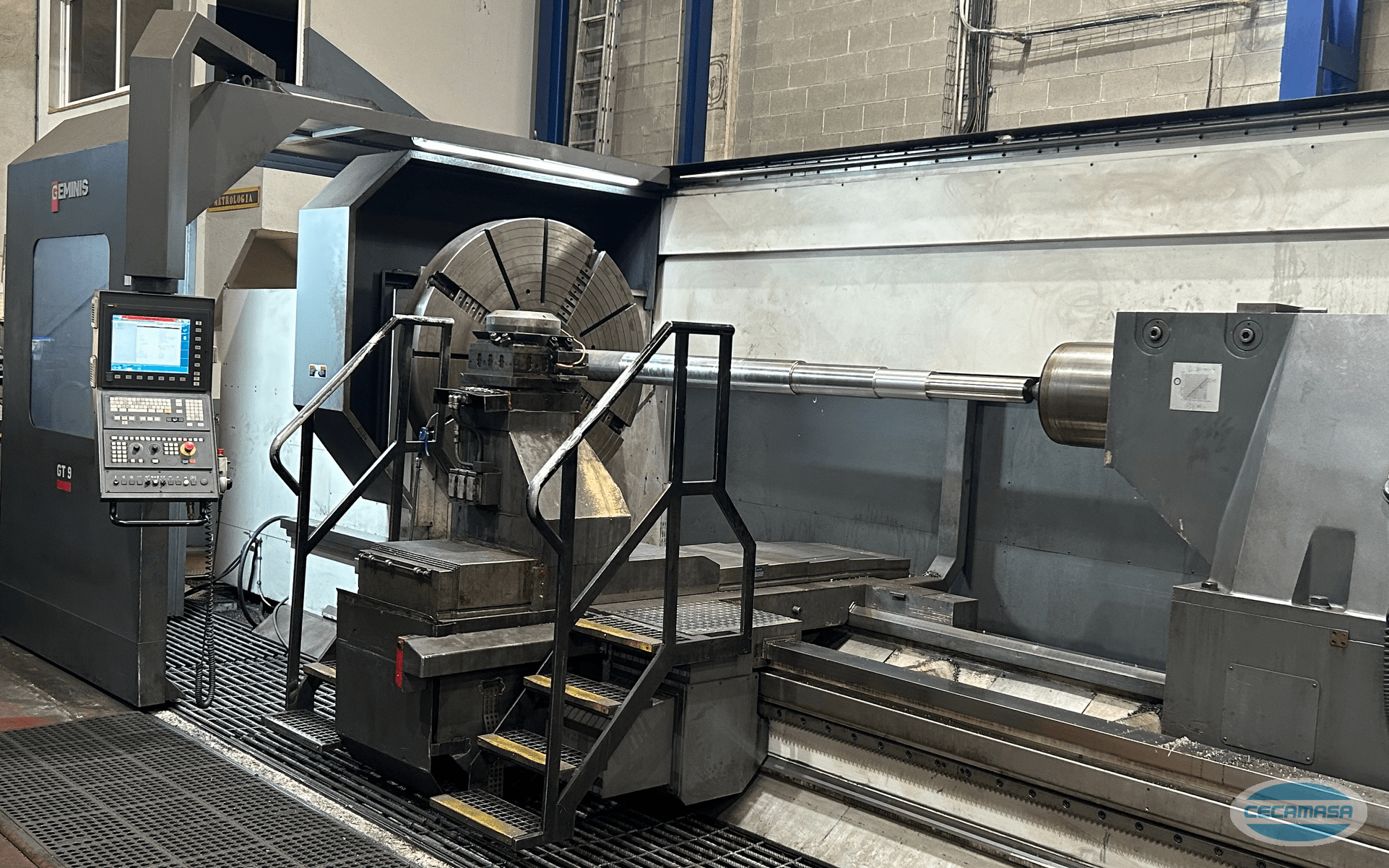

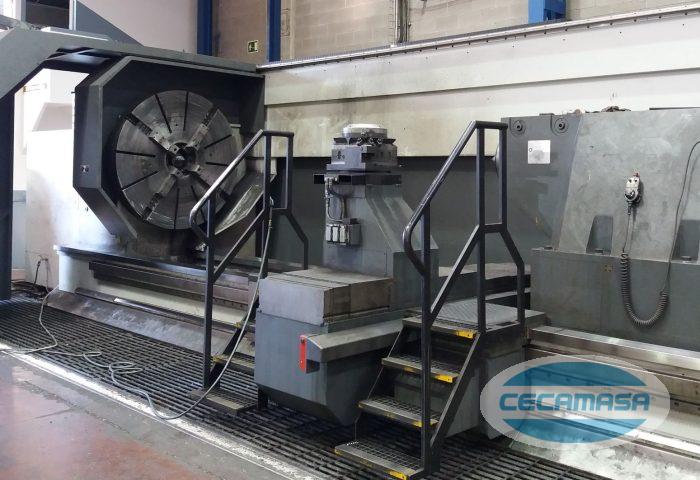

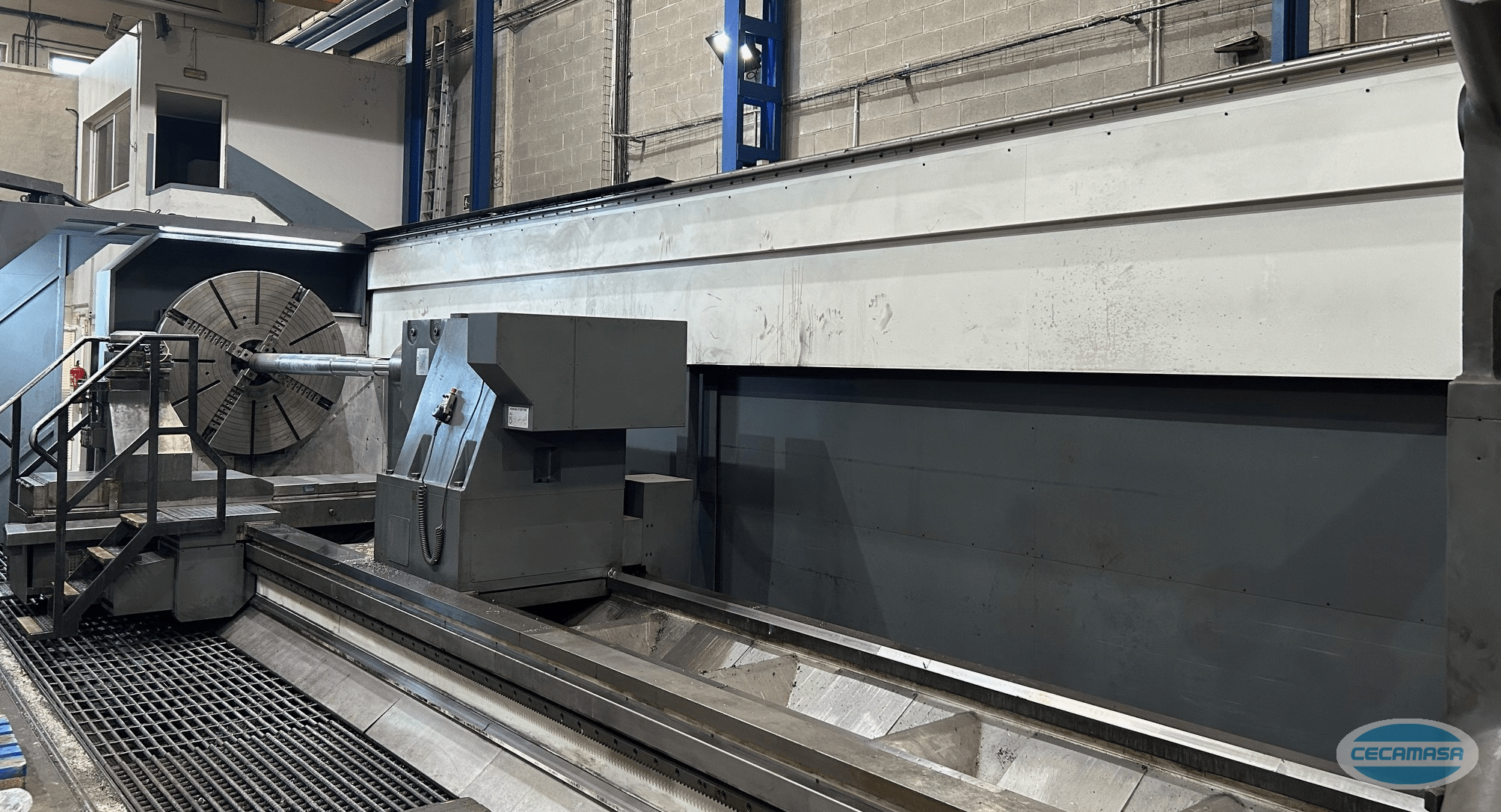

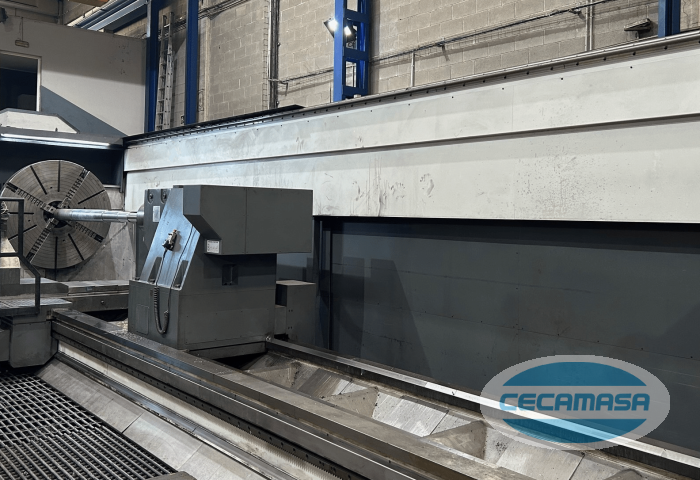

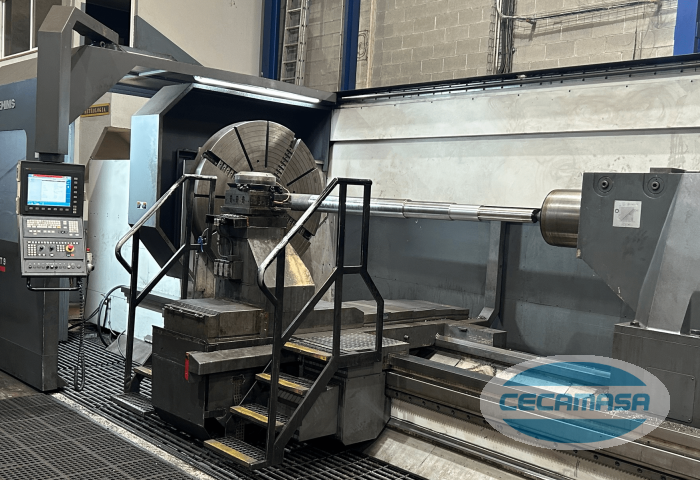

We present this second-hand GEMINIS GT9 G2 2100×8000 CNC lathe, manufactured in 2015 and equipped with the advanced FAGOR 8065 control with a 15" screen. With an impressive distance between points of 8000 mm and a center height of 1050 mm, this equipment offers exceptional capabilities for industrial machining work. It is in excellent condition and available for immediate delivery.
Do you need more information about this second-hand GT9 G2 2100×8000 CNC lathe?
Contact us and we will inform you without any commitment on this CNC lathe GEMINIS. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, conventional lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
