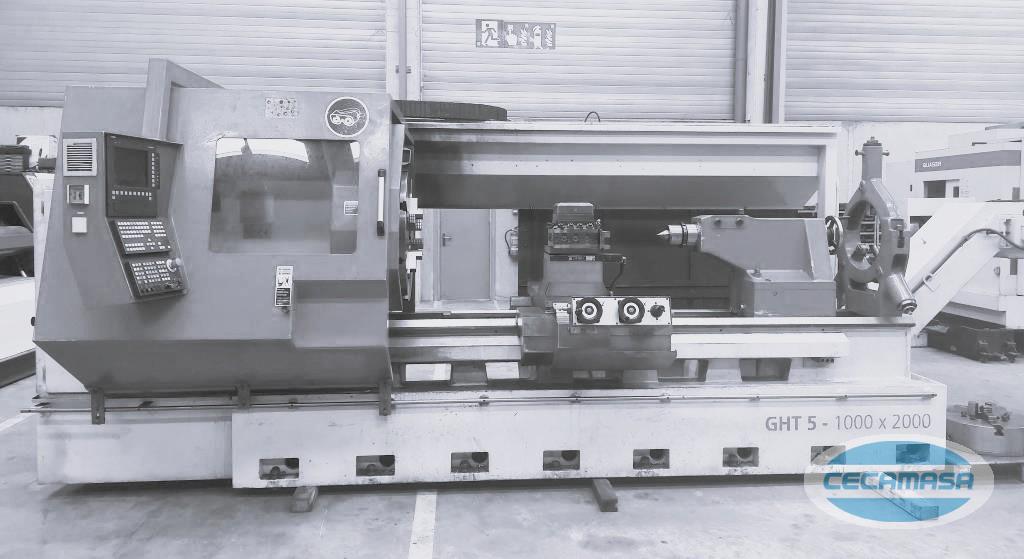

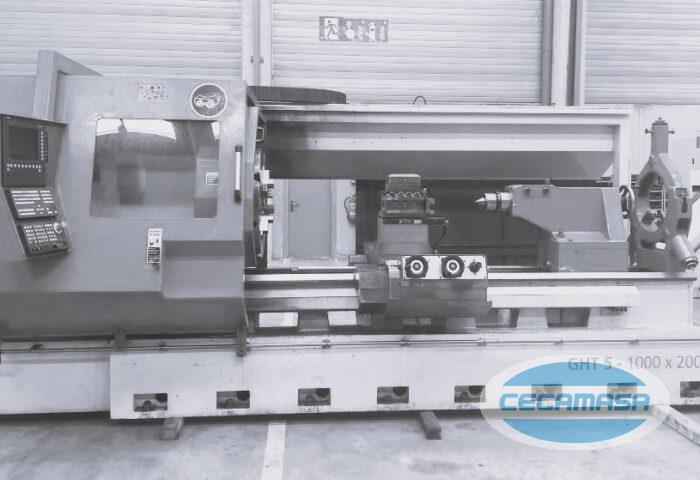

Technical characteristics of the second-hand GEMINIS GHT5 G2 1000×2000 cnc lathe
| Reference: | 218-B052 | |
| Distance between centers: | 2000 mm | |
| Height centers: | 500 mm | |
| Max swing over bed: | 1000 mm | |
| Max swing over slide: | 680 mm | |
| Main spindle hole diam: | 104 mm | |
| Main spindle nose: | DIN 55026-11 | |
| Speed range: | 4, 0-1400 rpm | |
| Quill diameter: | 140 mm | |
| Quill travel: | 300 mm | |
| Year: | 2004 | |
| Equipped with: | ||
| Control: | SIEMENS 840D | |
| 4 independent jaw chuck: | Ø 800 mm | |
| 3 jaw universal chuck: | Ø 500 mm | |
| SAUTER turret: | 4 stations | |
| Chip conveyor: | Yes | |
| Steady rest: | Ø 400 mm |
Do you need more information about this second-hand GEMINIS GHT5 G2 1000×2000 cnc lathe?
Contact us and we will inform you without any commitment on this GEMINIS cnc lathe. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, conventional lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: CNC Lathes
Brand: GEMINIS
Model: GHT5 G2 1000x2000
