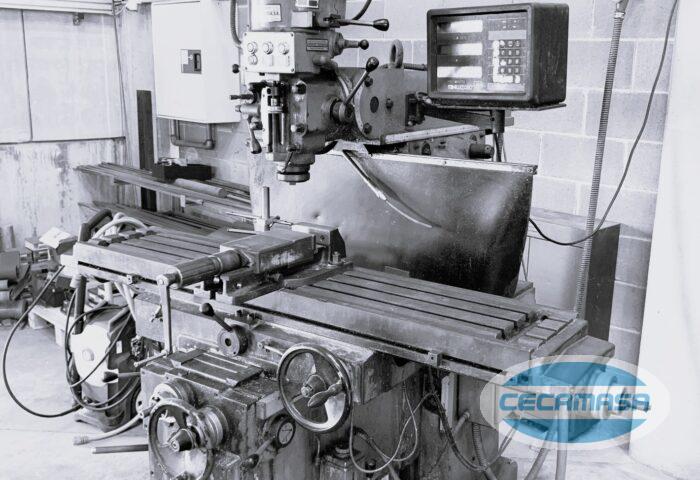

Information on the second-hand turret LAGUN FTV-4 milling machine
The machine tool manufacturer LAGUN is one of the companies with the longest history in Spain. LAGUN began manufacturing universal milling machines and turret milling machines. To this day it carries on selling machines of this type.
The LAGUN FTV-4 turret milling machine from our stock of used machinery is an ideal machine for machining that requires agility and quality in milling. It can be used in sectors such as the wind power sector, aeronautics, the automotive sector, mining, etc.
Technical characteristics of the used LAGUN FTV-4 turret milling machine
Reference: | 072-B008 | |
Table: | 1372x280 mm | |
X-axis traverse: | 800 mm | |
Y-axis traverse: | 345 mm | |
Z-axis traverse: | 400 mm | |
Ram traverse: | 570 mm | |
Quill traverse: | 127 mm | |
Head moves right and left: | 90º | |
Head tilts from to back: | 45º | |
Spindle taper: | Spindle cone ISO 40 | |
Speed range: | 50-3750 (50 Hz) | |
Feeds per spindle revolution: | 0.04-0.08-0.16 mm | |
Chromed quill diam: | 85,70 mm | |
Min/Max distance from spindle center to body: | 130-700 mm | |
Max distance from spindle to table: | 415 mm | |
Number of feedrates: | 12 | |
Longitudinal and cross feedrate: | Min 20 mm Max 920 mm | |
Vertical feedrate: | Min 6 mm Max 276 mm | |
Rapid traverse (X,Y/Z): | 2600 mm / 800 mm | |
Main spindle: | 4 HP | |
Feed motor: | 1.50 HP | |
Coolant pump: | 0.08 HP | |
Approximate machine weight: | 1450 kgs | |
Equipped with: | ||
Digitals: | ANILAM | |
biting: | mouth 120 mm | |
Set of collect chuck: | 1 | |
Various tools: | Yes |
Need more information on that second-hand LAGUN FTV-4 milling machine?
Contact us and we will inform you without any commitment on this turret milling machine LAGUN. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: machining centers, conventional lathes, cnc lathes, bending machines, shears, folding machines, grinding machines, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: Universal milling machines
Brand: LAGUN
Model: FTV-4
