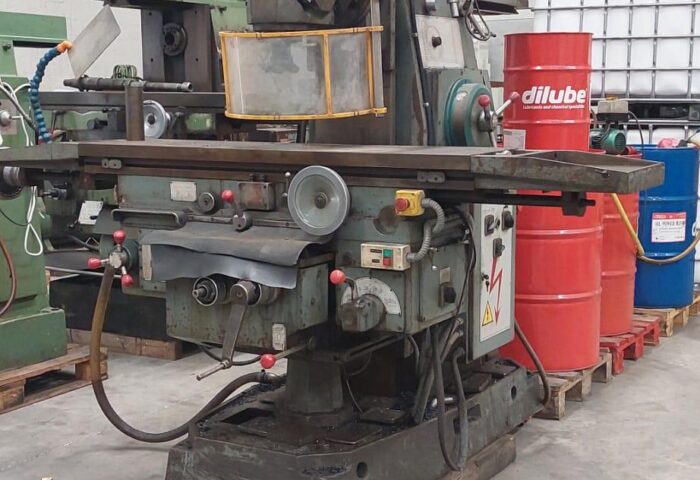

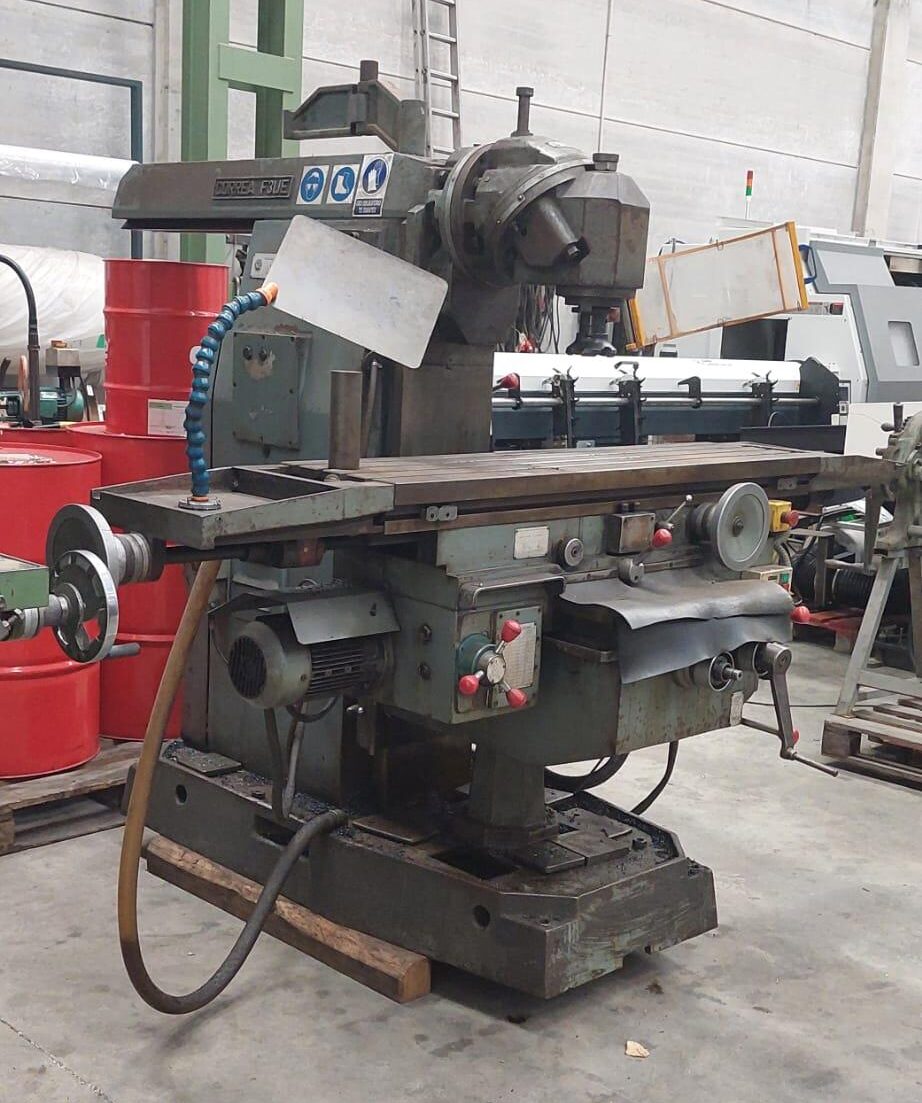

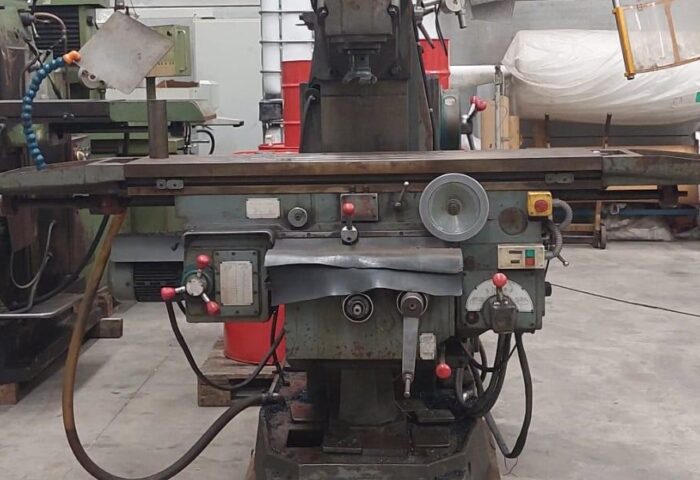

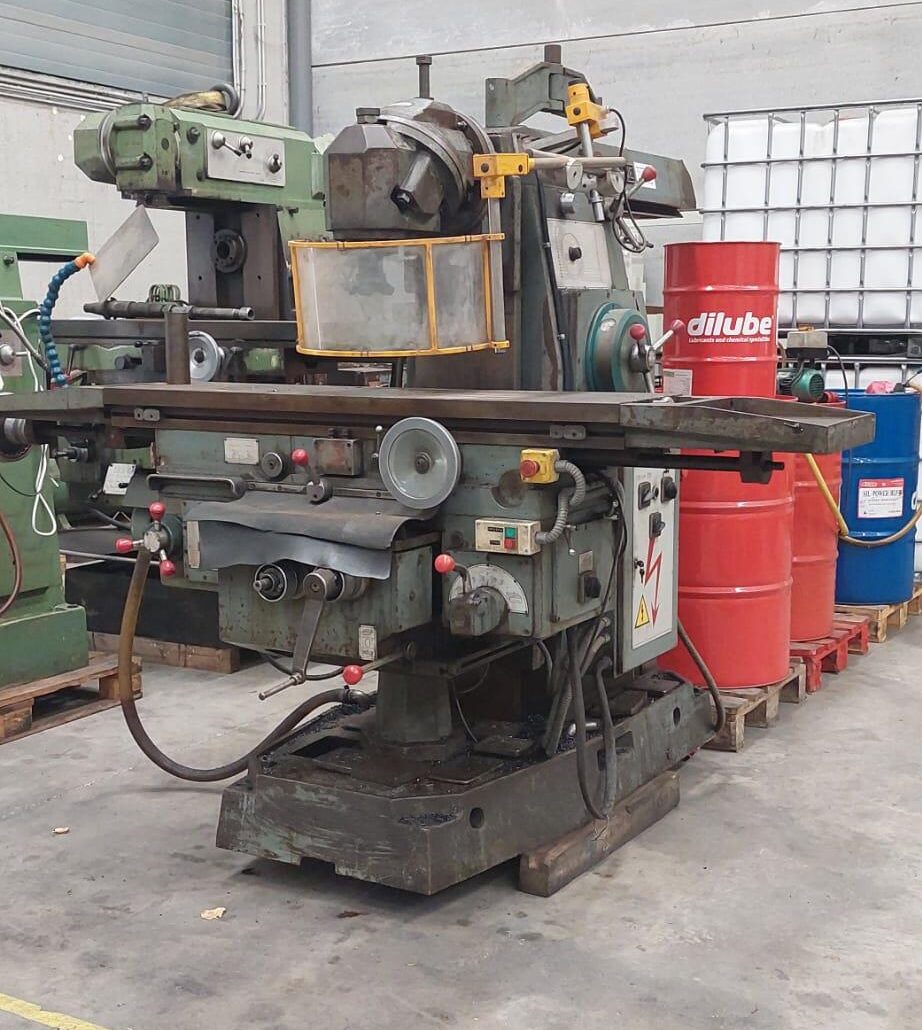

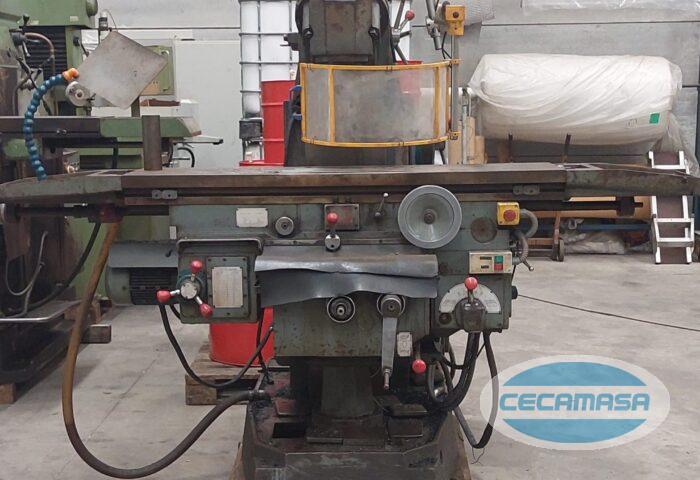

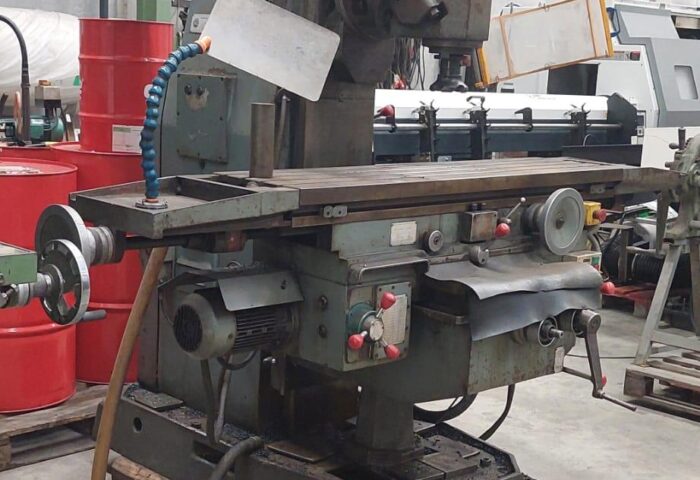

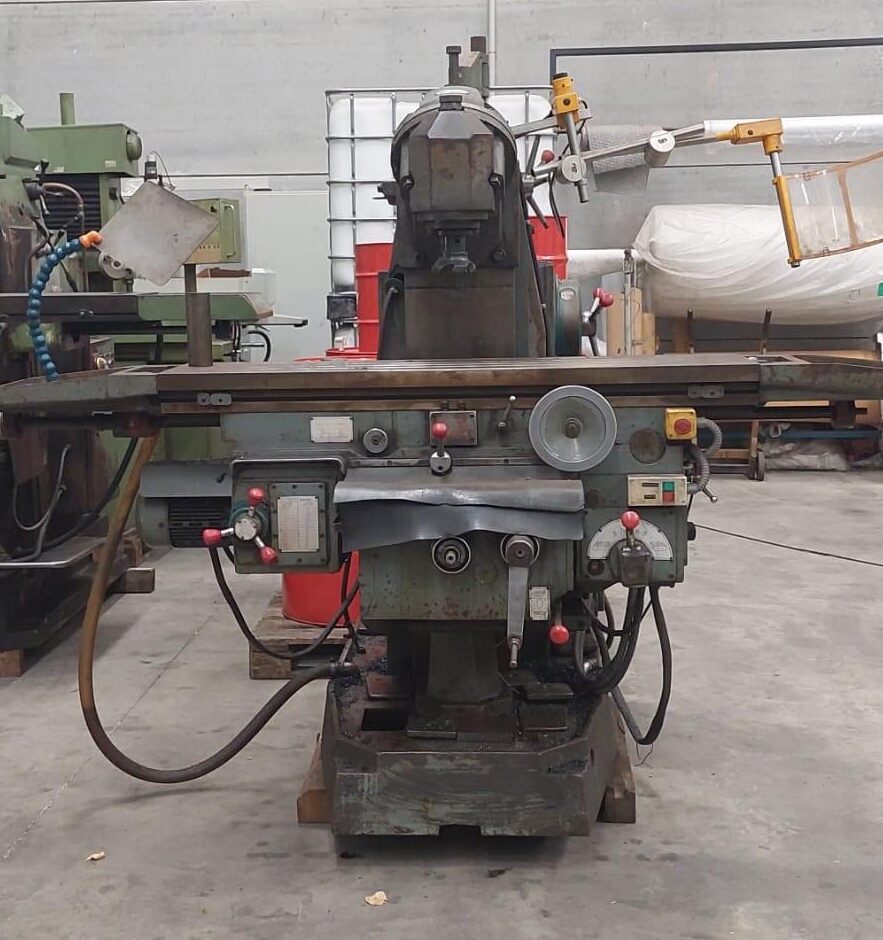

Technical characteristics of the used CORREA F3UE universal milling machine
| Reference: | 072-E020 | |
| Table: | 1400 x 340 mm | |
| X-axis traverse: | 1100 mm | |
| Y-axis traverse: | 320 mm | |
| Z-axis traverse: | 500 mm | |
| Number of developments | 13 | |
| Longitudinal and transversal feed (min - max) | 11,2 - 710 mm/min | |
| Vertical feed (min - max) | 4,5 - 250 mm/min | |
| Rapid longitudinal and transverse | 3000 mm/min | |
| Fast Forward Vertical | 1000 mm/min | |
| Max force | 7.5 CV | |
| Spindle taper | ISO 50 | |
| Speed range: | 18 (from 28 to 1400 rpm) | |
| Approximate weight of the machine | 3200 kg | |
| machine dimensions | 1860 x 2340 x 1730 mm | |
| Equipped with: | ||
| Cabezal Huron V | ||
| CE protection |
Do you need more information about this second-hand CORREA F3UE universal milling machine?
Contact us and we will inform you without any commitment on this universal milling machine. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: machining centers, conventional lathes, cnc lathes, bending machines, shears, folding machines, grinding machines, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
The data without the obligation, may be changed without notice.
Information
Type: Universal milling machines
Brand: CORREA
Model: F3UE
