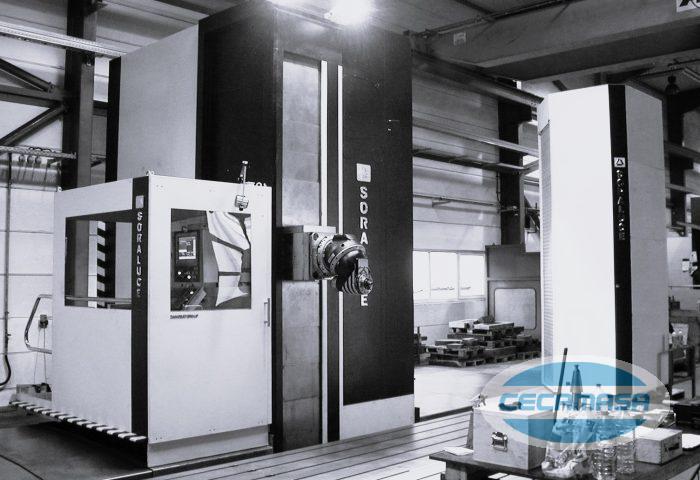

Information about the used SORALUCE FS 8000 traveling column milling machine

SORALUCE is a leading company in the manufacture of machine-tool in our country. It is part of Danobatgroup, one of the most relevant business groups on the European scene. SORALUCE has become synonymous with quality and technology. Not in vain this year 2020 SORALUCE has been awarded with the Ringier Technology Innovation Award. So it comes as no surprise that in our machinery park we always have milling machines of this prestigious brand.

Currently, we have a very special machine for sale: a second-hand SORALUCE FS 8000 traveling column milling machine. This used Soraluce milling machine has a longitudinal traverse of 8000mm, a vertical traverse of 3200 mm and a cross one of 1600 mm. Those traverses, along with its three heads, make this machine, a highly competitive milling machine.

This traveling column milling machine is equipped with an automatic head pick-up. The most remarkable head of this machine is its orthogonal head with an accuracy of one thousandth of a degree with HSK-63A spindle taper. It reaches a speed of 18,000 rpm and it can work 5 continuous axes. It is capable of performing mirror machining characteristic of the tooling sector. Although it can also work soft materials such as master paste or aluminum, carrying out a machining of the highest quality.

The second head is an automatic universal head with an accuracy of one thousandth of a degree capable of working at 6000 turns and with a power of 43 kW. It is ideal to perform heavy machining or wear.

The third head is an outlet type to carry out horizontal works. It also has a power of 43 kW which makes it an ideal head for drilling as required in tube sheets.

In addition to the head pick-up, this machine is equipped with different probes to center the pieces, a chip conveyor, 4 squares 3 meters high and a STOLLE plate of 10,000 × 2,500 mm.

The technical specifications of this machine, as well as its high performance, make this second-hand SORALUCE FS 8000 milling machine, in a traveling column milling machine ideal for machining heavy parts. It has multiple applications, either in the automotive sector, the railway sector, or even in the wind power sector since it can work parts such as bushings.

Technical features of the second-hand SORALUCE FS 8000 traveling column machine

Reference:073-N250
X-axis traverse:8.000 mm
Y-axis traverse:1.600 mm
Z-axis traverse:3.200 mm
Year of the machine:2011
Milling head 1
Orthogonal head with high-speed spindle:Ultra high rotation speed of the head and elbow - continuous
Spindle taper:HSK-63A
C-axis pos:± 180º
A-axis pos:± 180º
Accuracy:0.001º (360,000 pos)
Max speed:18.000 rpm
Motor power:25 kW
Milling head 2
Automatic head:universal
Spindle taper:ISO 50
Max rotation angle:nX360º
Accuracy:A and B axes 0.001º (360,000 pos)
Max speed:6.000 rpm
Motor power:43 kW
Milling head 3
Universal milling head:Direct outlet for horizontal millings
Spindle taper:ISO 50
Max speed:20-5.000 rpm
Motor power:43 kW
Rapid traverses (X, Y, Z):25.000 mm/min
Equipped with:
Control:HEIDENHAIN iTNC 530
Radiofrequency hand-wheel:HEIDENHAIN HGB410
M&H 20.41 radiofrequency touch probe:for piece centering in ISO 50 spindle taper
M&H 20.41 radiofrequency touch probe:for piece centering in HSK63 spindle taper
Pick-up of heads:3 positions
Static pneumatic tool changer:12 magazines adapted to the table
Coolant system:of head oil
Preparation coolant system through the spindleYes
Prepared for internal coolant supply through the spindlethe 3 heads
Mobile platform for operator:with hydraulic height regulation
STOLLE plate:10,000x2,500 mm
4 squares:3,000x1,100 mm
Chip conveyor:Yes

Need more information about this second-hand SORALUCE FS 8000 milling machine?

Contact us and we will inform you without any commitment on this SORALUCE FS 8000 traveling column milling machine. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: machining centers, cylinders, shears, press brakes, etc.

You can reach us via:

cecamasa@cecamasa.com
+34 935 730 225

Machine available, subject to prior sale.
The data without the obligation, may be changed without notice.

Information

Type: Traveling column milling machine

Brand: SORALUCE

Model: FS 8000
