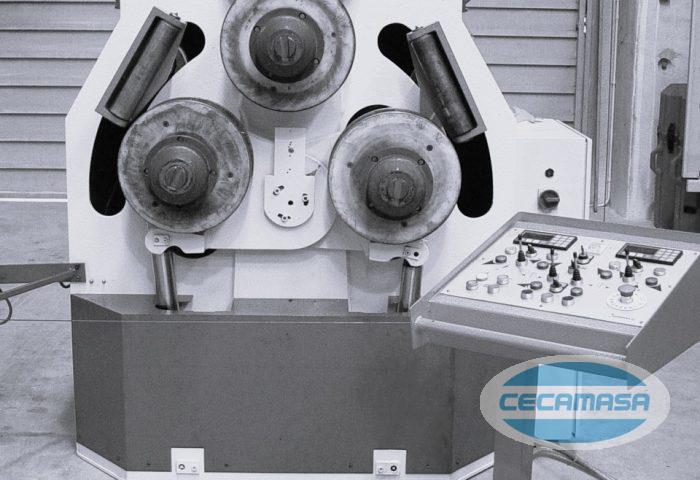

Profile bending machine CASANOVA
Model FC-03.
Profile bending machine with telescopic device.
Axis diameter 120 mm.
Wheels diameter of 400 mm.
Wheels length 180 mm.
Hydraulic power unit 10 CV.
Working speed 3-6 m / min.
Number of speeds 2.
Bending cylinders power 42Tn.
Capacity 120 × 120 mm.
Integral hydraulic drive with overload protection.
Pyramidal system with pre-curved.
Horizontal and vertical position.
Machine dimensions 1350x1350x1580 mm.
Machine weight 4200 Kgs
Equipped with:
- Remote control panel with digital stop.
- CE normatives.
The data without the obligation, may be changed without notice.
Information
Type: Profile Bender machine
Brand: CASANOVAS
Model: FC-03
