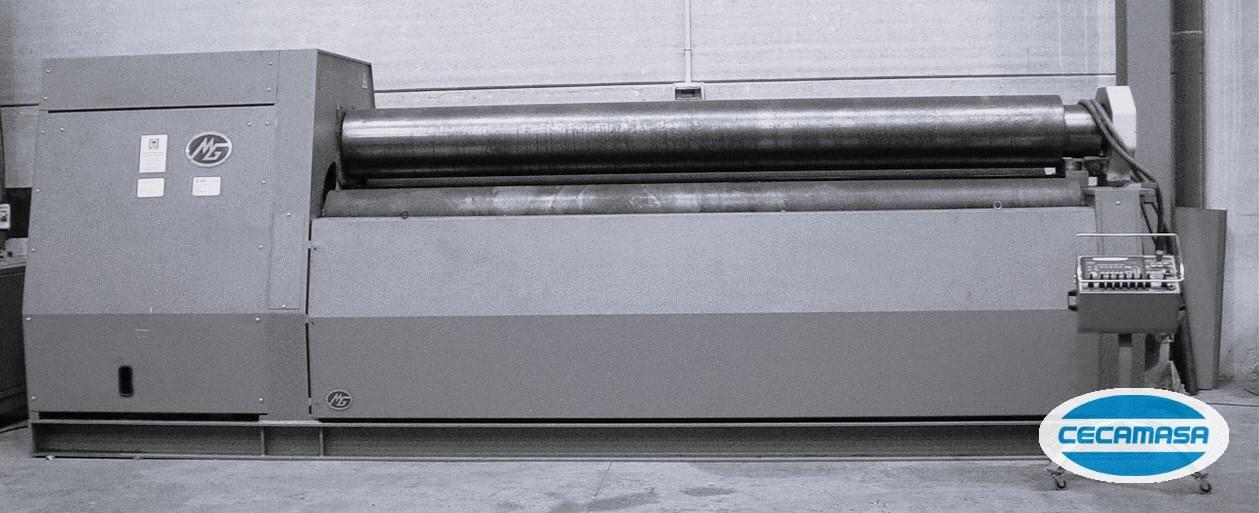

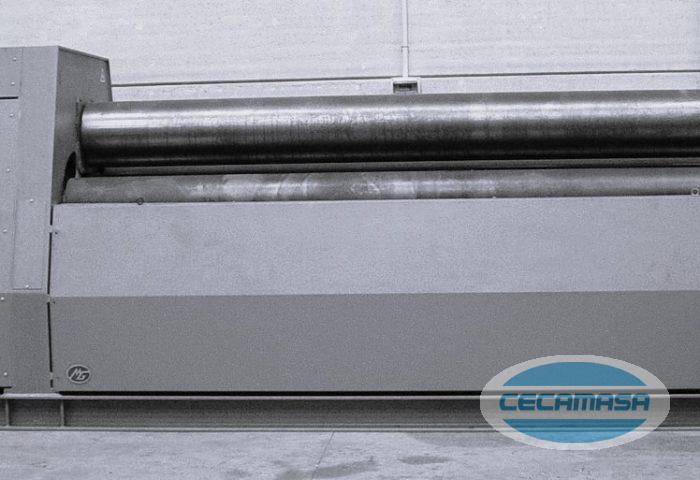

Technical features of the second-hand 4 roll MG MH 4020 plate bending machine
4 roll hydraulic plate bending machine MG
Model MH 4020 E
Max. bending 4000 mm.
Bending capacity 20 mm.
Pre-bending capacity 16 mm.
Rolls diameter:
- Upper roller 420 mm
- 2 side rollers 320 mm.
- Lower roller 390 mm
Bending speed 2/4 m / min
Power 15 KW
Machine dimensions: 6500 x 2100 x 2200 mm
Weight machine 22,500 Kgs.
Year 2010
Equipped with:
- Digital 3 axes
- Ferrule support accessory
Machine available, subject to prior sale.
The data without the obligation, may be changed without notice.
Information
Type: Plate bending machine
Brand: MG
Model: MH 4020 E
