TRAVIS TR-1 cnc lathe
Information about the used TRAVIS TR-1 cnc lathe
This second-hand TRAVIS TR-1 cnc lathe It is in perfect working order. It is a semi-control used cnc lathe with a distance between points of 1000 mm and very well equipped. This used machine has three universal chucks, several sets of claws, a manual quick-change turret with 3 tool holders, a manual quick-change turret with 5 tool holders and two steady rests, one open and one closed. This used cnc lathe is in our warehouses and can be inspected by appointment.
Technical features of the second-hand TRAVIS TR-1 cnc lathe
| Reference: | 218-U039 | |
| Distance between centers: | 1000 mm | |
| Max swing over bed: | 450 mm | |
| Max swing over slide: | 220 mm | |
| Spindle hole diameter: | 56 mm | |
| X-axis travel: | 280 mm | |
| Z-axis travel: | 810 mm | |
| Spindle cone: | MT#4 | |
| Rapid feeds X,Z: | 5.8 m/min | |
| Speed range: | 35-3100 rpm | |
| Main motor: | 10 HP | |
| Approx machine weight: | 3.000 Kgs | |
| Year: | 2008 | |
| Equipped with: | ||
| Control: | FAGOR 8055 | |
| Universal chuck: | 3-jaw chuck Ø 200 mm with 2 sets of jaws | |
| Universal chuck: | 3 jaws Ø 250 mm with 2 sets of jaws | |
| Universal chuck: | 4 jaws Ø 250mm with 3 sets of jaws | |
| Turret: | manual quick change with height adjustment with 3 toolholders (140 square) | |
| Turret: | manual quick change with height adjustment 5 toolholder (120 square) | |
| Steady rest: | 1 open and 1 closed of Ø 160 mm |
Need more information about this second-hand TRAVIS TR-1 cnc lathe?
Contact us and we will inform you without any commitment on this TRAVIS TR-1 cnc lathe. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, conventional lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
MORI SEIKI SL-25B cnc lathe
Technical characteristics of the used MORI SEIKI SL-25B cnc lathe
| Reference: | 218-U029 | |
| Distance between centers: | 1125 mm | |
| Swing over bed: | 520 mm | |
| Swing over cross slide: | 350 mm | |
| Bar work capacity: | 50 mm | |
| X-axis traverse: | 160 mm | |
| Z-axis traverse: | 1090 mm | |
| X-axis rapid feed: | 12.000 mm/min | |
| Z-axis rapid feed: | 15,000 mm/min | |
| Spindle nose: | JIS A2-6 * | |
| Spindle diameter: | 60 mm | |
| Spindle speed: | 42-4200 rpm | |
| Tailstock: | MT4 | |
| Tailstock travel: | 990 mm | |
| Power: | 31 KVA | |
| Approx machine weight: | 5500 kgs | |
| Machine dimensions: | 3600x1540x1900 mm | |
| Equipped with: | ||
| Control: | FANUC 10T | |
| Chuck: | Kitagawa diameter 210 mm | |
| Tool pre-setter or measuring arm of tools: | Yes | |
| Turret: | 12 stations |
How does the MORI SEIKI SL-25B cnc lathe work?
Need more information about this second-hand MORI SEIKI SL-25B cnc lathe?
Contact us and we will inform you without any commitment on this MORI SEIKI SL-25B cnc lathe. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, conventional lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
MORI SEIKI cnc lathe - 218/U028
MORI SEIKI CNC lathe
Model SL-253BMC/1000
Distance between centers 1000 mm
Turning Ø 250 mm.
Turning length 1035 mm.
Spindle Ø 86mm.
Tailstock travel 1027 mm.
Rapid traverse X, Z = 18, 24 m / min.
Spindle speed 35-5000 rpm
Total power 34 Kw
Machine dimensions 3400 x 1900 x 1900 mm
Machine weight 5.6 tons
Year 2000
Equipped with:
- CNC MSG 501
- KITAWA chuck Ø 210
- Turret 12 stations
- Rotating tool stations
- Tool pre-setter
- C- Axis 0.001º
MORI SEIKI SL-253BMC/1000 CNC LATHE
GURUTZPE cnc lathe - 218/T010
CNC LATHE GURUTZPE
Model A 1000 CNC
Distance between centers 3000 mm.
Height centers 450 mm.
Ø over bed 1000 mm.
Ø over saddle 700 mm.
Main axis Ø 155 mm.
Max allowed weight 2000 kgs.
Main axis A11.
Range speeds from 0 to 800 rpm
Total power 68 kW
Year 2005
Equipped with:
- CNC FAGOR 8070 TC
- Motorized turret SAUTER
- Axis C 0,01º
- Automatic tailstock
- Clamping on the bed
- Hydraulic drive cane - Tool holders:
- Motorized radial and motorized axial.
- turning, several tools. - Fixed steady 50/500 mm.
- Chuck 4-jaws Ø 800 mm
- Universal 3-jaws chuck Ø 400 mm
- Chip conveyor.
GEMINIS GHT5 G2 cnc lathe
Information on the used GEMINIS GHT5 G2 cnc lathe
This second-hand GEMINIS GHT5 G2 cnc lathe has a distance between centers of 4,000 mm and it was manufactured in 2009. The brand GEMINIS is a leading and an undisputed prestige brand, which develops horizontal and multiprocessing lathes of high performance. Among the technical features of this used GEMINIS GHT5 G2 lathe, we would like to outline the fact that it has a swing ober bed of 1000 mm, a swing over cross slide of 680 mm in excellent condition and it is equipped with a SIEMENS 810D numerical control, cooling supply of 6 bar and chip conveyor. This used CNC lathe is located at our facilities and it may be inspected prior appointment.
Technical features of the used GEMINIS GHT5 G2 cnc lathe
| Reference: | 218-S022 | |
| Distance between centers: | 4000 mm | |
| Swing over bed: | 1000 mm | |
| Swing over cross slide: | 680 mm | |
| Centers' height: | 500 mm | |
| Bed width: | 550 mm | |
| Spindle hole diameter: | 104 mm | |
| Range 1, chuck speed: | 0-175 rpm | |
| Range 2: | 0-1400 rpm | |
| Total power: | 34,5 Kw | |
| Diameter tailstock: | 140 mm | |
| Approximate machine weight: | 12000 kgs | |
| Machine dimensions: | 6930+1500(chip conveyor)x2870x 2225 mm | |
| Year: | 2009 | |
| Equipped with: | ||
| Control: | SIEMENS 810D | |
| Chuck: | TDG 4-jaw independent chuck Ø 700 mm | |
| Turret: | PARAT RD4 manual turret 4 positions | |
| 1 steady rest: | min Ø 200, max Ø 620 mm | |
| Coolant supply: | 6 Bares | |
| Chip conveyor: | Yes |
Need more information about this second-hand GEMINIS GHT5 G2 cnc lathe?
Contact us and we will inform you without any commitment on this GEMINIS GHT5 G2 cnc lathe. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, conventional lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
CMZ cnc lathe - 218/S095
CNC lathe CMZ
Model TL 25BMS
Distance between centres 668 mm.
Swing over bed Ø 685 mm.
Swing over saddle Ø 610 mm.
Max turning Ø 400 mm.
Main axis Ø 77 mm.
Travels: X 240 mm., Z 640 mm., B 620 mm.
Spindle speed 3500 rpm
Spindle power 25 Kw
Machine dimensions 2322 x 1600 x 1800 mm
Machine weight 6000 kgs.
Year 2005
Equipped with:
- CNC FANUC
- Chuck Ø 250 mm.
- 3 motorised tools (1 radial and 2 axial - one of them double)
- VDI motorized turret 12 positions.
- Motorized power tools max 16 Kw / torque max 75 Nm
- Sub-spindle bar passage 32 mm Ø 130 mm.
- Power sub-spindle head 14 Kw. Max speed 5000 r.p.m.
DAEWOO PUMA 400 LMB cnc lathe
Information about the used DOOSAN DAEWOO PUMA 400 LMB cnc lathe
This second-hand DAEWOO PUMA 400 LMB cnc lathe is within the category of the heavy range of the prestigious Korean brand DOOSAN. This used cnc lathe has a distance between centers of 2000 mm and a turning diameter of large dimensions. We would like to highlight of this used cnc lathe, its chuck SMW autoblock diameter 380 mm and its hydraulic steady rest SMW autoblock, its internal cooling, the chip conveyor, the control FANUC 21i-TB and especially remarkable its turret with motorized tools. This used cnc lathe is located at our facilities and it can be inspected prior appointment.
Technical features of the used DOOSAN DAEWOO PUMA 400 LMB cnc lathe
| Reference: | 218-S028 | |
| Distance between centers: | 2000 mm | |
| Max turning diameter: | 700 mm | |
| Swing over cross slide: | 560 mm | |
| Spindle hole diameter: | 120 mm | |
| Rapid feeds X,Z: | 16.18 m/min | |
| Speed range: | 2000 rpm | |
| Total power: | 48 KVA | |
| Approximate machine weight: | 9800 kgs | |
| Machine dimensions: | 5342x2176x2317 mm | |
| Year: | 2006 | |
| Equipped with: | ||
| Control: | FANUC 21i-TB | |
| Chuck: | SMW Autoblock hydraulic Ø 380 mm | |
| Turret: | Motorized 12 positions | |
| 3 toolholder: | 1 and 2 square axial cylinder (axial and one radial 1) | |
| C-Axis 100 1/min | ||
| Steady rest: | SMW Autoblock SLU-4 hydraulic | |
| Coolant supply: | internal | |
| Hydraulic system: | 40 bares | |
| Chip conveyor: | Yes |
Need more information about this second-hand DOOSAN DAEWOO PUMA 400 LMB cnc lathe?
Contact us and we will inform you without any commitment on this DAEWOO PUMA 400 LMB cnc lathe. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial machinery: Conventional milling machines, cnc milling machines, conventional lathes, grinders, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225

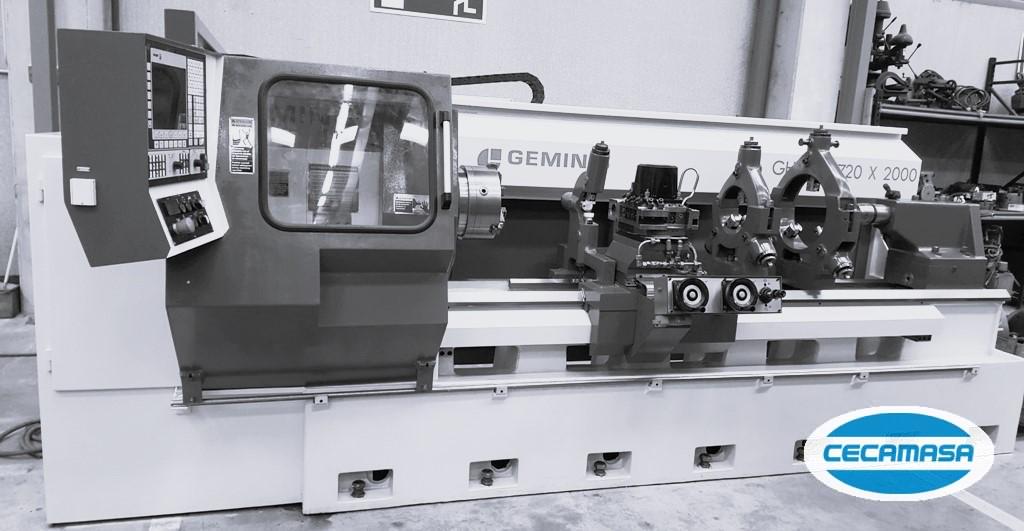

GEMINIS cnc lathe - 218 / R041
CNC lathe GEMINIS
Model GHT4 - 720 × 2000
Distance between centers 2000 mm.
Swing over bed 720 mm.
Diameter over cross saddle 470 mm.
Main axis diameter 104 mm.
Max. weight between centers 2560 Kg.
1 speed range (min -1) 0 ... 335
2 speed range (min -1) 0 ... 1600
Motor power 17 kW
Machine dimensions 4300x1900x1800 mm.
Machine weight 4,900 Kgs.
Equipped with:
- CNC FAGOR 8055 TC
- Chip conveyor
- Automatic turret 4-position, with several tool-holders.
- Universal chuck 3-jaws Ø 315 mm.
- Universal chuck 3-jaws Ø 500 mm.
- Chuck 4-jaws independent clamps Ø 600 mm.
- Chuck 4-jaws independent clamps Ø 300 mm.
- Fix steady 300 mm.
- Fix steady 200 mm.
- Mobile steady
- Rotary point
GEMINIS GHT4 720 x 2000 mm LATHE
GEMINIS cnc lathe - 218/R051
CNC lathe GEMINIS
Model GHT4-G2
Distance between centres 4000 mm.
Ø over bed 700 mm
Ø over saddle 470 mm.
Bed width 430mm.
Height centers 366 mm
Rapid movements 8000 mm/min
Chuck speed range 10-335 r.p.m.
Speed range 20-1600 r.p.m.
Allowed weight between points without steadies 2Tn 560 kgs.
Motor 17 kW
Tailstock Ø 100 mm
Tailstock quill 220 mm
Morse point 6
Year 2008
Equipped with:
- CNC Siemens 810D
- Chuck of 3-jaws Ø 400 mm.
- SAUTER automatic circular turret 8 positions
- 1 steady (3 points)
- Cooling equipment
- Chip conveyor
- Spindle support
GEMINIS GHT4 G2 700 x 4000 mm LATHE
DOOSAN cnc lathe - 218/S013
CNC lathe with motorized tools DOOSAN
Model PUMA 300 MC
Distance between centers 690 mm.
Max turning length 565 mm.
Max Ø turning 355 mm
Travels:
- X 250 (72+178)mm
- Z 680 mm
- C-Axis 360° (0.001°)
Chuck Ø 305 mm.
Inner diameter of the front bearing 160 mm
Inner diameter of the clamping bar 103 mm
Tailstock quill course 100 mm.
Rapid movements X 20 m/mm, Z 24 m/mm, C 200 g/min
Max spindle speed 2800 r.p.m.
Motor power 22 kW
Dimensions 3430 x 1800 x 1825 mm
Weight 5740 kgs.
Machine ON: 36072 h.
Machine working: 8609 h.
Year 2006
Equipped with:
- CNC FANUC 21iTB
- Turret of 12 positions
- Chip conveyor
