Ref: 193-A005

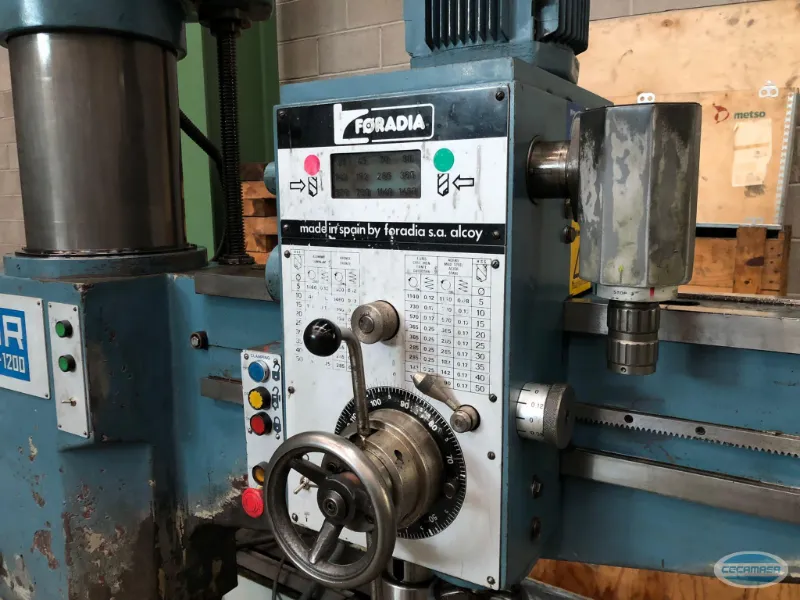

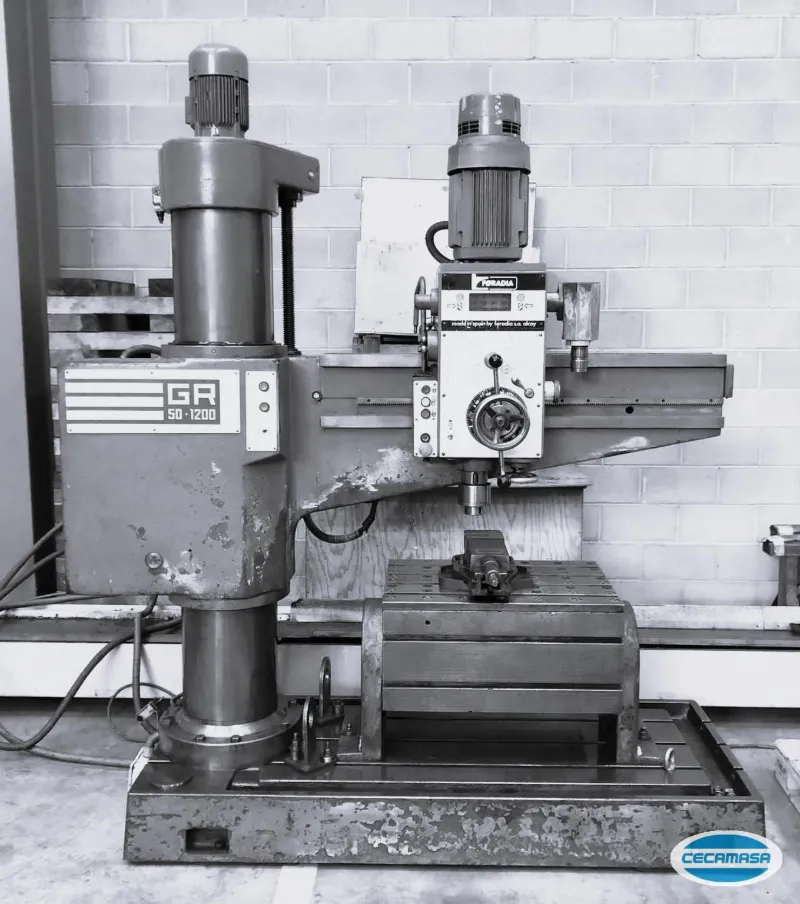

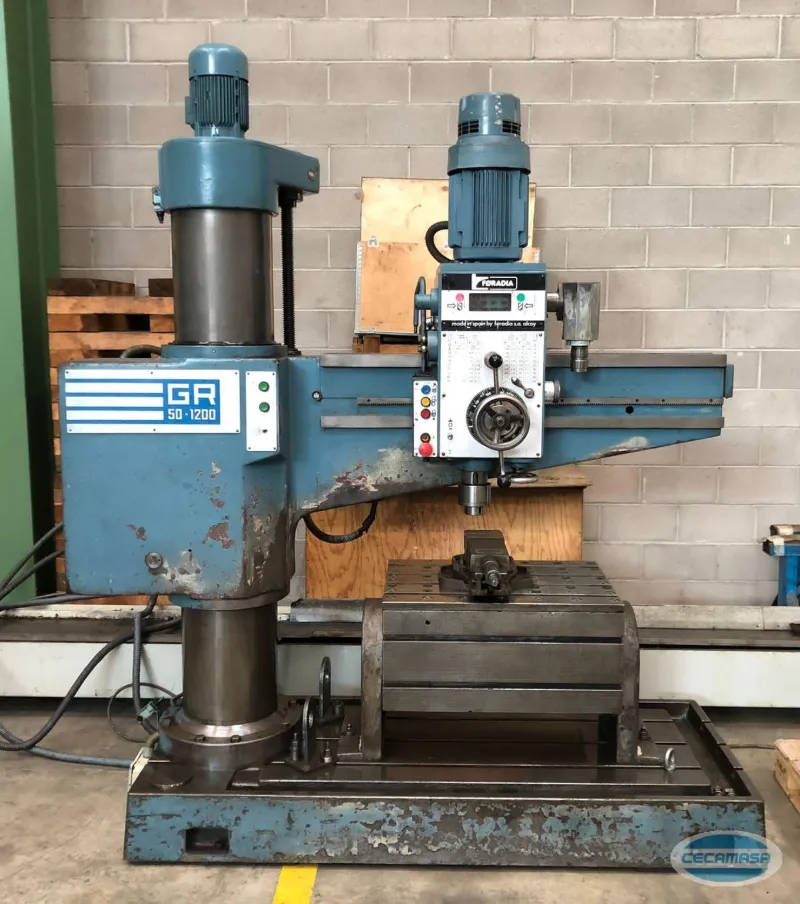

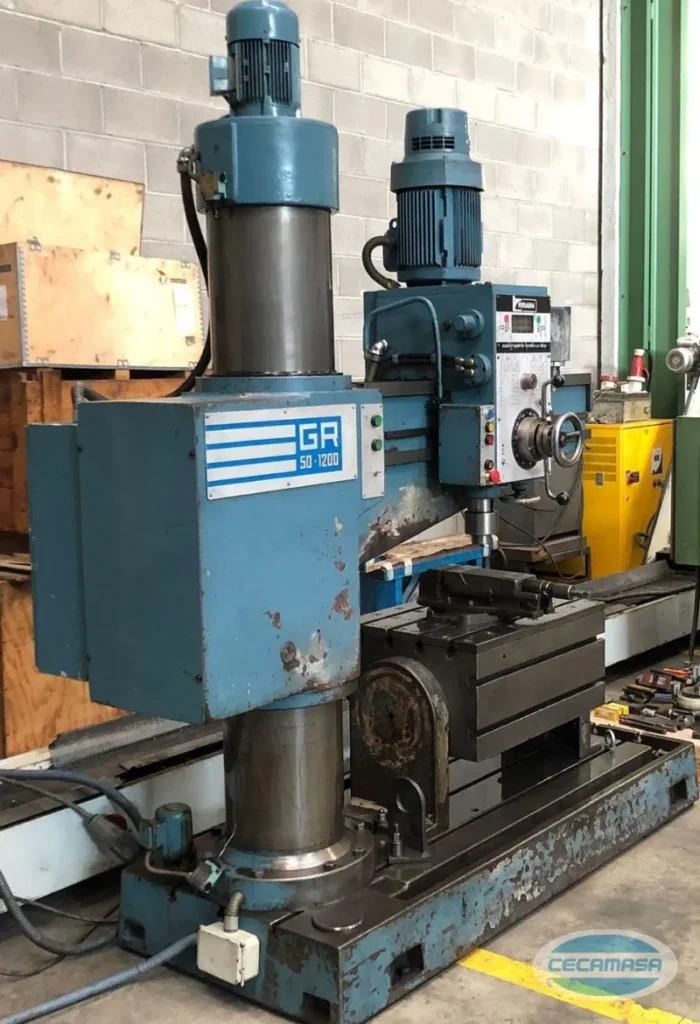

FORADIA GR 50-1200 drill

  • Used Machinery, Drilling Machines
50 mmmax drilling Ø
360ºArm swing angle
3,5 CVMain engine power
2300 KgsApprox machine weight
Max drilling Ø:
50 mm
Distance from chuck axis to column:
Max 1350 mm - Min 435 mm
Horizontal displacement of the chuck head:
1200 mm
Vertical arm movement:
715 mm
Arm swing angle:
360º
MORSE taper:
4
Speed ​​range:
12, 35 -1460 mm
Mandrel displacement:
225 mm
Blockages:
Hidráulico
Main engine power:
3,5 CV
Approx machine weight:
2300 Kgs
Machine dimensions:
1825x780x2650 mm
Equipped with:
Tilting dice table:
705x500x525 mm
Hydraulic clamp:
Opening 135 mm. Mouth 125 mm.

Complete technical sheet (PDF)

FORADIA GR 50-1200 drill

Do you need more information about this second-hand FORADIA GR 50/1200 drill?

Contact us and we will inform you without obligation about this. FORADIA radial drill used. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc. You can contact us through:

cecamasa@cecamasa.com

+34 935 730 225

Price to consult

VAT not included · Transport to be negotiated

Request information and price
direct WhatsApp
+34 935 730 225

Key data

Type: Mechanized Center

Mark: FORADIA

Model: GR 50/1200

Reference: 193-A005
