A stock
Ref: 194-E016

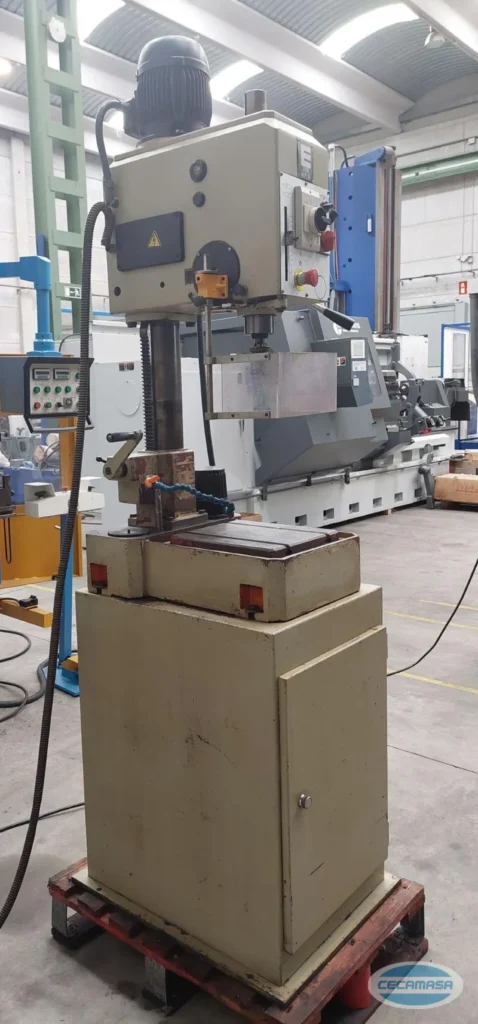

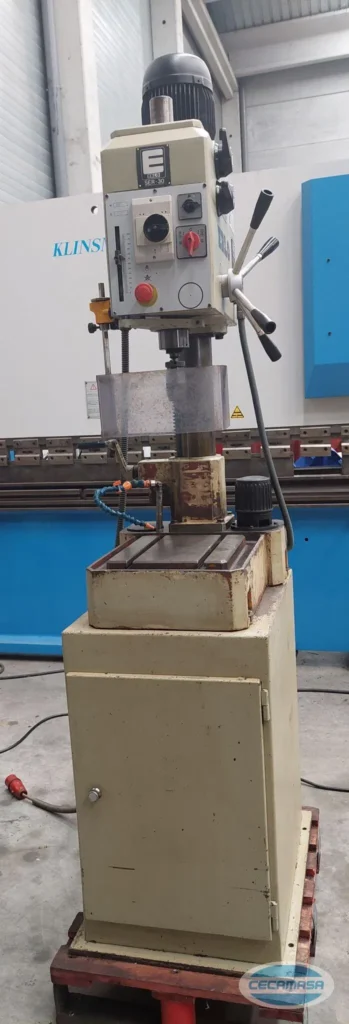

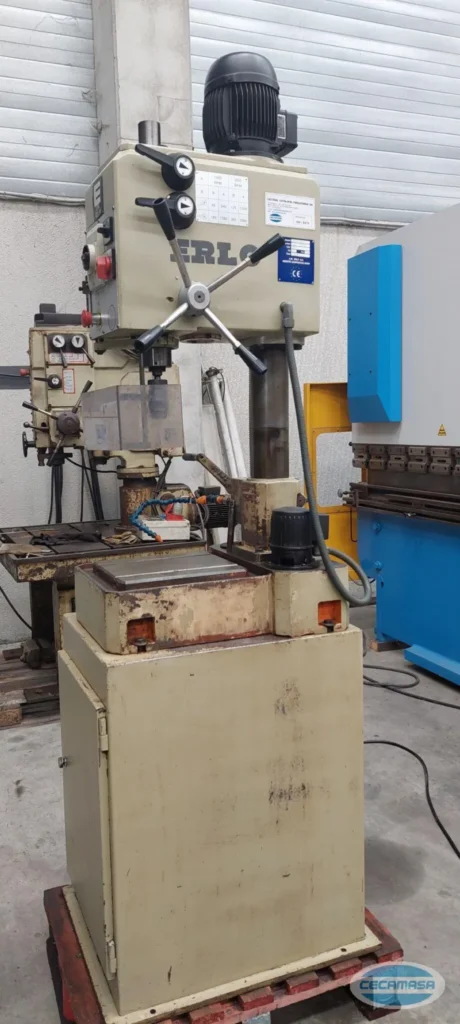

ERLO SER-30 drill

  • Used Machinery, Drilling Machines

· Year 2022

316 x 288 mmMesa
30 mmDrill diameter
M-25Threading capacity
1,1 / 1,6 CVPower
Mesa
316 x 288 mm
Drill diameter
30 mm
Threading capacity
M-25
Transmission
gears
Spindle travel
120 mm
Spindle-column distance
256 mm
Spindle-table distance (min-max)
155 - 580 mm
Column diameter
100 mm
Speeds
8 (from 65 to 3060 rpm)
Power
1,1 / 1,6 CV
Main engine speed
1500 / 3000 rpm
Approximate machine weight
250 kg
Machine dimensions
800 x 600 x 1450 mm (con banco 2250 mm)
Equipped with:
CE regulation
Manual Advance
Base bank

Complete technical sheet (PDF)

ERLO SER-30 drill

Do you need more information about this second-hand ERLO SER-30 Drill?

Contact us and we will inform you without obligation about this. table drill1. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.

You can contact us through:

cecamasa@cecamasa.com

+34 935 730 225

Price to consult

VAT not included · Transport to be negotiated

Request information and price
direct WhatsApp
+34 935 730 225

Key data

Type: Drilling Machines

Mark: CLOCK

Model: SER-30

Reference: 194-E016

Request information

Guaranteed response the same day.

Machine: ERLO SER-30 drill
