A stock
Ref: 191-E017

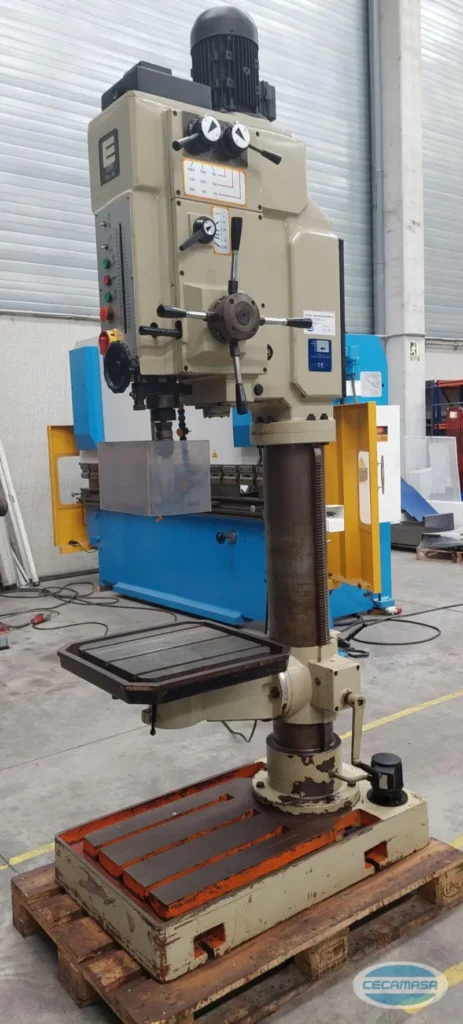

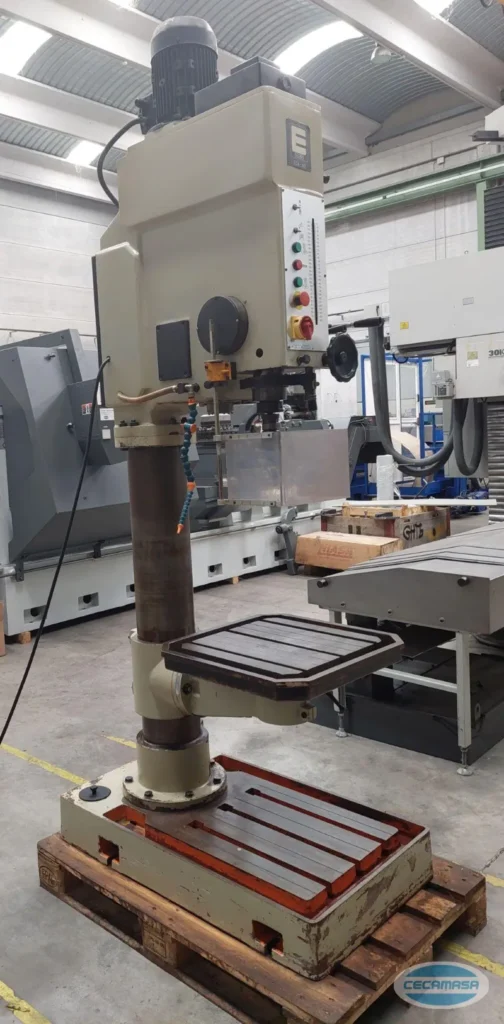

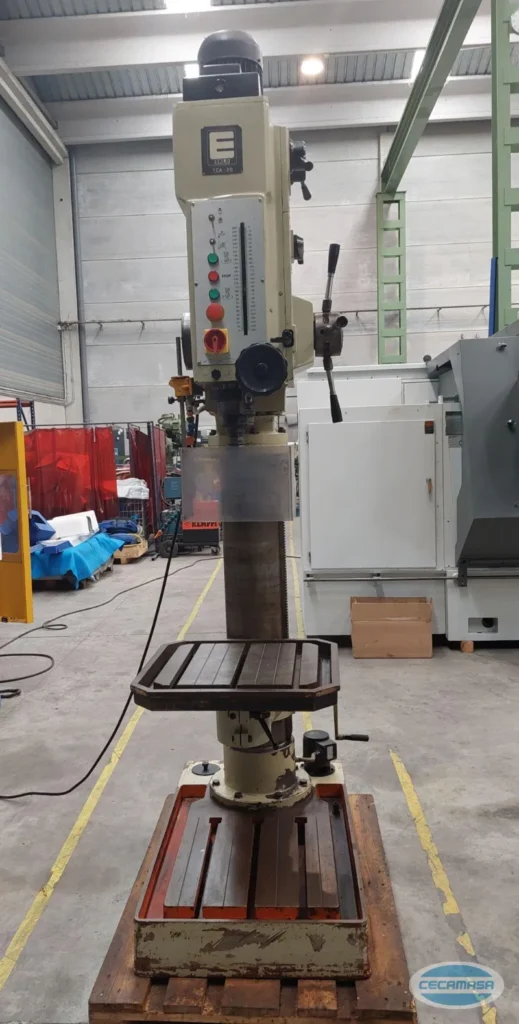

ERLO TCA-50 Drill

  • Used Machinery, Drilling Machines
550 x 550 mmMesa
9, from 45 to 1115Speeds
4 HPPower
1500 rpmMain engine speed
Mesa:
550 x 550 mm
Base dimensions
600 x 1060 mm
Drill diameter
50 mm
Rotating table with degrees:
Yeah
Transmission
gears
Spindle travel
260 mm
Spindle-column distance
400 mm
Spindle-table distance (min-max)
70 - 802 mm
Spindle-base distance
1290 mm
Column diameter
200 mm
Speeds:
9, from 45 to 1115
Drilling progress:
0,08 - 0,16 - 0,24 - 0,35 mm/rev
Potencia:
4 HP
Main engine speed
1500 rpm
Approximate machine weight
900 kg
Machine dimensions
1200 x 600 x 2600 mm
Equipped with:
automatic advance
coolant bomb
CE regulation

Complete technical sheet (PDF)

ERLO TCA-50 Drill

Do you need more information about this second-hand ERLO TCA-50 column drill?

Contact us and we will inform you without obligation about this. used ERLO drill. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.

You can contact us through:

cecamasa@cecamasa.com

+34 935 730 225

Price to consult

VAT not included · Transport to be negotiated

Request information and price
direct WhatsApp
+34 935 730 225

Key data

Type: Drilling Machines

Mark: CLOCK

Model: TCA-50

Reference: 191-E017
