Sold
Ref: 073-Z009

NICOLAS CORREA FP50-60 milling machine

6.000 mmX Axis Travel
3.250 mmY Axis Travel
1.000 mmZ Axis Travel
HEIDENHAIN 530Control

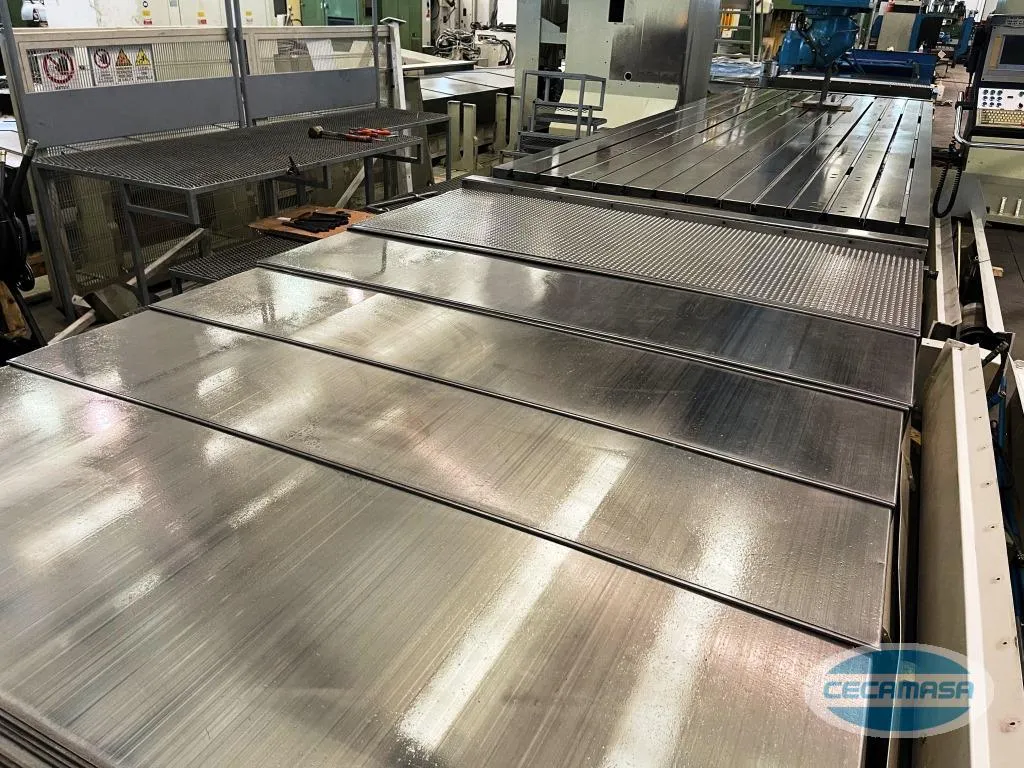

Table dimensions:
6000 x 2000 mm
Max weight on table:
30.000 kgs
X Axis Travel:
6.000 mm
Y Axis Travel:
3.250 mm
Z Axis Travel:
1.000 mm
Distance between columns:
2.700 mm

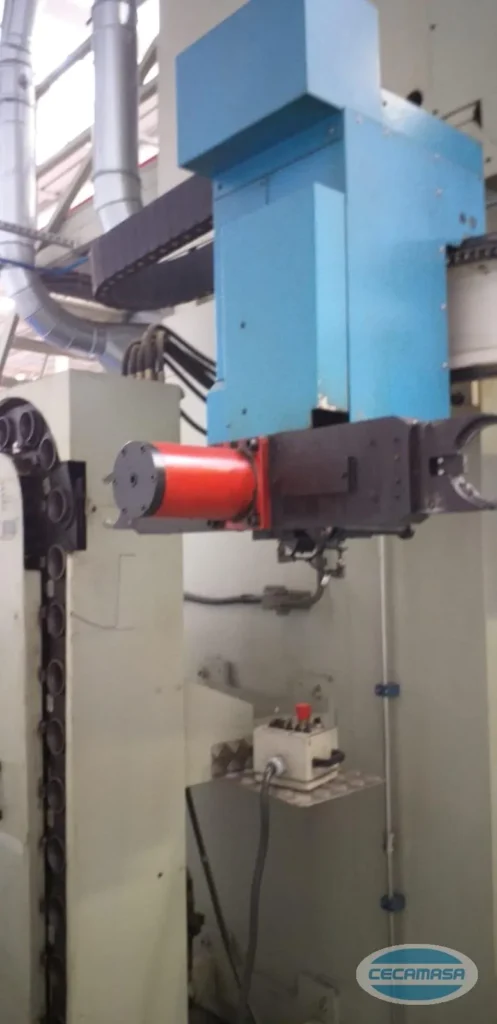

Head model:
Automatic 2.5º-2.5º
Pussy:
ISO-50
Spindle speed:
3.000 r.p.m.
Spindle power:
37 kw
Work progress:
2-7.000 mm/min
Fast forwards:
7.200-12.000 mm/min
Machine weight:
61.500 kgs
Machine dimensions:
15765x5225x4870 mm
Equipped with:
Control:
HEIDENHAIN 530

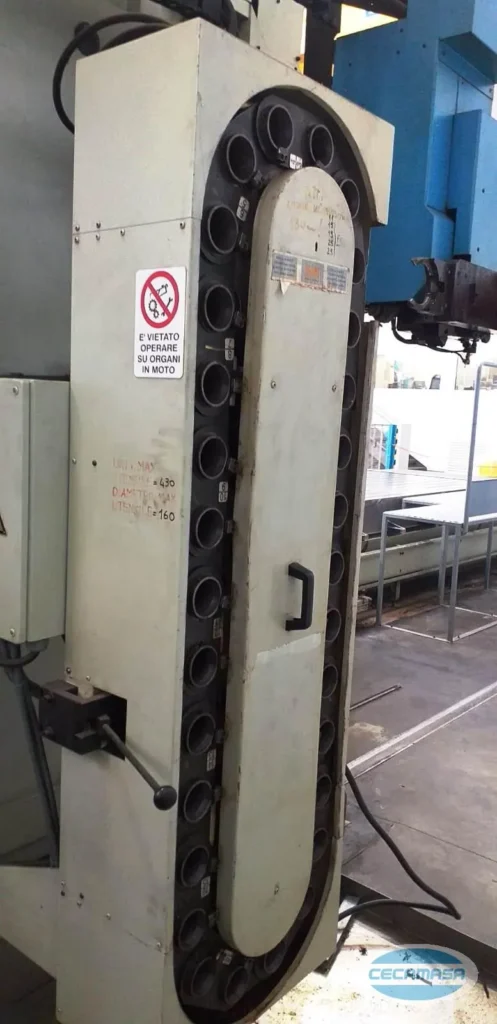

ATC Tool Loader:
30 tools
Internal cooling:
High pressure pump - 25 Bars
Suction system:
Yeah
Perimeter fairing:
Yeah

Complete technical sheet (PDF)

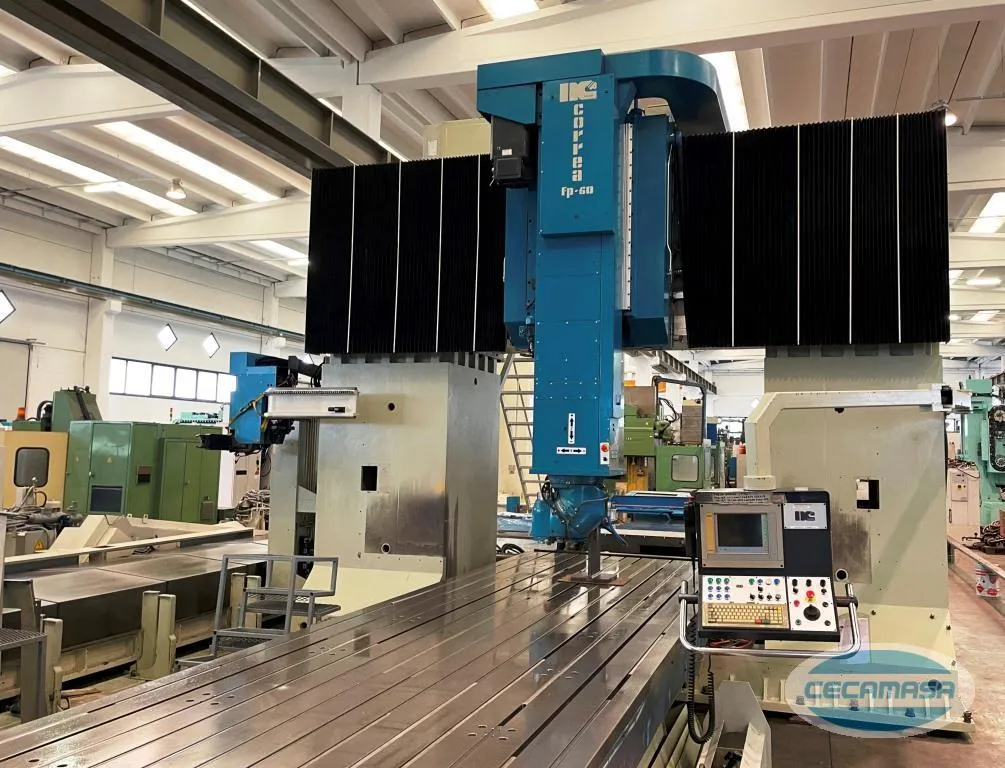

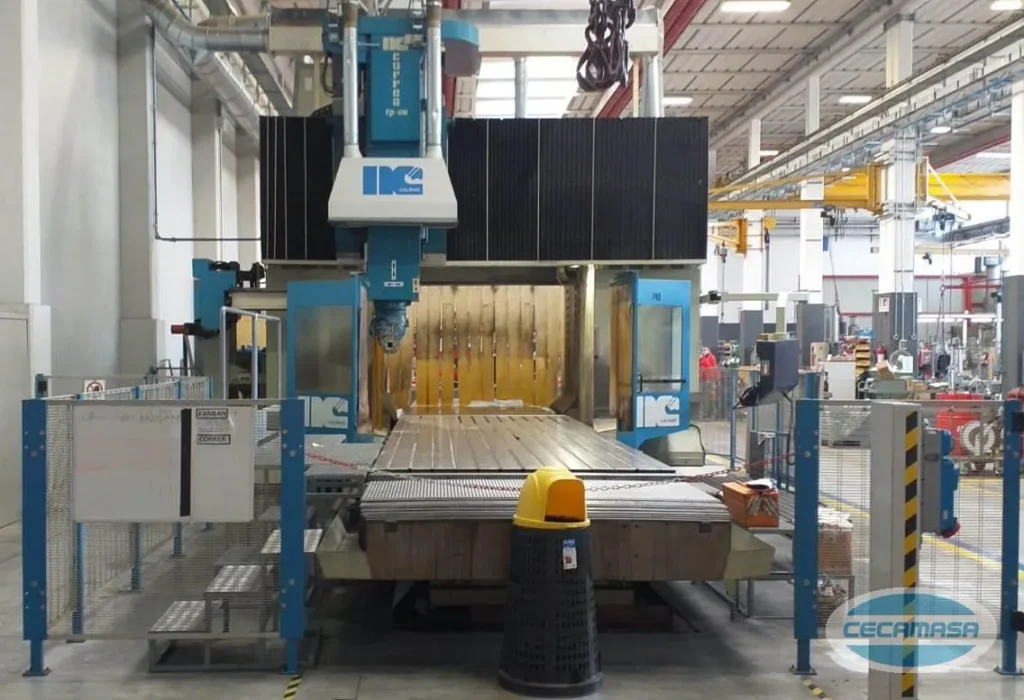

NICOLAS CORREA FP50-60 milling machine

Information about this second-hand NICOLAS CORREA FP-50/60 bridge milling machine

At this time CECAMASA has several bridge milling machines available for sale in stock. They are second-hand bridge milling machines from the prestigious Spanish brand CORREA. Among these used milling machines, the CORREA FP50/60 bridge milling machine stands out, which is located in a perfect working condition.

It is a second hand milling machine very well equipped. It has an automatic head, tool charger and smoke extraction system. This CORREA milling machine has been used mainly to work plastics, for this reason the machine has never suffered from excessive part loading weights. A very important aspect of this milling machine is the pitch between uprights, which is 2,700 mm. It is a very versatile used milling machine for large dies, matrices and parts in general. It has the following routes: 6000 mm longitudinally, 3250 mm transversally and 1000 mm vertically. Therefore, it is a large milling machine.

Do you need more information about this second-hand NICOLAS CORREA FP-50/60 bridge milling machine?

Contact us and we will inform you without any obligation about this NICOLAS CORREA FP-50/60 bridge milling machine. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225

Machine available, subject to the right of sale.
The data is not binding and may be modified without prior notice.

Price to consult

VAT not included · Transport to be negotiated

Key data

Type: Bridge milling machine

Mark: CORREA

Model: FP-50/60

Reference: 073-Z009

Request information

Guaranteed response the same day.

Machine: NICOLAS CORREA FP50-60 milling machine

No obligation · Protected data
