A stock
Ref: 073-N334

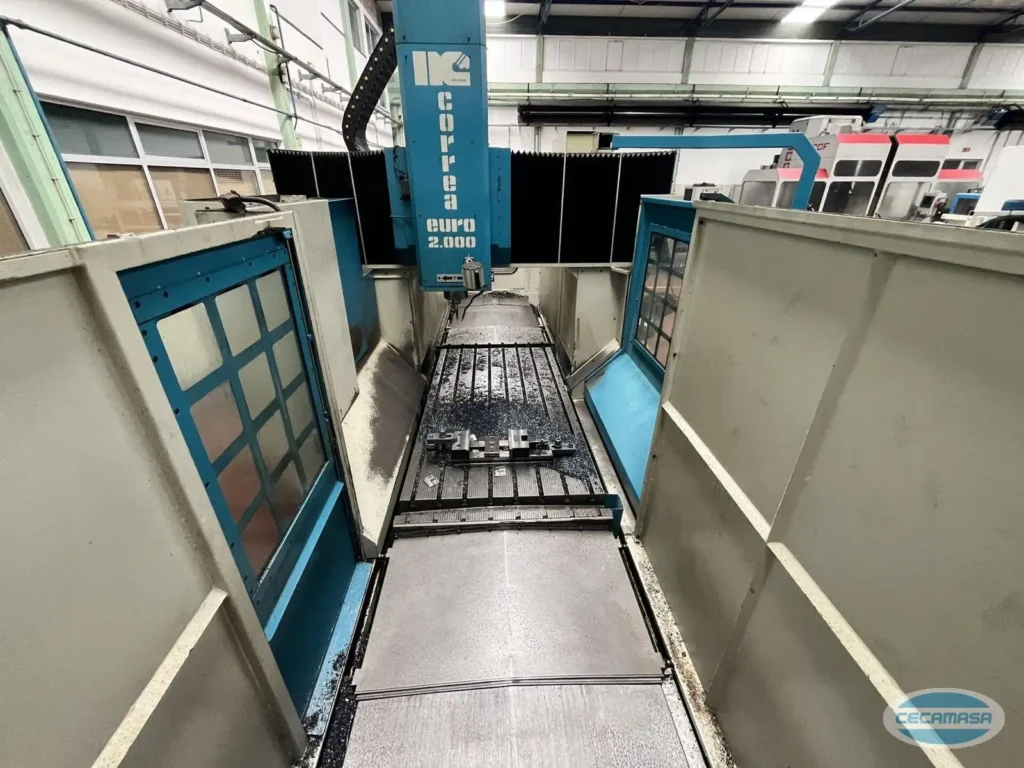

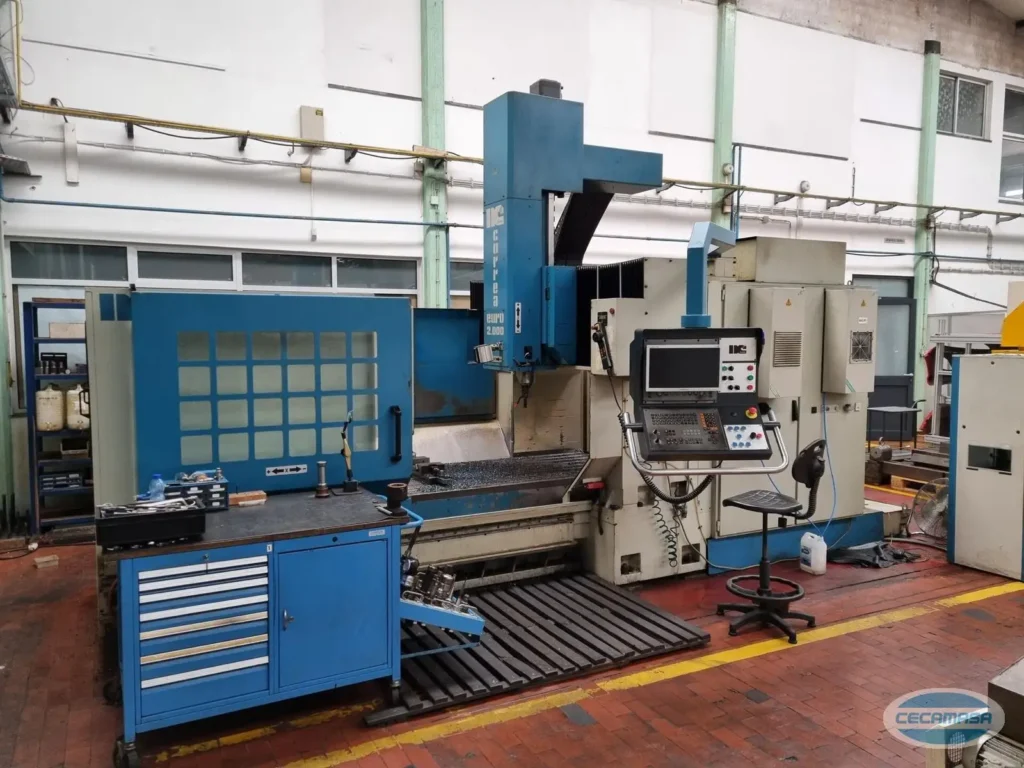

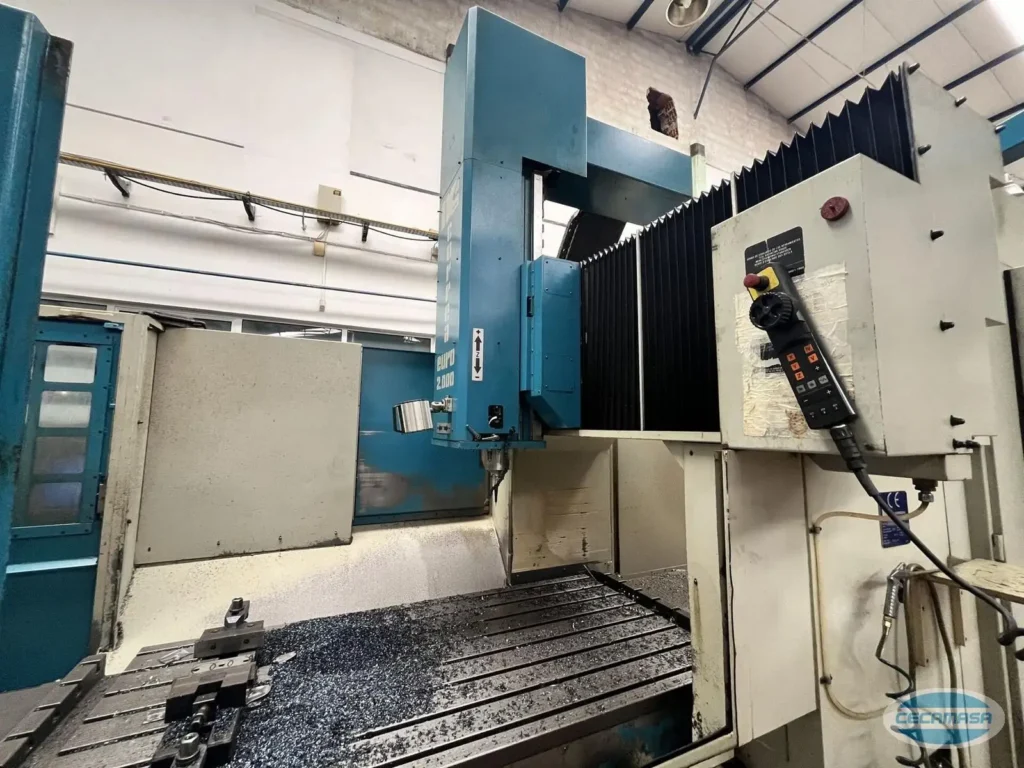

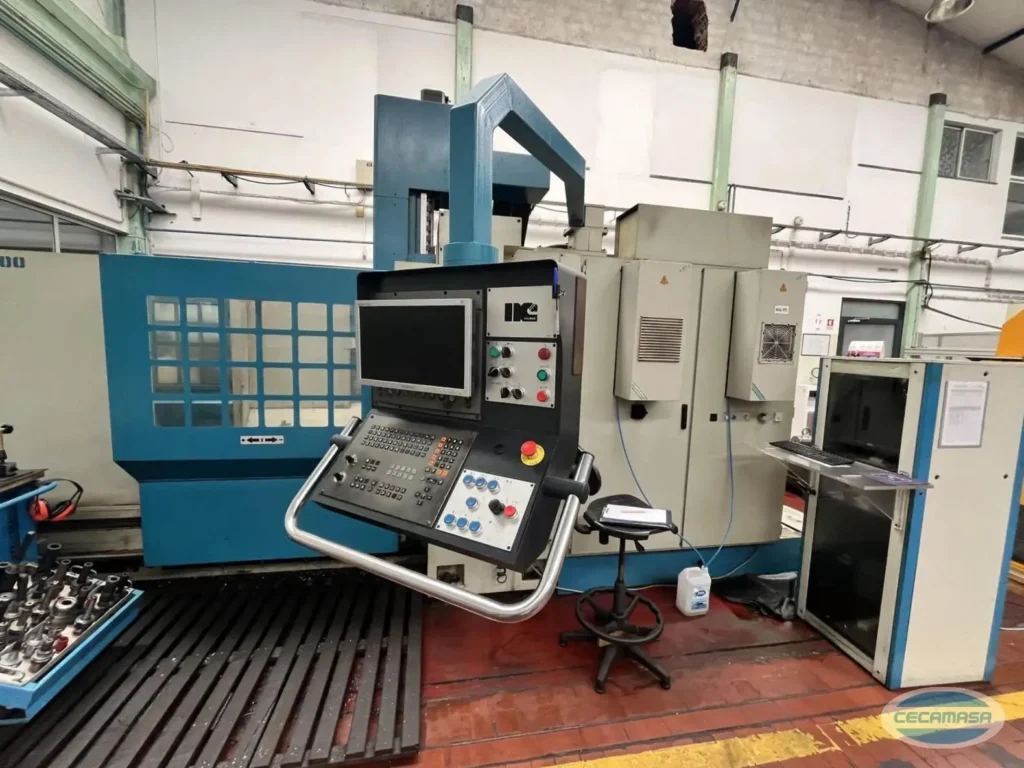

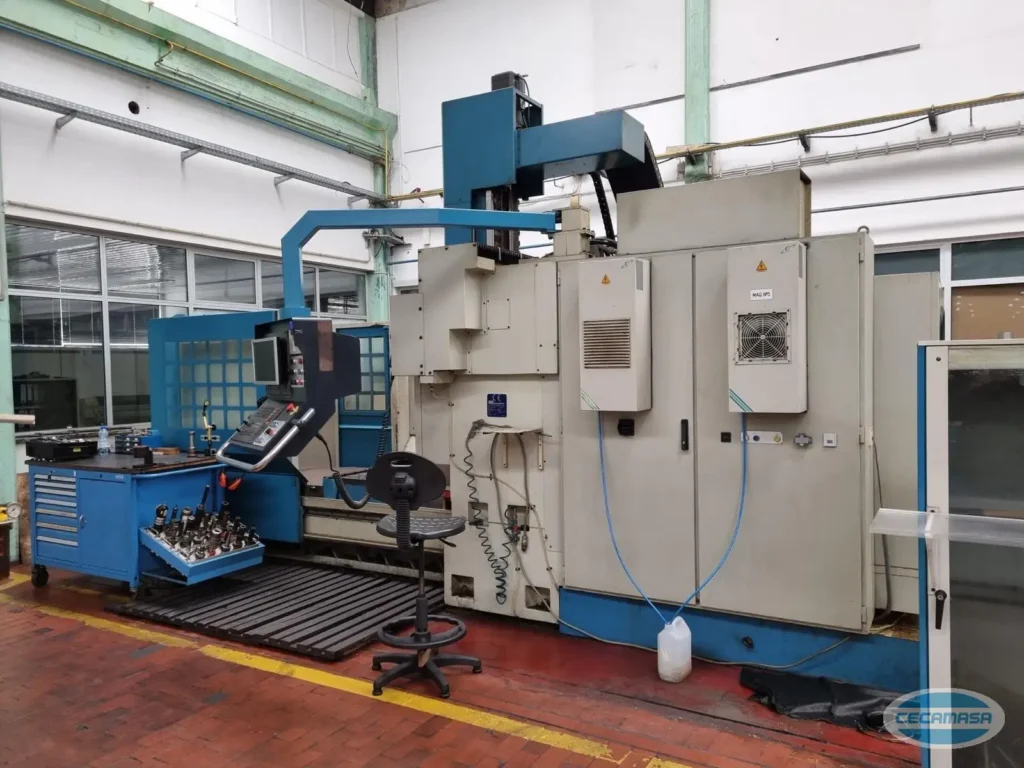

CORREA EURO 2000 milling machine

  • Gantry Milling Machines, Used Machinery

· Year 2001

4000 mmX Axis Travel
2500 mmY Axis Travel
1200 mmZ Axis Travel
ISO-50Pussy
Table dimensions:
2000X1000 mm
T-slots
8 x 22mm
Distance between slots
125 mm
Maximum weight on table:
5000 kgs
X Axis Travel:
2000 mm
Y Axis Travel:
1250 mm
Z Axis Travel:
650 mm
Head:
direct output
Pussy:
ISO 40
Speed ​​range:
20 - 10.000 rpm
Spindle power:
25kw
Work progress:
2-20.000 mm/min
Fast forwards (X-Y,Z):
20.000 mm/min
Approx machine weight:
14.000 kgs
Machine dimensions:
6500×3728×4000 mm
Equipped with:
Control:
HEIDENHAIN TNC-426
Electronic steering wheel:
HR-410
Chip extractor:
2 longitudinal and one transversal
Tool loader:
ATC 24
Refrigeration:
through the head

Complete technical sheet (PDF)

CORREA EURO 2000 milling machine

Do you need more information about this second-hand CORREA EURO 2000 gantry milling machine?

Contact us and we will inform you without any obligation about this CORREA milling machine. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225

Price to consult

VAT not included · Transport to be negotiated

Request information and price
direct WhatsApp
+34 935 730 225

Key data

Type: Bridge milling machine

Mark: CORREA

Model: EURO 2000

Year of manufacture: 2001

Reference: 073-N334

Request information

Guaranteed response the same day.

Machine: CORREA EURO 2000 milling machine

No obligation · Protected data
