Ref: 073/S011

ZAYER milling machine – 073/S011

  • Gantry Milling Machines, Used Machinery

· Año 2005.

10.000 mmX Axis Travel
3.550 mmY Axis Travel
1.250 mmZ Axis Travel
Heidenhain iTNC 530Control

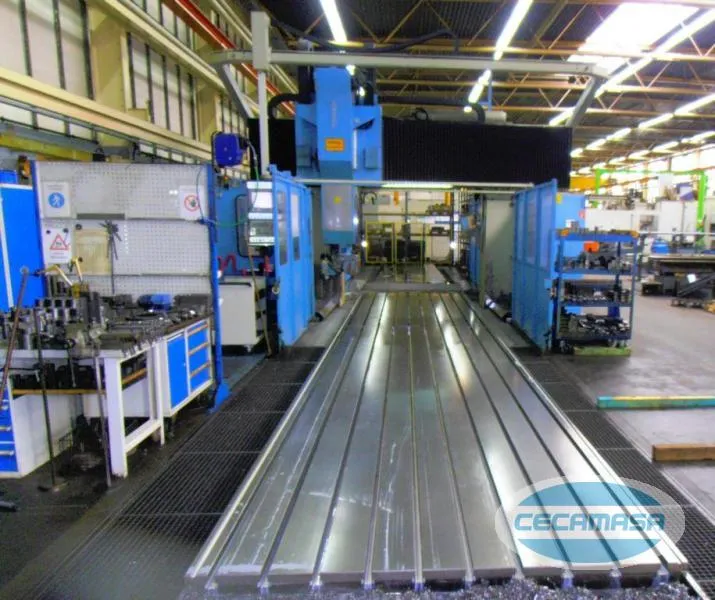

Sistema de doble mesa:
Mesa 1
6.000 mm x 2.000 mm (Recorrido X = 5.750 mm)
Mesa 2
4.000 mm x 2.000 mm (Recorrido X = 3.750 mm)
Combinado
10.000 mm x 2.000 mm (Recorrido = 10.000 mm)
X Axis Travel:
10.000 mm
Y Axis Travel:
3.550 mm
Z Axis Travel:
1.250 mm
Distancia entre columnas
2.800 mm
Pussy
ISO 50
spindle speed
de 35 – 6.000 r.p.m.
2 Gamas de velocidades
Potencia del motor principal
37 Kw
Revisada geométricamente.
En perfectas condiciones.
Horas trabajo
29.503
Horas programa on:
15.755
Year
2005.
Equipped with:
CNC

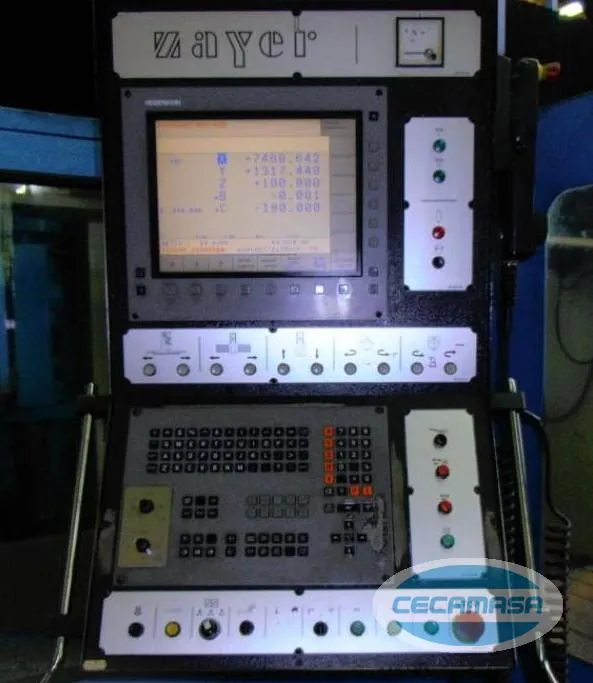

Heidenhain iTNC 530
Volante electrónico Heidenhain HR 410.
Cargador de herramientas ATC 60 uds. (cambio posición H/V).
Pick-up de cabezales
Cabezal CNC ejes A/B de 360.000 posiciones cada uno de milésima de grado en los 2 cuerpos.
Cabezal de fresado vertical.
Protecciones perimetrales.
Refrigeración interna a través del husillo.

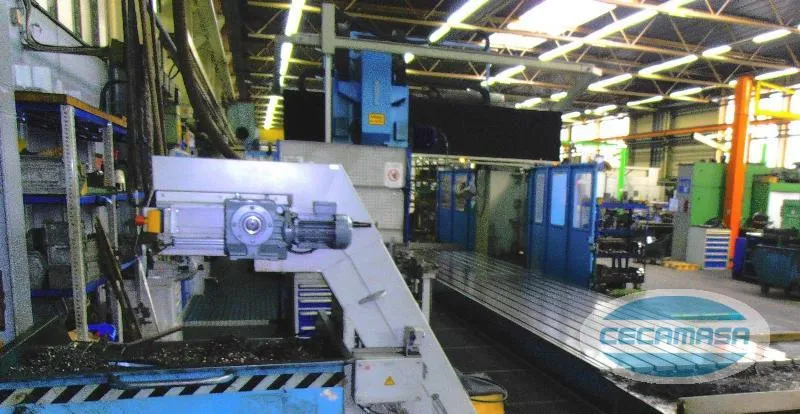

5 Extractores de virutas
Dispositivo de refrigeración para el cabezal y caja de cambios.
Depósito de refrigerante adicional con 2000 l. de capacidad y filtro de papel. (dispositivo controlado con la función M).

¿Necesita más información sobre esta fresadora de pórtico ZAYER KPCU 10000 AR de segunda mano?

Contact us and we will inform you without any obligation about this fresadora ZAYER. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225

Machine available, subject to the right of sale.
The data is not binding and may be modified without prior notice.

Price to consult

VAT not included · Transport to be negotiated

Request information and price
direct WhatsApp
+34 935 730 225

Key data

Type: Bridge milling machine

Mark: ZAYER

Model: KPCU 10000 AR

Year of manufacture: 2005.

Reference: 073/S011
