Ref: 073-U041

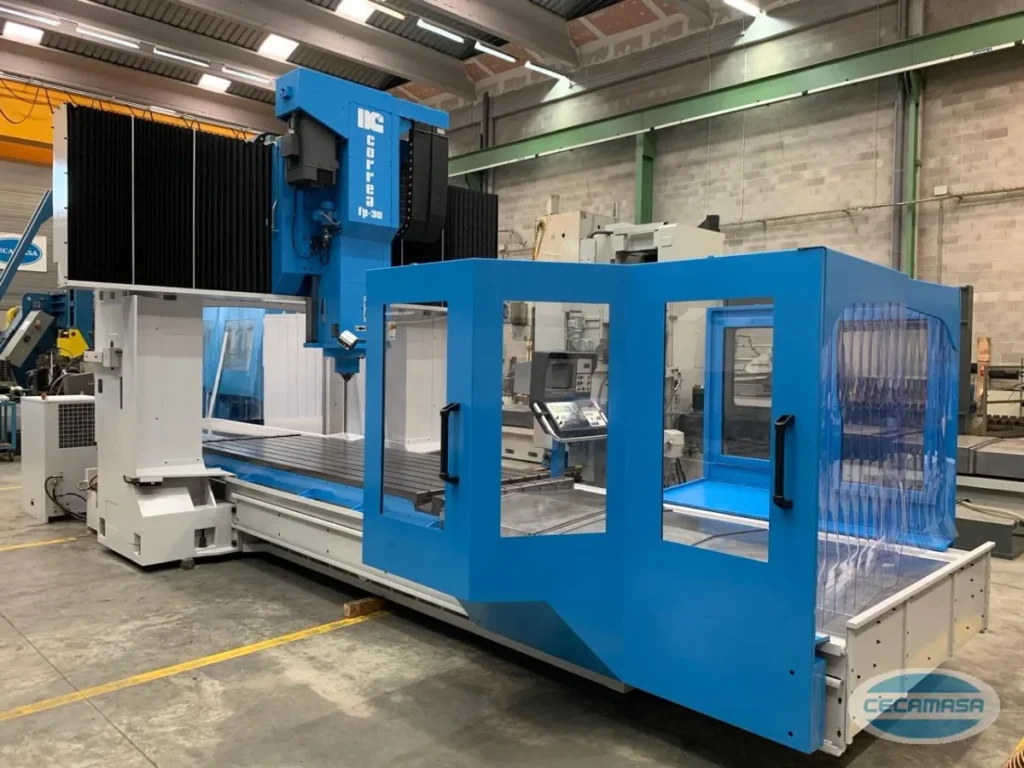

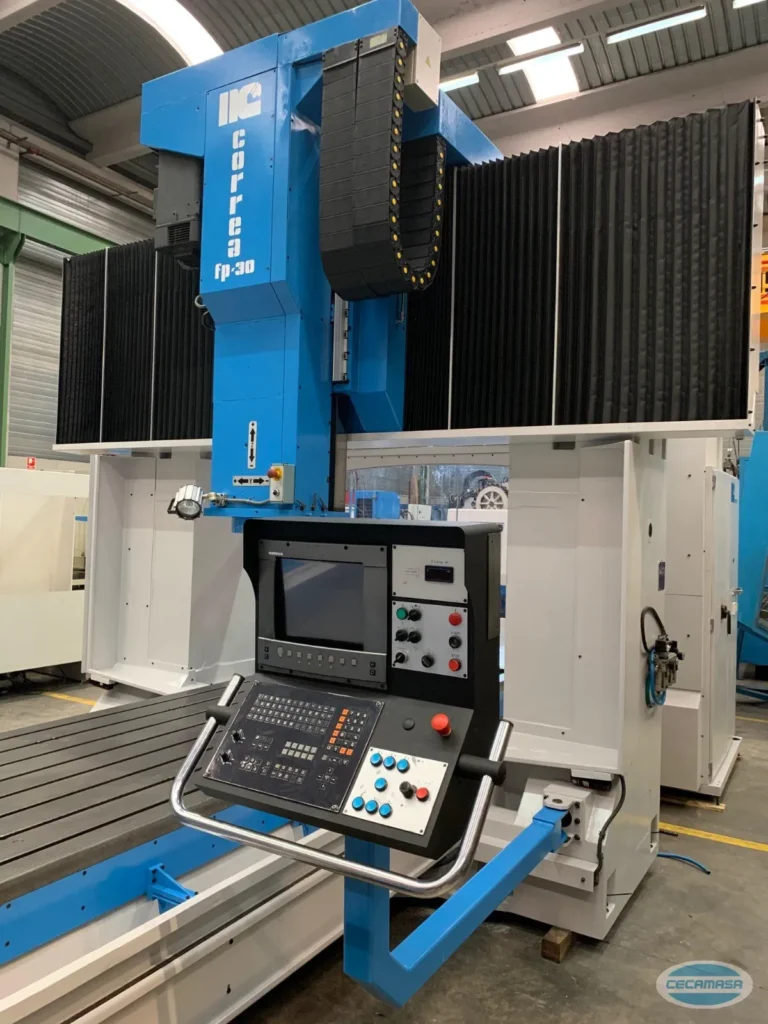

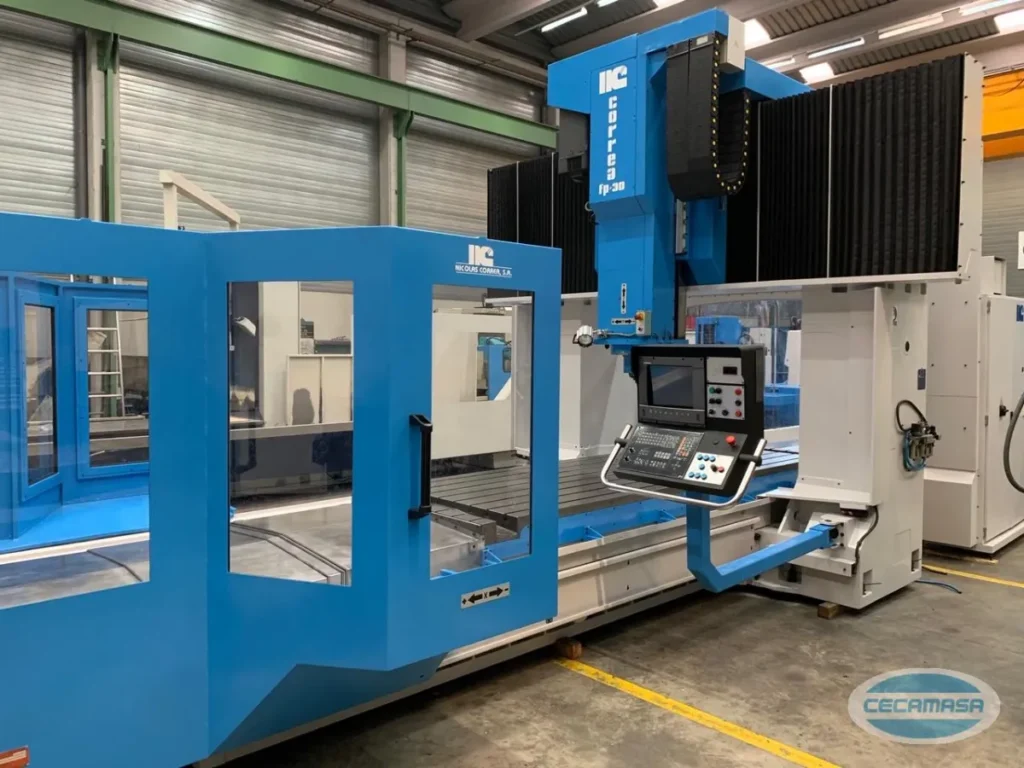

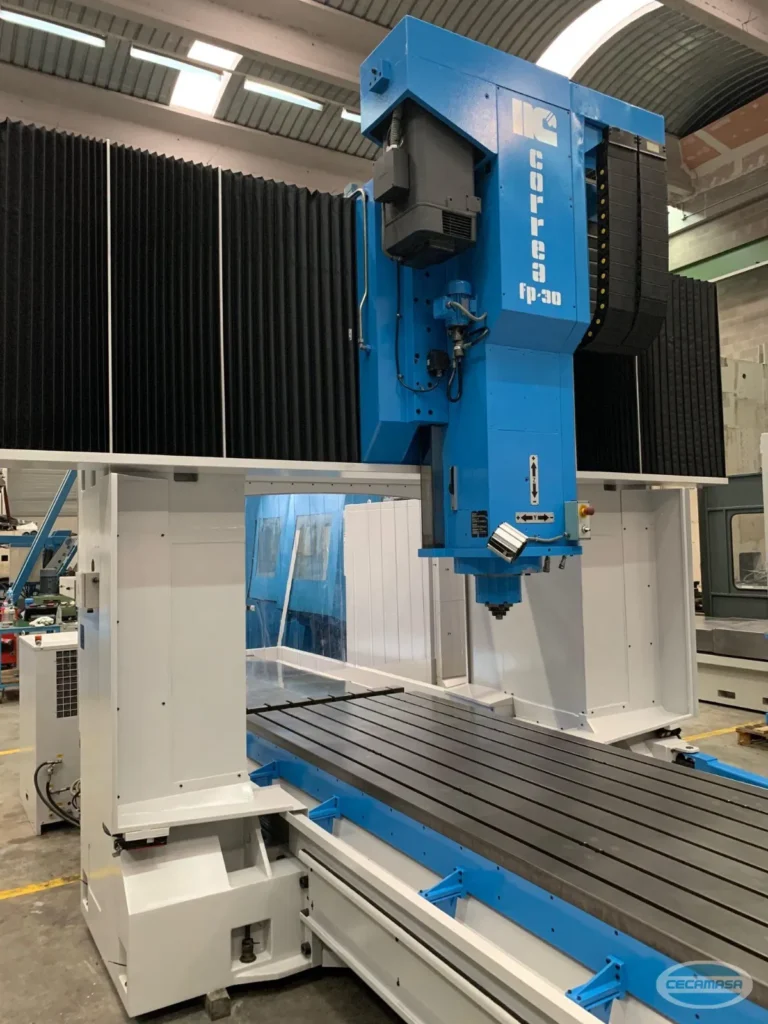

NICOLAS CORREA FP30-40 milling machine

· Year 2000

3.500 mmX Axis Travel
2.500 mmY Axis Travel
800 mmZ Axis Travel
HEIDENHAIN 426Control
Table dimensions:
4000 x 1250 mm
Maximum weight on table:
10.000 kgs
X Axis Travel:
3.500 mm
Y Axis Travel:
2.500 mm
Z Axis Travel:
800 mm
Distance between columns:
2.000 mm
Cabezal manual HURON:
3.000 rpm
Cabezal salida directa:
6.000 rpm
Pussy:
ISO-50
Spindle speed:
2 – 7.500 r.p.m.
Spindle power:
22 kw
Work progress:
7.000 mm/min
Avances rápidos (X / Y,Z):
15.000 / 12.000 mm/min
Machine weight:
28.000 kgs
Year:
2000
Equipped with:
Control:
HEIDENHAIN 426
Electronic steering wheel:
HEIDENHAIN HR-410
CE regulations:
Si

Complete technical sheet (PDF)

NICOLAS CORREA FP30-40 milling machine

Información sobre la fresadora puente NICOLAS CORREA FP-30/40 usada

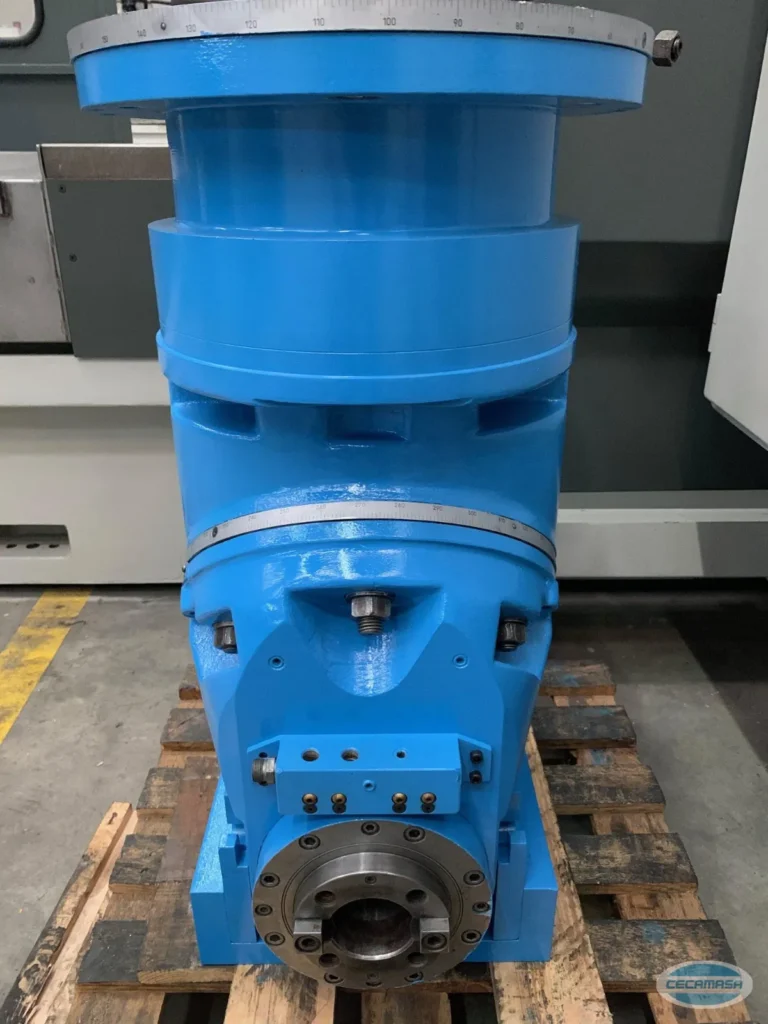

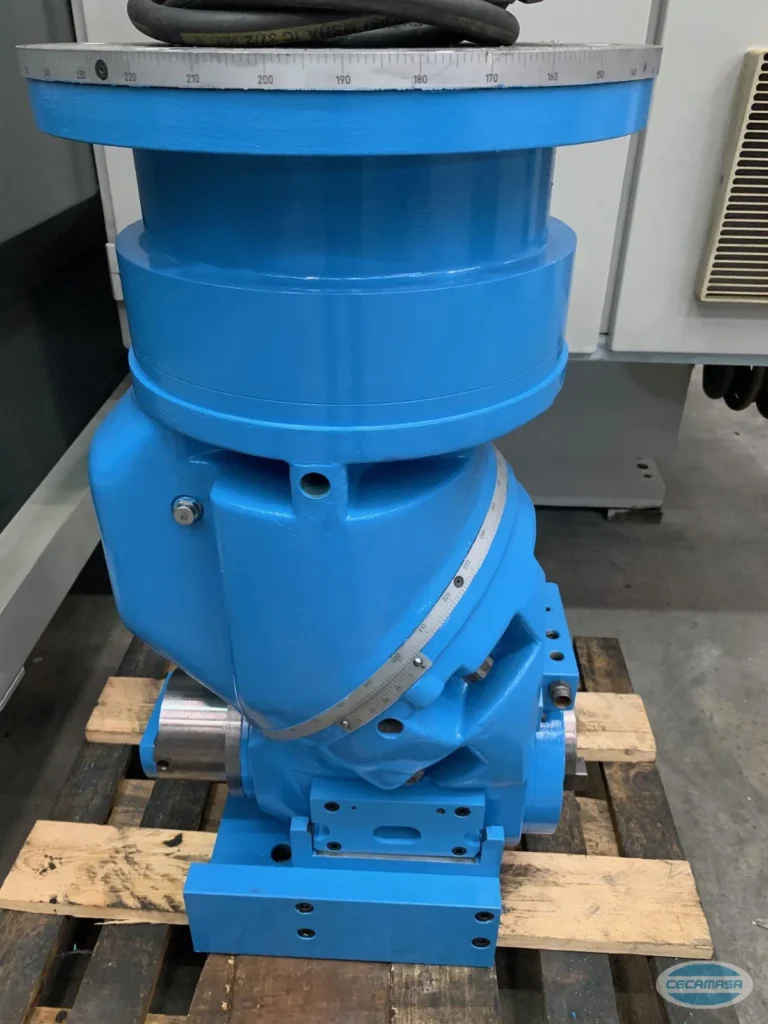

La serie FP es uno de los modelos más vendidos por el fabricante de fresadoras NICOLAS CORREA. La fresadora puente NICOLAS CORREA FP-30/40 es una fresadora estrella ya que en CECAMASA hemos contado con un sinfín de máquinas de la serie FP. Dicha fresadora puede trabajar con dos cabezales, el cabezal de salida directa hasta 6.000 vueltas y viene provista también de un cabezal HURON manual 360º y 3.000 vueltas.

Dentro de la línea FP-30/40, la máquina de la que disponemos tiene un extra de medida en la distancia entre columnas, 2.000 mm, y el recorrido del eje Y es de 2.300 mm.

Aparte del extra del cabezal HURON, también cabe destacar el control numérico HEIDENHAIN 426. La máquina proviene de un taller de matricería y está en unas condiciones muy buenas, tanto mecánicos como electrónicas. Es una máquina ideal para el sector de la matricería como el mecanizado en general, tanto para pieza pesada como de gran envergadura.

¿Necesita más información sobre esta fresadora puente NICOLAS CORREA FP-30/40 de segunda mano?

Contact us and we will inform you without any obligation about this NICOLAS CORREA FP-30/40 bridge milling machine. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225

Machine available, subject to the right of sale.
The data is not binding and may be modified without prior notice.

Price to consult

VAT not included · Transport to be negotiated

Key data

Type: Bridge milling machine

Mark: CORREA

Model: FP-30/40

Year of manufacture: 2000

Reference: 073-U041
