Ref: 075-A034

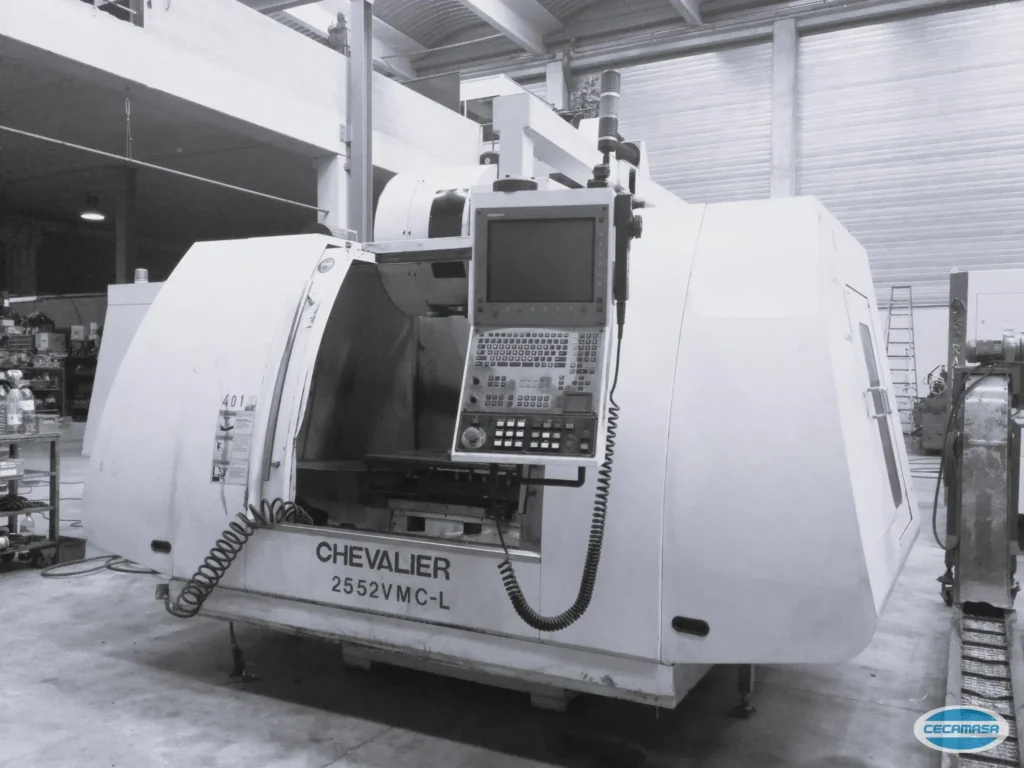

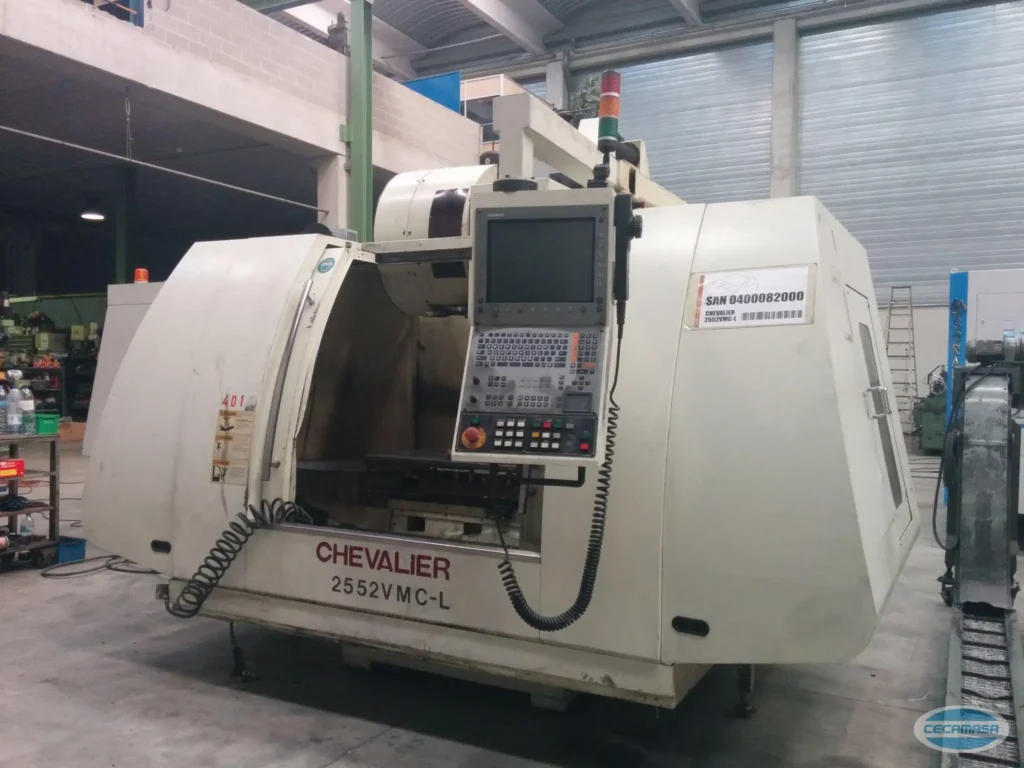

CHEVALIER 2552 VMC L machining center

  • Machining Centers, Used Machinery

· Year 2007

1300 mmX Axis Travel
635 mmY Axis Travel
635 mmZ Axis Travel
80-8000 rpmRevolution range
Mesa:
1450x635 mm
Max weight on table:
1200 kgs
Longitudinal path X:
1300 mm
Cross path Y:
635 mm
Z vertical travel:
635 mm
Main engine power:
20 Kw
Milling spindle cone:
BT-40
Revolution range:
80-8000 rpm
Distance from main axis to table:
685 mm
Avances de trabajo:
1-7600 mm/min
Fast forwards (X,Y):
30 m/min
Fast forward (Z):
18 m/min
Approximate machine weight:
7100 Kgs
Machine dimensions:
2701x3348x2638 mm

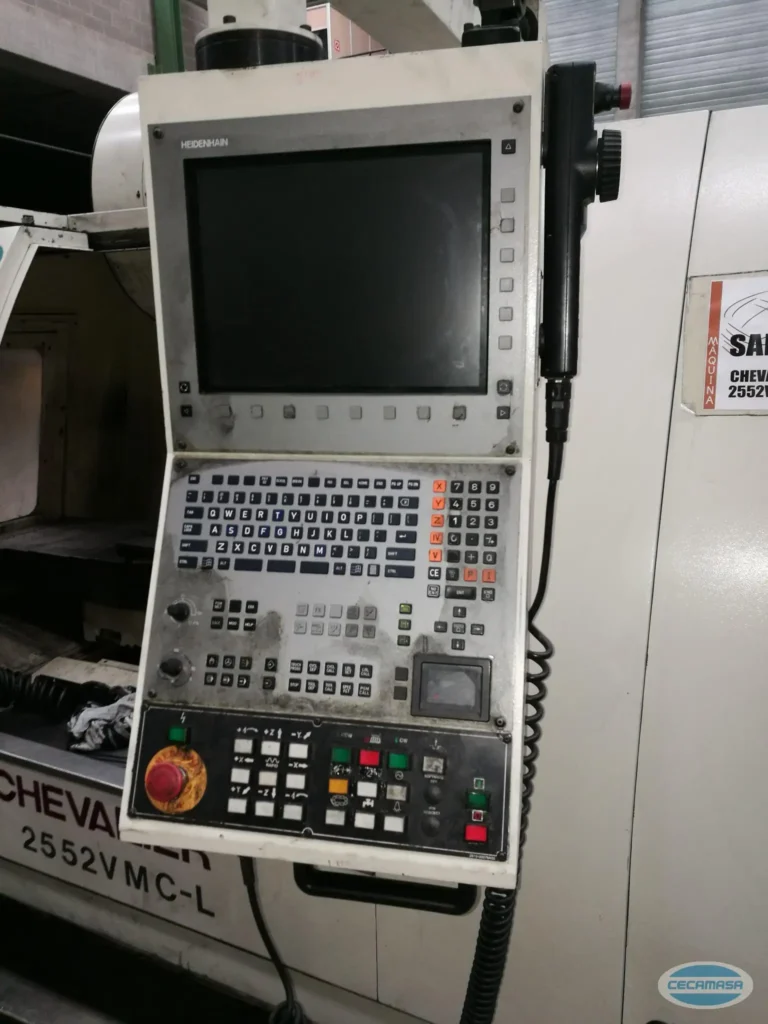

Control:
Heidenhain iTNC 530
Electronic steering wheel:
HR410
Tool charger:
24 tools

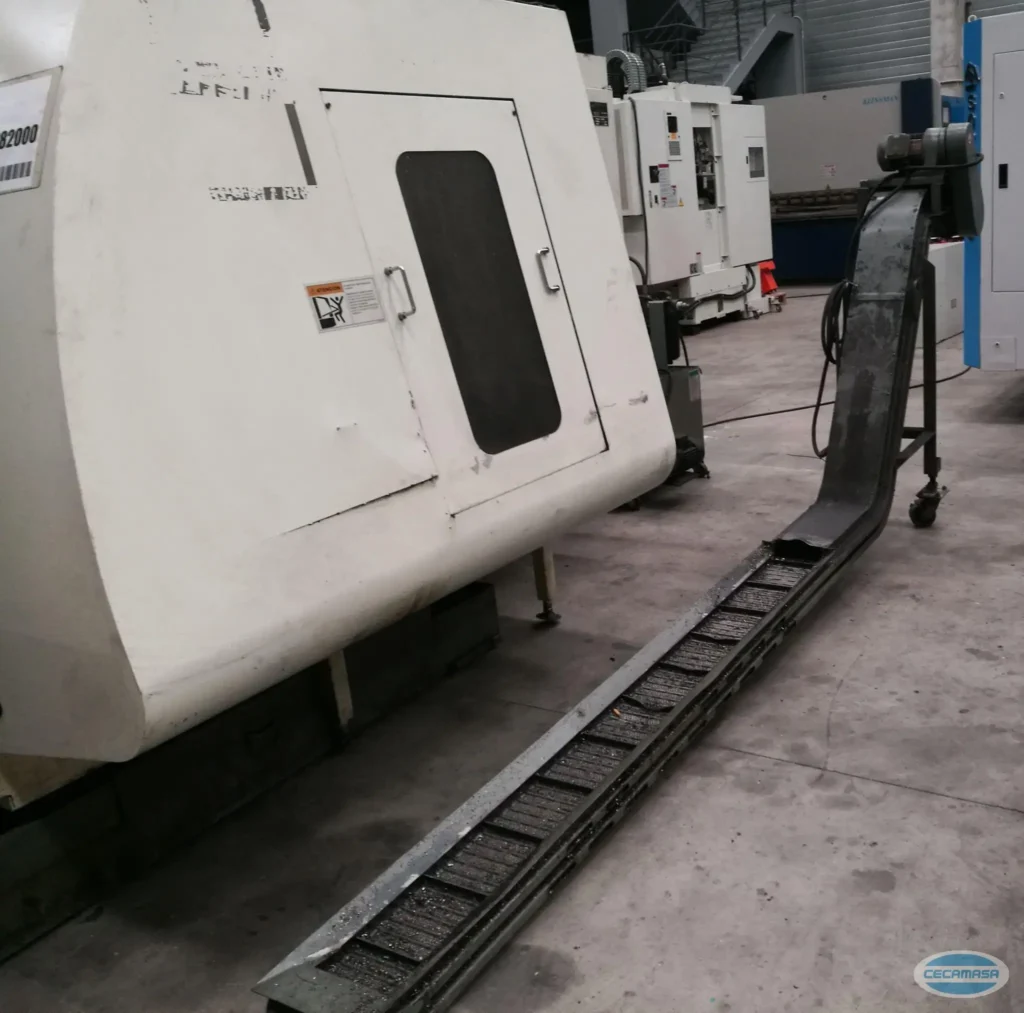

Chip extractor:
Yeah
Internal cooling:
Yeah

Complete technical sheet (PDF)

CHEVALIER 2552 VMC L machining center

Do you need more information about this second-hand CHEVALIER 2552 VMC L machining center?

Contact us and we will inform you without any type of commitment about this CHEVALIER machining center. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: conventional milling machines, CNC milling machines, conventional lathes, CNC lathes, grinding machines, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225

Price to consult

VAT not included · Transport to be negotiated

Request information and price
direct WhatsApp
+34 935 730 225

Key data

Type: Machining Centers

Mark: CHEVALIER

Model: 2552 VMC L

Year of manufacture: 2007

Reference: 075-A034
