Sold
Ref: 161-Y004

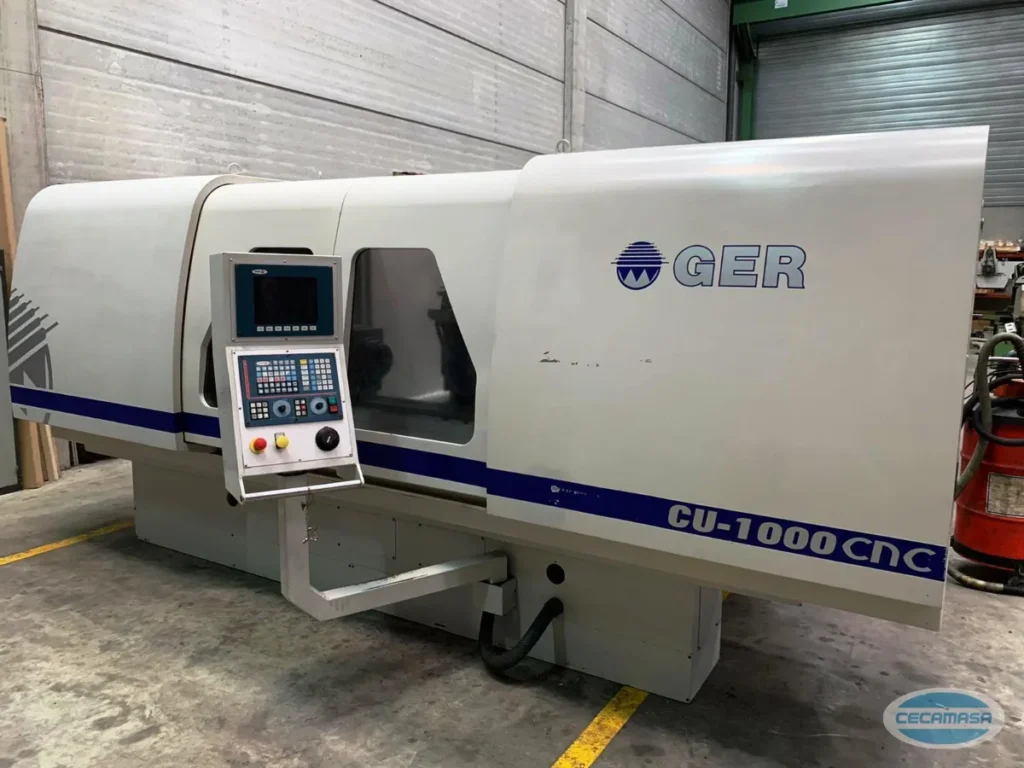

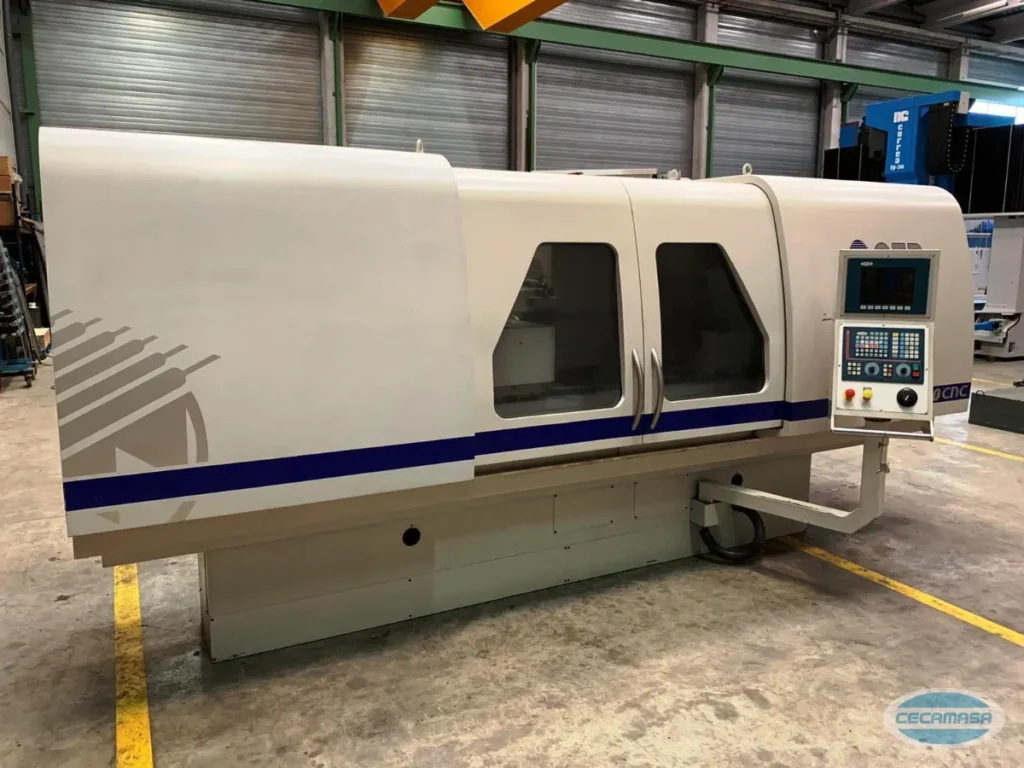

Universal GER CU 1000 CNC

· Year 2008

1000 mmDistance between points
180 mmPoint height:
450 mmmax Ø to be rectified
7,5 kwPotencia muela:
Distance between points:
1000 mm
Point height:
180 mm
Max Ø to rectify:
450 mm
X axis travel:
350 mm
Velocidad eje X:
0,01/1500 mm/min
Z axis travel:
1300 mm
Velocidad eje Z:
0,01/1500 mm/min
Wheel dimensions:
Ø 500x80x203 mm
Potencia muela:
7,5 kw
Approx machine weight:
6500 Kgs
Machine dimensions:
4600x2400x2050 mm
Year:
2008
Equipped with:

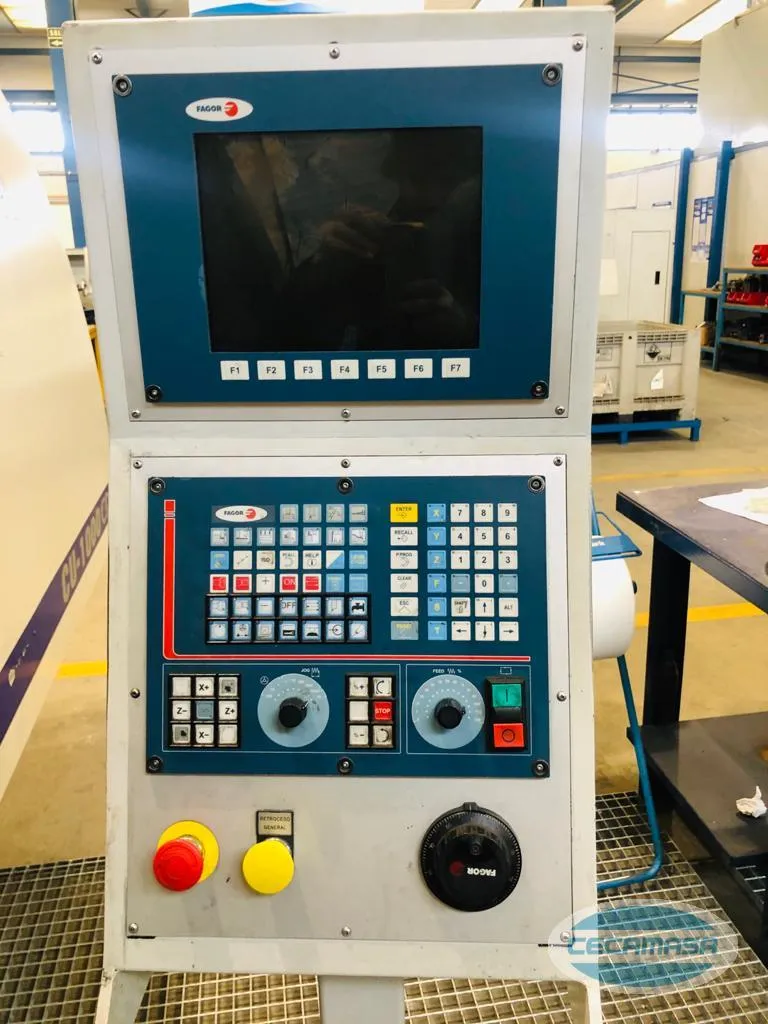

Control numérico:
FAGOR 8055

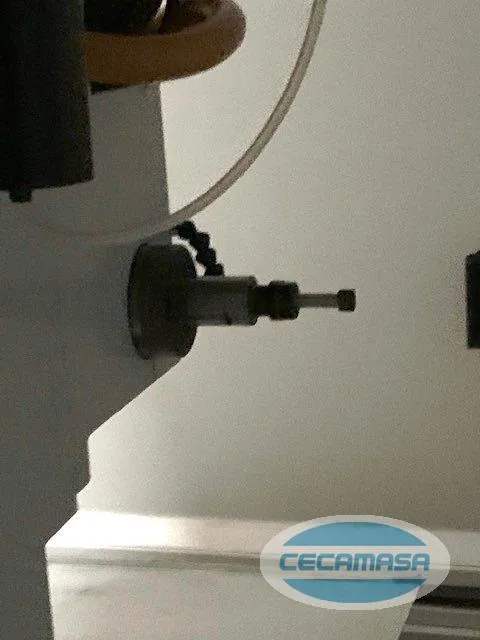

Cabezal de rectificados de interior
Equilibrador de muela
Filtro de papel con banda magnética

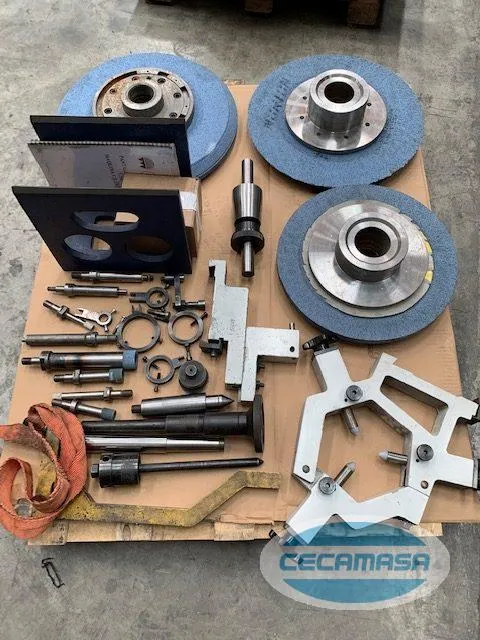

Varios juegos de muelas y perrillos de arrastre

Complete technical sheet (PDF)

Universal GER CU 1000 CNC

¿Necesita más información sobre esta rectificadora universal GER CU 1000 CNC de segunda mano?

Contact us and we will inform you without any type of commitment about this rectificadora universal GER CU 1000 CNC . Si lo desea también puede visitar nuestras instalaciones ubicadas en Parets del Vallés (Barcelona), donde disponemos de todo tipo de maquinaria industrial nueva y usada: fresadoras convencionales, fresadoras cnc, tornos convencionales, tornos cnc, centros de mecanizado, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225

Machine available, subject to the right of sale.
The data is not binding and may be modified without prior notice.

Price to consult

VAT not included · Transport to be negotiated
