Sold
Ref: 163/UP050

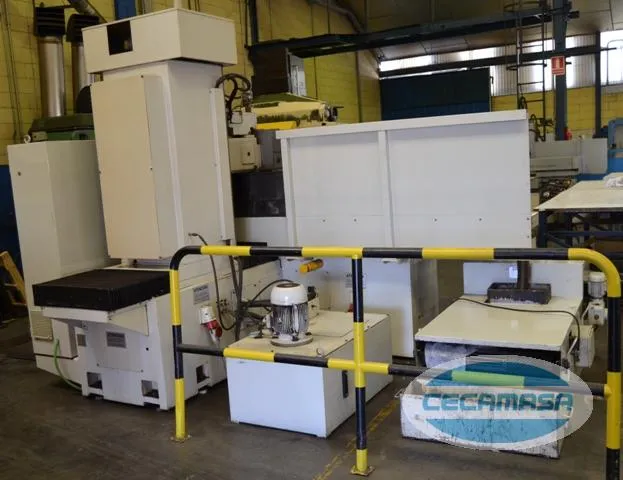

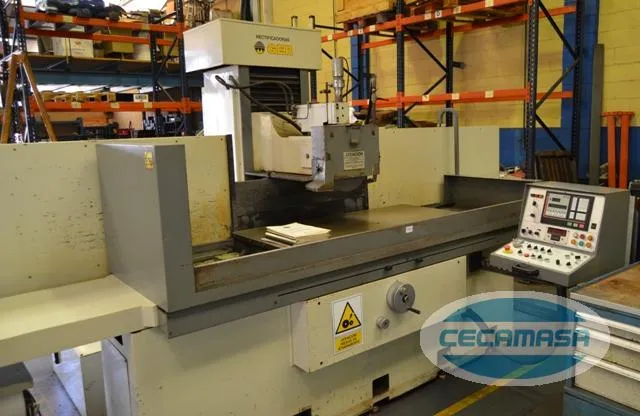

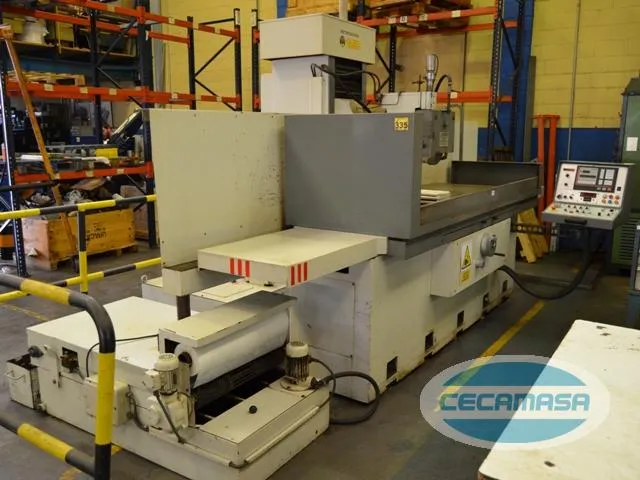

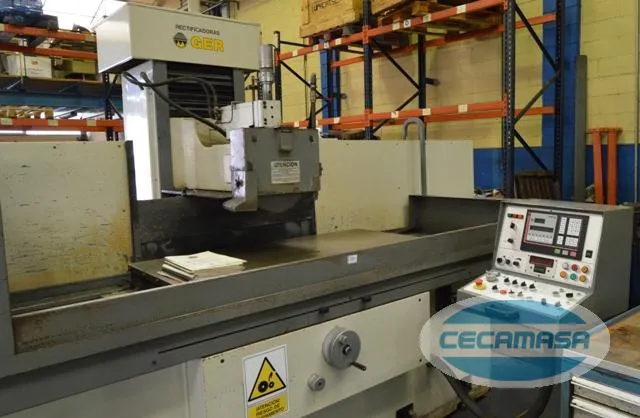

Rectificadora GER – 163/UP050

1800 x 550 mm.Mesa
1660x800x600 mmRecorridos
1700 kg.Carga máxima sobre la mesa
25 m/minVelocidad rápida
Mesa
1800 x 550 mm.
Recorridos
1660x800x600 mm.
Recorridos
1660x800x600 mm.
Altura desde el centro del eje a la mesa
800 mm.
Muela
400 x 50 x 127 mm.
Velocidad rápida
25 m/min
Avance rápido transversal
2,25 m/min
Motor
5,5 CV.
Dimensiones de la máquina
4580x5075x2250 mm
Weight
6700 kgs.
Equipped with:
Visualizador
FAGOR 102 a 2 ejes
2 Platos electromagnéticos
1500 x 650 mm
2 equipos de refrigeración
2 avances transversales automáticos regulables.
2 Husillos porta-muelas
2 equipos hidráulicos
2 muelas standard
2 platos porta-muelas

¿Necesita más información sobre esta rectificadora GER S15/65 de segunda mano?

Contact us and we will inform you without any type of commitment about this rectificadora GER. In addition, if you wish, you can also visit our facilities located in Parets del Vallés (Barcelona). We have all types of new and used industrial machinery: conventional milling machines, CNC milling machines, conventional lathes, CNC lathes, machining centers, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225

Machine available, subject to the right of sale.
The data is not binding and may be modified without prior notice.

Price to consult

VAT not included · Transport to be negotiated

Key data

Type: Grinding Machines

Mark: GER

Model: S15/65

Reference: 163/UP050
