Sold
Ref: 165-B017

Sin centros ESTARTA 301 MV

· Año 2008

1,5-50 mmDiámetro min-máx a rectificar:
125 mmAncho máx rectificado en plongée:
300x125x175 mmDimensiones muela rectificadora (Dext x Ancho x Dint):
220x125x125 mmDimensiones muela reguladora (Dext x Ancho x Dint)
Diámetro min-máx a rectificar:
1,5-50 mm
Ancho máx rectificado en plongée:
125 mm
Dimensiones muela rectificadora (Dext x Ancho x Dint):
300x125x175 mm
Dimensiones muela reguladora (Dext x Ancho x Dint)
220x125x125 mm
Dext mínimo muela rectificadora:
220 mm
Dext mínimo muela reguladora:
165 mm
Velocidad periférica muela rectificadora:
35 m/s
Velocidades muela reguladora:
De 10 a 250 min -1
Regulador altura diamantador de la muela reguladora:
+15 / -10 mm
Profundidad máx perfil de la muela rectificadora y reguladora:
8 mm
Orientación máx muela de trabajo:
30º
Avance del diamantador:
100-150 mm/min
Potencia muela rectificadora:
7,5 kW
Potencia muela reguladora:
0,75 kW
Approximate machine weight:
1.800 kgs
Dimensiones máquina :
2525x1942x1450 mm
Year:
2008
Equipped with:
Control numérico:
FANUC
Rectificado en pasante y en plongée

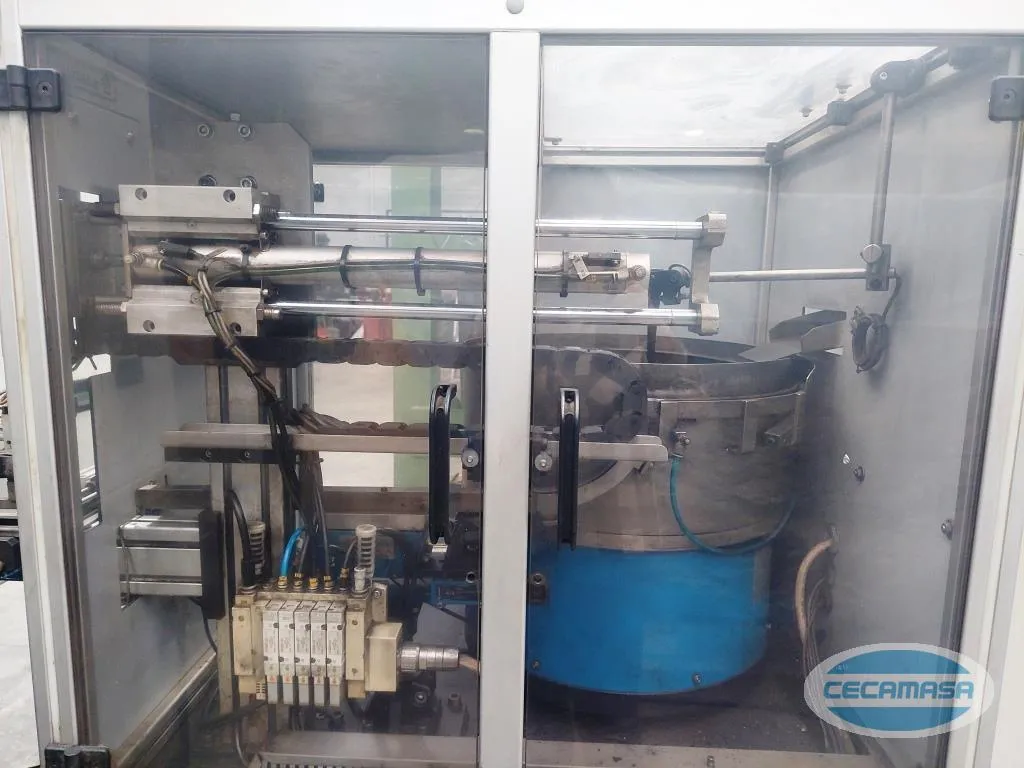

Alimentador por vibrador con manipulador de carga y descarga automático
Barras equilibrador muela

Complete technical sheet (PDF)

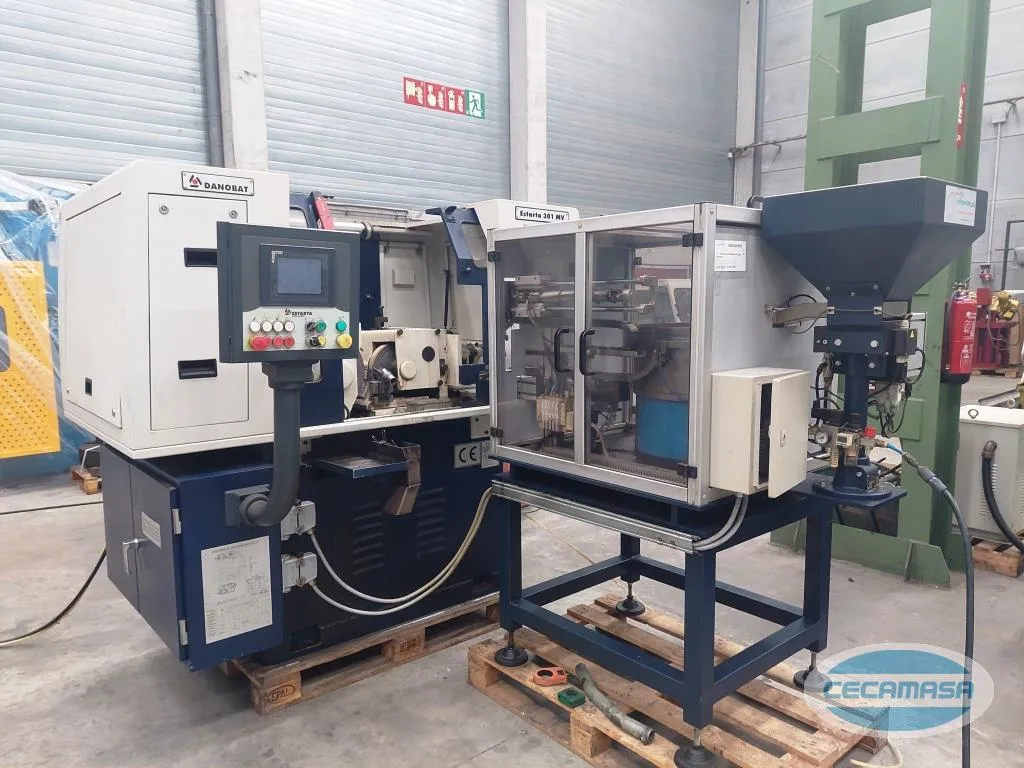

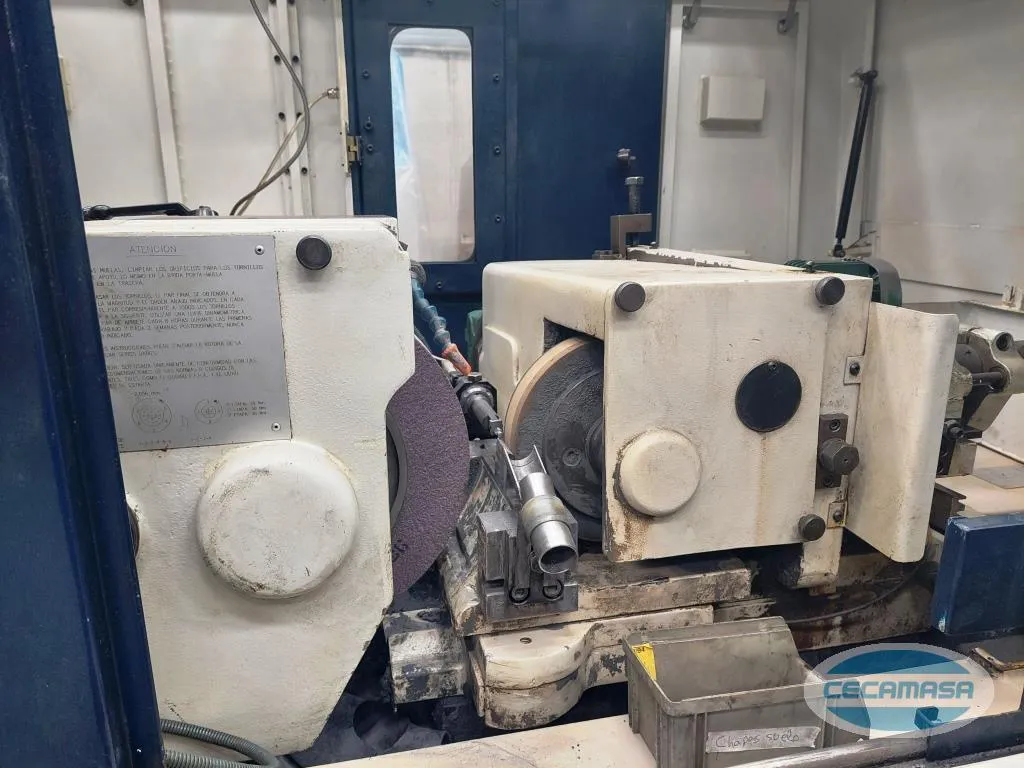

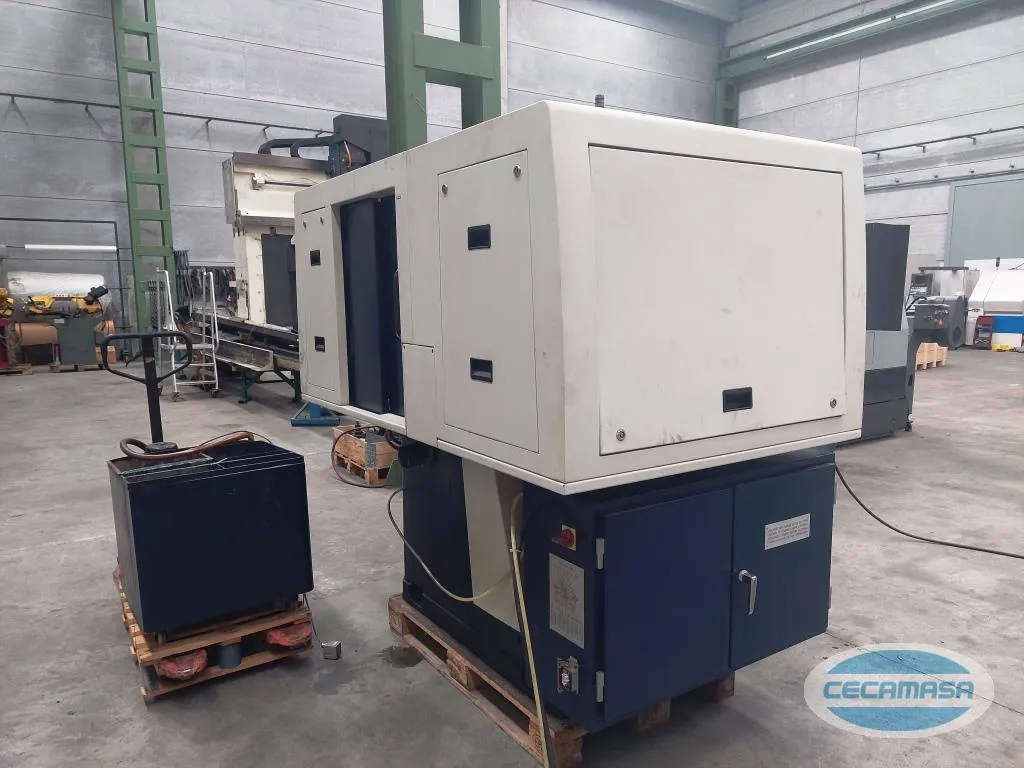

Sin centros ESTARTA 301 MV

Información de la rectificadora sin centros ESTARTA 301 MV usada

START, al igual que SORALUCE, pertenece a DANOBATGROUP. DANOBATGROUP es el grupo empresarial más importante de fabricación de máquina-herramienta a nivel nacional.

ESTARTA se caracteriza por ser una de las máquinas más precisas en el campo de rectificado. Esta rectificadora sin centros ESTARTA 301 MV de segunda mano está equipada con un control FANUC. Esta máquina está reconstruida por nuestro equipo técnico y puede realizar una gran cantidad de trabajos. Puede trabajar tanto en plongée como en pasante.

Esta rectificadora sin centros de ocasión está muy bien equipada y se puede ver en nuestras instalaciones.

¿Necesita más información sobre esta rectificadora ESTARTA 301 MV de segunda mano?

Contact us and we will inform you without any obligation about this rectificadora ESTARTA 301 MV. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225



Machine available, subject to the right of sale.
The data is not binding and may be modified without prior notice.

Price to consult

VAT not included · Transport to be negotiated

Key data

Type: Grinding Machines

Mark: START

Model: 301 MV

Reference: 165-B017

Year: 2008
