Ref: 161-D048

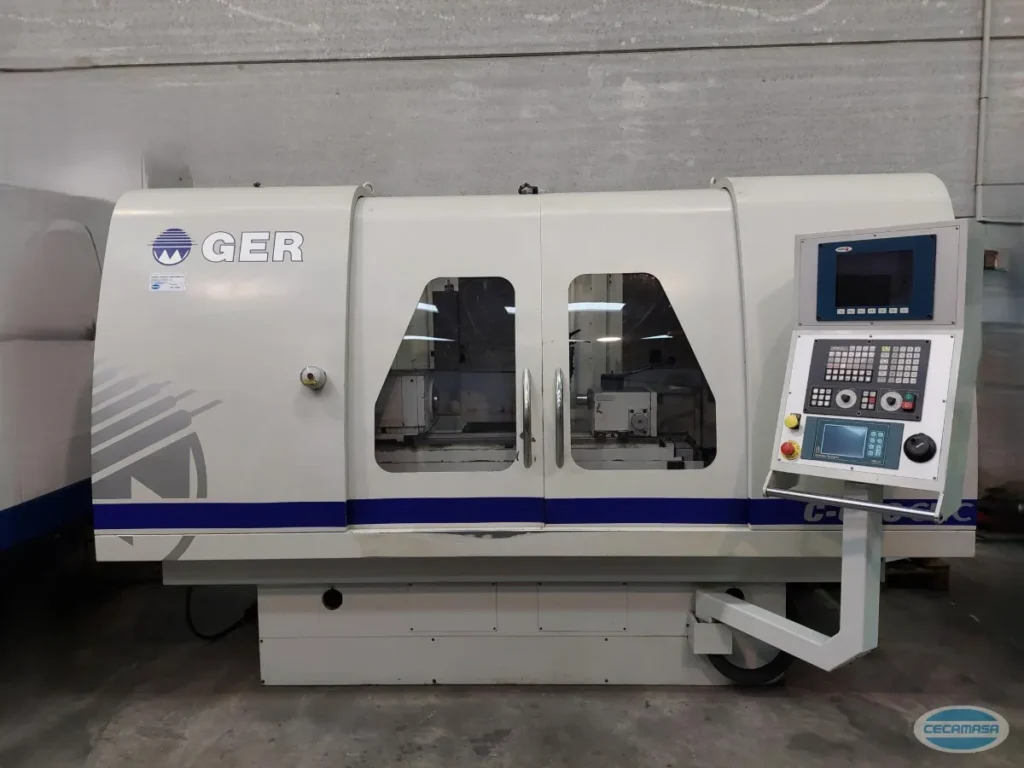

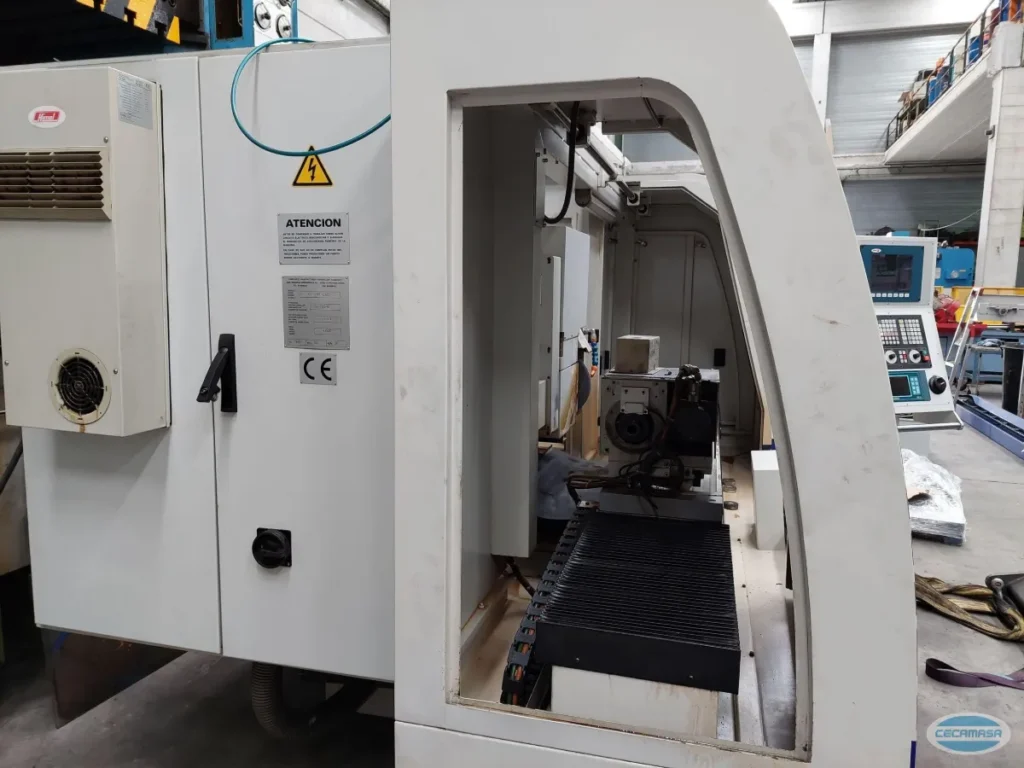

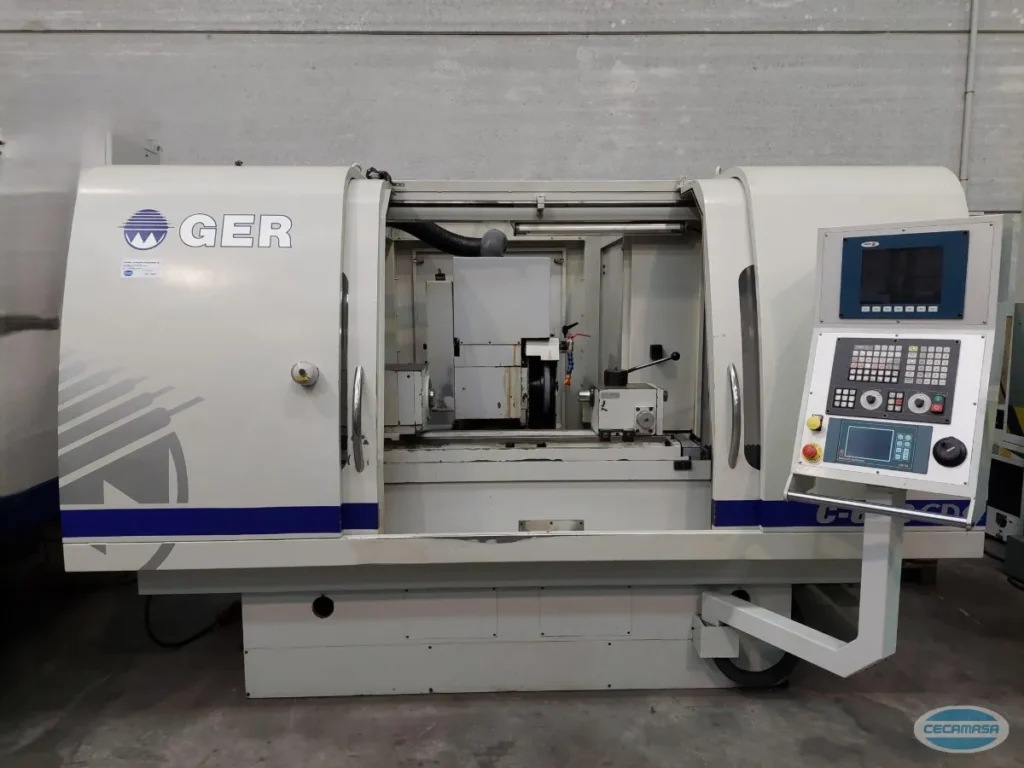

Rectificadora GER C-600 CNC

  • Used Machinery, Grinding Machines

· Year 2007

600 mmDistance between points
140 mmPoint height:
275 mmmax Ø to be rectified
80 Kg.Peso máx entre puntos
Distance between points:
600 mm
Point height:
140 mm
Max Ø to rectify:
275 mm
Peso máx entre puntos
80 Kg.
Peso máx admitido al aire
60 Kg.
Velocidad eje X:
0,01/1500 mm/min
Velocidad eje Z:
0,01/1500 mm/min
Wheel dimensions:
Ø 400x50x127 mm
Potencia de accionamiento, motor cabezal
5,5 kw
Potencia cabezal porta piezas
11 Nm.
Potencia total
11,3 kw
Approx machine weight:
2900 Kgs.
Machine dimensions:
3200x2200x2050 mm
Year:
2007
Equipped with:

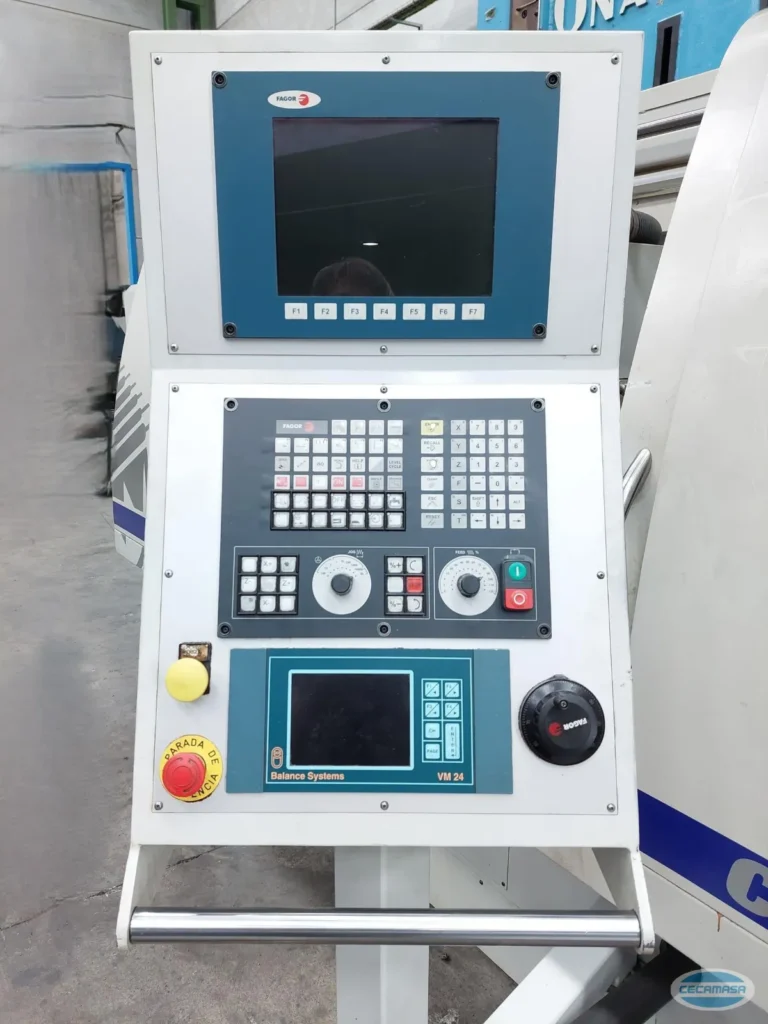

Control numérico:
FAGOR 8055
Eje C rotación controlada de la pieza

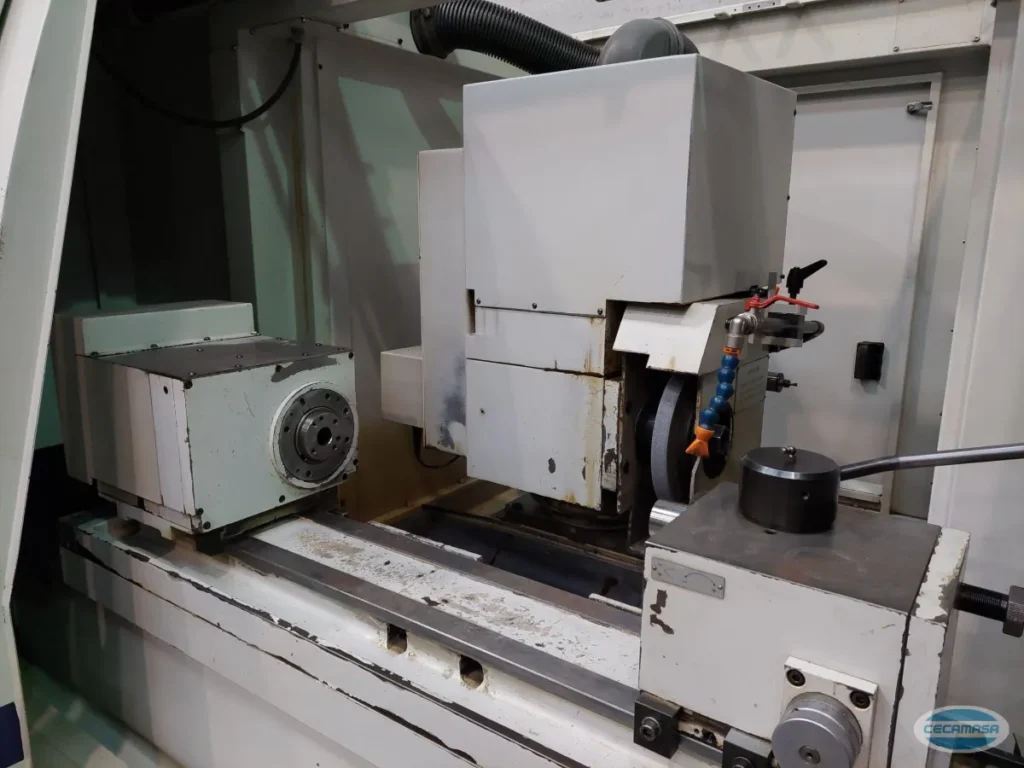

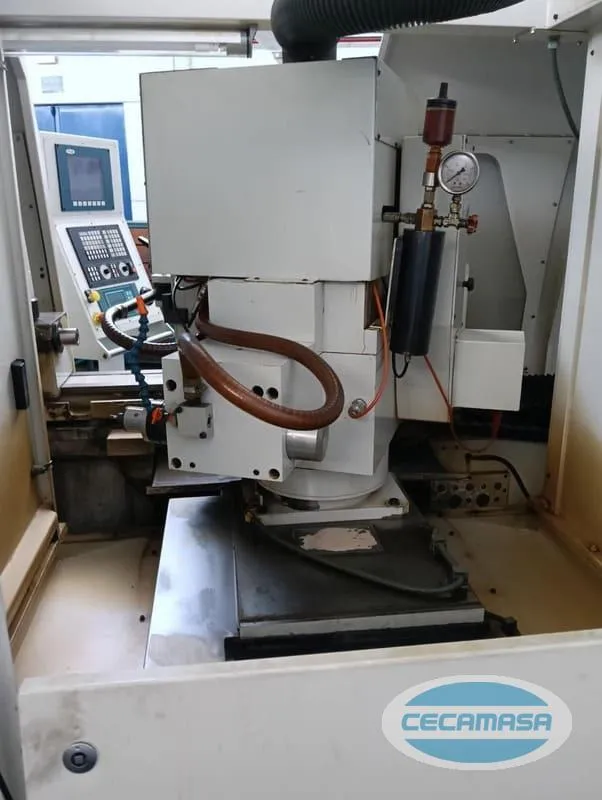

Eje B rotación o giro del cabezal porta-muela (orientación angular)

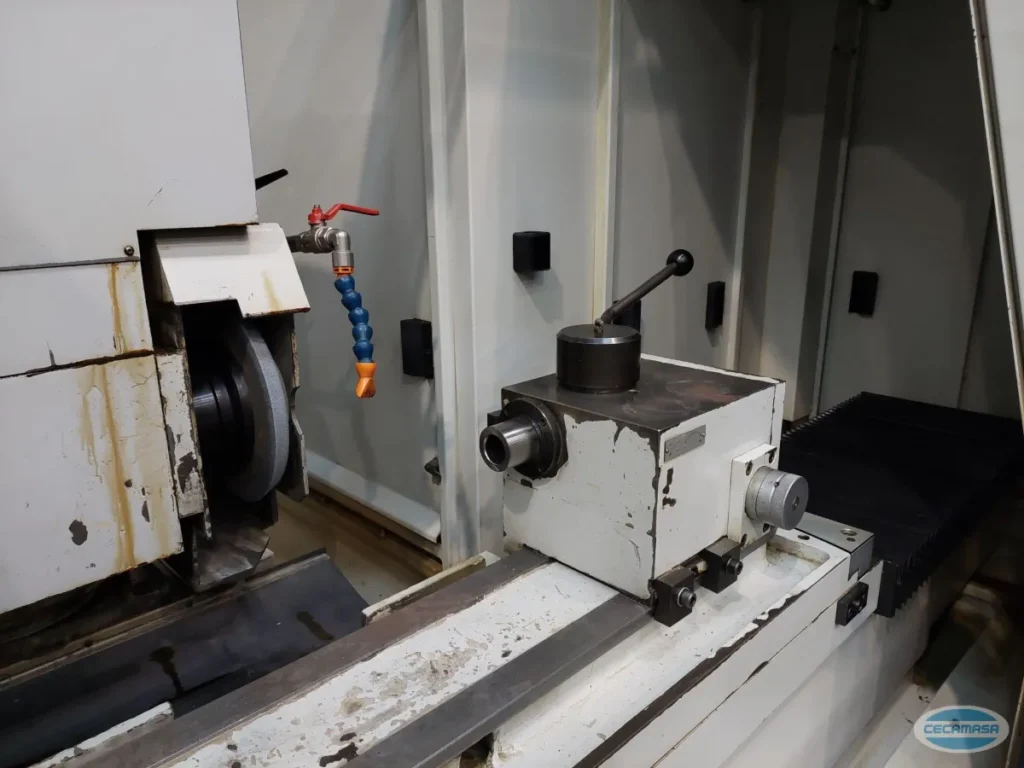

Contrapunto

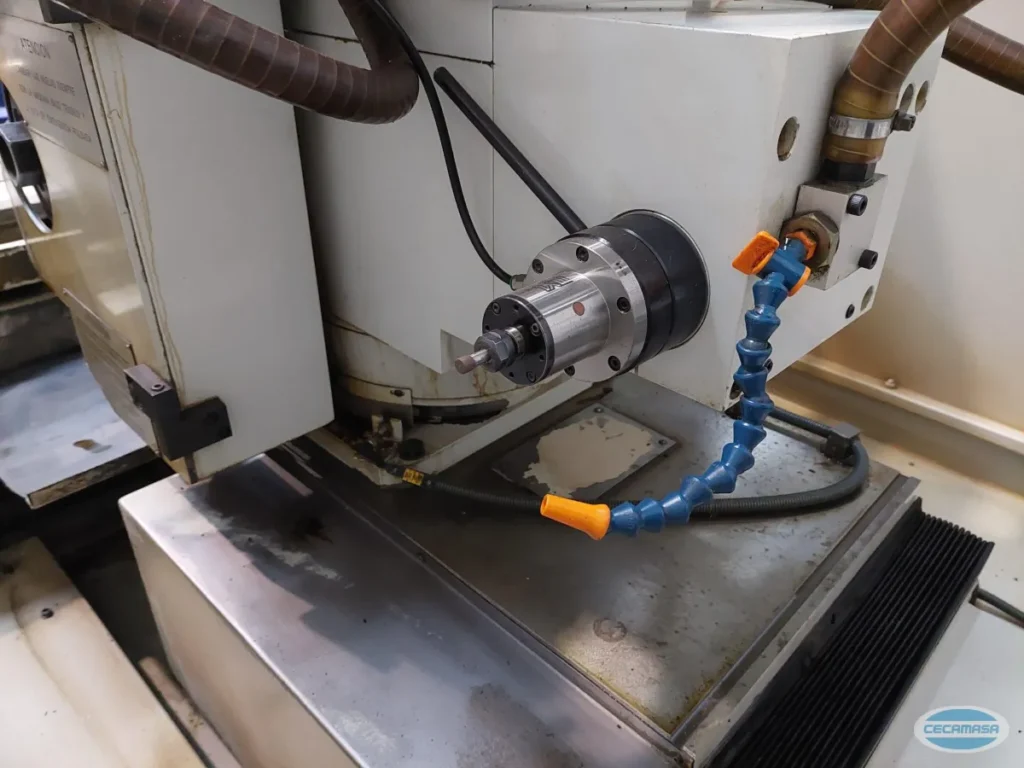

Cabezal de rectificados de interior
potencia 1,1 KW rpm 12000/18000

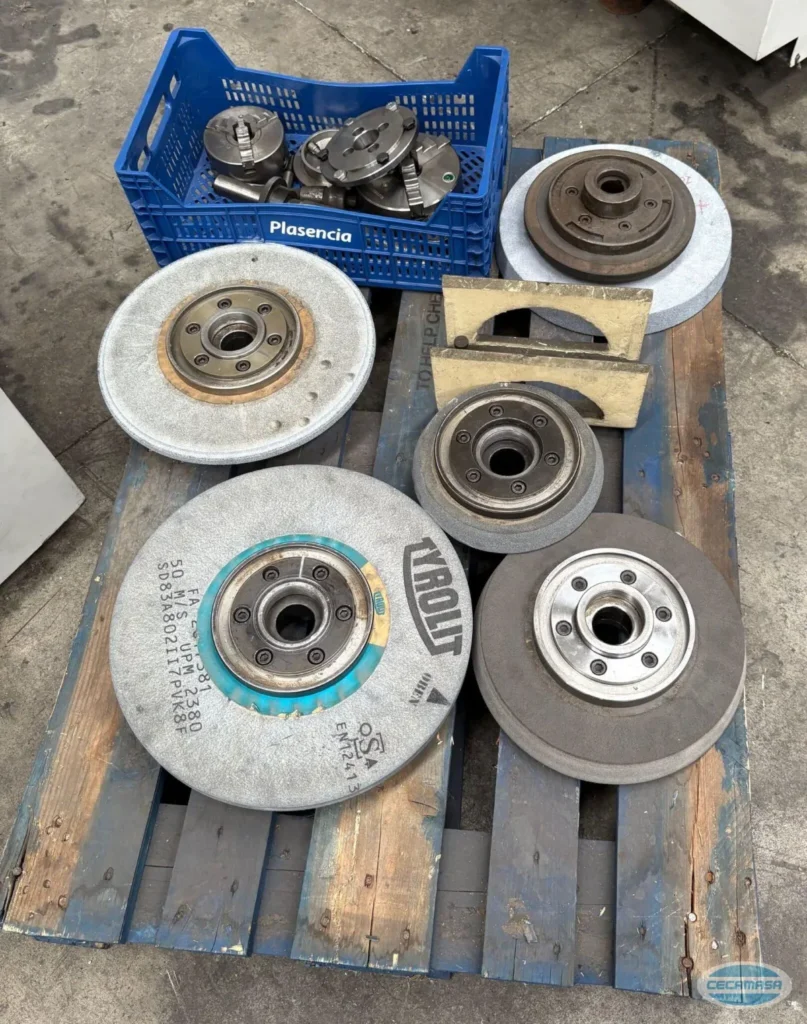

7 portamuelas
Ø: 120 mm, 160 mm, 170 mm, 170 mm, 175 mm,180 mm, 180 mm
5 muelas
Ø 240 mm, 300 mm, 330 mm, 360 mm, 400 mm
Equilibrador de muelas:
BALACE SYSTEMS VM 24
Dos platos ROHM de tres garras
Ø 120 mm, Ø150 mm.

Complete technical sheet (PDF)

Rectificadora GER C-600 CNC

¿Necesita más información sobre esta rectificadora universal GER C-600 CNC de segunda mano?

Contact us and we will inform you without any type of commitment about this rectificadora universal GER C-600 CNC . Si lo desea también puede visitar nuestras instalaciones ubicadas en Parets del Vallés (Barcelona), donde disponemos de todo tipo de maquinaria industrial nueva y usada: fresadoras convencionales, fresadoras cnc, tornos convencionales, tornos cnc, centros de mecanizado, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225

Machine available, subject to the right of sale.
The data is not binding and may be modified without prior notice.

Price to consult

VAT not included · Transport to be negotiated

Request information and price
direct WhatsApp
+34 935 730 225

Key data

Type: Grinding Machines

Mark: GER

Model: C-600 CNC

Reference: 161-D048

Year: 2007

Request information

Guaranteed response the same day.

Machine: Rectificadora GER C-600 CNC

No obligation · Protected data
