Ref: 141-N321

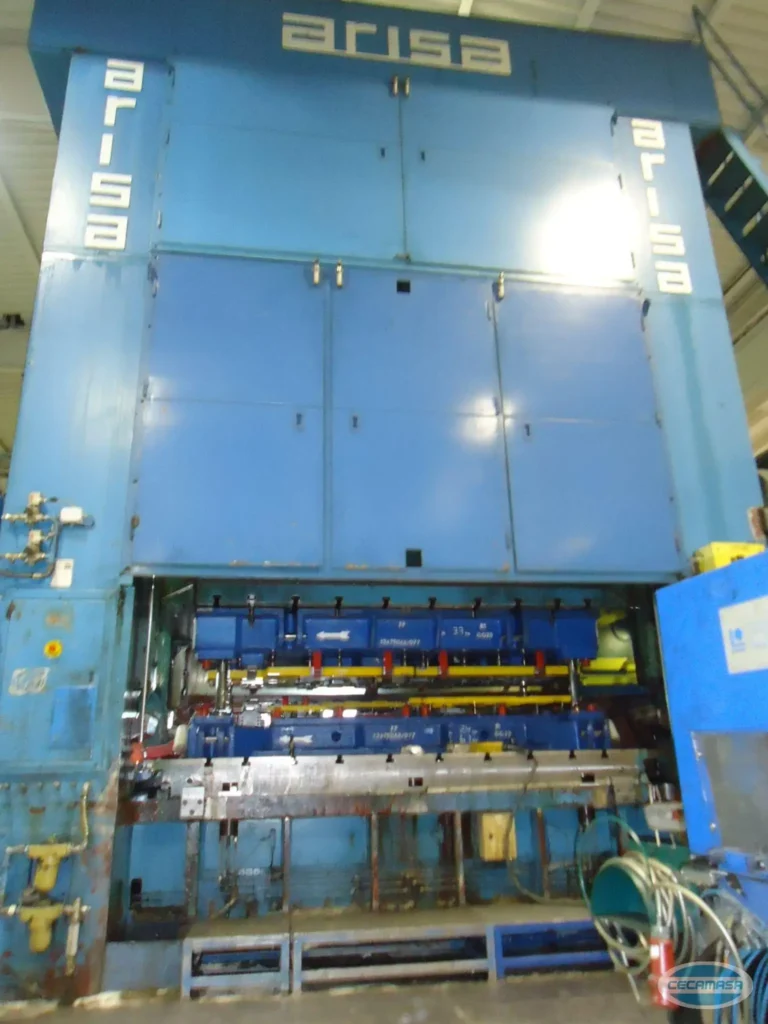

Prensa ARISA

  • Used Machinery, Mechanical Presses
630 TnFuerza máxima
3250 mmPaso entre montantes
3000×1600 mmDimensiones placa mesa
3200×1600 mmSuperficie del carro
Fuerza máxima:
630 Tn
Paso entre montantes:
3250 mm

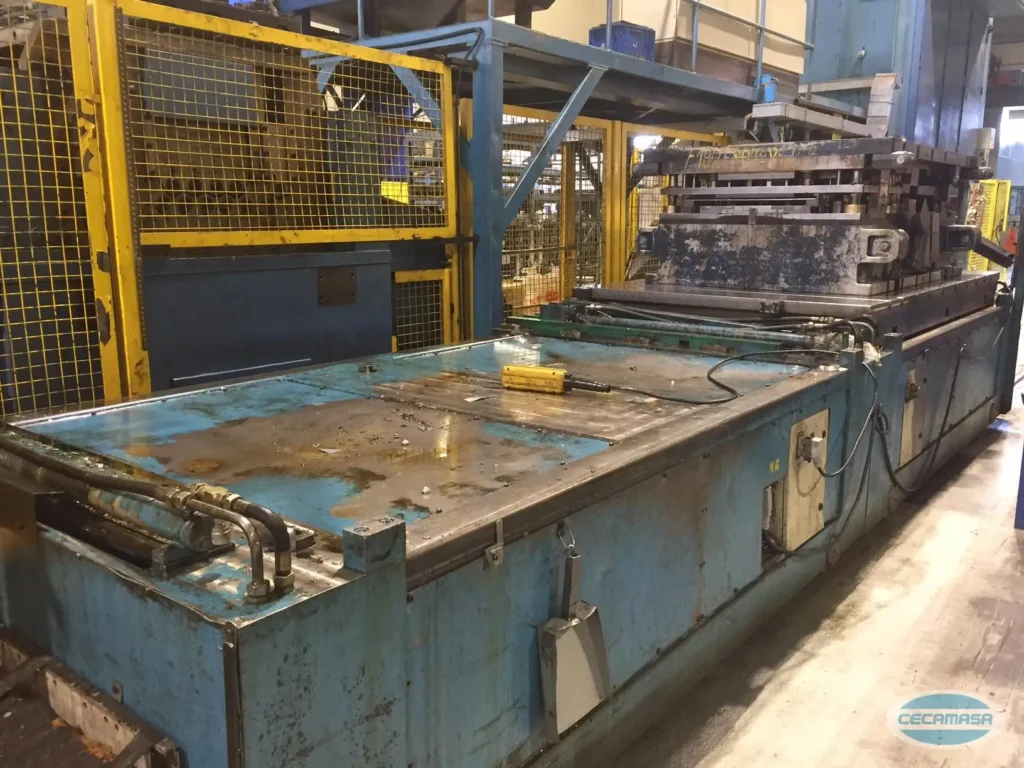

Dimensiones placa mesa:
3000x1600 mm
Superficie del carro:
3200x1600 mm
Altura de cierre sobre la placa de mesa:
675 mm
Carrera:
350 mm
Regulación del carro:
400 mm
Altura de la mesa al suelo:
1150 mm
Golpes por minuto:
15-60
Tiempo de marcha en inercia:
0,26 s
Main engine power:
98,5 Kw
Altura total sobre el suelo:
6795 mm
Approx machine weight:
150.000 Kgs
Equipada con:

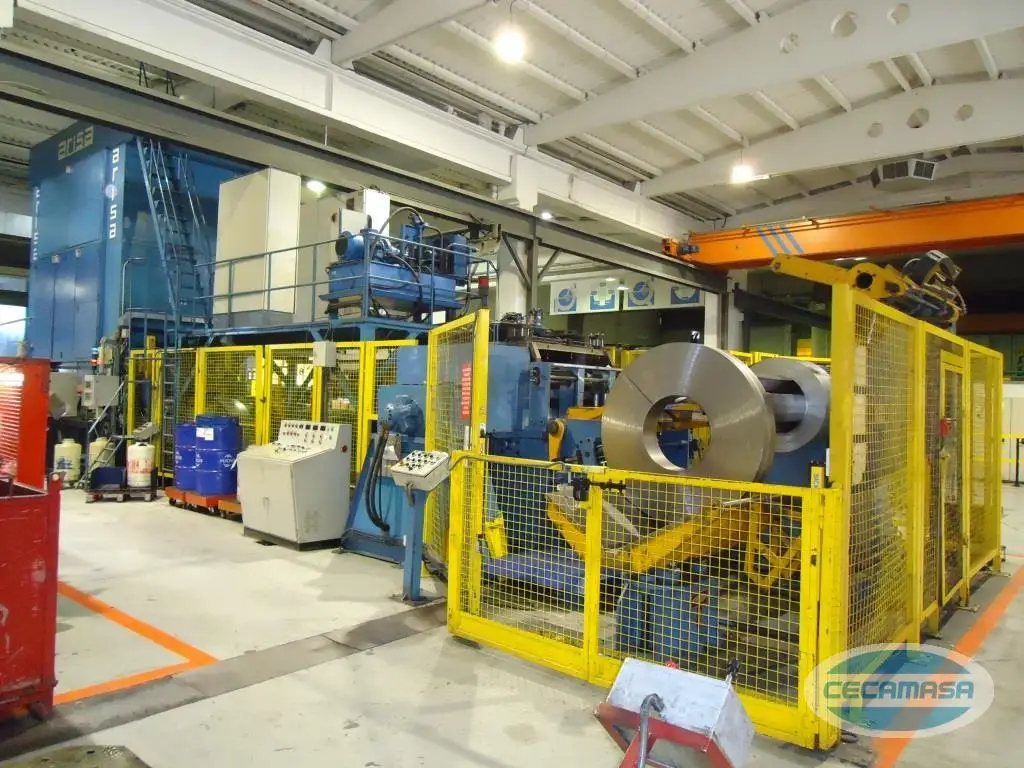

Alimentador ARISA ACNS-1250-5 :
Reguladion en CN en altura
Carro cargador LASA CHF50-8T:
Peso máx bobina 10000 kgs, Ø max-min bobina 1600-600 mm
Devanador LASA 50 CH-8MH/BPHM/DLX:
Peso máx bobina 10000 kgs, Ø max. bobina 1600 mm. ancho max. chapa 1250 mm. funcionamiento hidráulico
Enderezador LASA HDF-50-CFA/ABH
Con 13 rodillos, dimensiones chapa 1250x6 mm

Complete technical sheet (PDF)

Prensa ARISA

¿Necesita más información sobre esta prensa excéntrica ARISA SE2F-630-300-160-S de segunda mano?

Contacte con nosotros y le informaremos sin compromiso alguno sobre esta prensa excéntrica de doble montante ARISA SE2F-630-300-160-S. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225

Price to consult

VAT not included · Transport to be negotiated

Request information and price
direct WhatsApp
+34 935 730 225

Key data

Type: Mechanical Presses

Mark: ARISA

Model: SE2F-630-300-160-S

Reference: 141-N321
