Ref: 218-C017

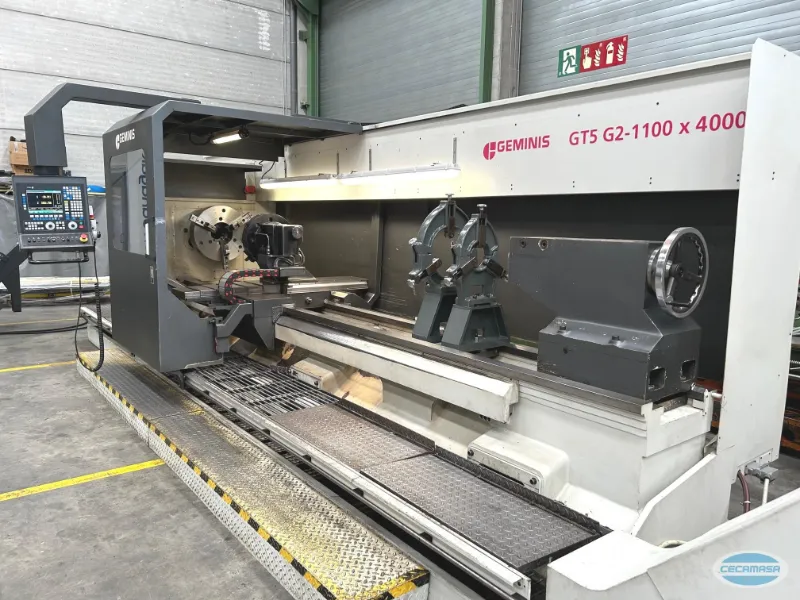

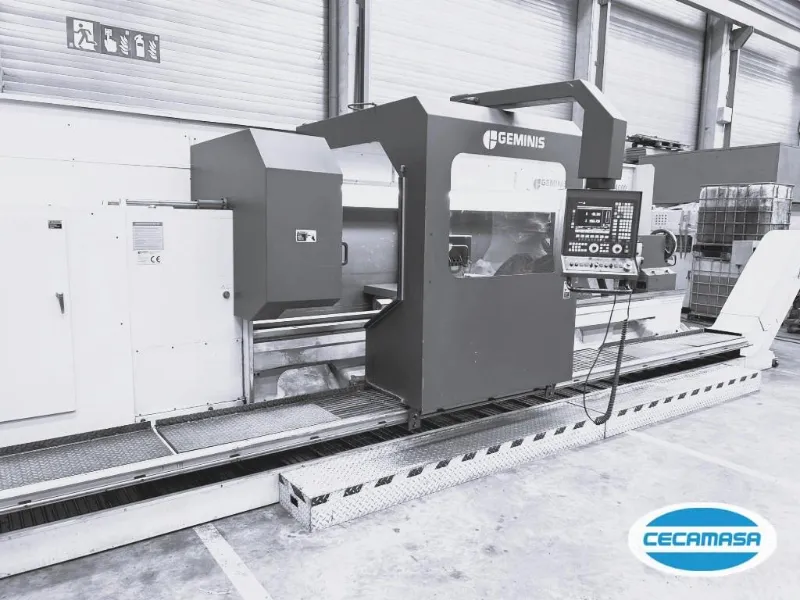

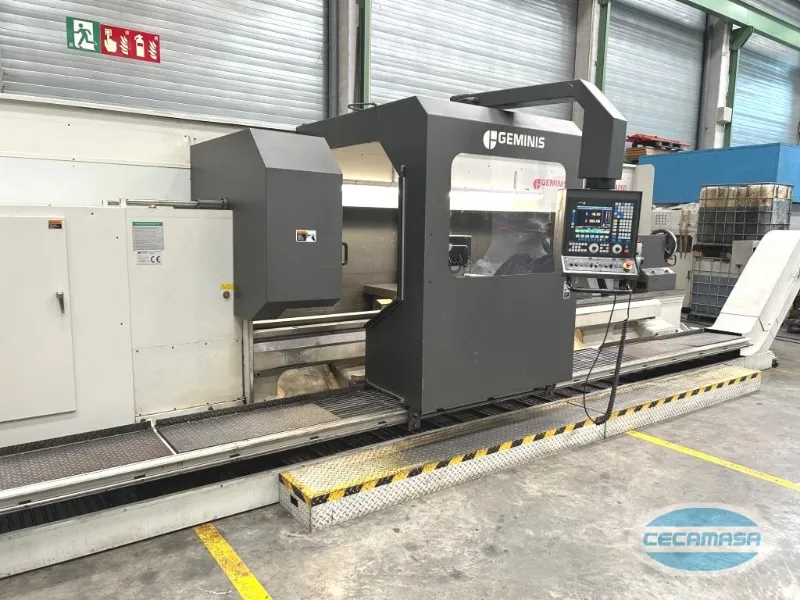

Twin lathe GT5 G2-1100×4000

  • Used Machinery, CNC lathes

· Year 2011

4000 mmDistance between points
1100 mmØ on bench
900 mmLongitudinal car width
600 mmTransverse route
Distance between points:
4000 mm
Ø on bench:
1100 mm
Ø About car:
750 mm
Ø main shaft hole:
130 mm
Longitudinal car width:
900 mm
Cross carriage width:
400 mm
Transverse route:
600 mm
Main shaft nose:
DIN 55026-11
Speed ​​range:
4, 0-1400 rpm
Working feed rate:
8000 m/min
Motor principal:
30 kw
Shank diameter:
160 mm
Rod course:
300 mm
Piece weight between points:
6000 kgs
Weight of piece in the air:
1200 kgs
Weight approx. machine:
13000 kgs
Equipped with:

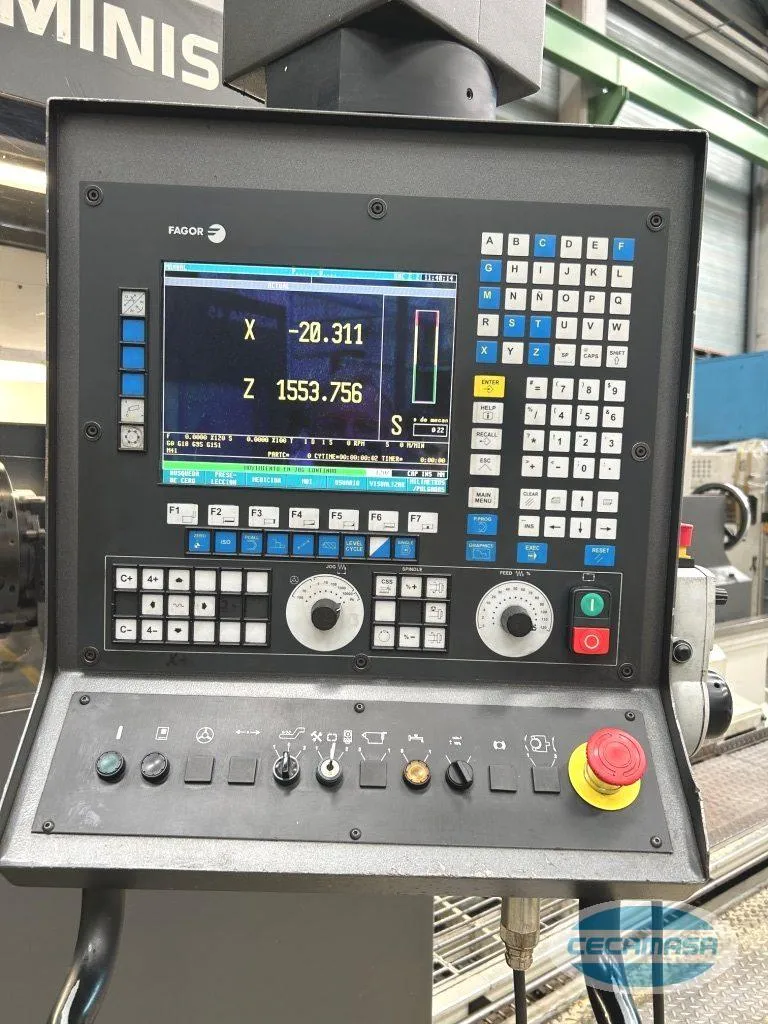

Control:
FAGOR 8055 TC/C
Electronic steering wheel:
FAGOR

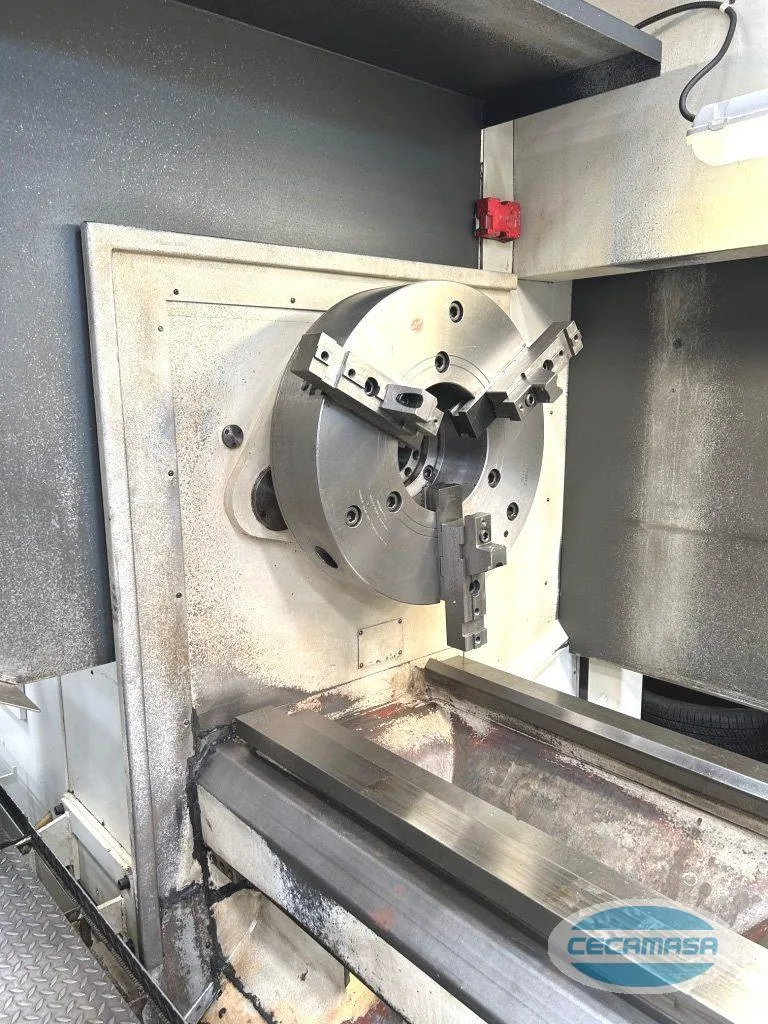

Plato ROHM 3 universal claws:
Ø 630mm

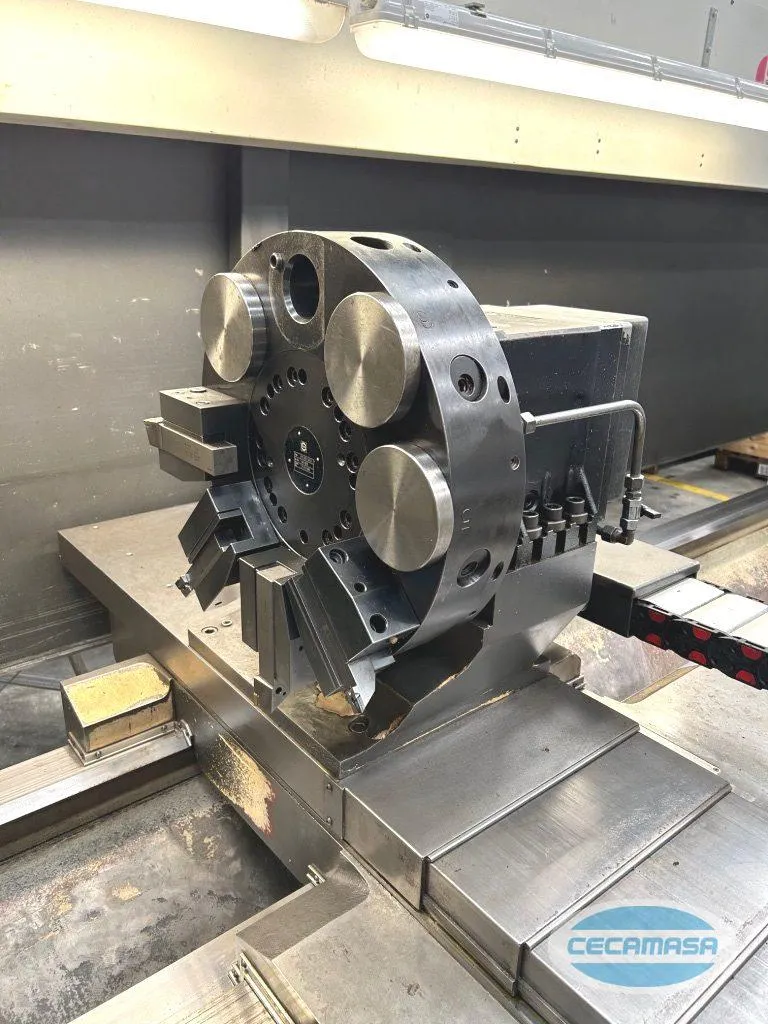

SAUTER turret:
8 seasons
Chip extractor:
Yeah

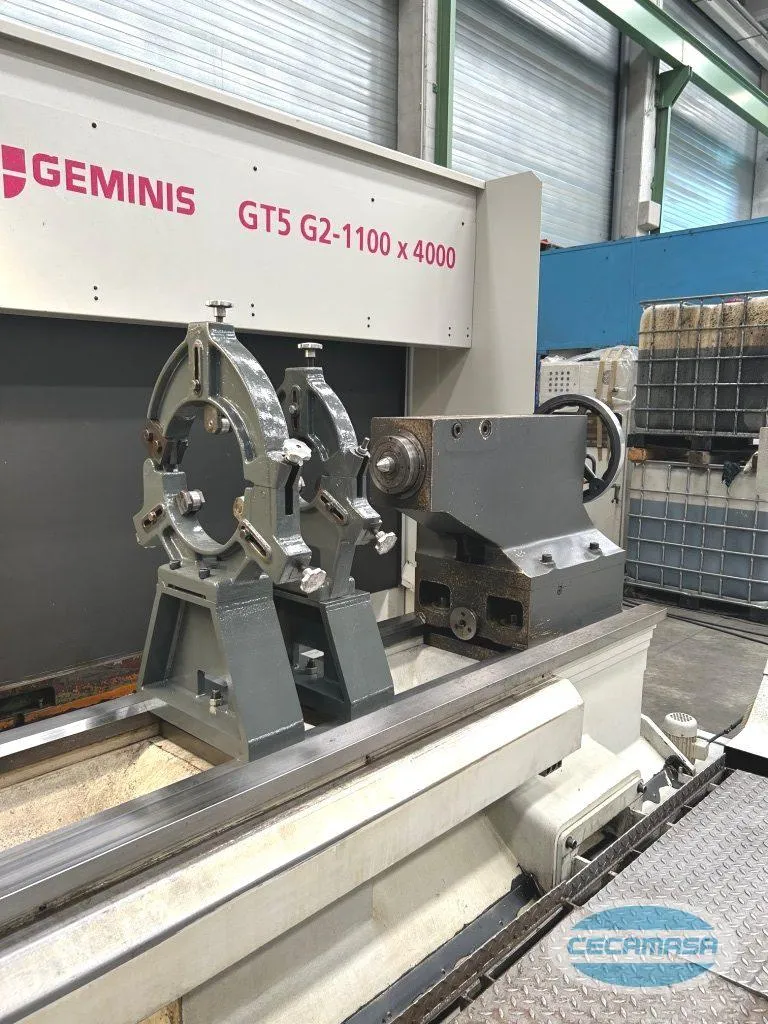

Tailstock and reed:
motorized
2 telescopes
own manufacturing

Complete technical sheet (PDF)

Twin lathe GT5 G2-1100×4000

Do you need more information about this GEMINIS GT5 G2-1100 cnc lathe×4000 second hand?

Contact us and we will inform you without any type of commitment about this twin cnc lathe. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: conventional milling machines, CNC milling machines, conventional lathes, grinding machines, etc. You can contact us through: cecamasa@cecamasa.com +34 935 730 225

Price to consult

VAT not included · Transport to be negotiated

Request information and price
direct WhatsApp
+34 935 730 225

Key data

Type: CNC lathe

Mark: twins

Model: GT5 G2-1100×4000

Year of manufacture: 2011

Reference: 218-C017
