Ref: 073-D001

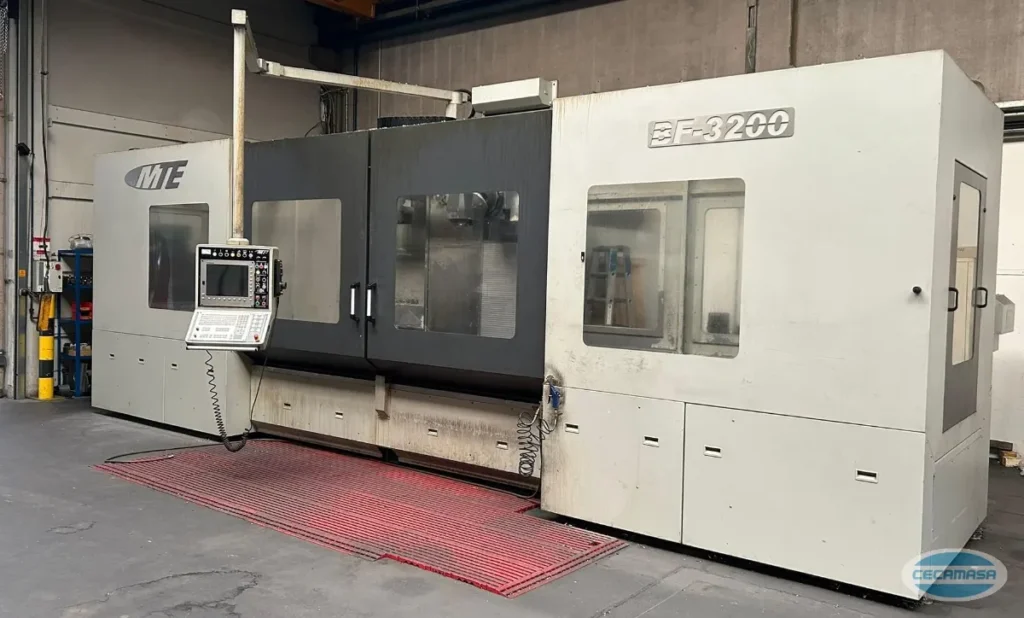

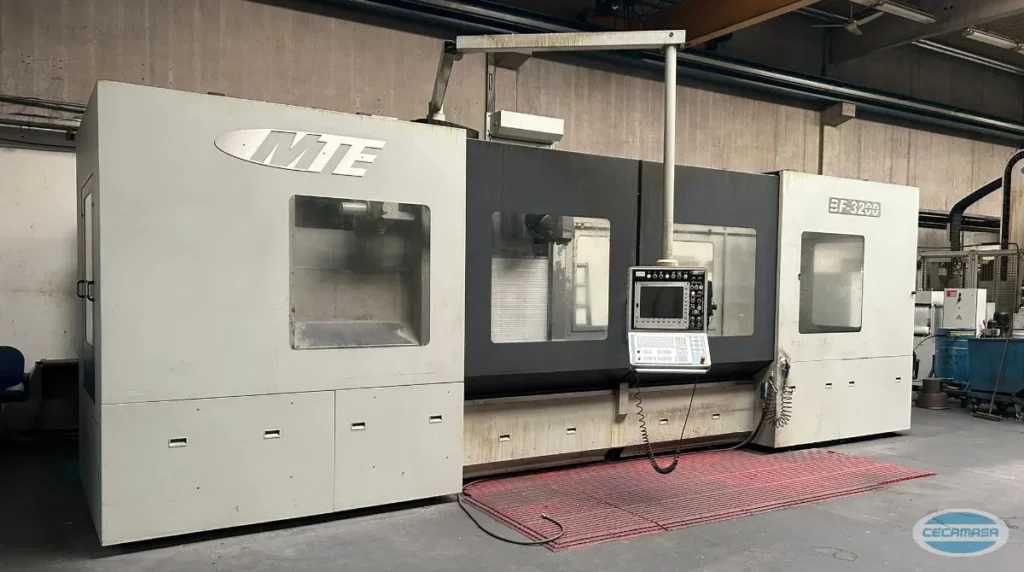

Fresadora MTE BF-3200

  • Bed Type Milling Machines, Used Machinery

· Año 2017

3000 mmX Axis Travel
1200 mmY Axis Travel
1500 mmZ Axis Travel
HEIDENHAIN TNC 640Control:
Table dimensions:
3200x1000 mm
Number of T slots:
7
Medidas de ranuras T:
22 mm
Max weight on table:
11.000 kgs
X Axis Travel:
3000 mm
Y Axis Travel:
1200 mm
Z Axis Travel:
1500 mm

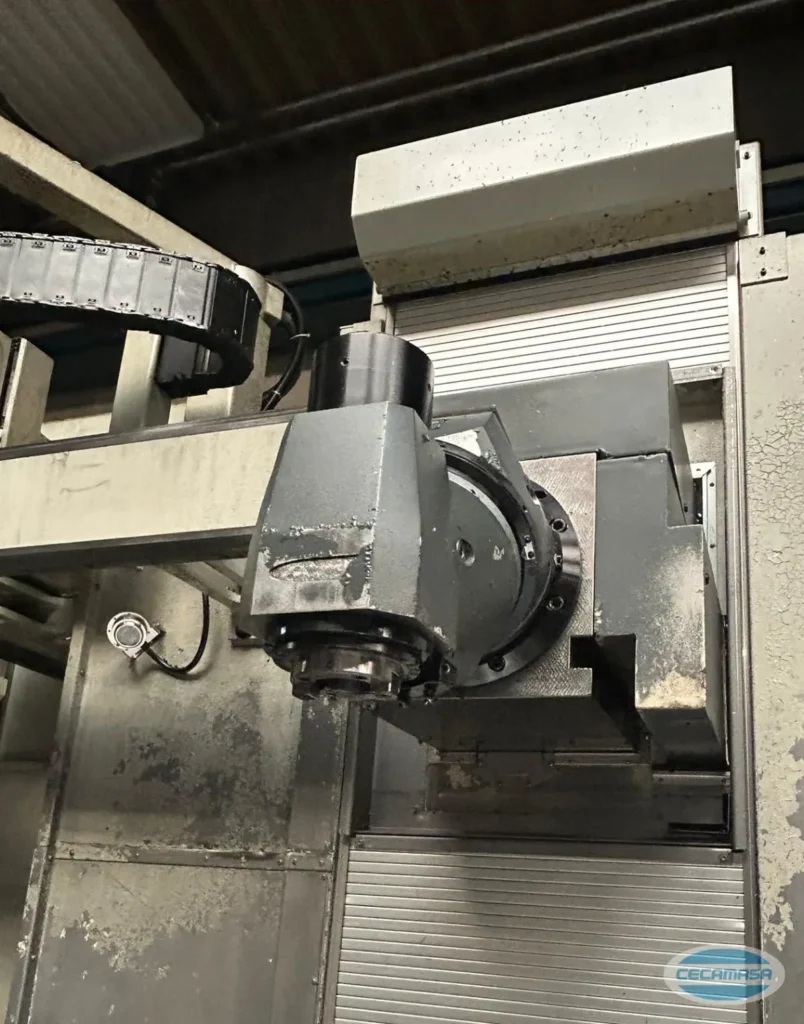

Modelo cabezal:
Automático 2,5-2,5° refrigerado por aceite.
Pussy:
ISO 50 DIN 69871 AD
Speed ​​range:
3 gamas
Speed:
0-4000 rpm
Main engine power:
32 kw
Year:
2017
Avances de máquina:
Work progress:
12.000 mm/min
Fast forwards (X,Y,Z):
15.000 mm/min
Husillos ejes (X,Y,Z)
de bolas Ø 63x20
Dimensiones y pesos:
Dimensions:
8200x4500x4000 mm.
Weight:
20.000 kgs.
Equipped with:

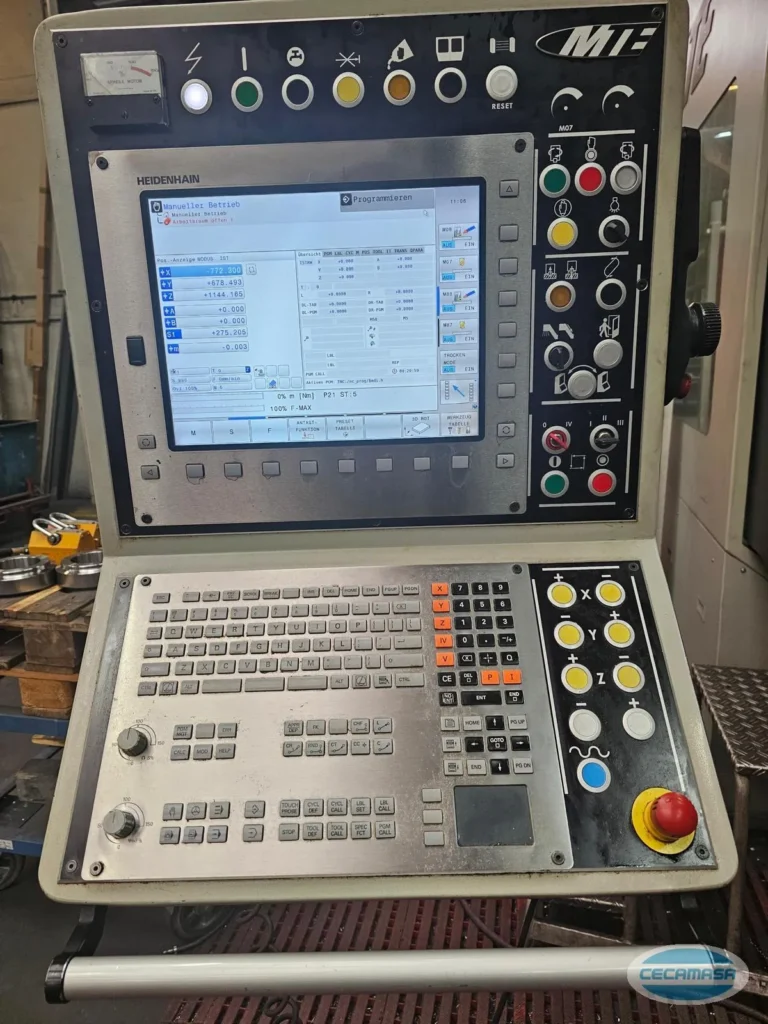

Control:
HEIDENHAIN TNC 640

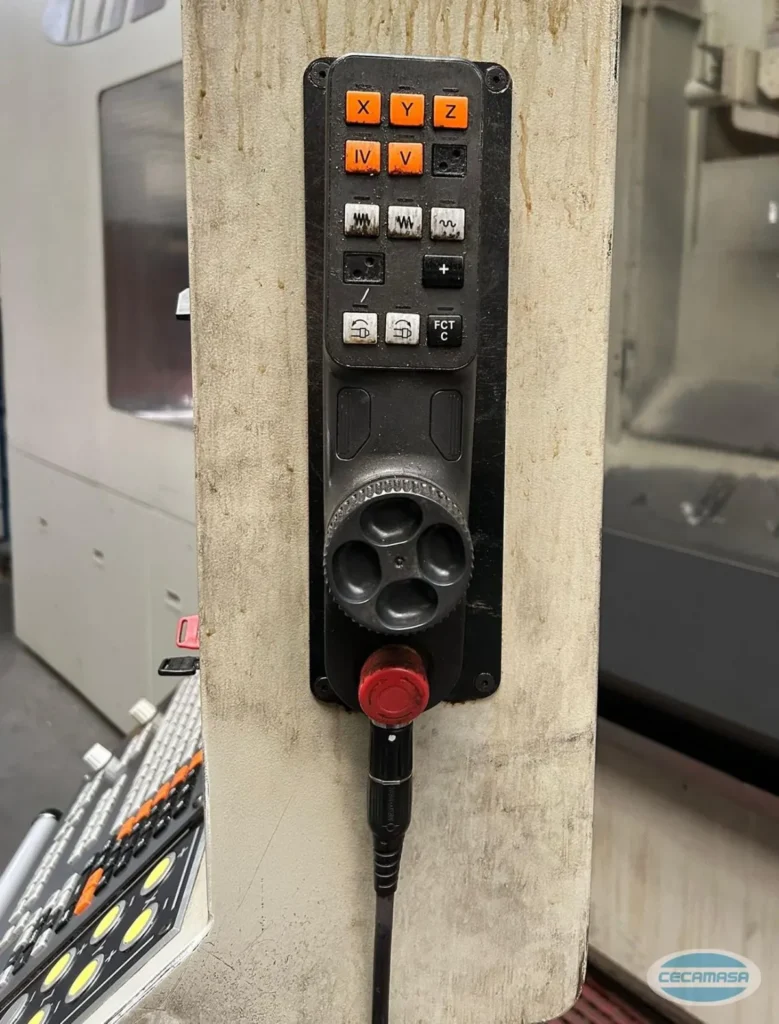

Electronic steering wheel:
HR-420
Tool charger:
40 tools
Internal cooling:
20 bares - con filtro papel
Chip extractor:
Dos longitudinales paralelos a la mesa y uno transversal

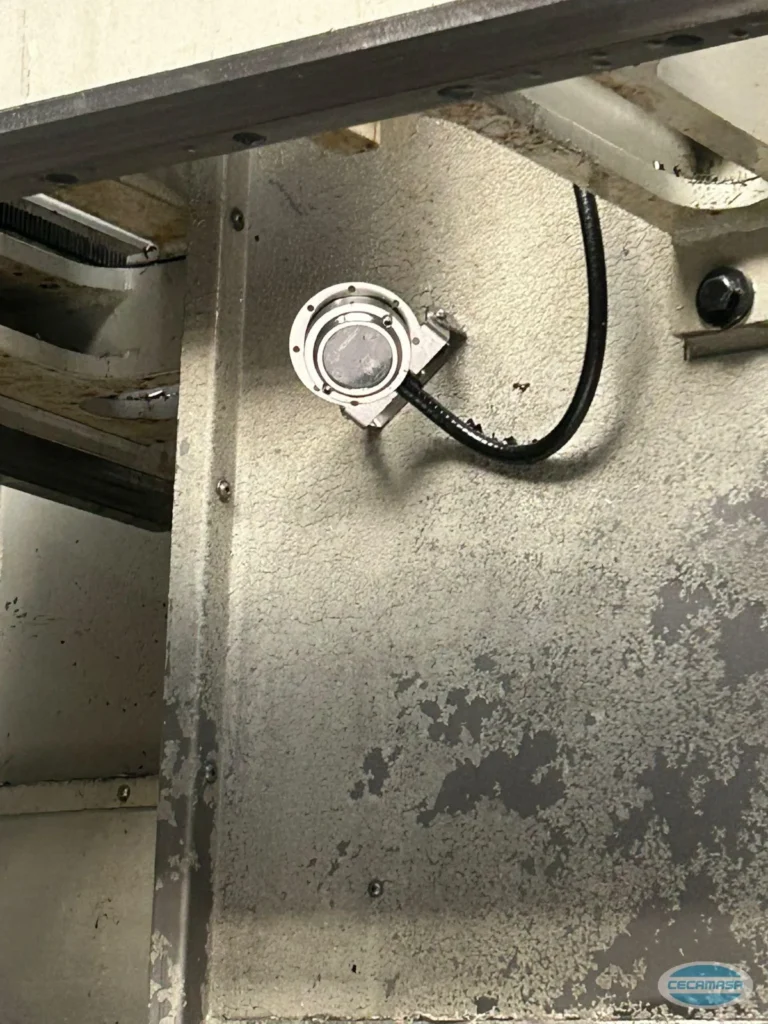

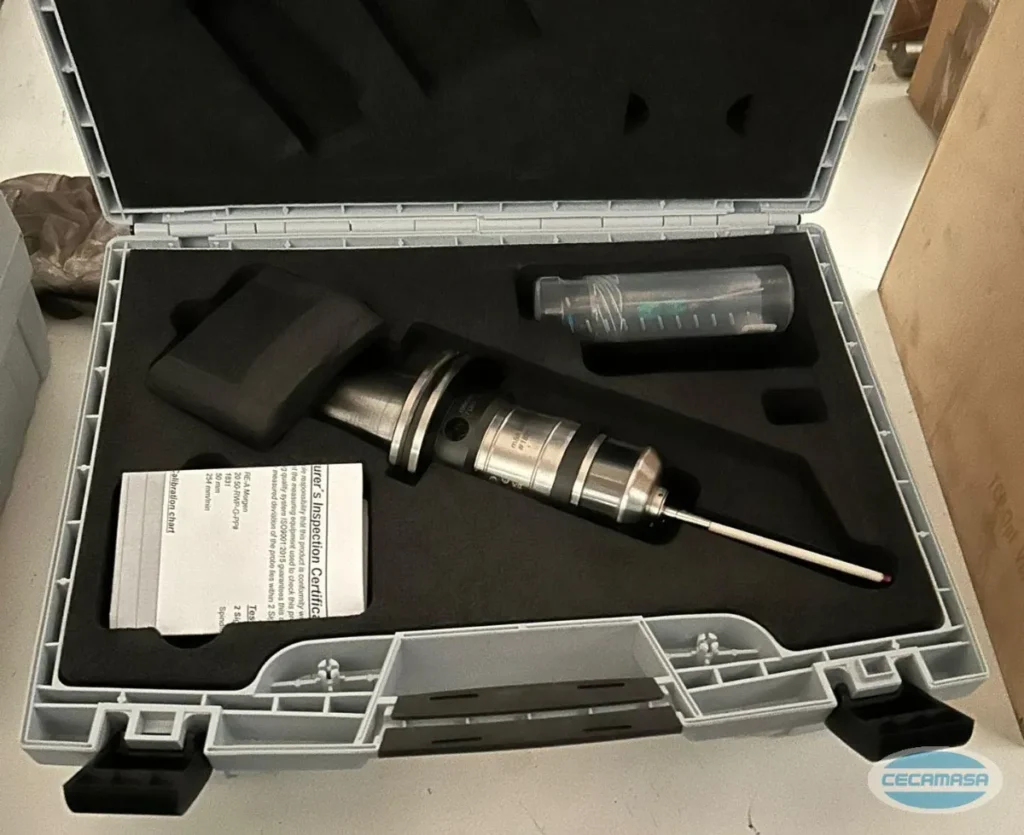

Sistema de sonda inalambrico M&H RWP38,41
Presetter
Carenado perimetral
Yeah

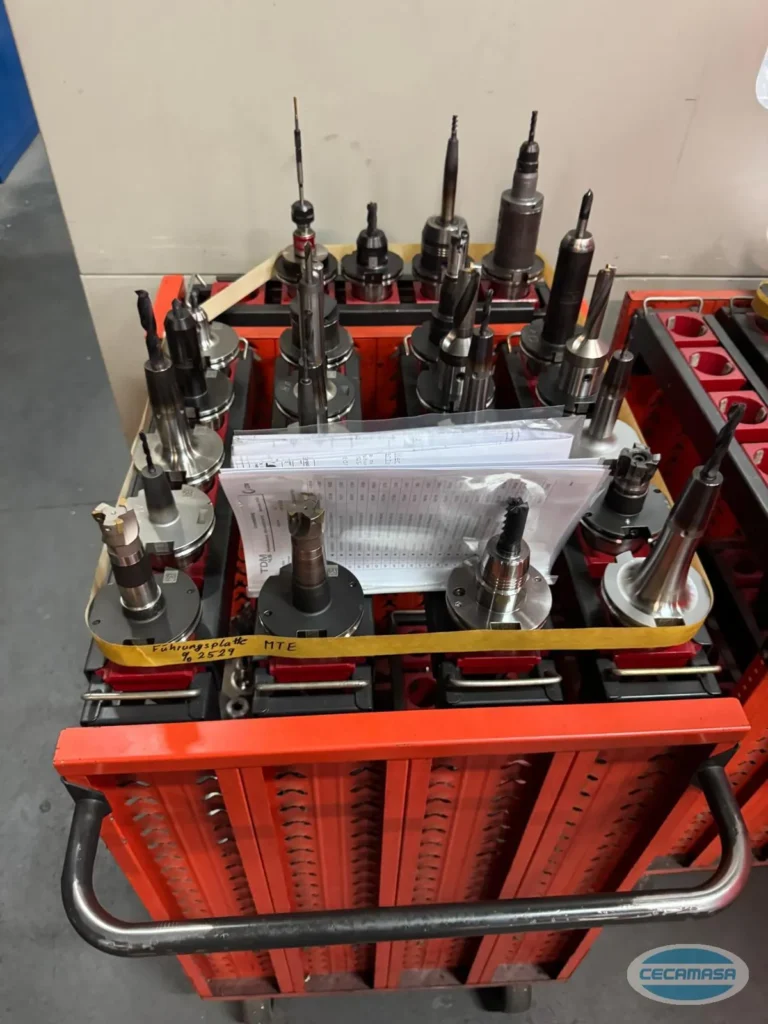

Muy equipada con conos (según foto)

Complete technical sheet (PDF)

Fresadora MTE BF-3200

¿Necesita más información sobre esta Fresadora de Bancada Fija MTE BF-3200 de segunda mano?

Contact us and we will inform you without any type of commitment about this fresadora MTE de ocasión. Si lo desea también puede visitar nuestras instalaciones ubicadas en Parets del Vallés (Barcelona), donde disponemos de todo tipo de maquinaria industrial nueva y usada: centros de mecanizado, cilindros, cizallas, plegadoras, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225

Price to consult

VAT not included · Transport to be negotiated

Request information and price
direct WhatsApp
+34 935 730 225

Key data

Type: Bed Type Milling Machines

Mark: MTE

Model: BF-3200

Year of manufacture: 2017

Reference:073-D001

Request information

Guaranteed response the same day.

Machine: Fresadora MTE BF-3200

No obligation · Protected data
