Ref: 073/P044

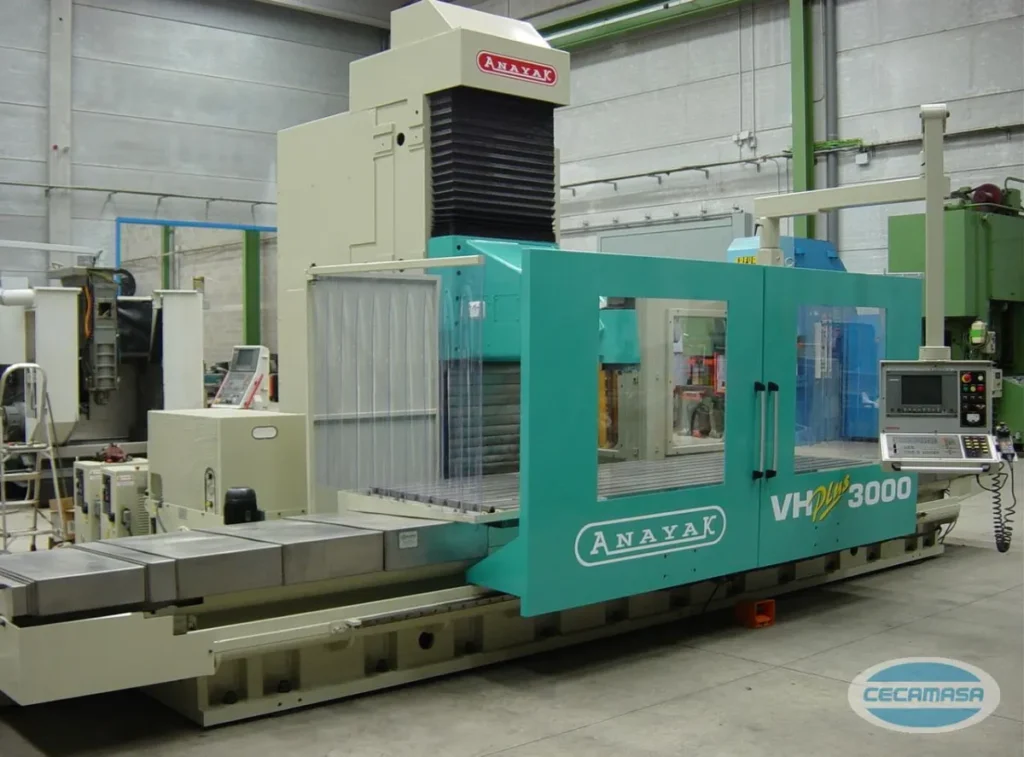

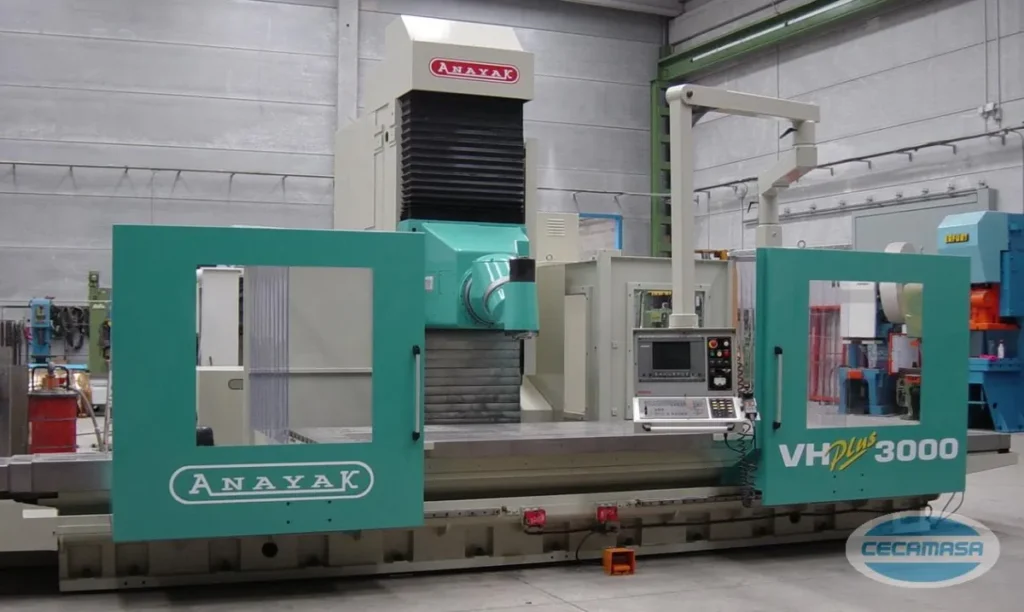

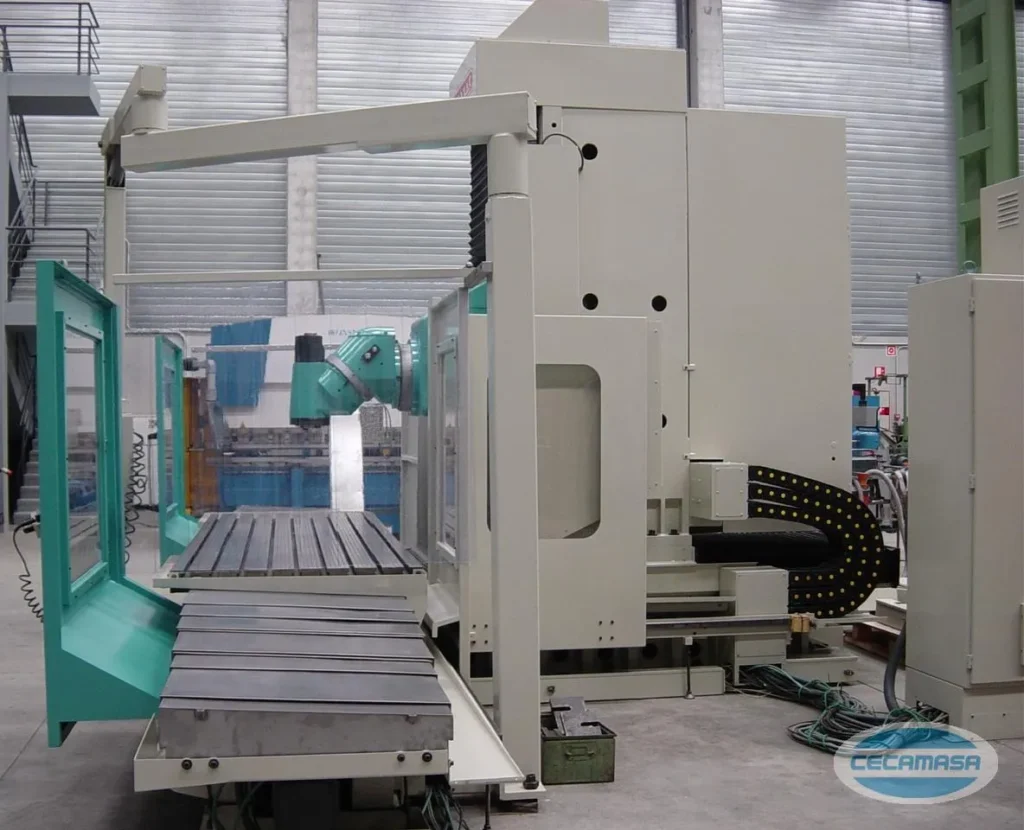

Fresadora ANAYAK – 073/P044

  • Bed Type Milling Machines, Used Machinery

· Year 2001

3.000 mm.X Axis Travel
1070 mm.Y Axis Travel
1500 mmZ Axis Travel
HEIDENHAIN TNC 426Control:
Table dimensions:
3.200 x 1100 mm
Maximum weight on table:
6000 kgs
X Axis Travel:
3.000 mm
Y Axis Travel:
1.070 mm
Z Axis Travel:
1.500 mm
Pussy
ISO 50 DIN 69871-B
spindle speed
60-4000 rpm.
Avances rápidos X-Y
=20000 Z 10000 mm/min
Avances rápidos de trabajo
0,01 – 6000 mm/min
Nº de ranuras y longitud
9×22 mm
Distancia entre ranuras
120 mm
Power
18,5 / 22 kW
Motor
22/30 KW.
Medidas de la máquina
6.674 X 5040 X 3845 mm
Peso de la máquina
25.000 Kgs
Year
2001
Equipped with:

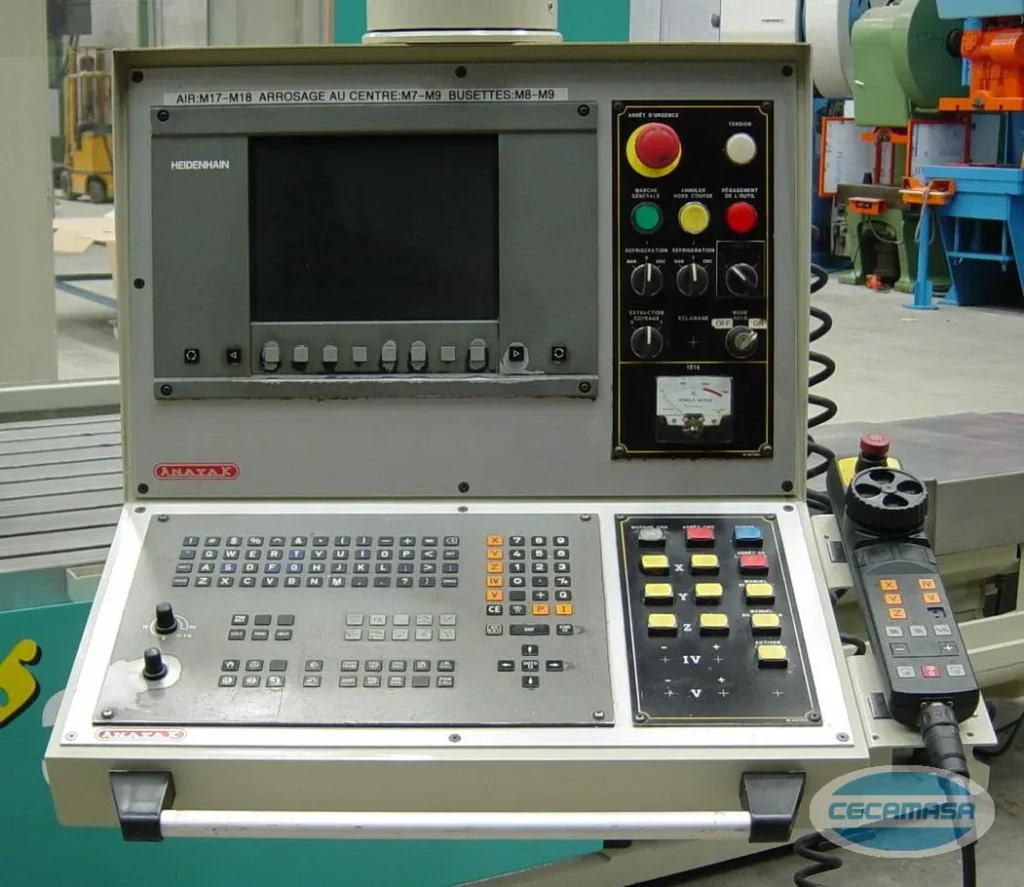

CNC
HEIDENHAIN TNC 426

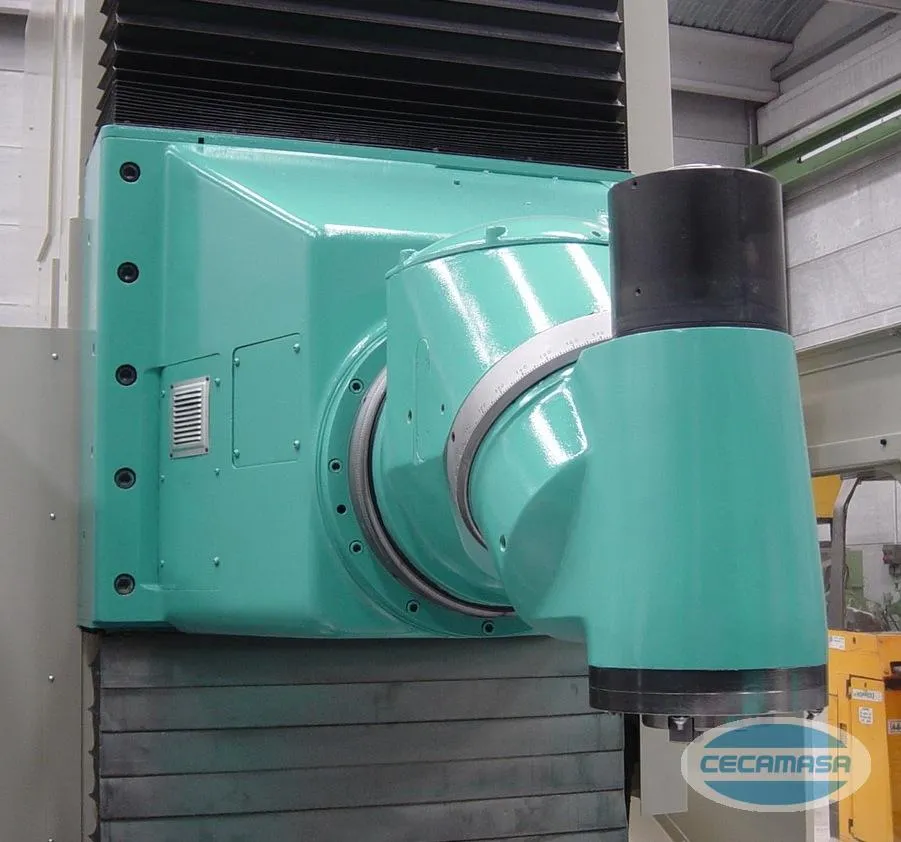

Cabezal indexación automática
A + B 1º y 2.5 º
Internal cooling

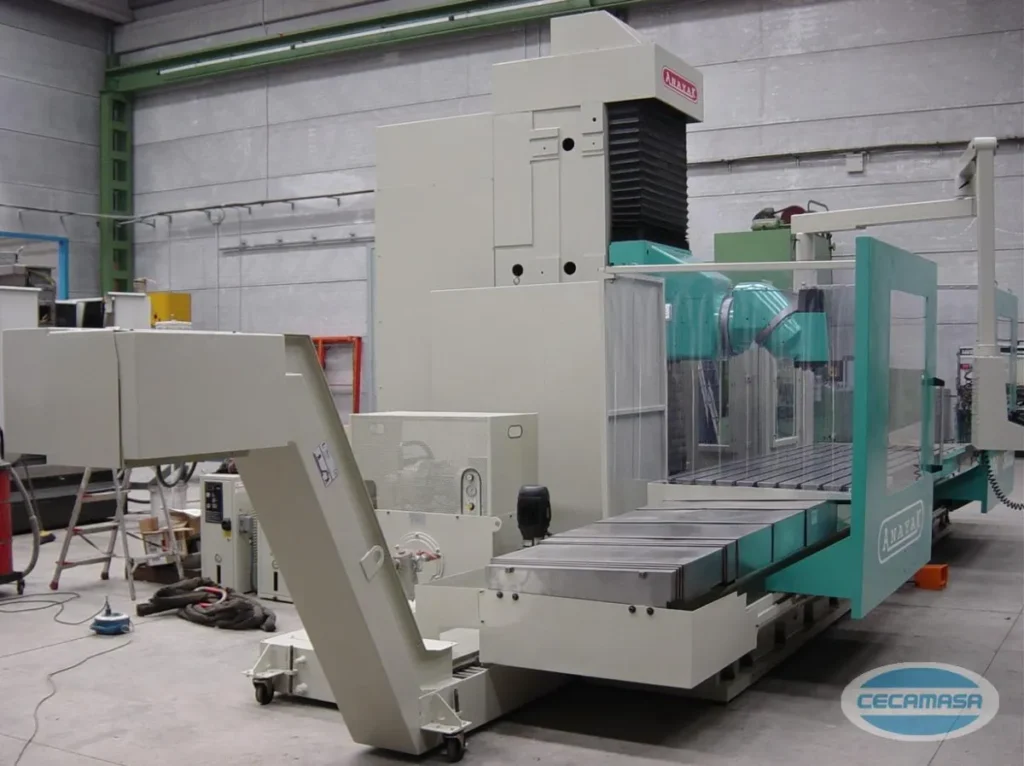

Extractor de virutas.

¿Necesita más información sobre esta fresadora de bancada fija BROTHERS VH 3000 PLUS de segunda mano?

Contact us and we will inform you without any type of commitment about this fresadora de bancada fija ANAYAK VH 3000 PLUS. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: machining centers, cylinders, grinding machines, shears, EDMs, etc.

cecamasa@cecamasa.com
+34 935 730 225

Price to consult

VAT not included · Transport to be negotiated
