Sold
Ref: 218-A008

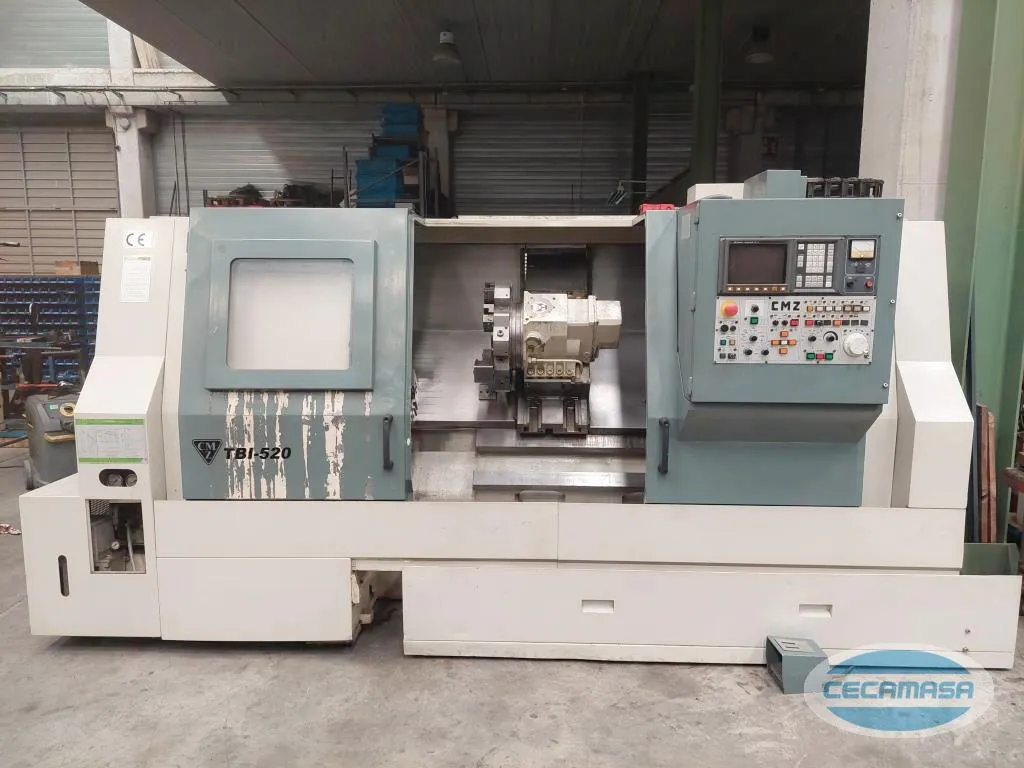

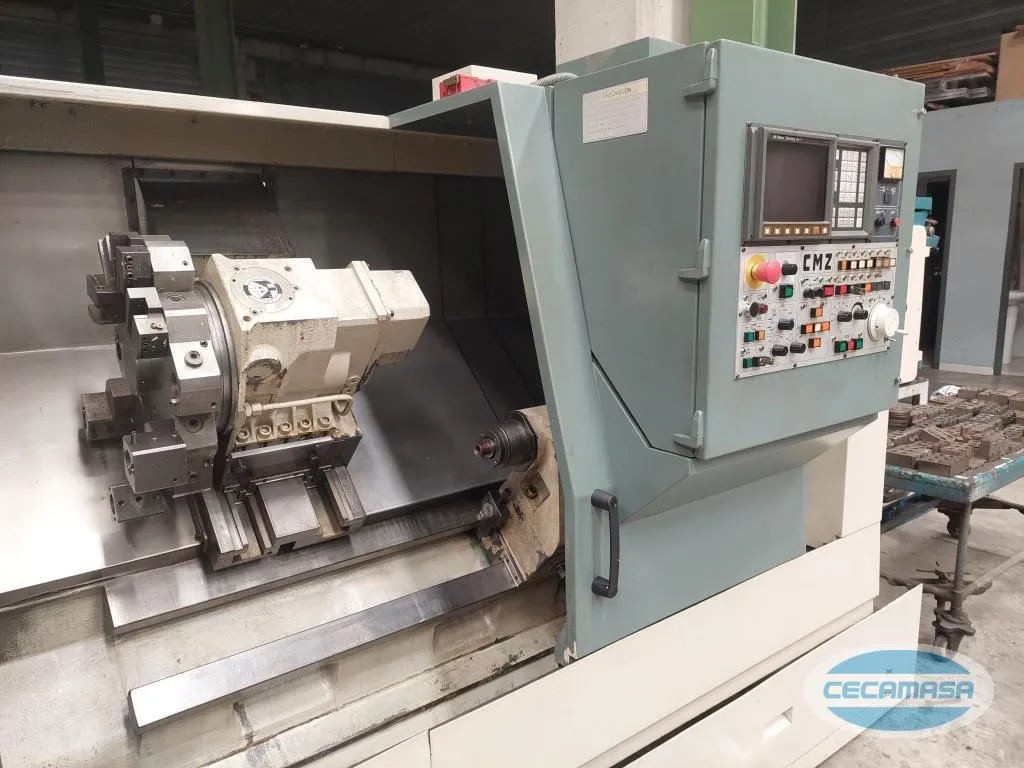

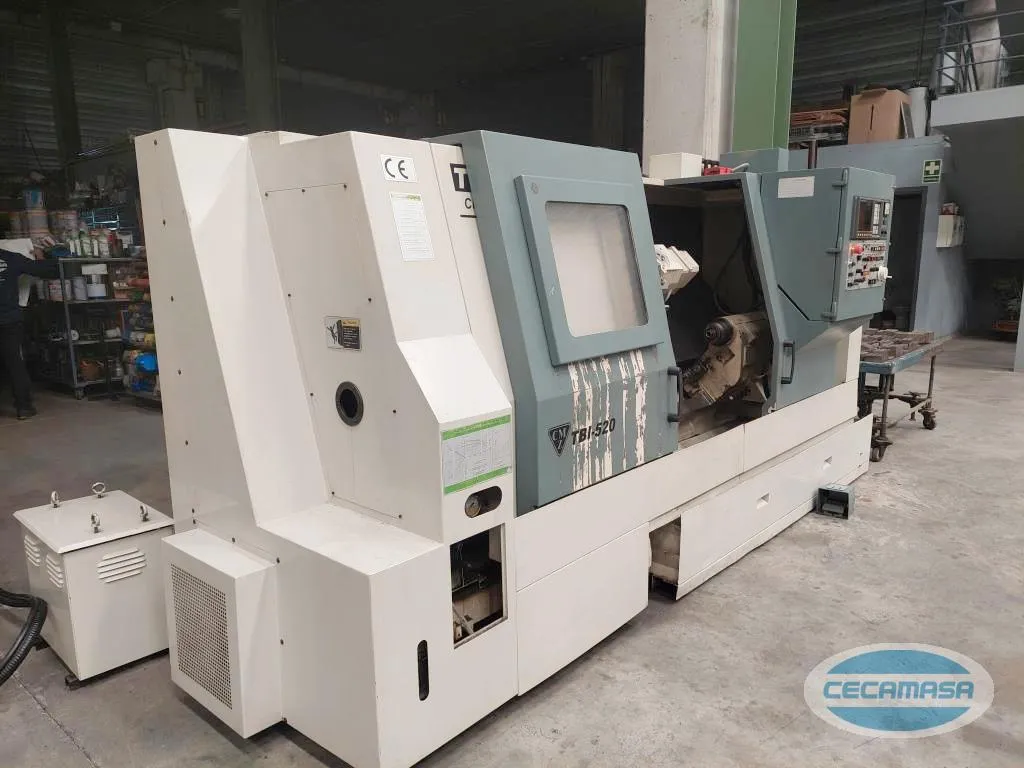

Torno cnc CMZ TBI 520-A

Distance between points:
1100 mm
Longitud máx torneable:
1090 mm
Ø on bench:
520 mm
Ø About car:
400 mm
Island ownership principal:
91 mm
X axis travel:
212 mm
Z axis travel:
1090 mm
Movimientos rápidos X/Z:
18/24 m/min
Speed ​​range:
3500 rpm
Spindle power:
37 kw
Approx machine weight:
5500 kgs
Machine dimensions:
3710x1520x1900 mm
Equipped with:
Control:
FANUC
Plato :
Ø 250 mm

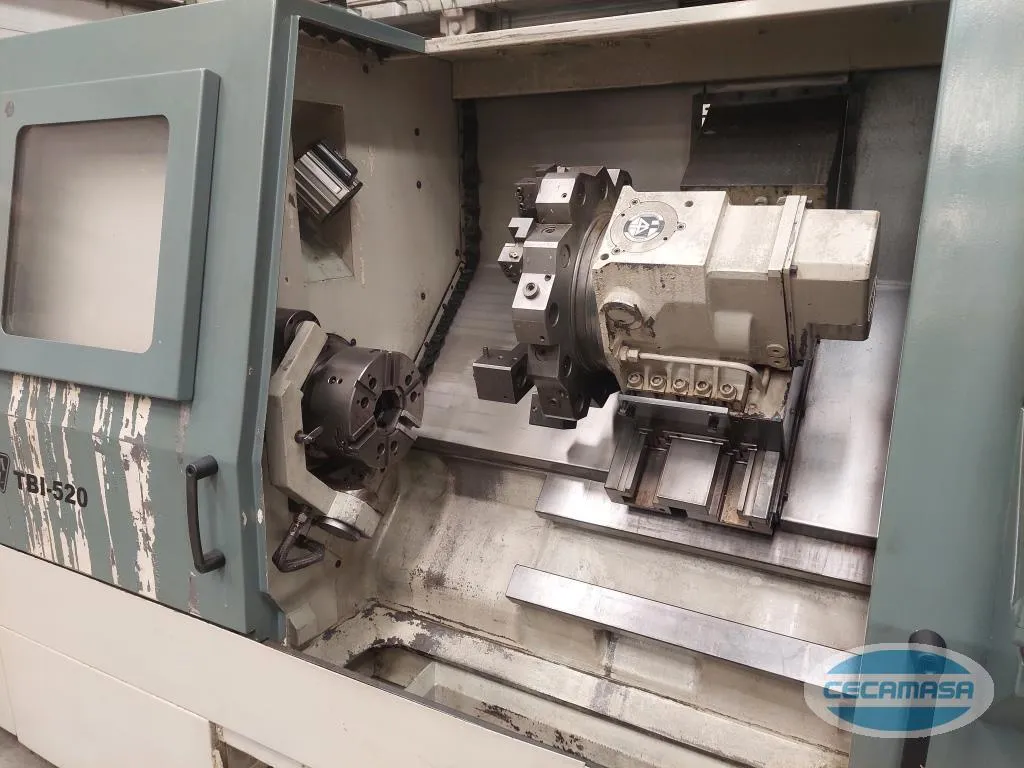

Turret:
8 herramientas

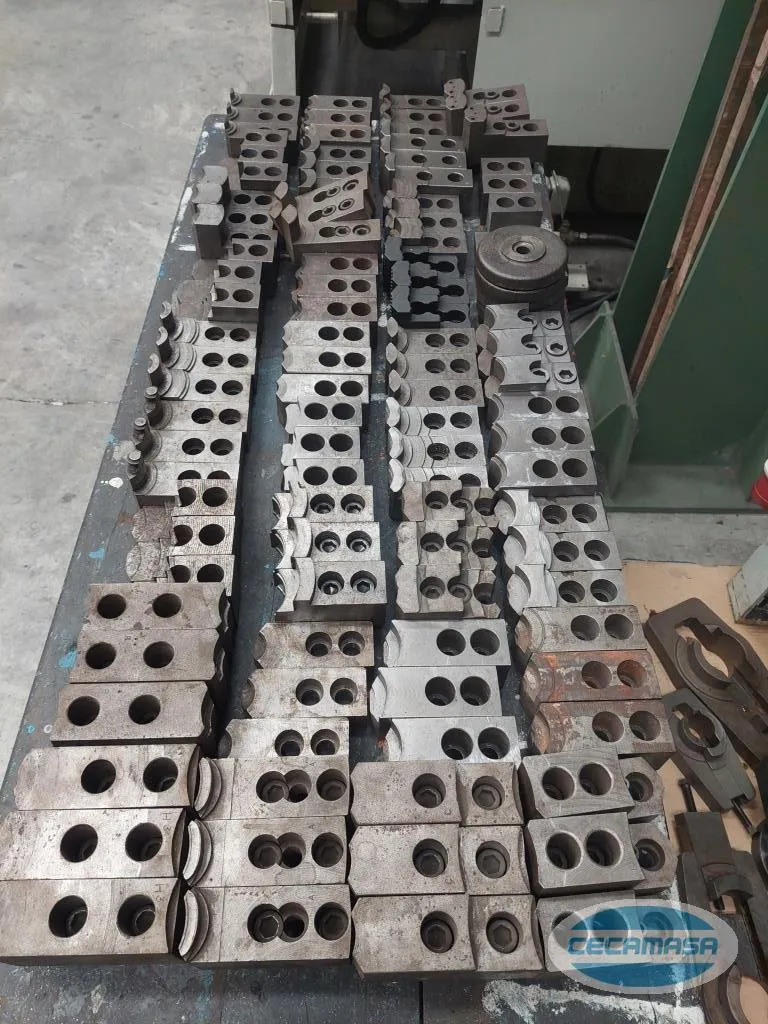

Tools:
according to photo

¿Necesita más información sobre este torno cnc CMZ TBI 520-A de segunda mano?

Contact us and we will inform you without any type of commitment about this torno cnc CMZ. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: conventional milling machines, CNC milling machines, conventional lathes, grinding machines, etc. You can contact us through: cecamasa@cecamasa.com +34 935 730 225

Price to consult

VAT not included · Transport to be negotiated

Key data

Type: CNC lathe

Mark: CMZ

Model: TBI 520-A

Reference: 218-A008

Request information

Guaranteed response the same day.

Machine: Torno cnc CMZ TBI 520-A
