Ref: 110-C019

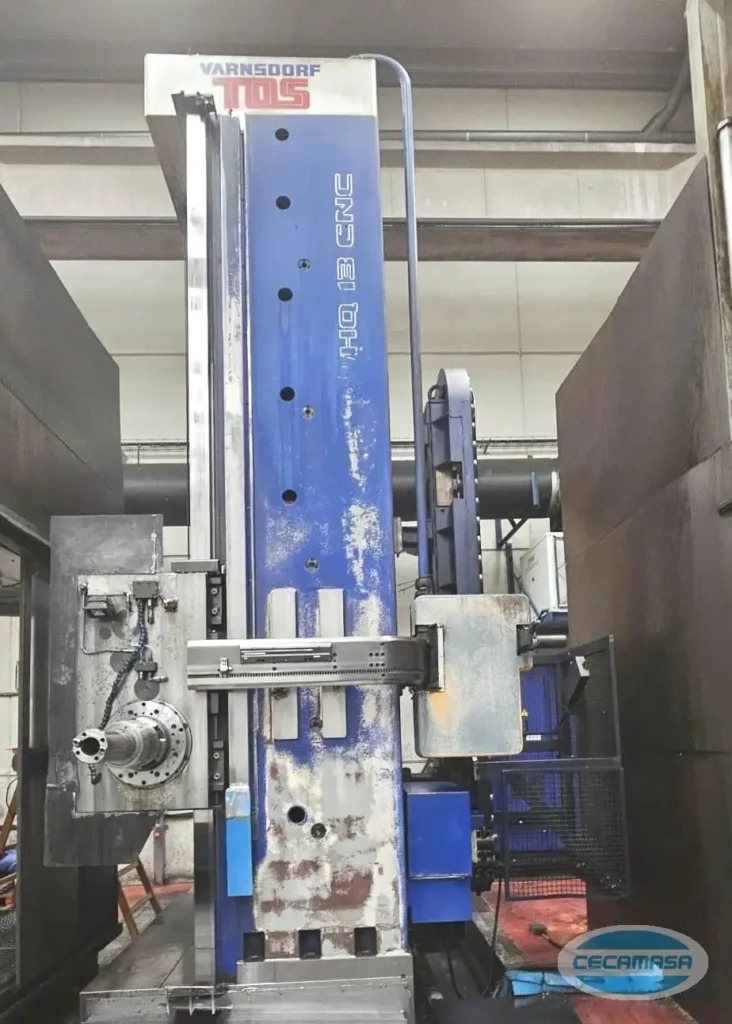

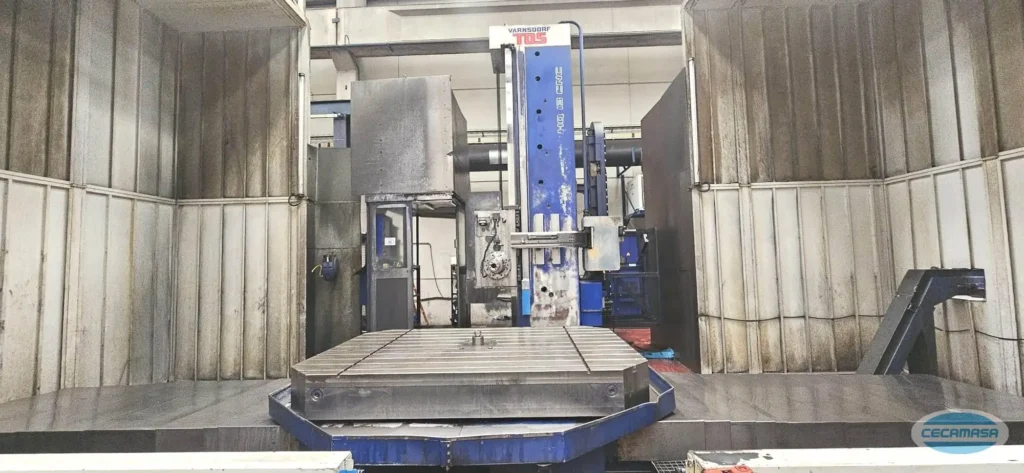

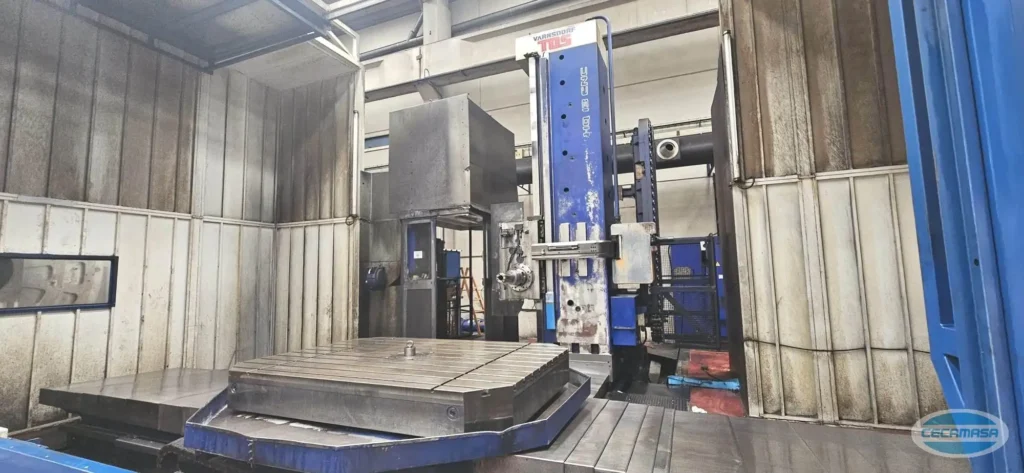

TOS 5-axis horizontal boring machine

  • Boring Machines, Used Machinery

· Year 2008

5000 mmX Axis Travel
3000 mmY Axis Travel
2000 mmZ Axis Travel
37 kwEngine power

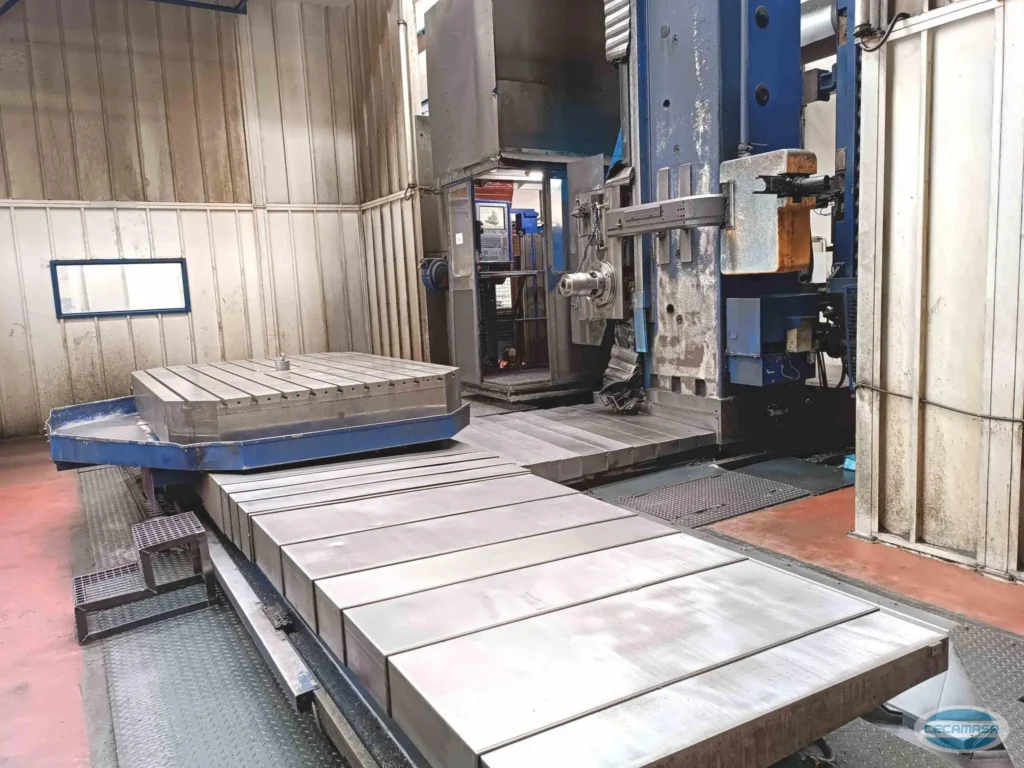

Table dimensions:
1800x2500 mm con doble piñón
Max weight on table:
20.000 kgs
X axis travel:
5000 mm
Recorrido eje Y:
3000 mm
Z axis travel:
2000 mm
Recorrido caña (Eje W):
800 mm
Giro mesa (Eje B):
Continuo - (0,001º)

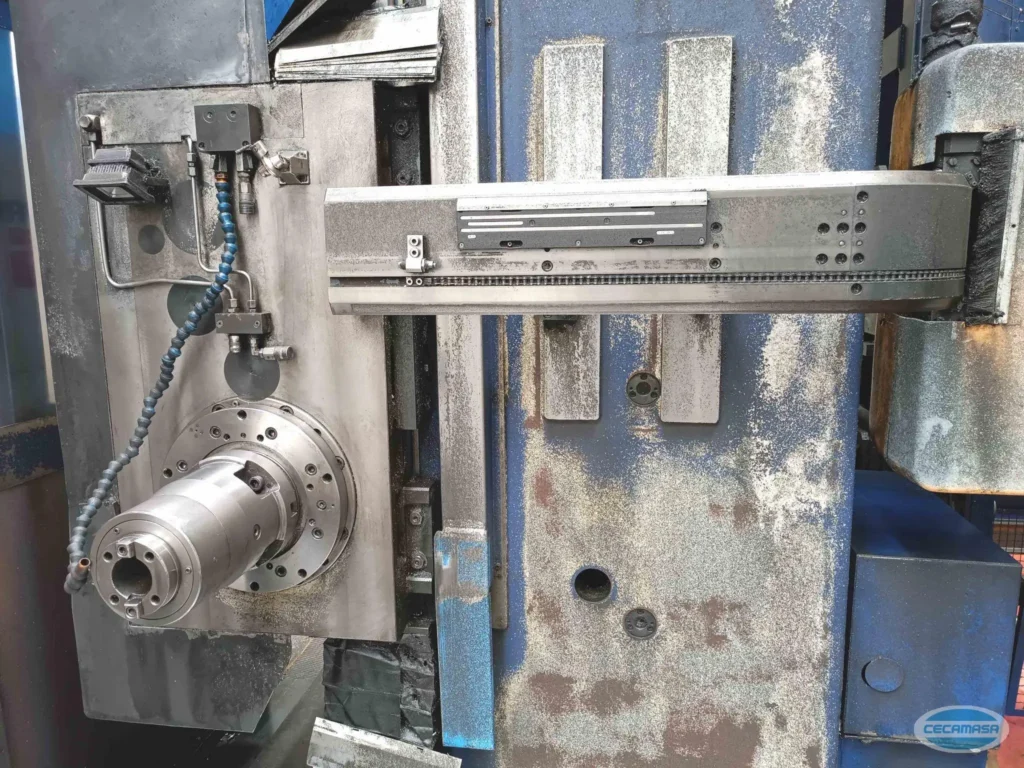

Ø caña:
130 mm
Speed ​​range:
0-3000 rpm
Engine power:
37 kw
Work progress:
10000 mm/min.
Fast forwards (X,Y,Z):
25000 mm/min.
Peso máquina:
38650 kgs.
Machine dimensions:
10500x7810x5950 mm.
Equipped with:
Control:

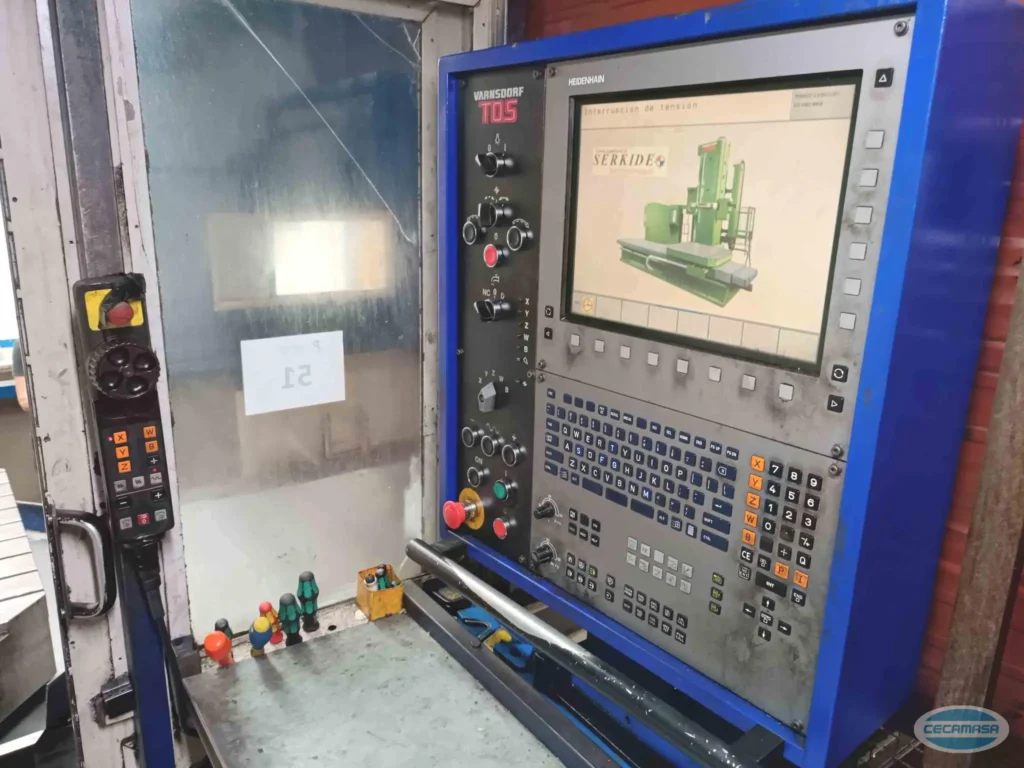

Heidenhain iTNC 530
Electronic steering wheel:
Heidenhain HR-410

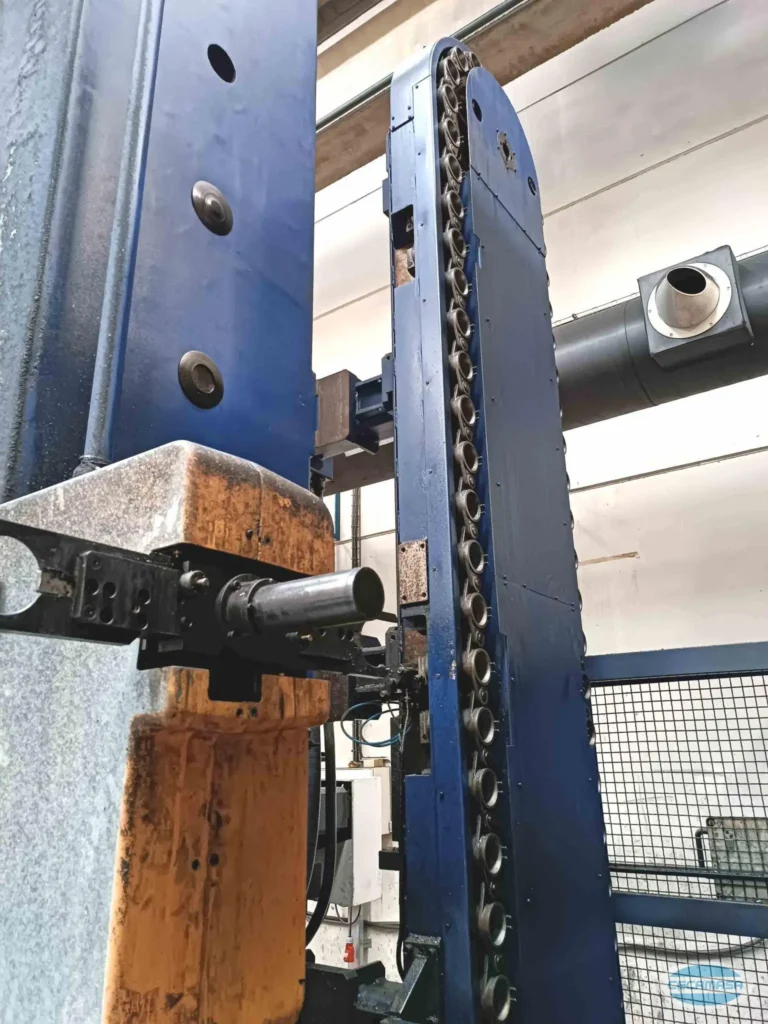

Charger:
60 herramientas

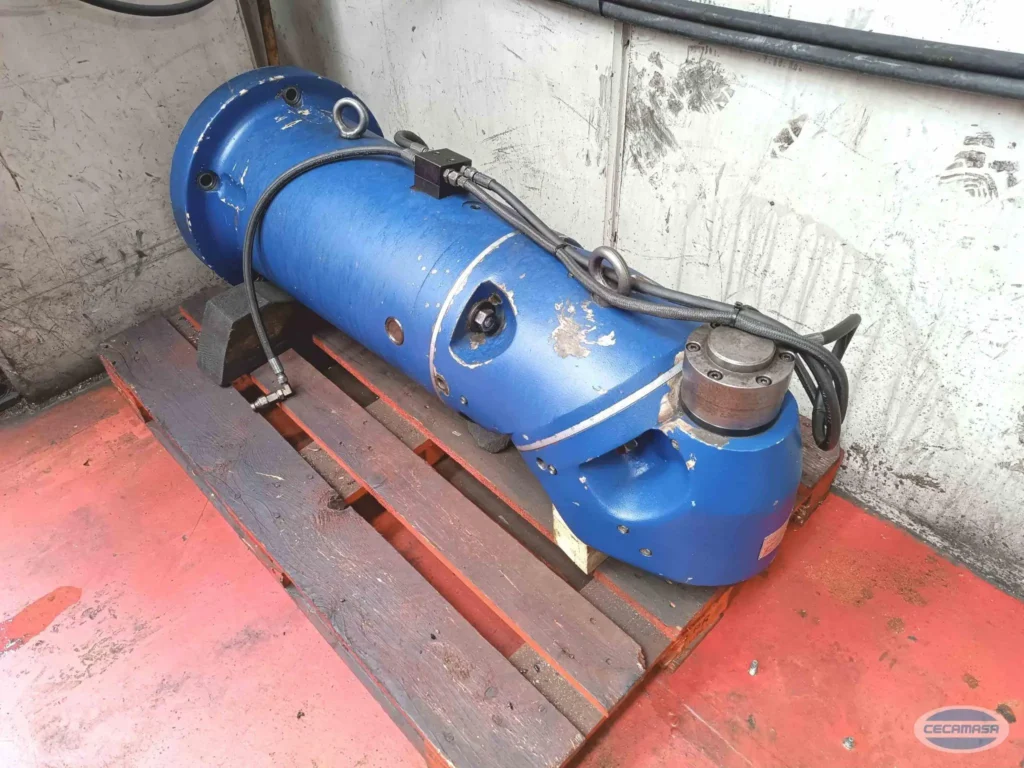

Cabezal huron manual
LAN-BAT

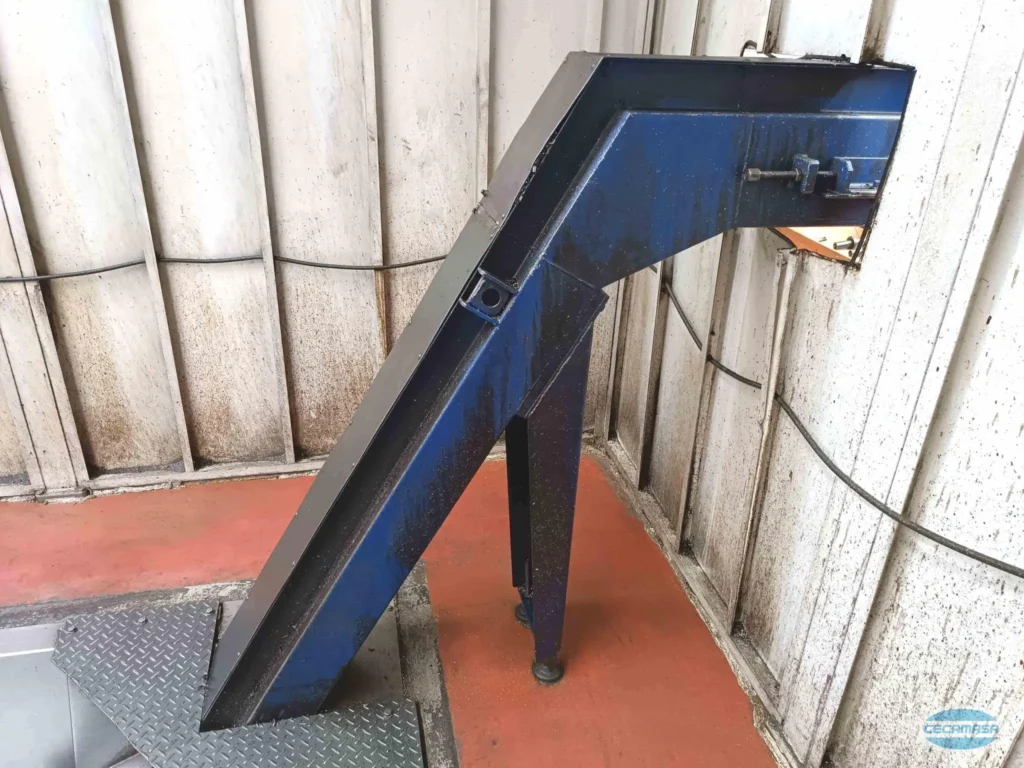

Chip extractor:
Yeah

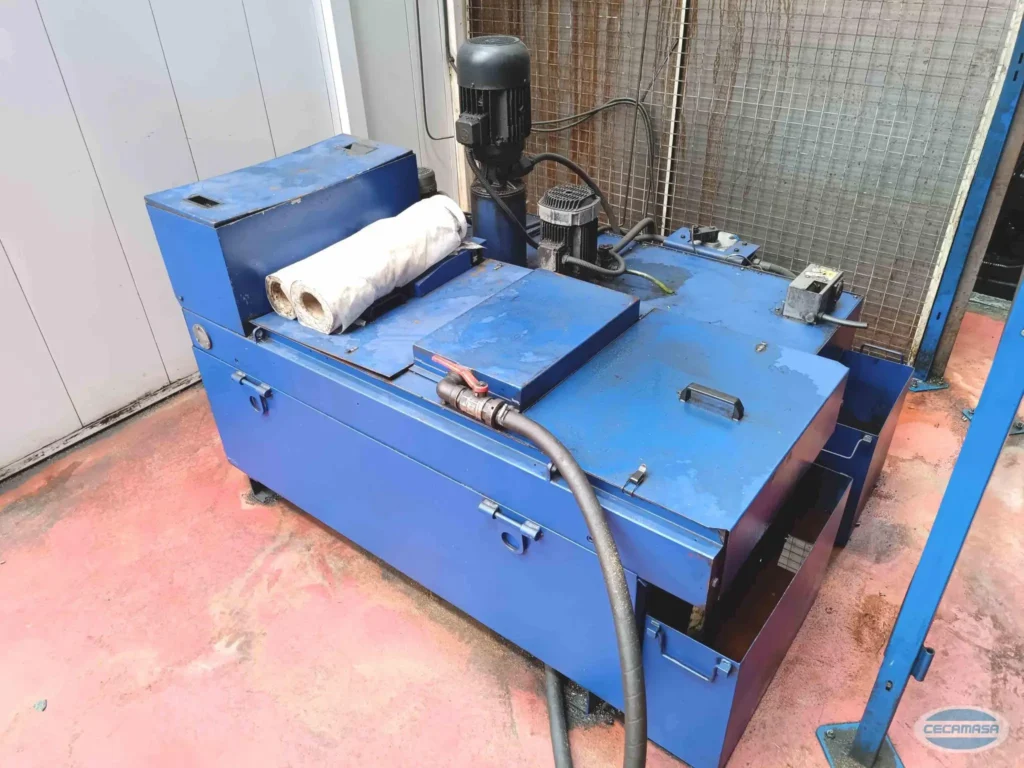

Internal cooling:
20 bares, con filtro de papel

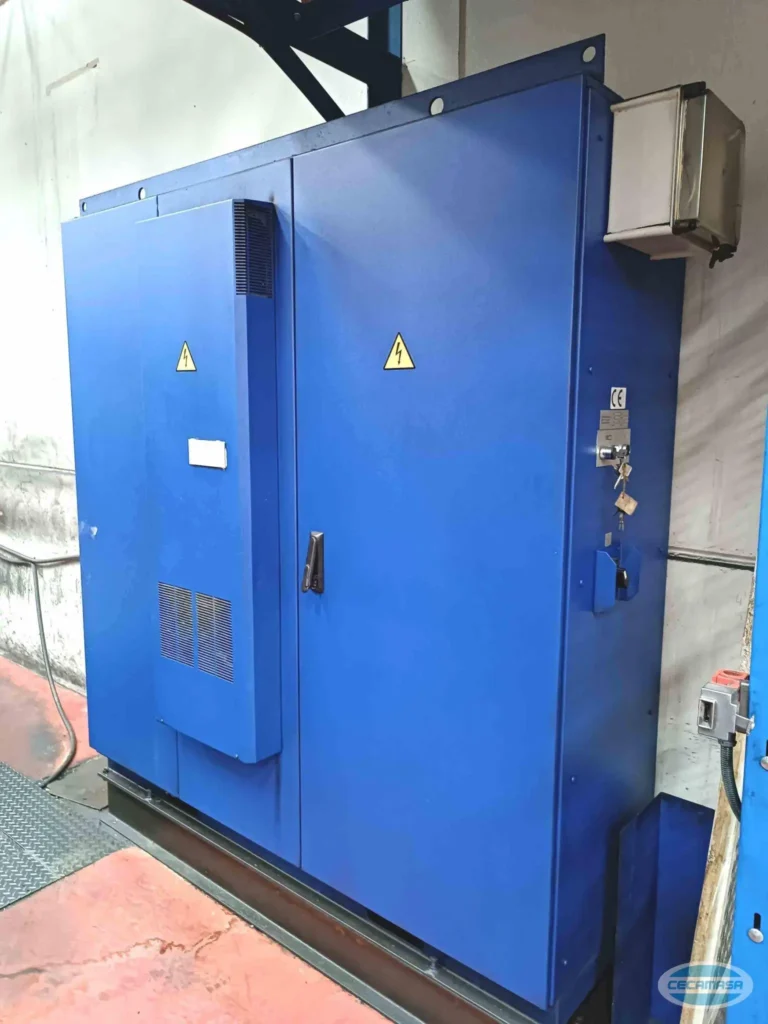

Refrigeración en el armario eléctrico:
Yeah

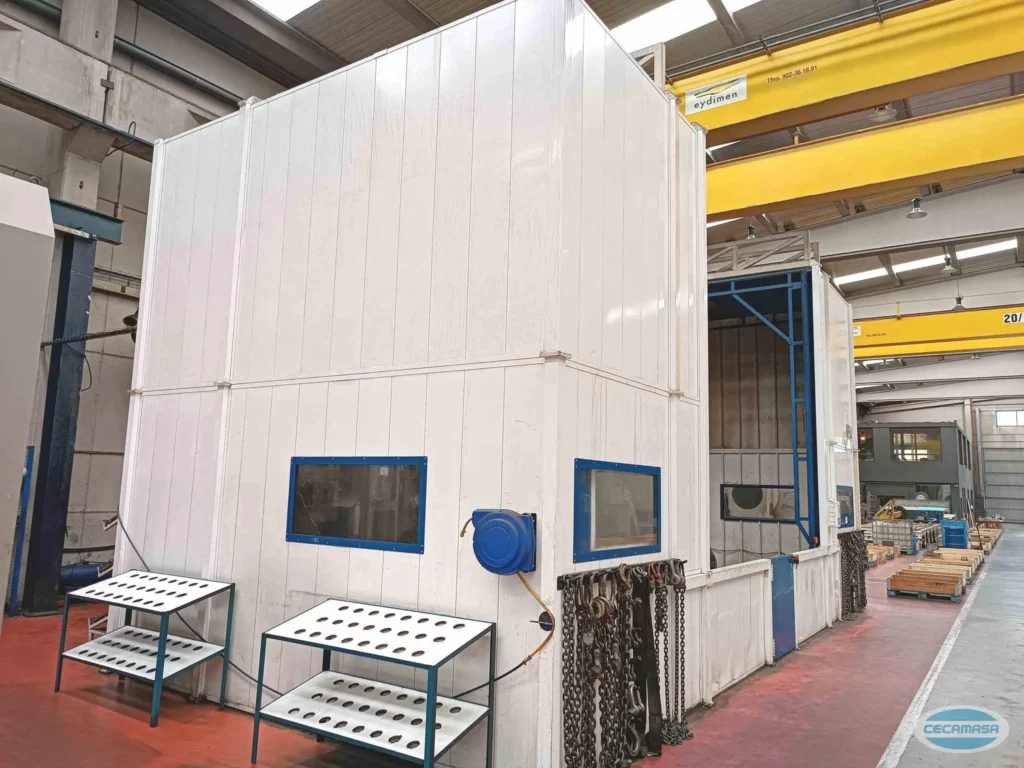

Perimeter fairing
Yeah

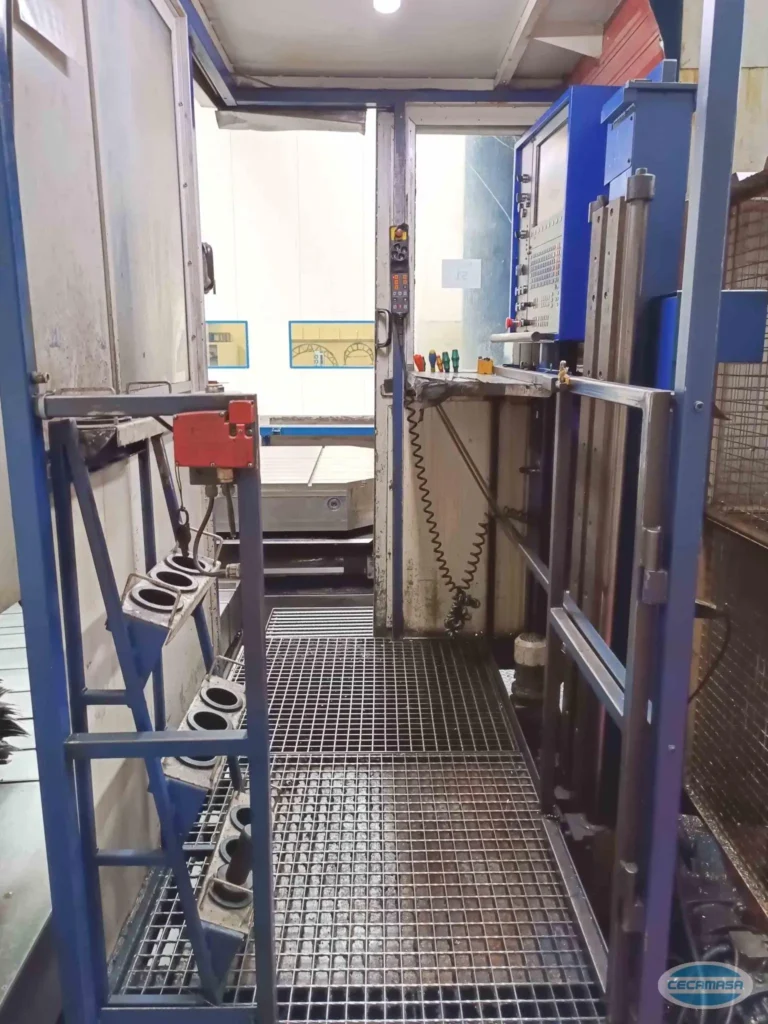

Plataforma elevadora:
Yeah

Complete technical sheet (PDF)

TOS 5-axis horizontal boring machine

¿Necesita más información sobre esta mandrinadora TOS WHQ 13 CNC de segunda mano?

Contact us and we will inform you without any type of commitment about this mandrinadora horizontal TOS. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: machining centers, cylinders, shears, folders, etc.

You can contact us through:
cecamasa@cecamasa.com
+34 935 730 225
+34 678 66 35 84

Price to consult

VAT not included · Transport to be negotiated

Request information and price
direct WhatsApp
+34 935 730 225

Key data

Type: Mandrinadora

Mark: TOS

Model: WHQ 13 CNC

Year of manufacture: 2008

Reference: 240-S053
