Sold
Ref: 075-X018

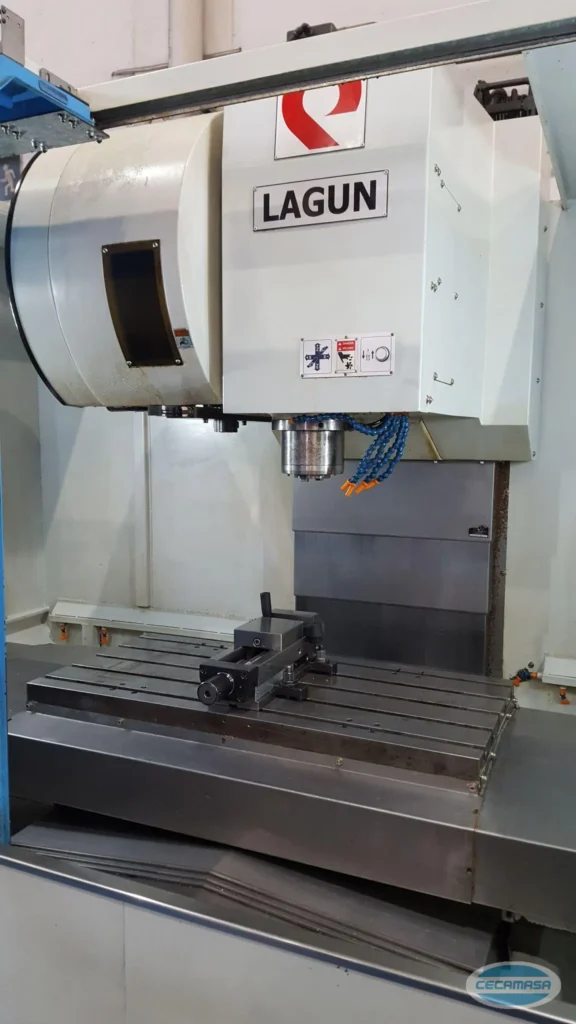

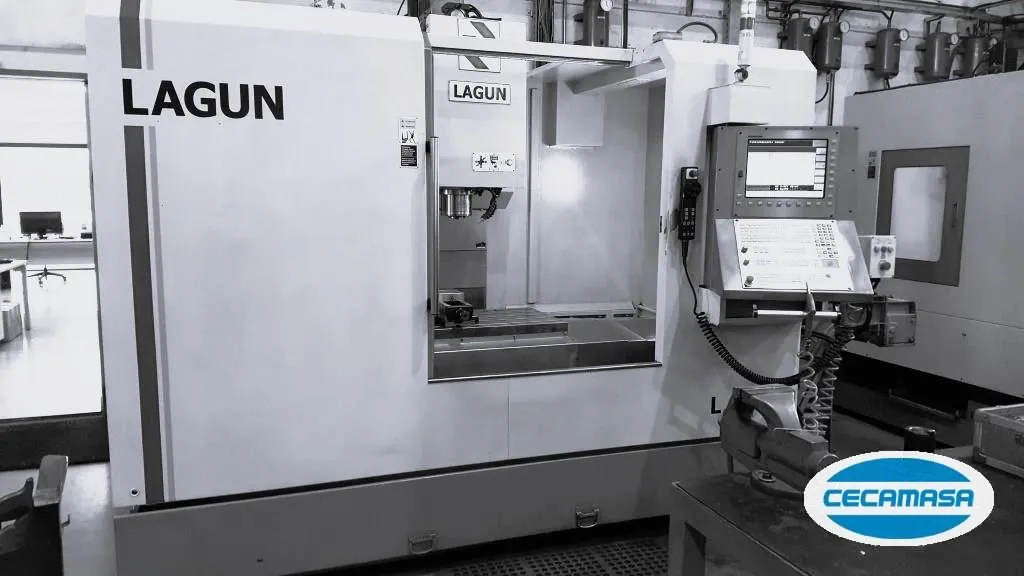

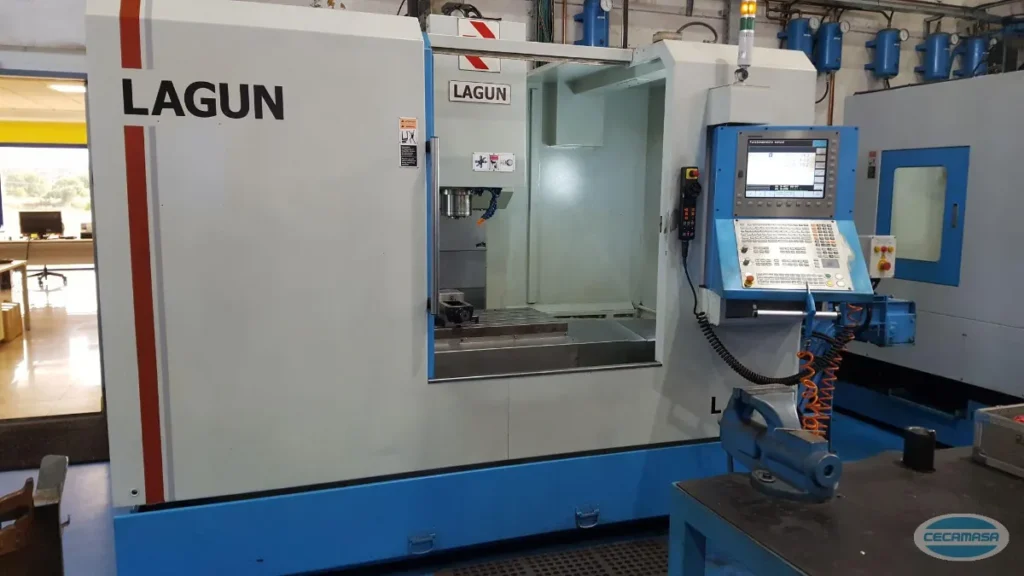

LAGUN L-1000 machining center

· Year 2014

1030 mmX Axis Travel
530 mmY Axis Travel
540 mmZ Axis Travel
8.000 rpmRevolution range
Mesa:
1070 x 510 mm
Number of T slots:
5
Medidas ranuras T:
18 mm
Max weight on table:
700 kgs
X Axis Travel:
1030 mm
Y Axis Travel:
530 mm
Z Axis Travel:
540 mm
Milling spindle cone:
ISO BT-40
Revolution range:
8.000 r.p.m.
Power:
11/15.5 Kw
Distancia min-máx del husillo a la mesa:
135-675 mm
Fast forwards:
30.000 mm/min
Approximate machine weight:
6.200 kgs
Machine dimensions:
2875x2160x2714 mm
Year:
2014

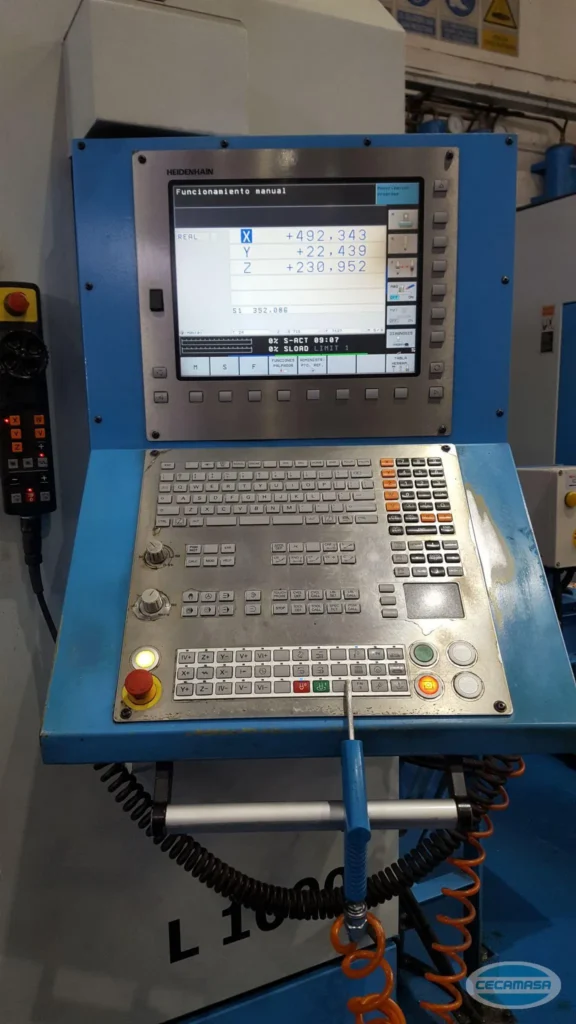

Control:
HEIDENHAIN iTNC 530
Electronic steering wheel:
HEIDENHAIN HR-410
Charger:
24 tools

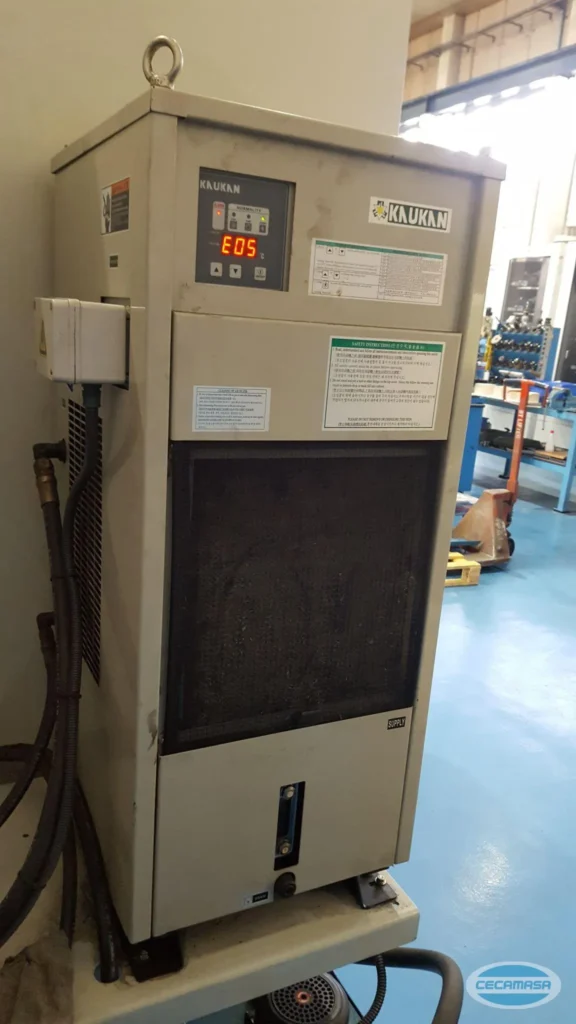

Equipo de climatización:
SCHNEIDER en armario eléctrico

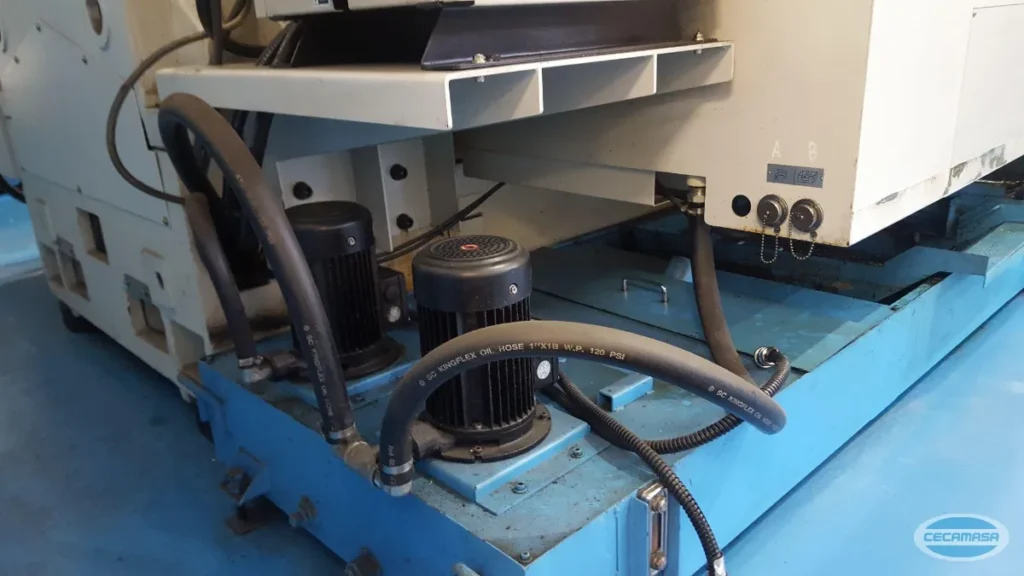

Chip extractor:
Yeah
Preparación 4º eje
Mordaza

Complete technical sheet (PDF)

LAGUN L-1000 machining center

Información sobre el centro de mecanizado vertical LAGUN L-1000 usado

La gran ventaja de este centro de mecanizado vertical LAGUN L-1000 es que se trata de un máquina muy moderna, fabricada en 2014, y que está en muy buen estado. Los centros de mecanizado LAGUN se caracterizan por la extraordinaria rigidez de estructura, su diseño compacto y ergonómico. Otra de sus grandes ventajas es sin duda su velocidad de producción.

En cuanto a su equipamiento, además del cargador RANDOM de 24 herramientas, el extractor de virutas, el equipo de refrigeración en el armario eléctrico, lo más importante y lo que le genera un gran valor añadido es contar con un control numérico HEIDENHAIN iTNC 530. Asimismo, va equipado con una mordaza.



¿Necesita más información sobre este centro de mecanizado LAGUN L-1000 de segunda mano?

Contact us and we will inform you without any type of commitment about this centro de mecanizado LAGUN L-1000. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: conventional milling machines, CNC milling machines, conventional lathes, CNC lathes, grinding machines, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225

Price to consult

VAT not included · Transport to be negotiated

Key data

Type: Machining Centers

Mark: friend

Model: L-1000

Year of manufacture: 2024

Reference: 075-X018
