A stock
Ref: 075-C008

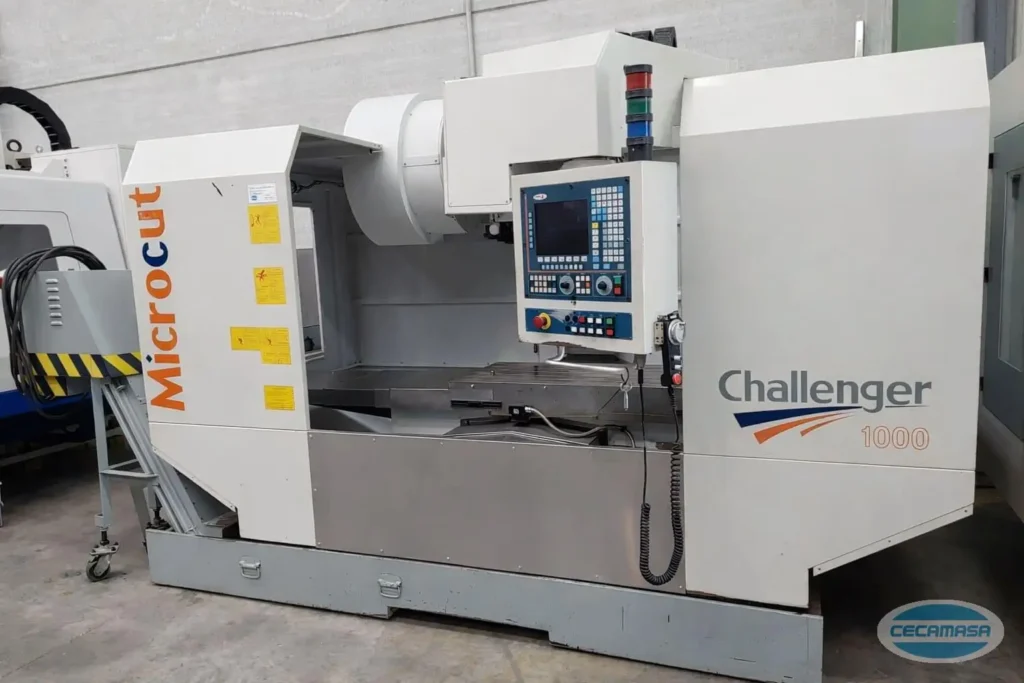

MICROCUT VM-1000 (Y600) machining center

· Año 2004

1000 mmX Axis Travel
600 mmY Axis Travel
570 mmZ Axis Travel
8000 rpmSpeed

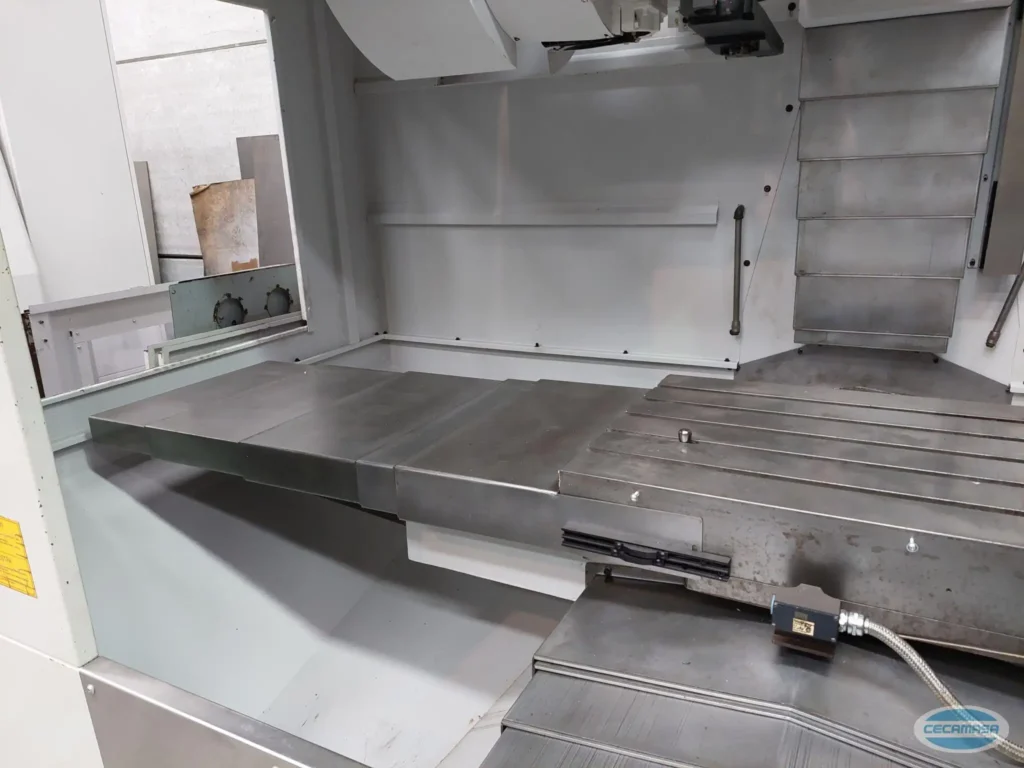

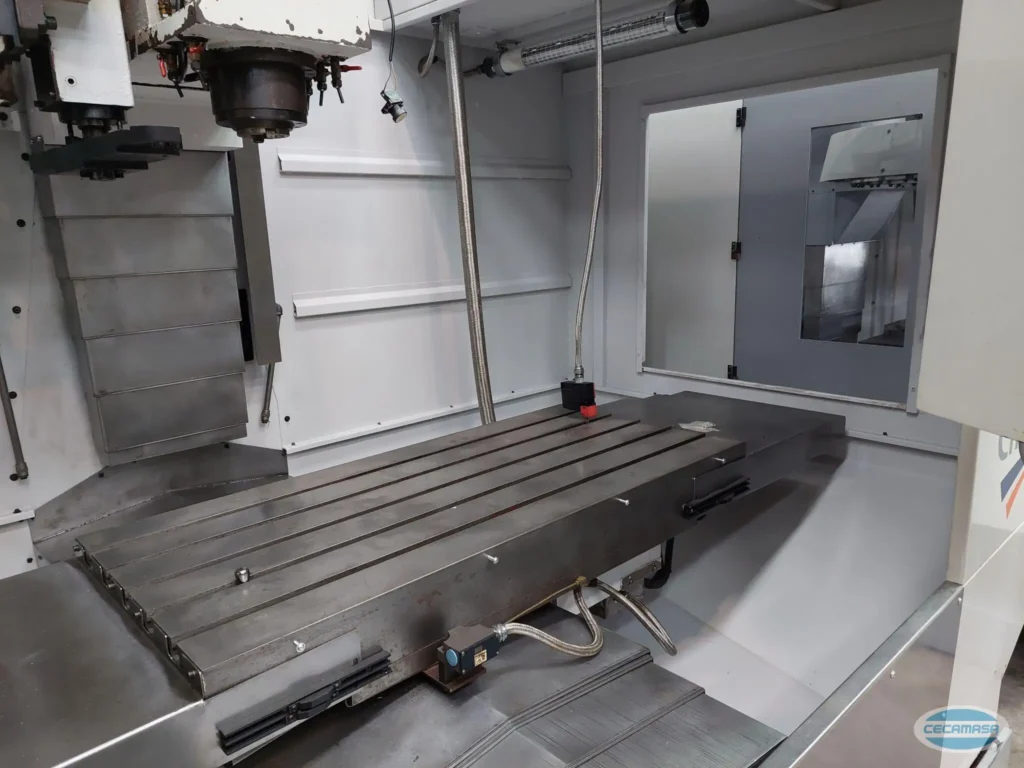

Mesa:
1200x500 mm
Max weight on table:
1200 Kgs
X Axis Travel:
1000 mm
Y Axis Travel:
600 mm
Z Axis Travel:
570 mm
Spindle taper:
ISO-40
Speed:
8000 rpm
Avance de trabajo (X,Y,Z):
8 m/min
Avance rápido (X,Y,Z):
24 m/min
Approx machine weight:
5000 kgs
Machine dimensions:
3240x1950x2413 mm
Equipped with:

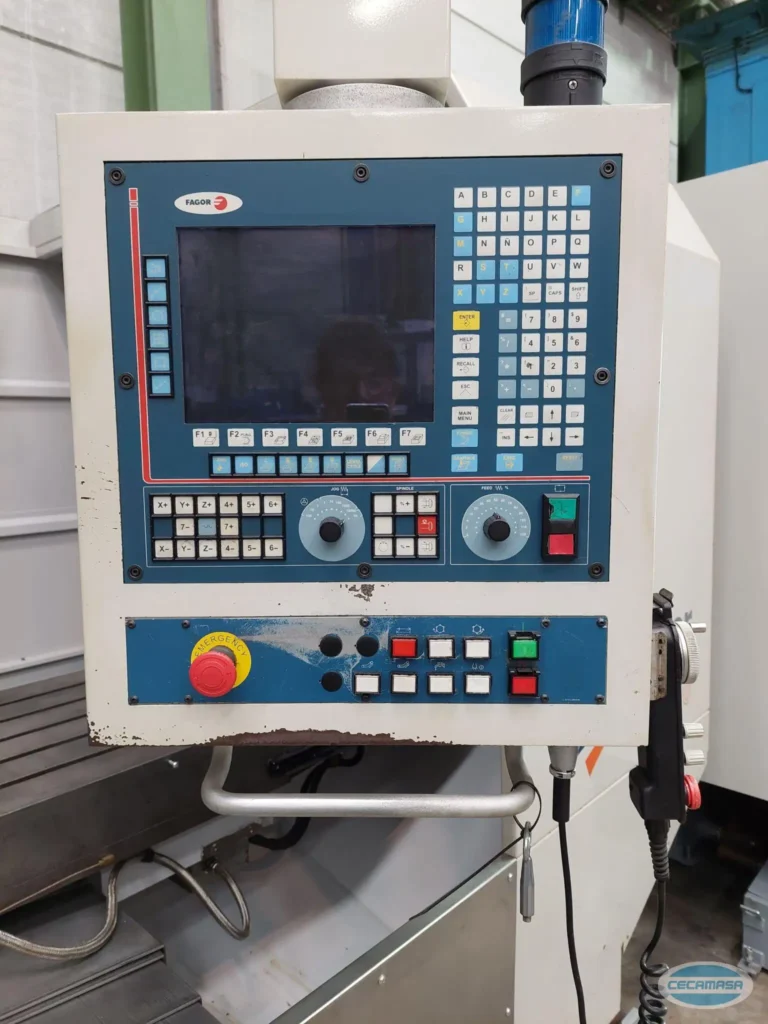

Control:
FAGOR 8055
Electronic steering wheel:
FAGOR
Tool charger:
24 htas
Chip extractor:
Yeah
Hydraulic clamp:
Boca 200 mm

Complete technical sheet (PDF)

MICROCUT VM-1000 (Y600) machining center

Especificaciones del centro de mecanizado MICROCUT VM-1000 (Y600) de ocasión

Presentamos este centro de mecanizado MICROCUT VM-1000 (Y600) de segunda mano, fabricado en el año 2004 y equipado con el control FAGOR 8055. Con una mesa de 1200×500 mm capaz de soportar hasta 1200 Kgs, ofrece recorridos de 1000 mm en el eje X, 600 mm en el eje Y y 570 mm en el eje Z. Además, cuenta con un cono del husillo ISO-40, lo que lo convierte en una máquina ideal para una amplia gama de aplicaciones de mecanizado de alta precisión. Se encuentra en óptimas condiciones de funcionamiento y disponible para entrega inmediata en nuestro stock de maquinaria industrial usada.

¿Necesita más información sobre este centro de mecanizado MICROCUT VM-1000 (Y600) de segunda mano?

Contact us and we will inform you without any type of commitment about this centro de mecanizado vertical. If you wish, you can also visit our facilities located in Parets del Vallés (Barcelona), where we have all types of new and used industrial machinery: conventional milling machines, CNC milling machines, conventional lathes, CNC lathes, grinding machines, etc.

You can contact us through:

cecamasa@cecamasa.com
+34 935 730 225
+34 678 66 35 84

Price to consult

VAT not included · Transport to be negotiated
