Information of the used FORADIA MT 75-2000 radial drill
Foradia is a Spanish manufacturer of radial drills. This company based in the city of Alcoy (Alicante) began to manufacture and design drills in 1952. Thus, it has a long professional career in the sector.
The radial drill is a very versatile machine since, as its name suggests, it can work on different radii. It can also cover different works.

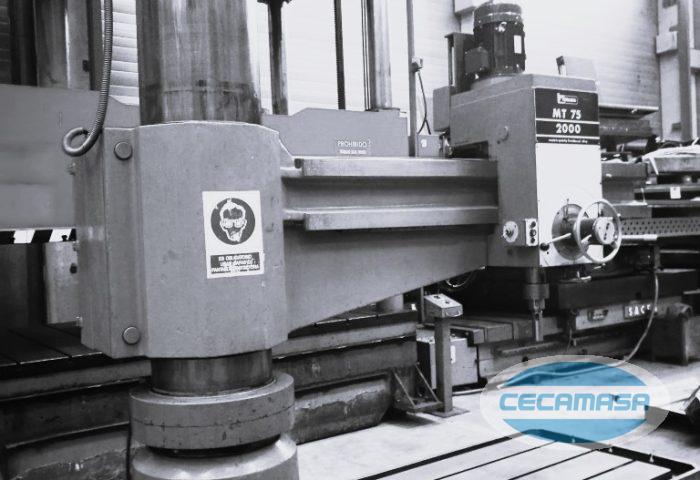

At CECAMASA we currently have a second hand FORADIA radial drill, model MT75-2000. As the model name indicates, 2000 stands for the distance of the arm and it can span a diameter of 4000 mm. On the other hand, 75 is the maximum diameter of the drill, that is, 75 mm. Another aspect to highlight about this second-hand drill is that it has hydraulic clamping and does not lose the center. This means that we can change the bit, for example, we can put a 30 mm bit and then a 50 mm bit and we never lose the center in the drilling of the piece that we need to do.
Technical features of the second hand FORADIA MT 75-2000 radial drill
Reference: | 193-U009 | |
Drill bit: | 75 mm | |
Arm: | 2.000 mm | |
Vertical travel of the arm: | 905 mm | |
Longitudinal head travel: | 1.640 mm | |
Spindle taper: | Morse 5 | |
Speeds: | 30 a 1.400 rpm | |
Clamping: | hydraulic | |
Engine power: | 10 CV | |
Approx machine weight: | 7.000 Kgs | |
Machine dimensions: | 3250x1570x3250 mm | |
Equipped with: | ||
Cube table: | 1450x1000x500 mm with threaded holes |
Need more information about this used FORADIA MT 75-2000 radial drill?
Contact us and we will inform you without any commitment on this FORADIA MT 75-2000 radial drill. Please feel free to visit our facilities located in Parets del Vallés (Barcelona), where we have all kinds of new and used industrial equipment: machining centers, conventional lathes, CNC lathes, cylinders, shears, etc.
You can reach us via:
cecamasa@cecamasa.com
+34 935 730 225
Machine available, subject to prior sale.
The data without the obligation, may be changed without notice.
Information
Type: Radial Drills
Brand: FORADIA
Model: MT 75-2000
