HIDRO-PRECIS GER.
Model S15/65
Table 1800 x 550 mm.
Travels 1660x800x600 mm.
Max. allowed weight on table 1700 kg.
Height from the center axis to the table 800 mm.
Wheel 400 x 50 x 127 mm.
Rapid speed 25 m/min
Cross rapid advance 2.25 m / min
Motor 5,5 CV.
Machine dimensions 4580x5075x2250 mm.
Weight 6700 kgs.
Equipped with:
- Display FAGOR 102-2 axis
- 2 electromagnetic chucks 1500 x 650 mm
- 2 cooling equipment
- 2 automatic adjustable transverse advances.
- 2 Spindles holder-wheels
- 2 hydraulic equipment
- 2 standard wheels
- 2 plates holder-wheels
The data without the obligation, may be changed without notice.
Information

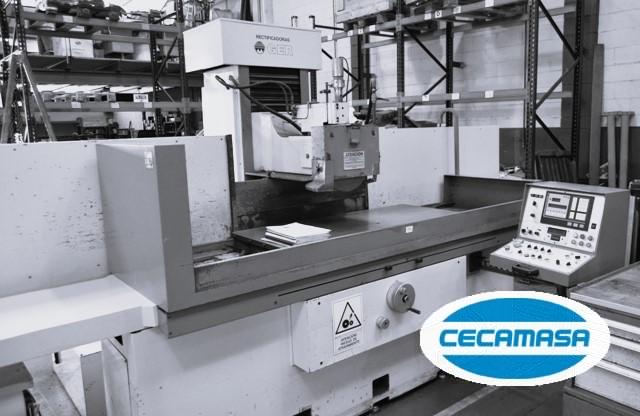

Type: tangential grinding machine
Brand: GER
Model: S15/65
