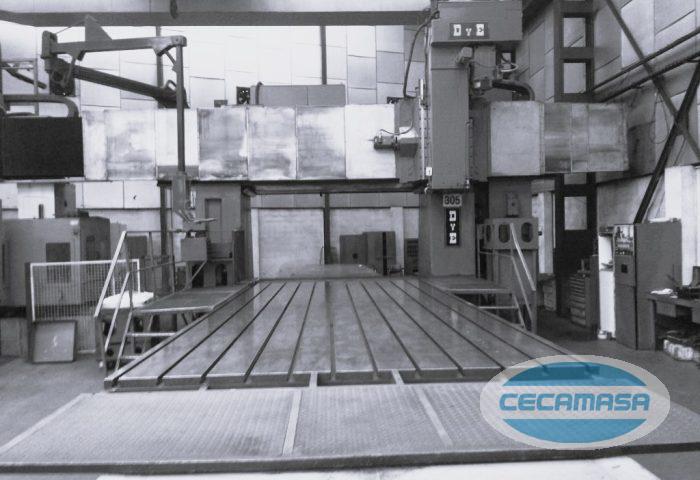

Gantry type milling machine and copier DYE.
Model FPF-N / C.
Table 7000 x 3000 mm.
Max. allowed weight on the table 20,000 kgs.
Travels:
- X 7.500 mm
- Y 4.000 mm
- Z 1.700 mm.
Distance between columns 3,500 mm
Spindle speed 4000 r.p.m.
Advances X, Y, Z to 10 m.
Power approx.90 Kw
Year 1995 (retrofitted in 2006)
Equipped with:
- CNC FIDIA control With remote control.
- Tool changer (adjustment outstanding)
- 2 heads: 1 vertical and other for lateral works (adjustment outstanding)
Machine available, subject to prior sale.
The data without the obligation, may be changed without notice.
Information
Type: Bridge milling machines
Make: DYE
Model: FPF-N / C
